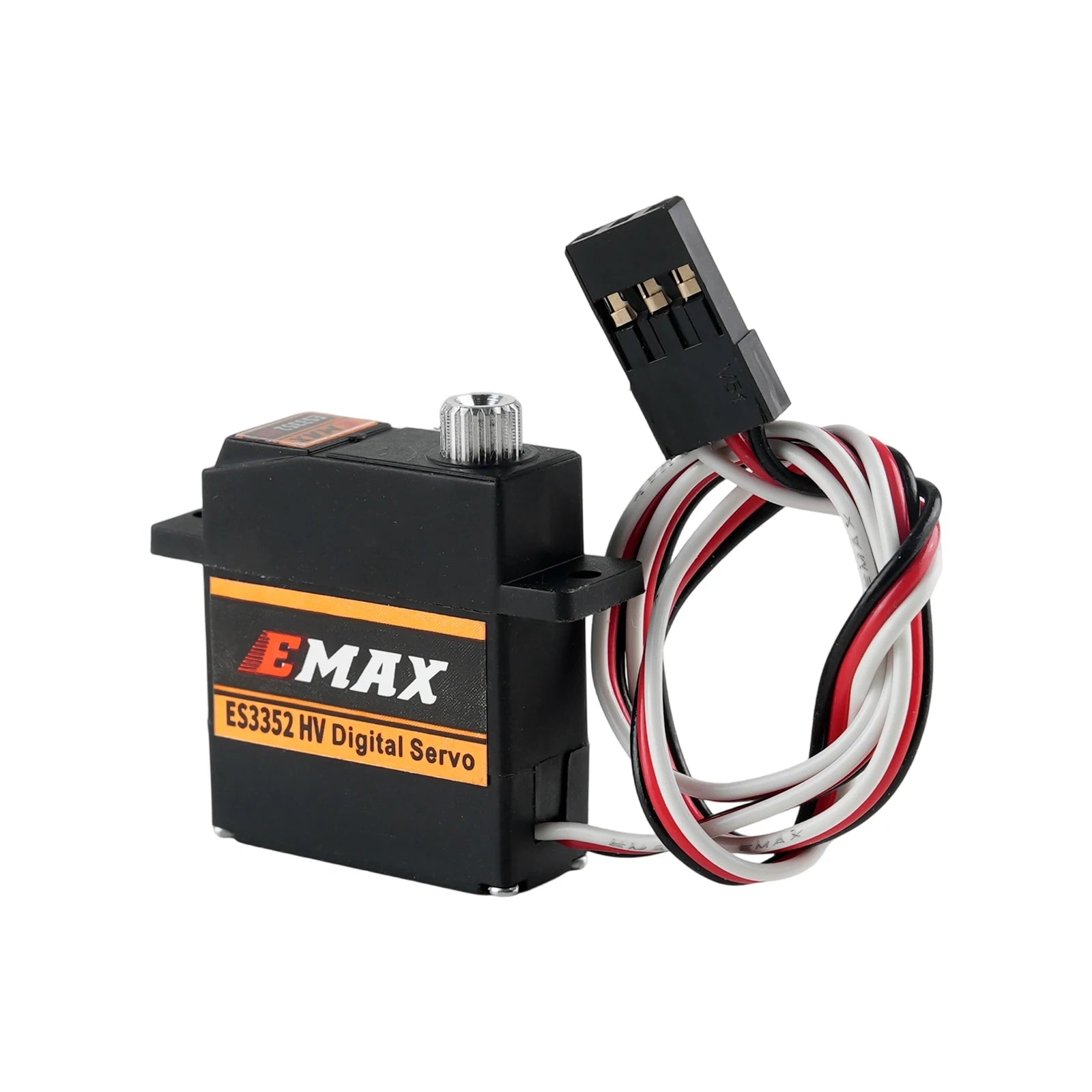

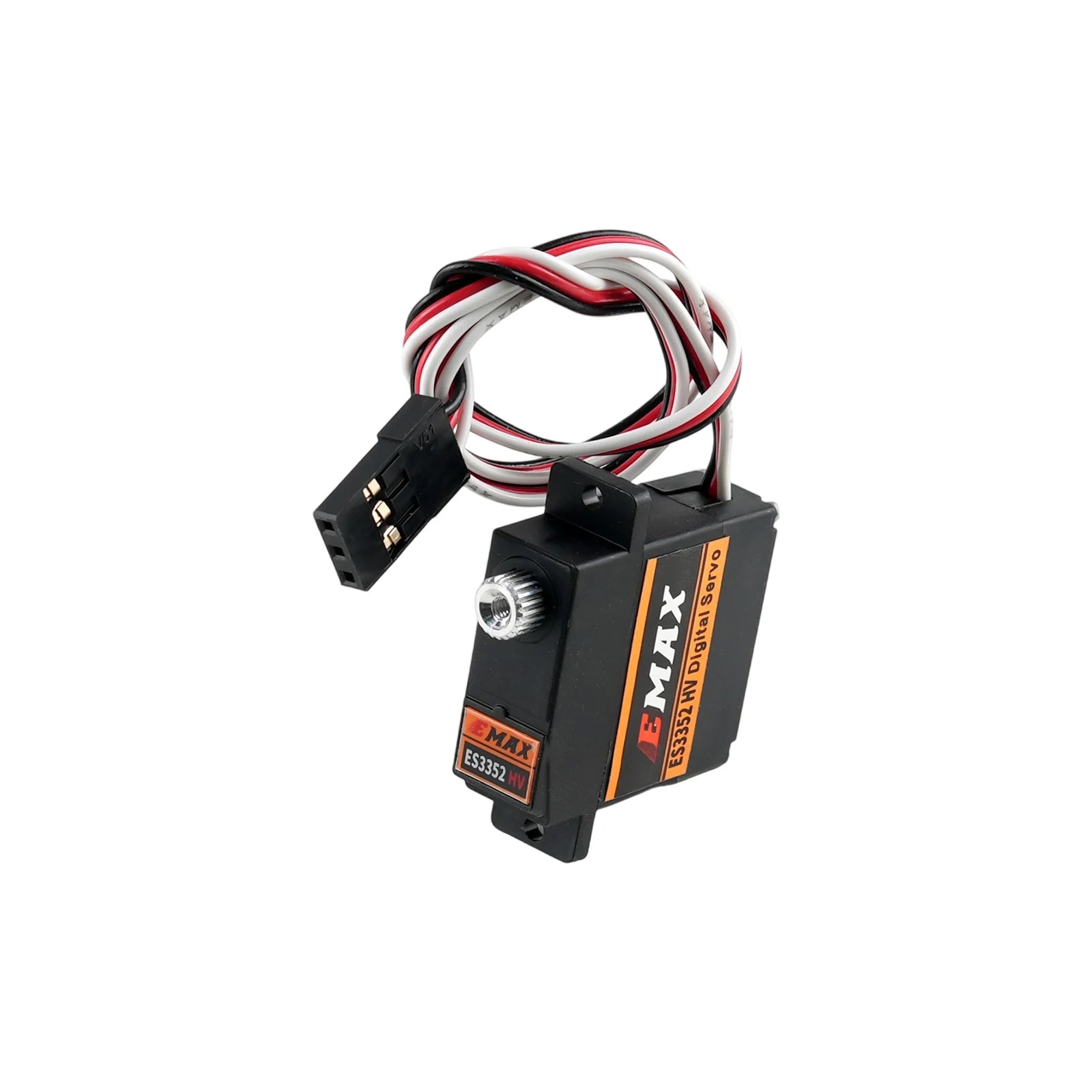

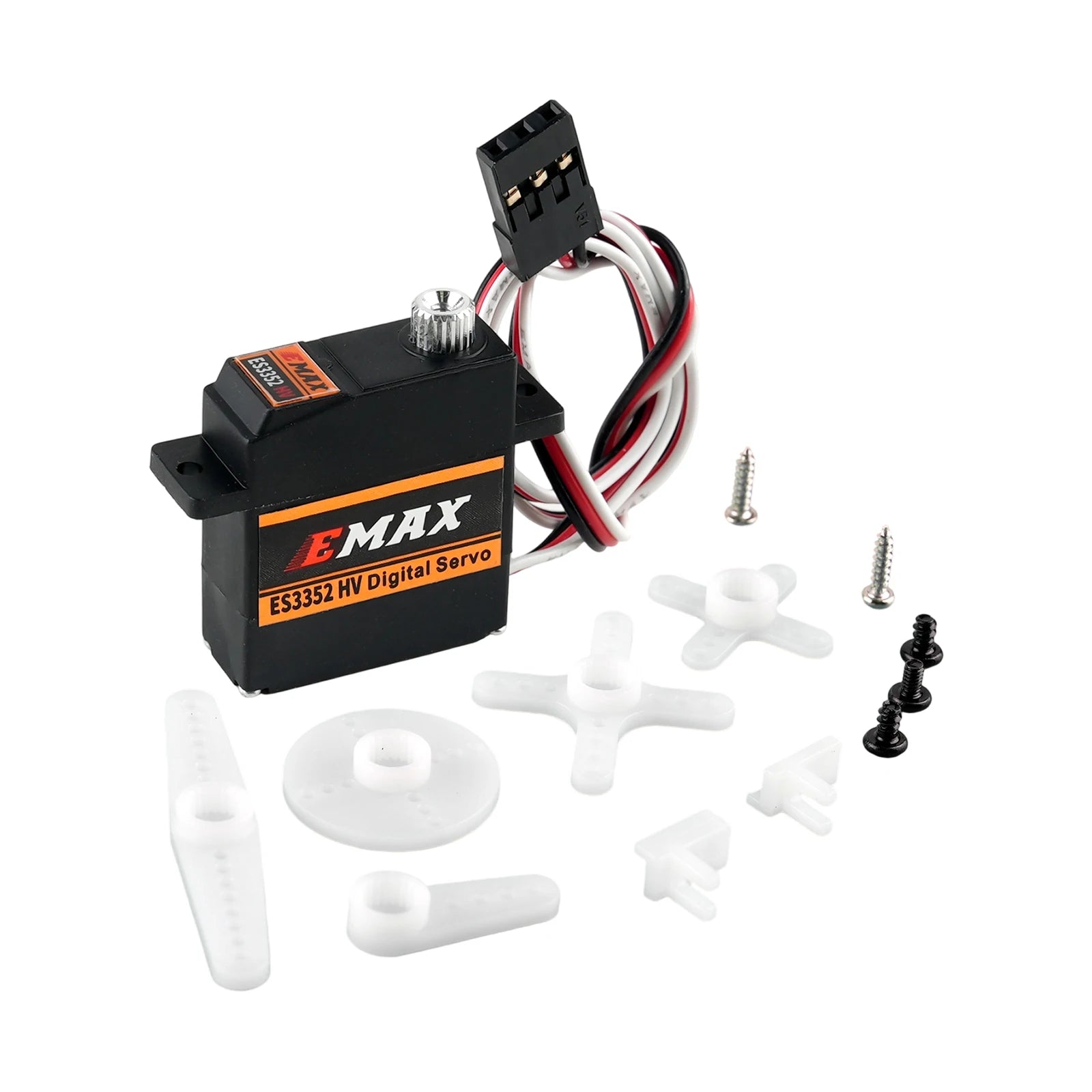

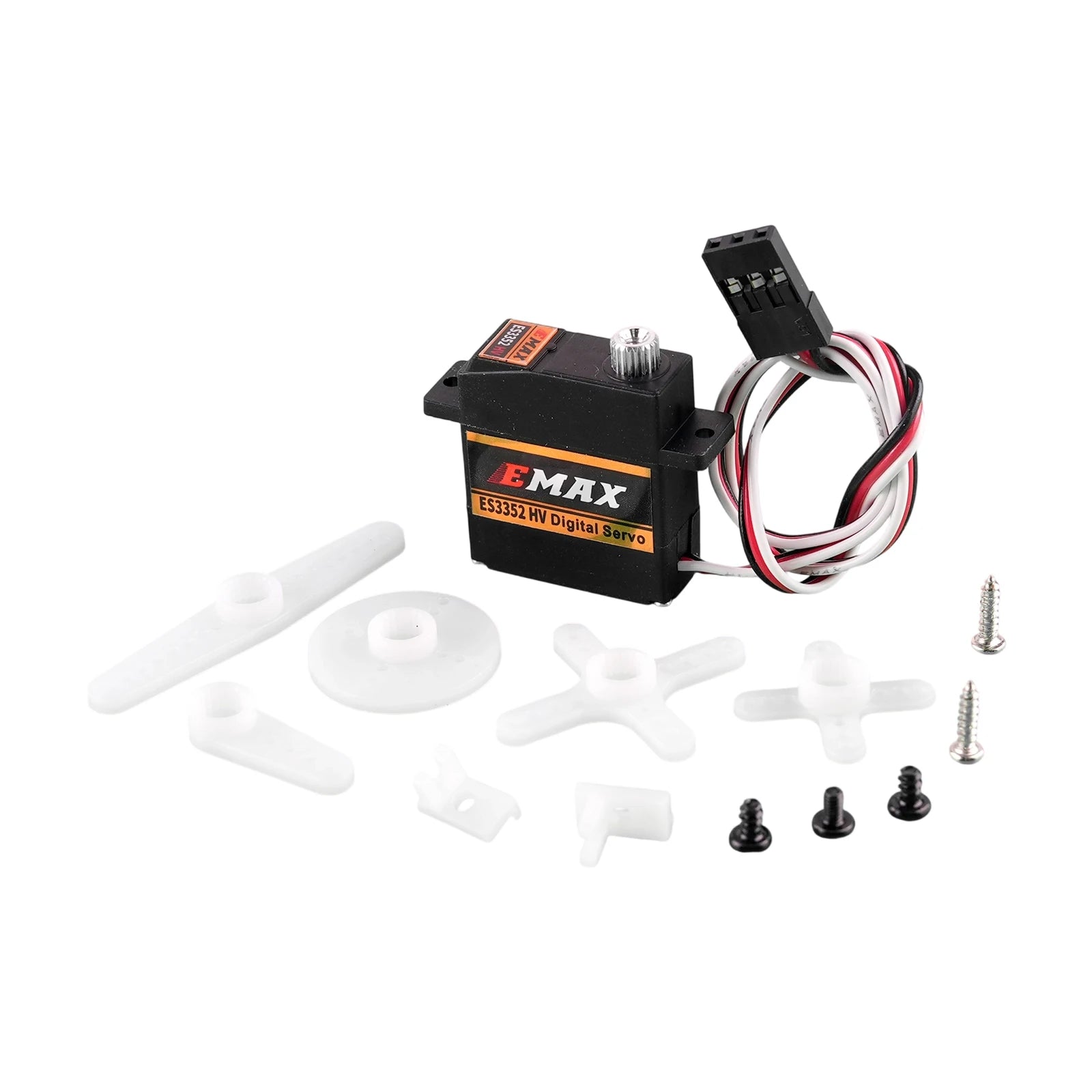

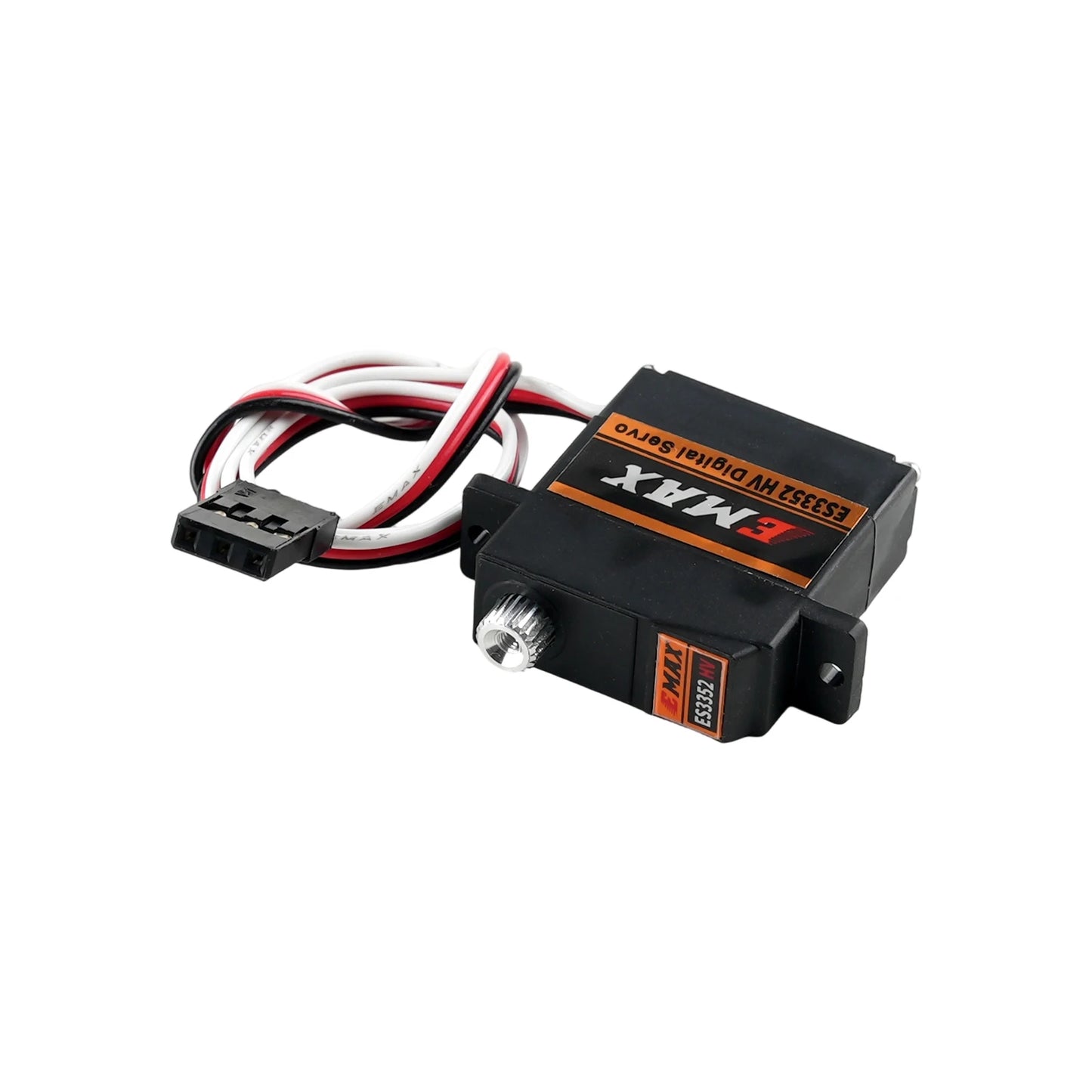

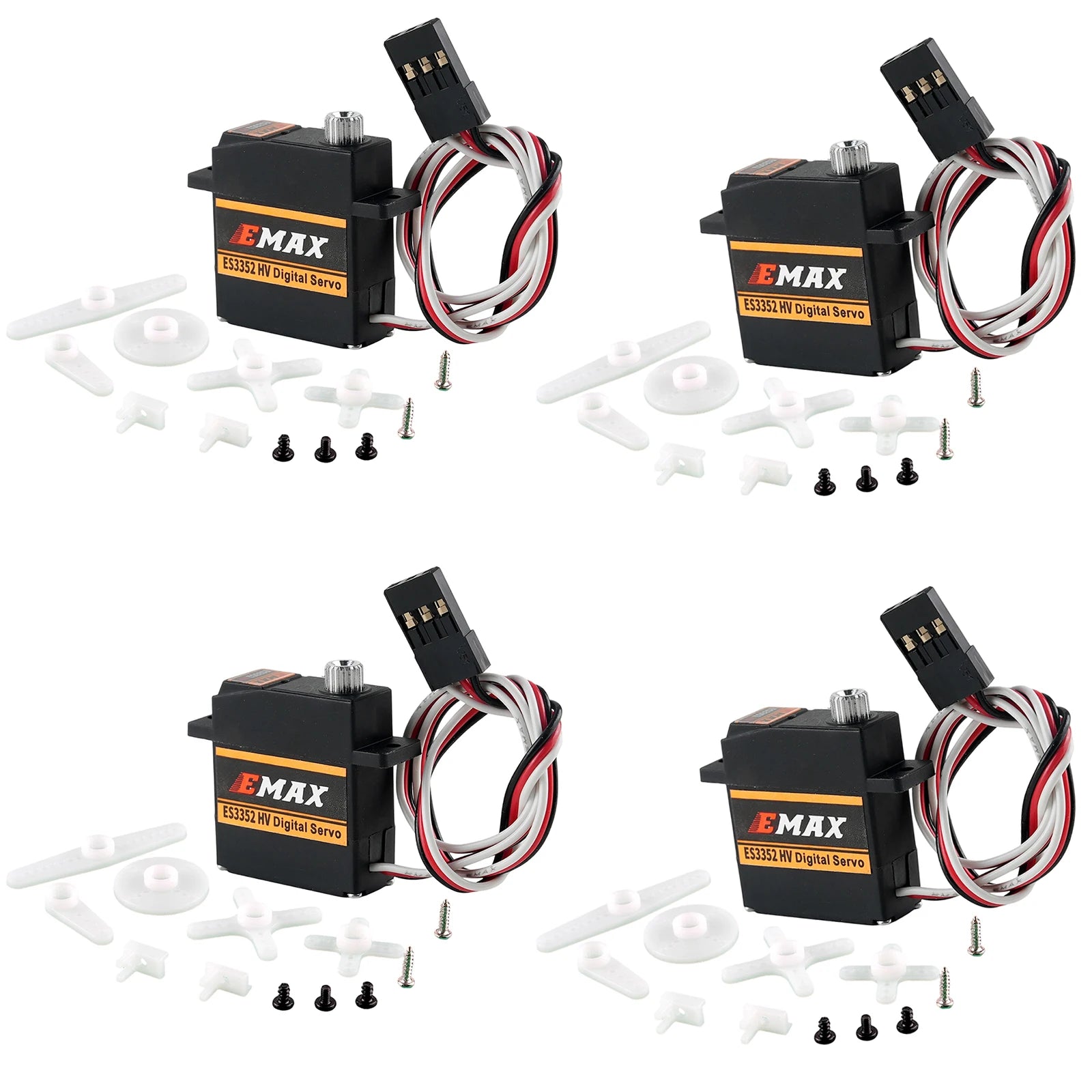

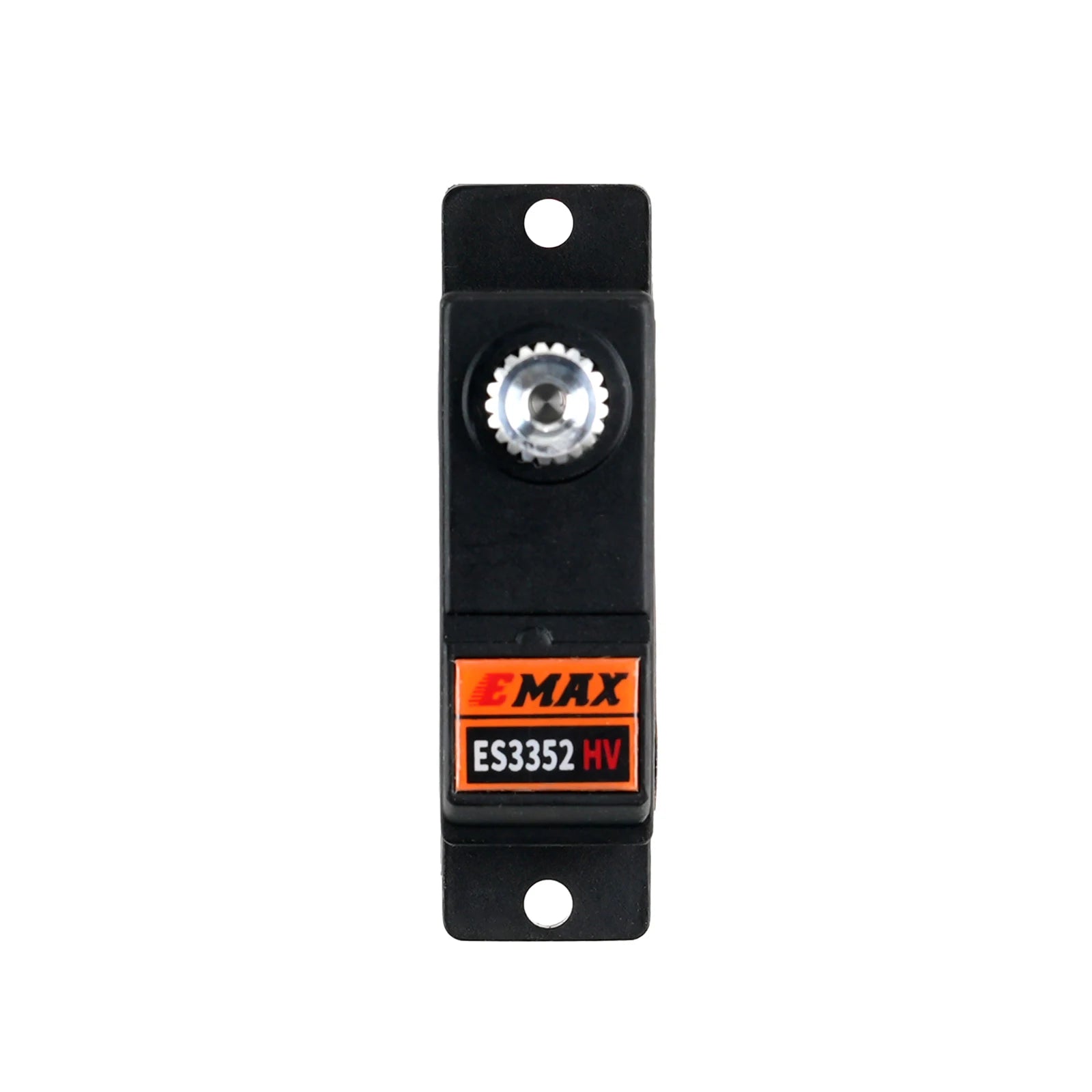

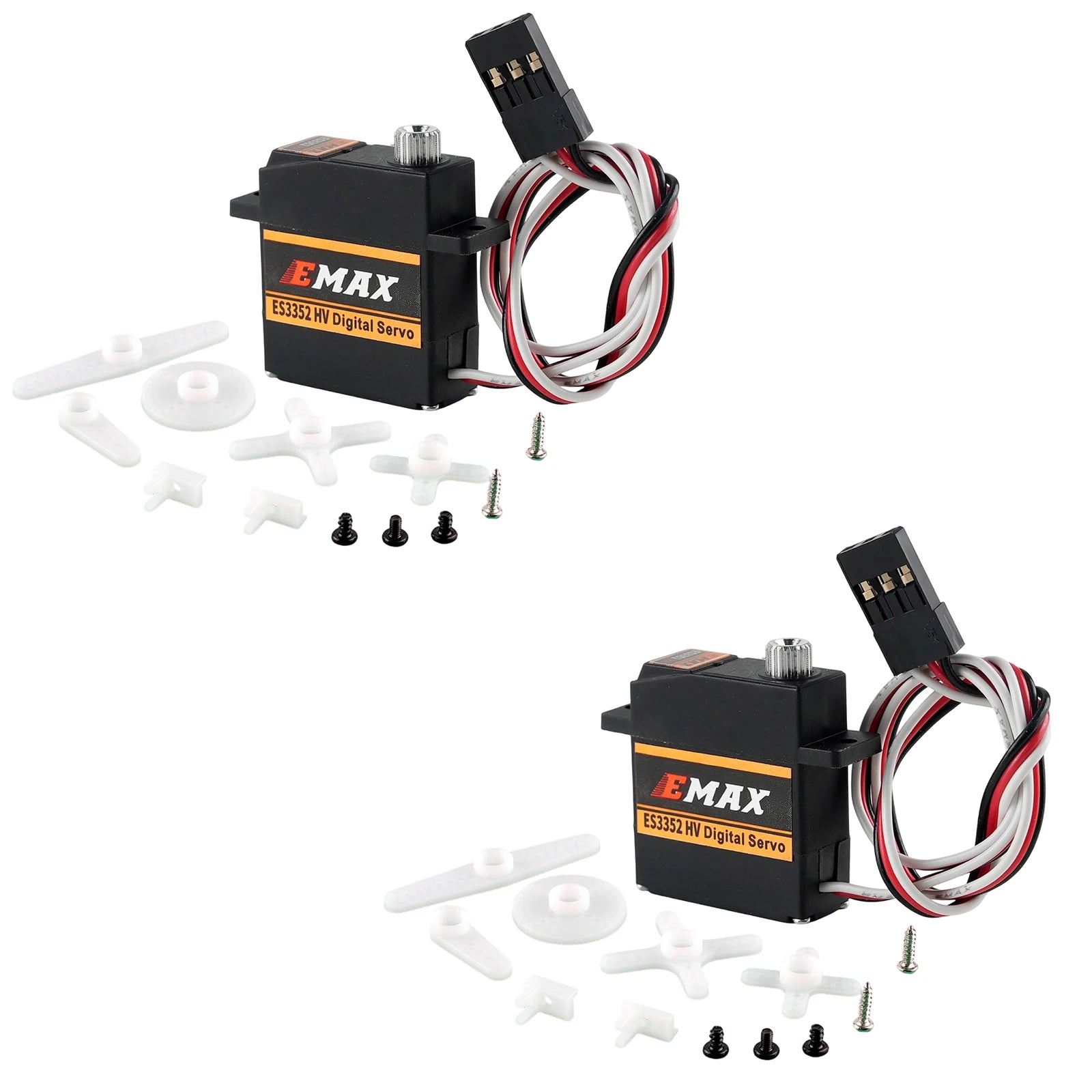

1/2/4 PCS EMAX ES3352 HV All-Purpose High Voltage 12G Metal Gear Digital Standard Servo For RC Robot Car Airplane Drone Model

Electrical Specification (Function of the Performance):
Operating Speed (at no load):
6.0V | 0.18 sec/60°
8.4V | 0.13 sec/60°
Running Current (at no load):
6.0V | 200mA Max
8.4V | 260mA Max
Stall Torque:
6.0V | 1.7kg.cm Max
8.4V | 2.4kg.cm Max
Maximum Current:
6.0V | 0.4A Max
8.4V | 0.6A Max
Idle Current:
6.0V | 9.5mA
8.4V | 9.5mA

Mechanical Specification:
Overall Dimensions: See Drawing Below
Weight: 12+1 g
Connector Wire Gauge: JR
Connector Wire Length: 250±8mm (W/O Connector)
Output Gear Spline: 23T
Bearing: 2BB
Gear Type: 4x Metal & 1x Plastic
Extreme Angle: 160°

Control Specification:
Control System: PWM
Operating Travel: 90° ±5°( when 1000-2000 μ sec )
Neutral Position: 1500 μ sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Pulse Width Range: 800-2200 μ sec
Maximum Travel: 125° ±8( 800-2200μ sec )

Features:
1. High Voltage: Operates efficiently with a wide range of voltage inputs, providing consistent performance.
2. Fast and Precise: Delivers quick and precise responses, enhancing the control of your RC toy.
3. Compact Size: The servo's compact design allows for easy installation and integration into various models.
4. Durables Construction: Built with high-quality materials, ensuring long-lasting durability and reliability.
5. Versatile Application: Suitable for a wide range of RC models, including airplanes, helicopters, and cars.
