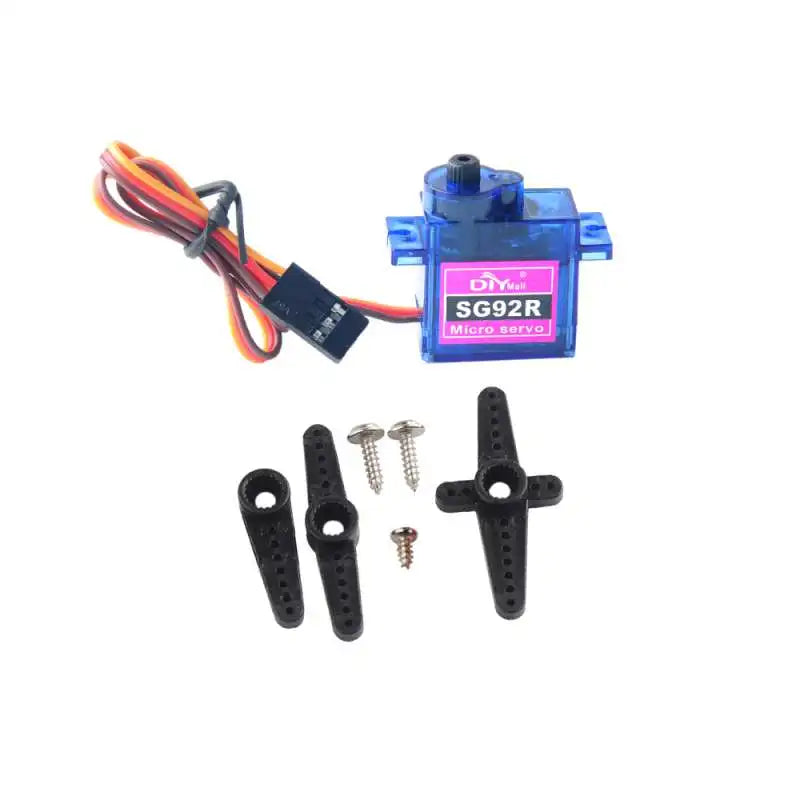

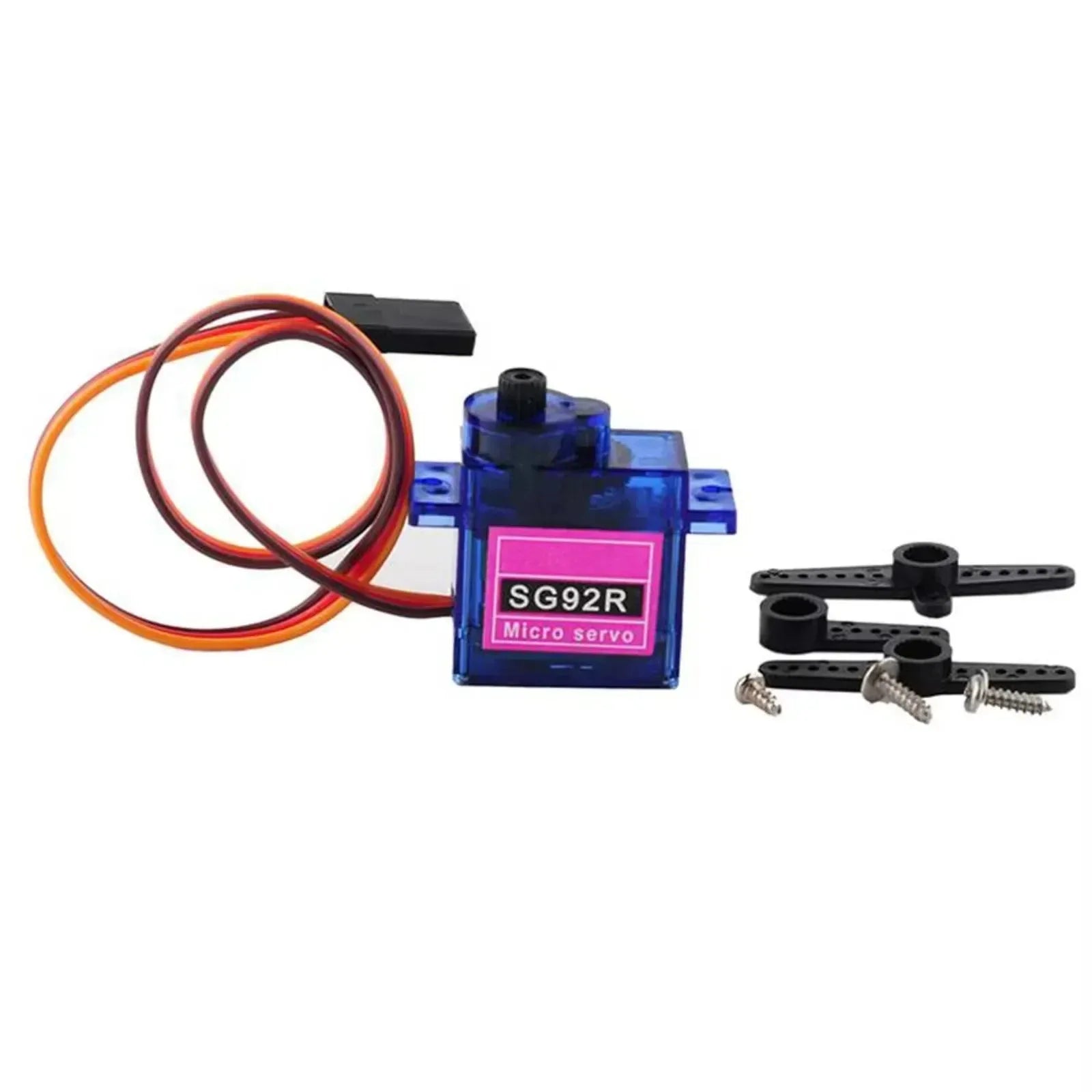

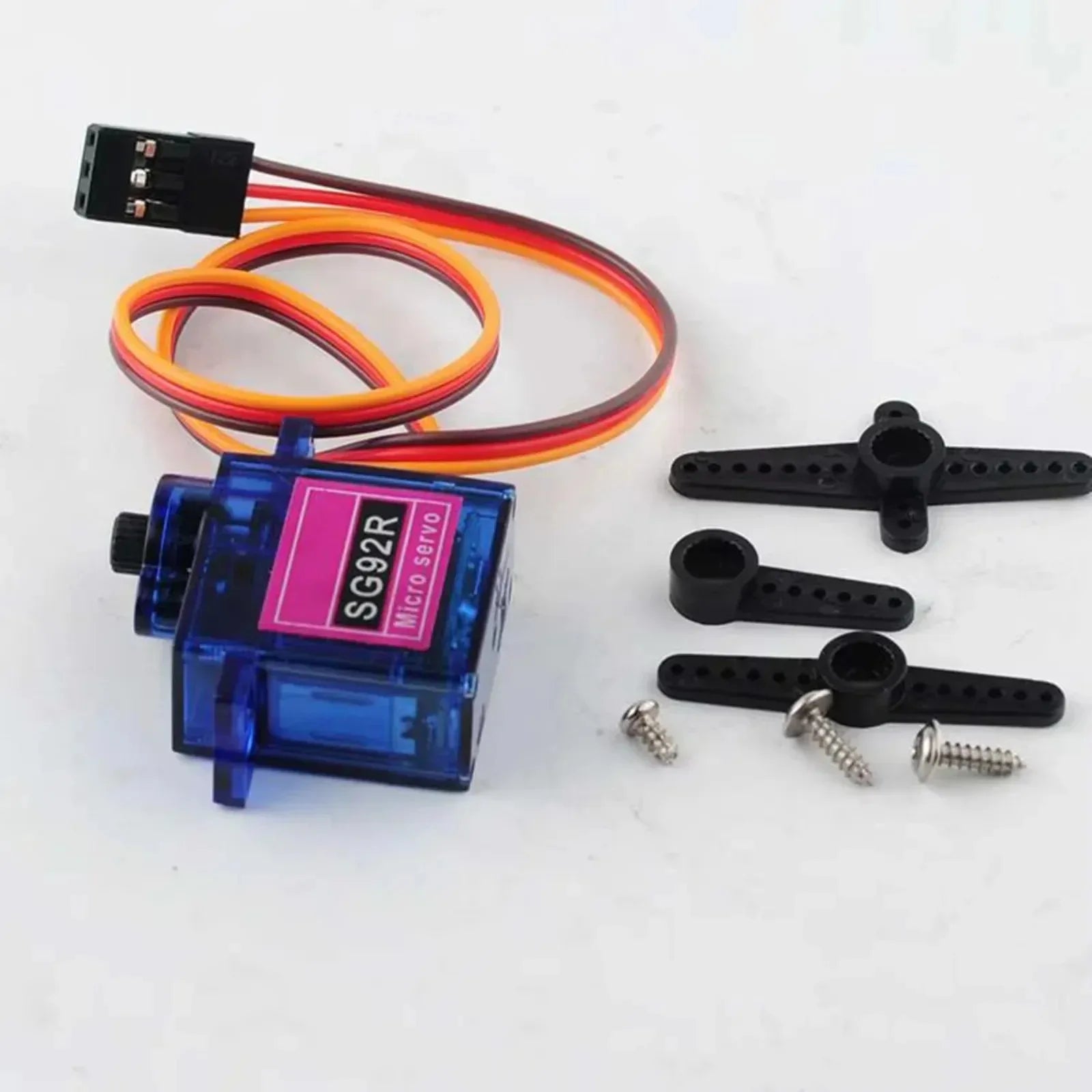

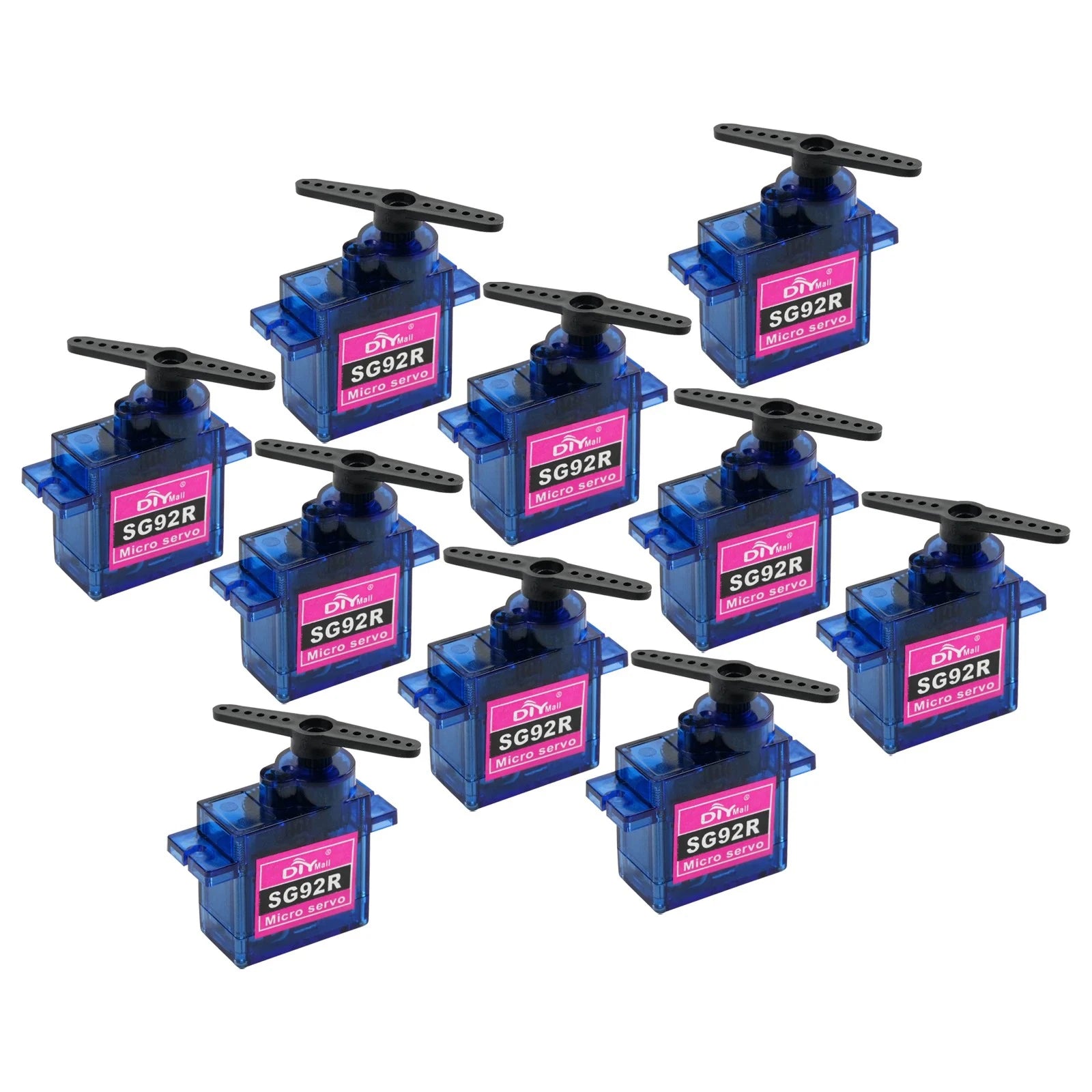

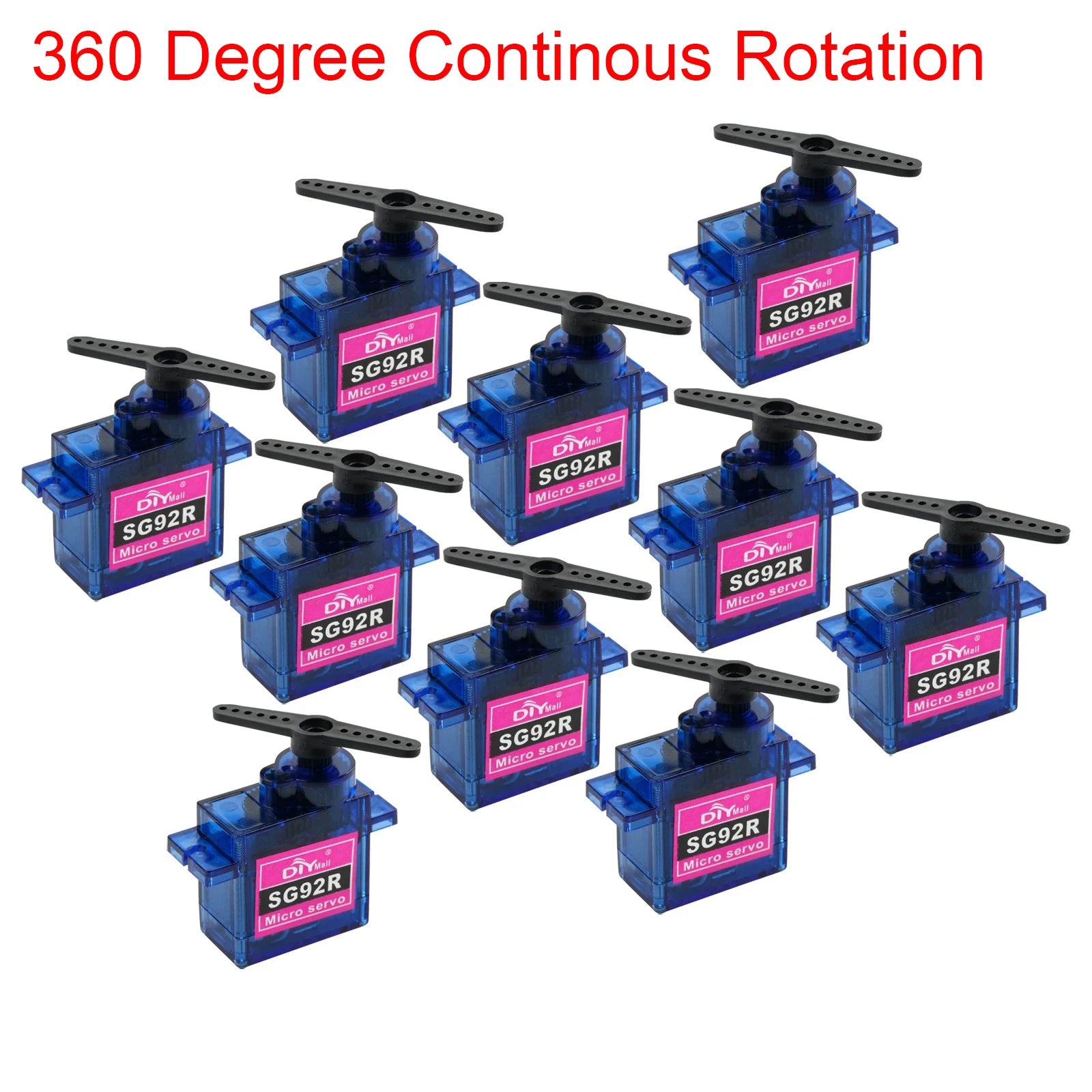

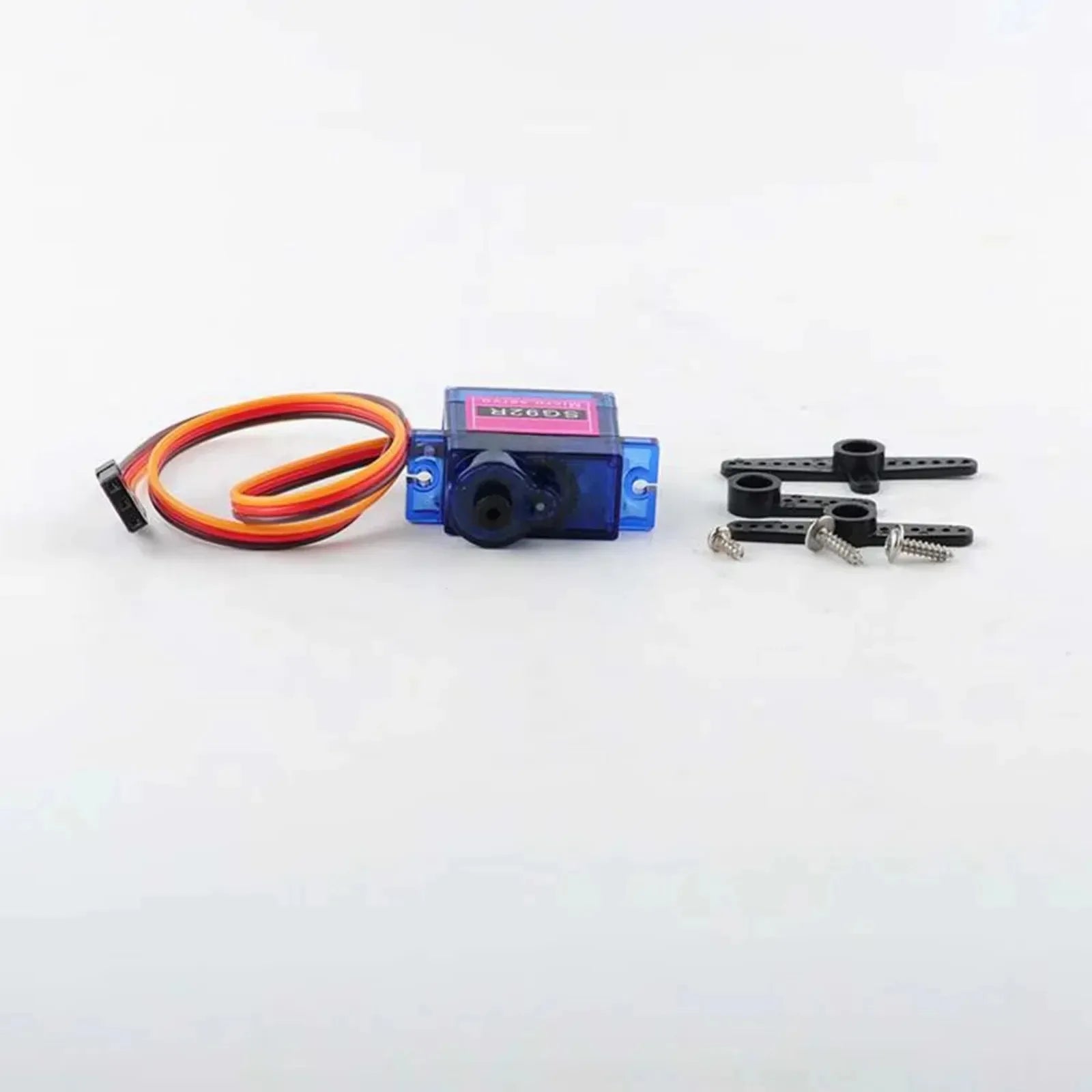

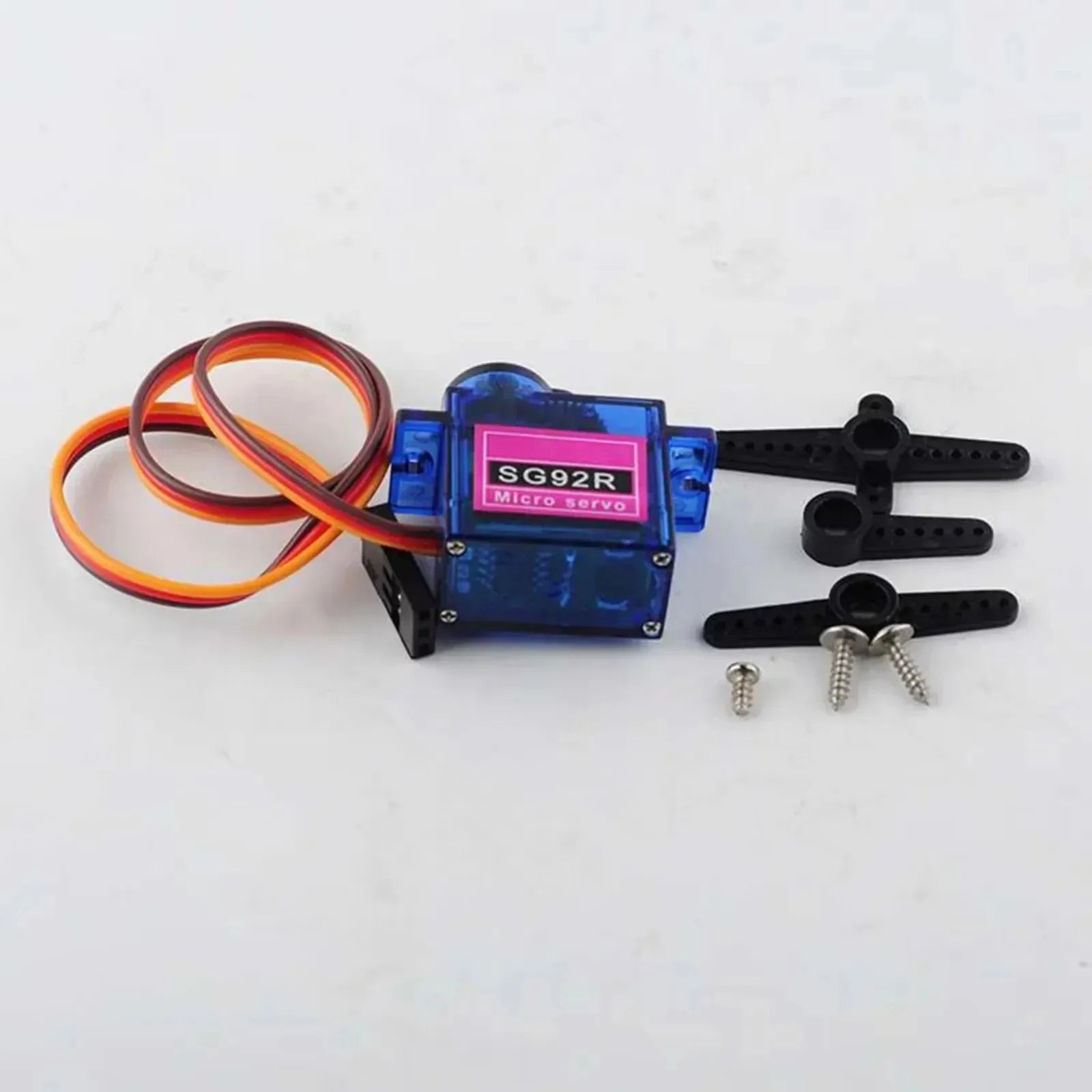

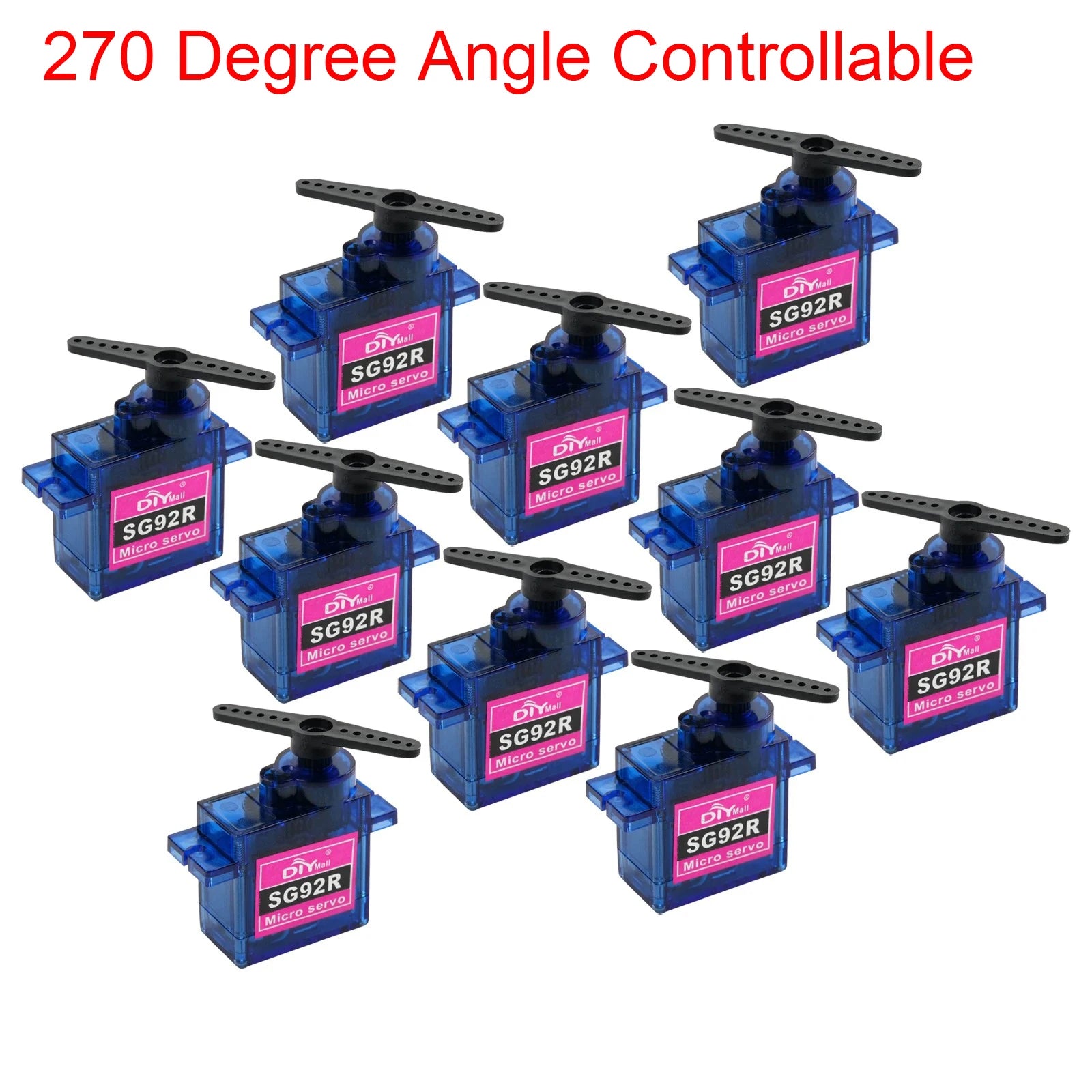

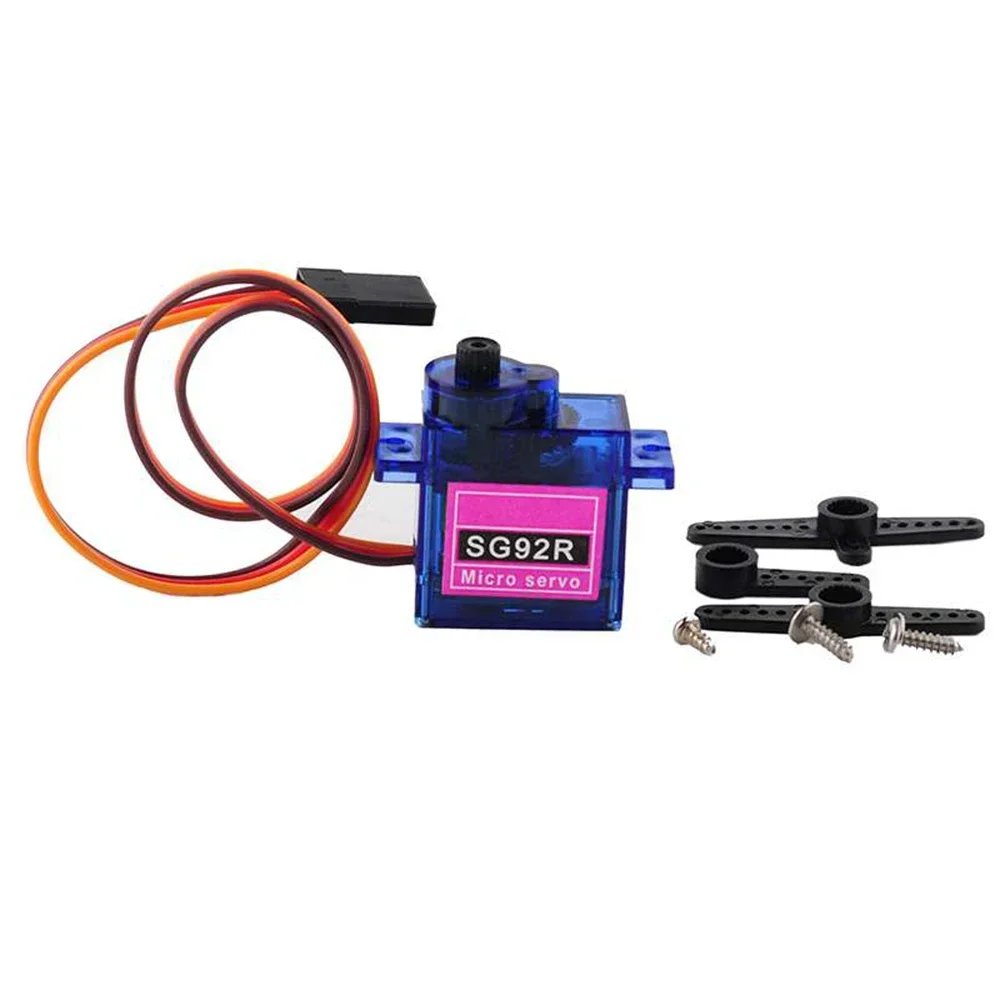

10pcs/lot SG92R Micro Servo 9g 4.8V-6V 180/270 Degree Angle Control 360° Continous Rotation for Drones RC Cars Mini Servos

SG92R Micro Servo, 9g 4.8V-6V 90/180/270 Degree Angle Controllable, 360 Continuous Rotation for RC Cars (Pack of 10)

Mechanical Specification:
Size: 22.4*12.5*22.8mm
Weight: 10g±5%
Gear type: 5 Plastic
Limit angle: 200°±5°
Bearing: NO
Horn gear spline: 20T :4.9mm
Horn type: Plastic, POM
Case: Engineering plastics(PBT)
Connector wire: 250mm±5mm
Motor: Carbon brush motor
Splash water resistance: No

Electrical Specification:
Operat voltage 4.8V 6.0V
Idle current mA mA
No load speed 0.10sec/60° 0.08sec/60°
Runnig current 90mA 90mA
Peak stall torque 1.3kg.cm 1.8kg.cm
Stall current 560mA±10% 750mA±10%

Control Specification:
Command signal: Pulse width modification
Amplifier type: Analog controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 90/180/270/360°±3°(when 500～2500usec)
Dead band width: 8 usec
Rotating direction: Counterclockwise (when 1000～2000usec)


Temperature Range: -25°C～70°C
Humidity Range: 65%±10%
