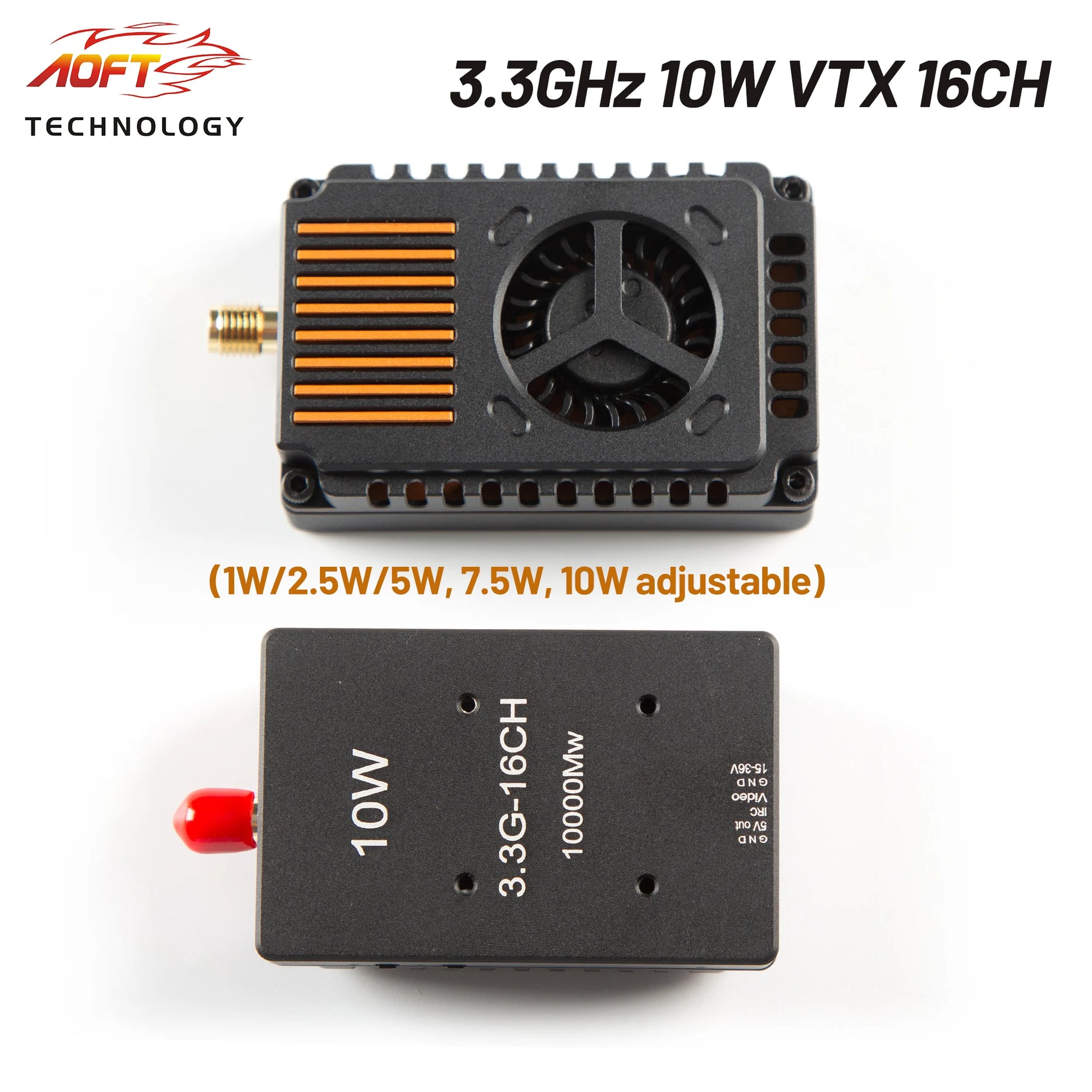

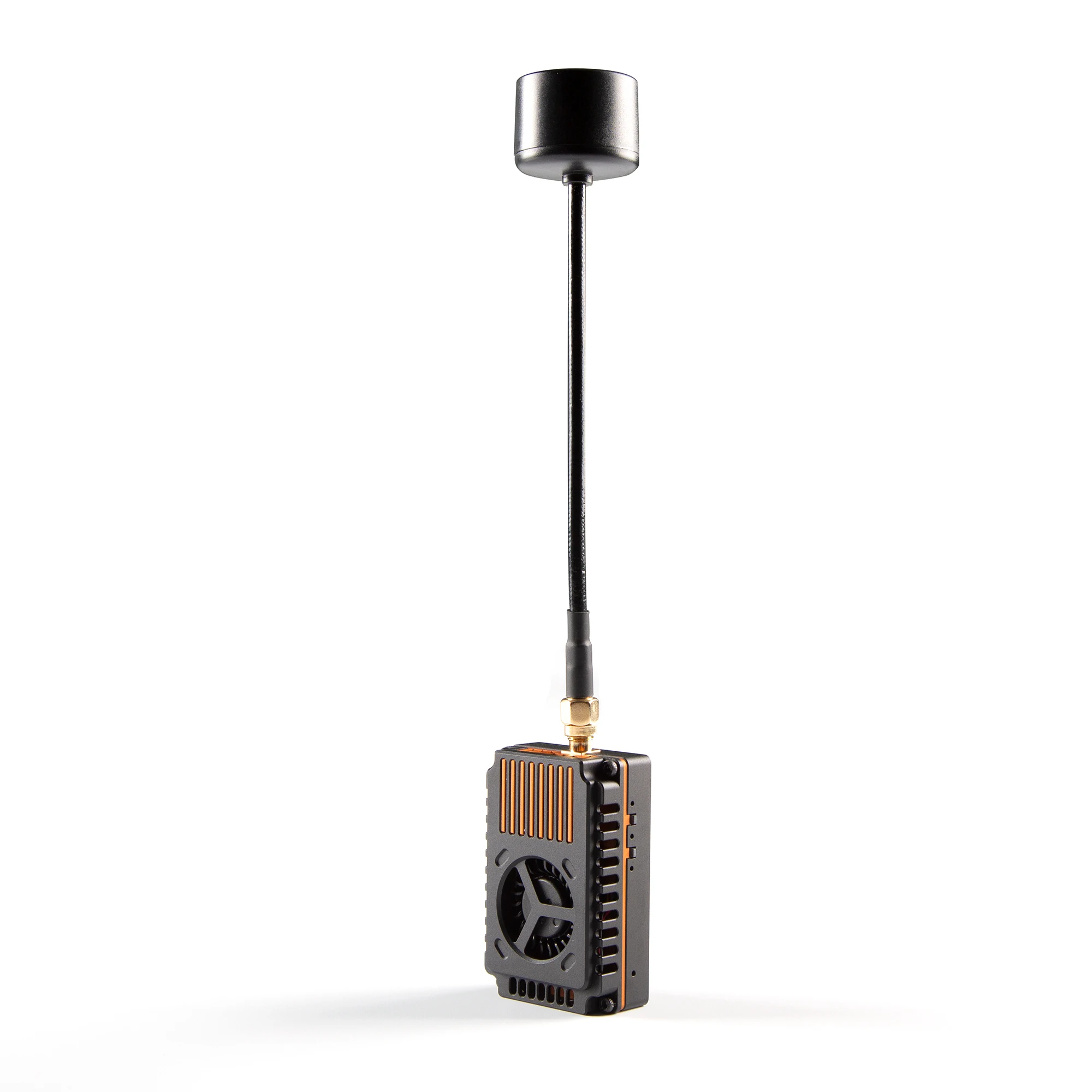

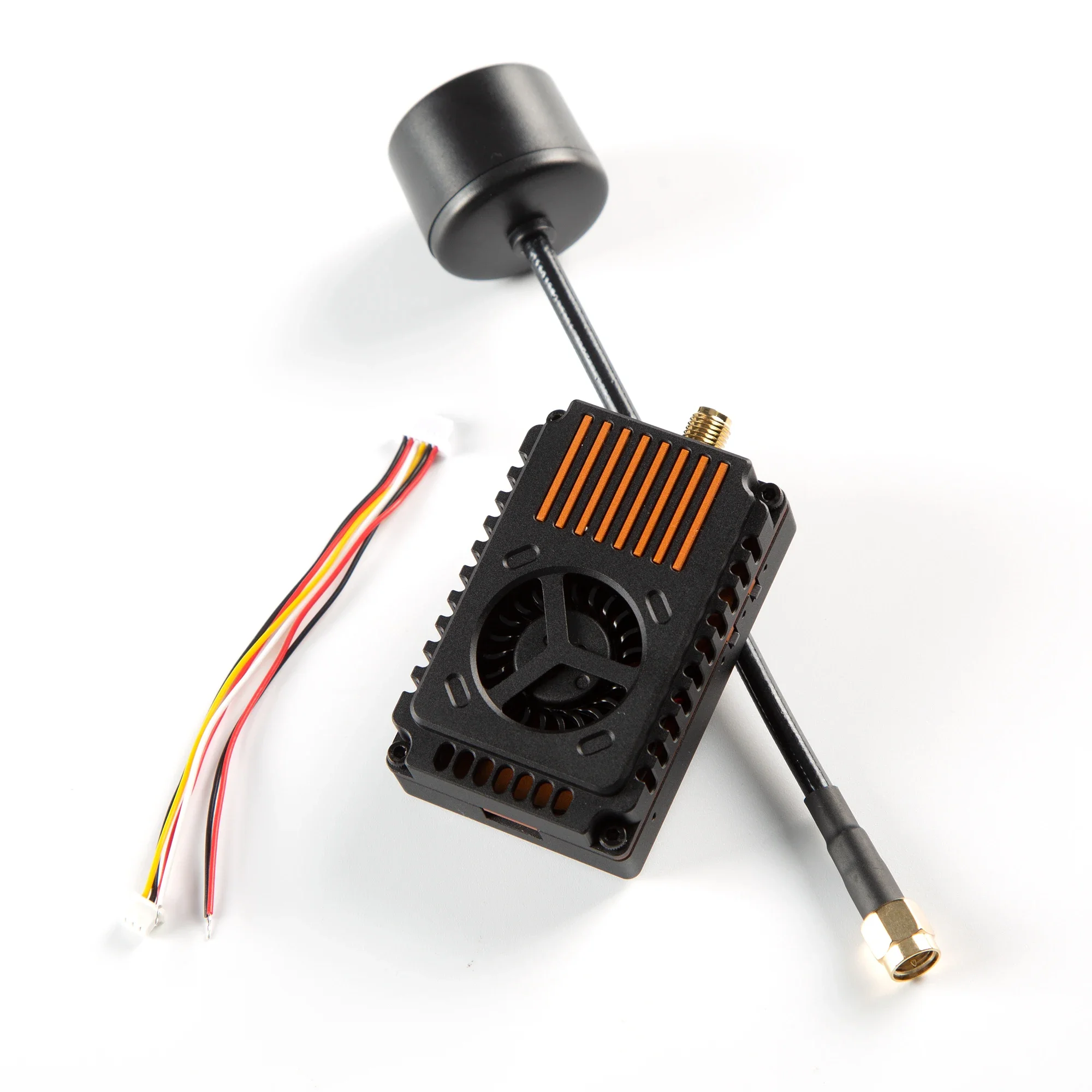

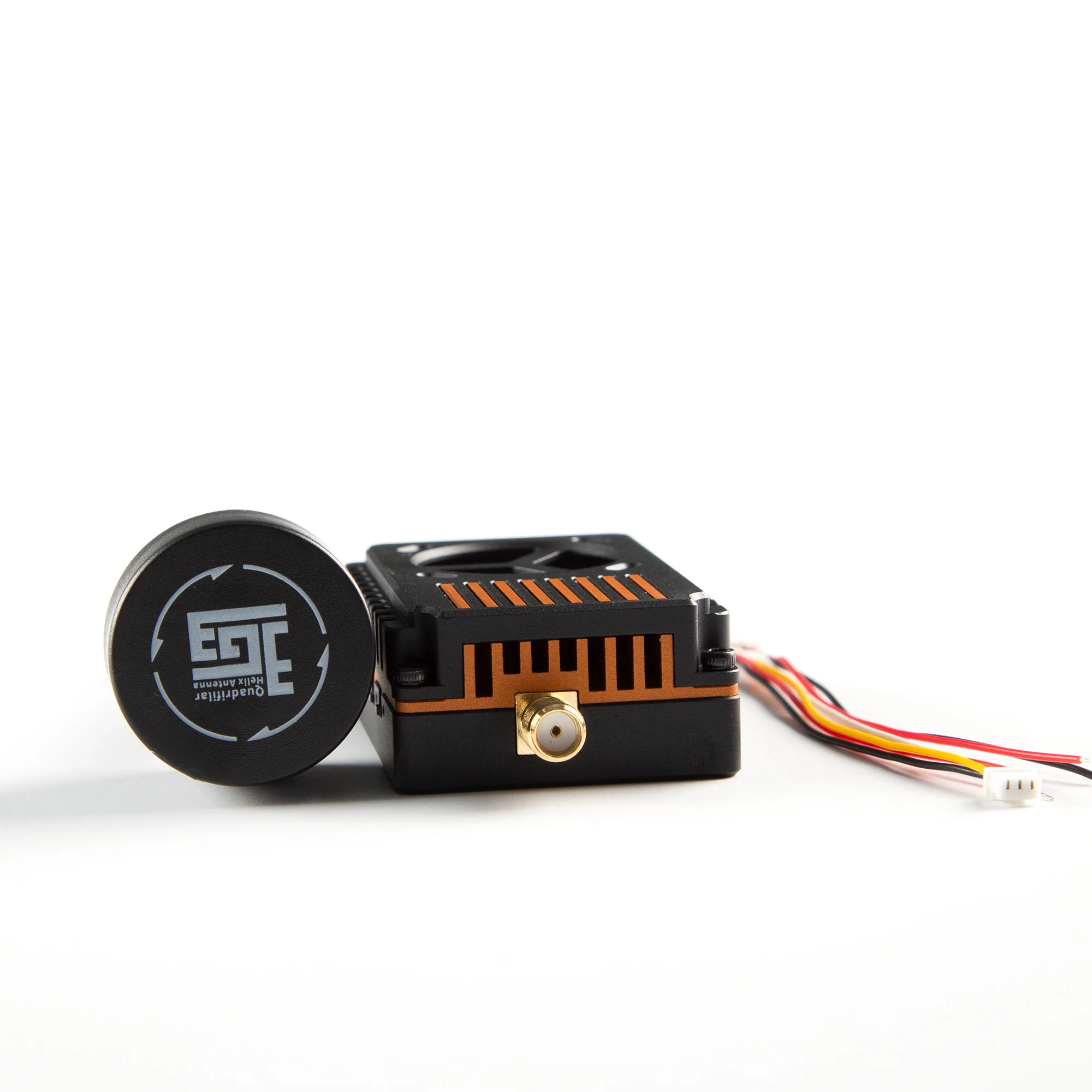

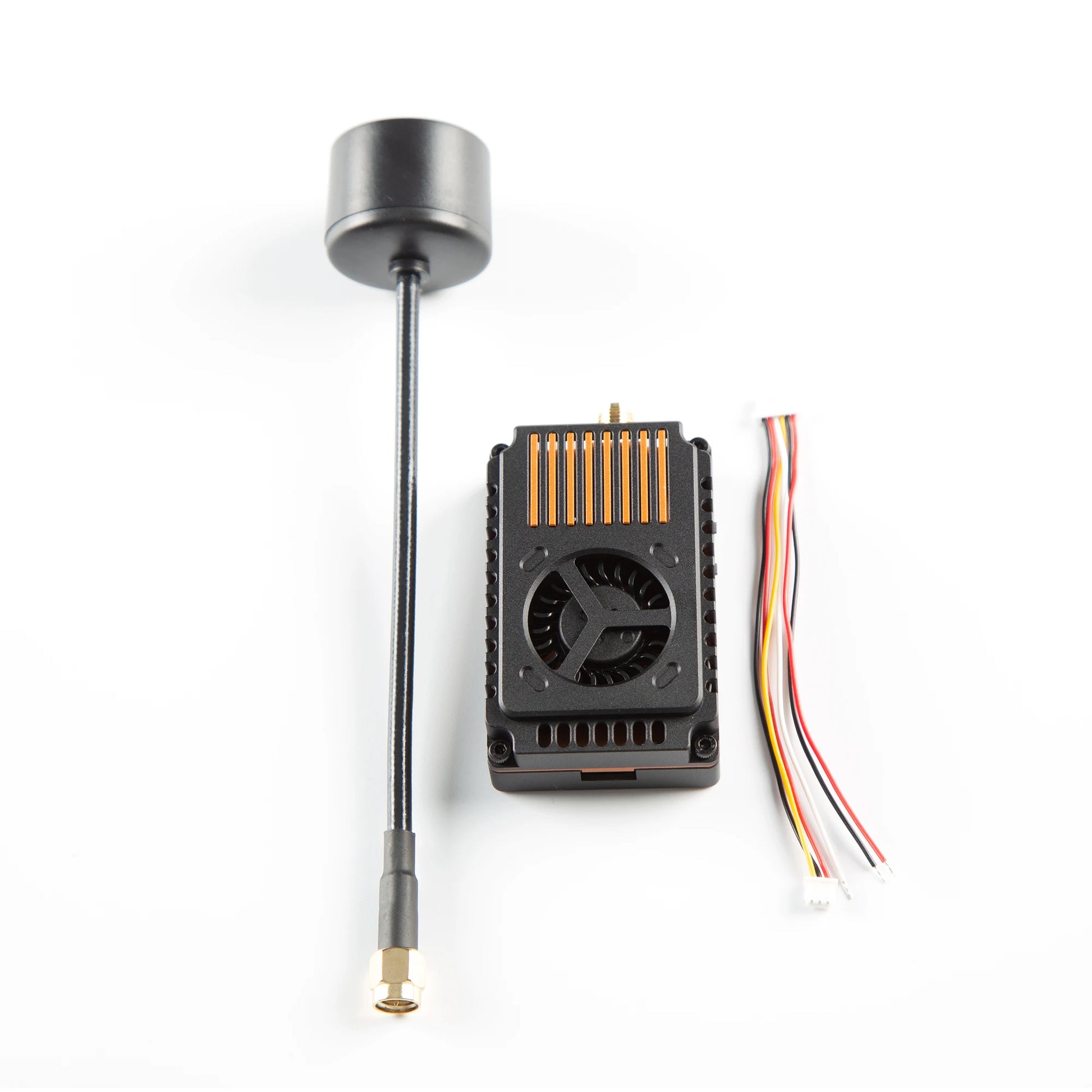

3.3Ghz 10W High Power VTX 16CH Video Transmitter with CNC Shell Supports IRC Tramp Protocol 3.3GHz VRX for FPV Long Range Drones

$251.99 AUD

Sale Sold out

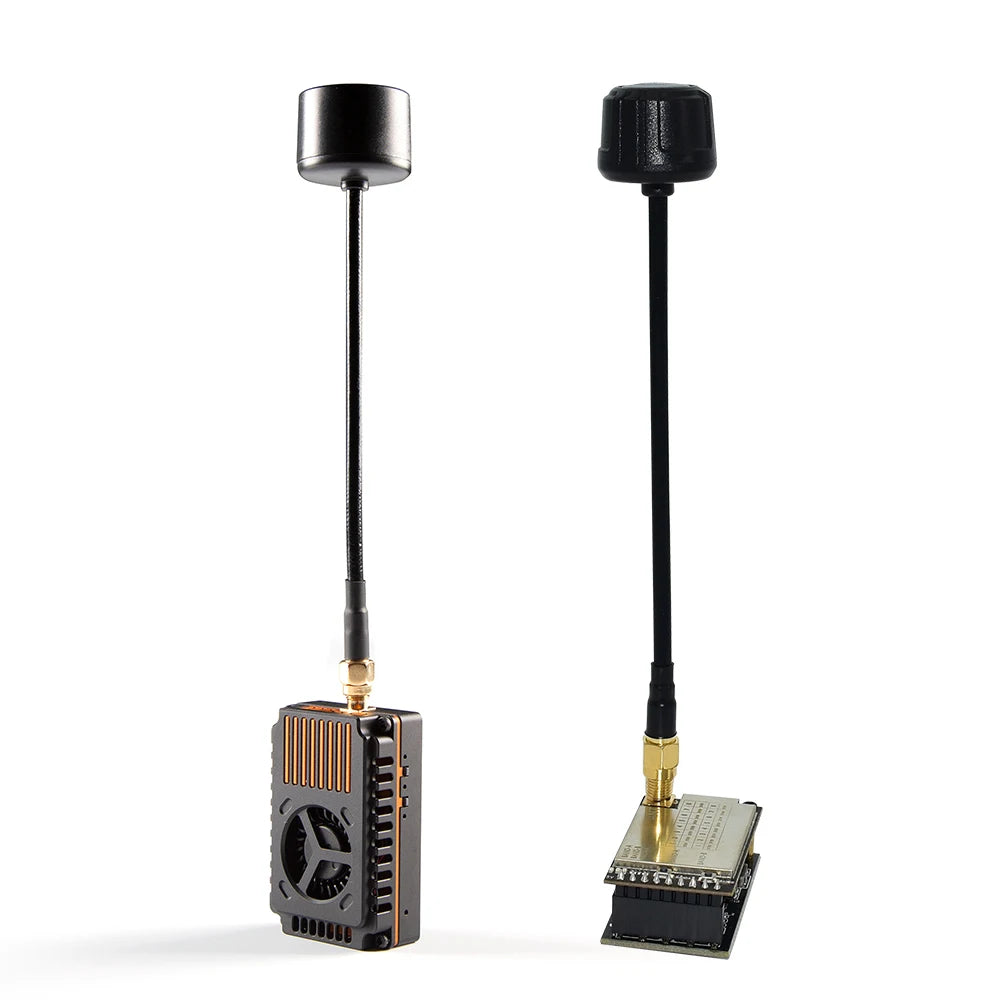

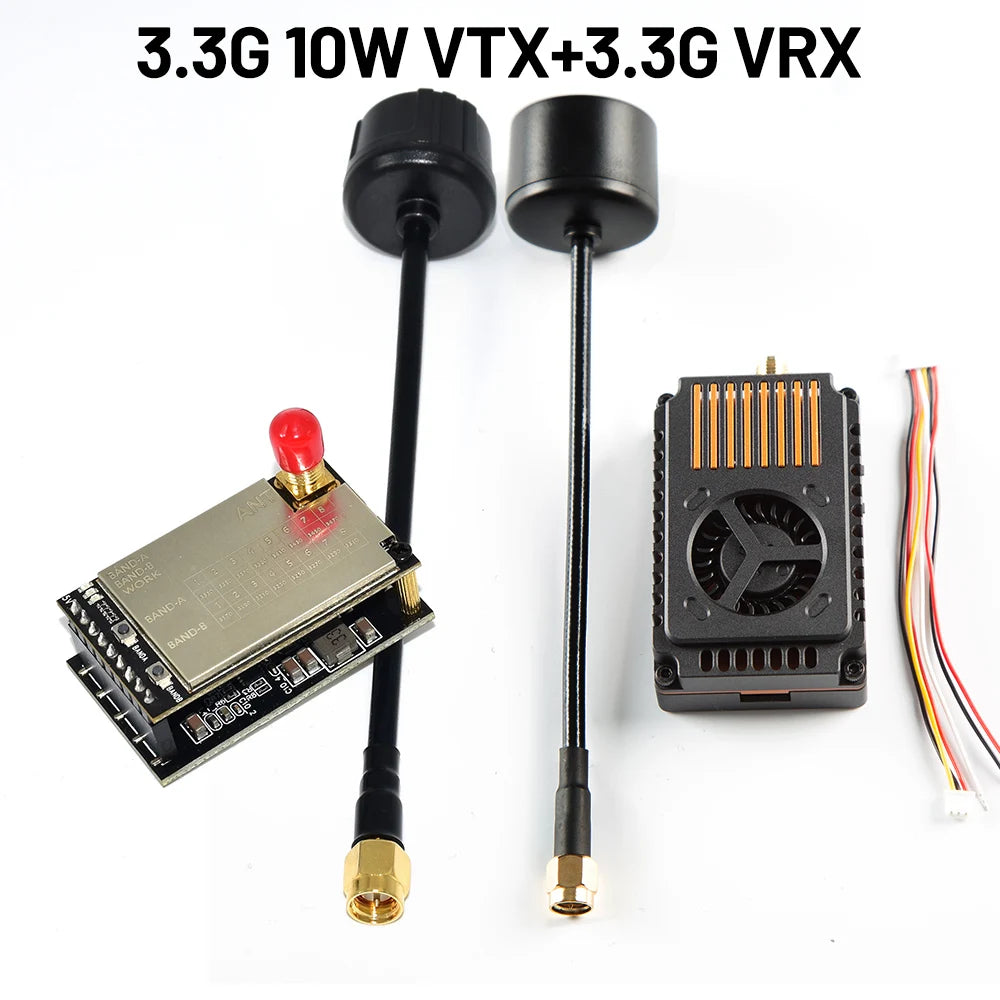

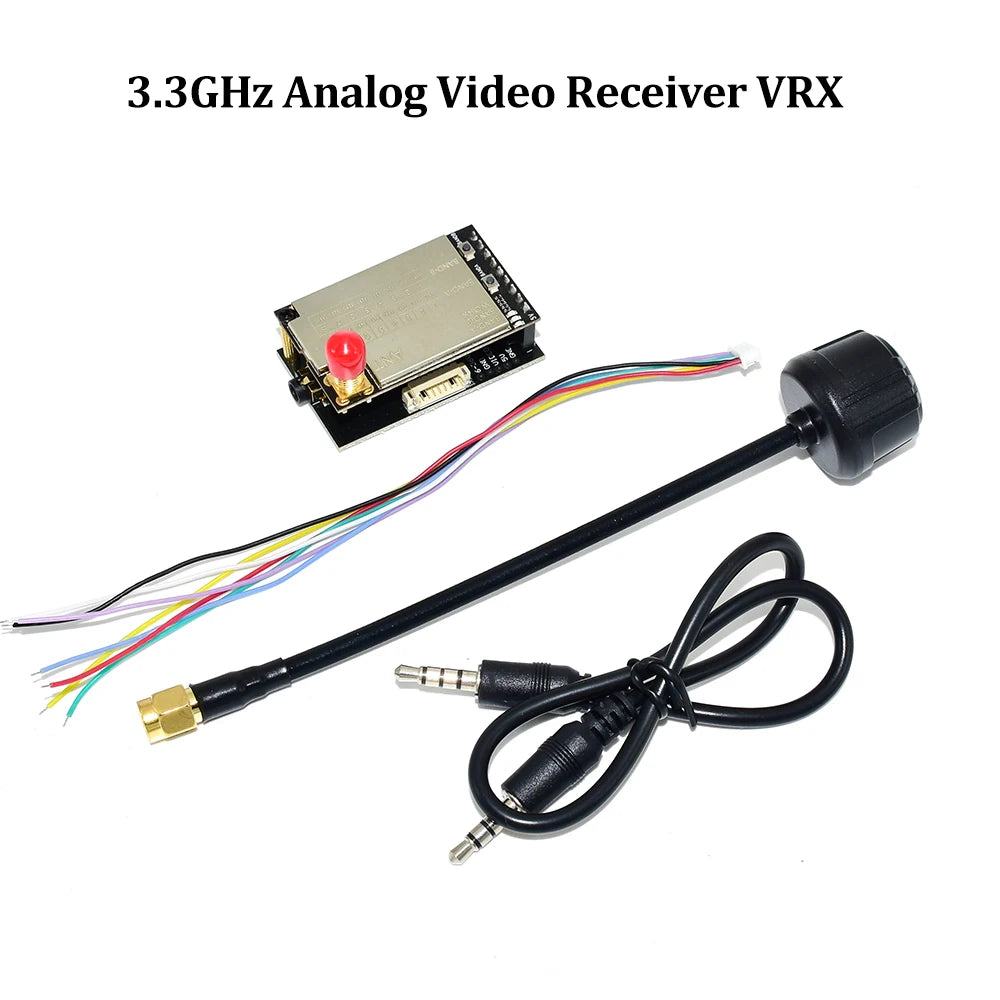

Color 3.3G 10W VTX-VRX only 3.3G 10W VTX only 3.3G VRX

Specifications

1.3.3GHz 16 CH：3170MHz-3470MHz

2.Max power: 10W (1W/2.5W/5W,7.5W,10W, adjustable);

3.Input voltage: DC 15V-36V, supporting 4-8S battery input

4. Antenna connector: SMA Mother seat inner hole

5. Smart audio:IRC Tramp

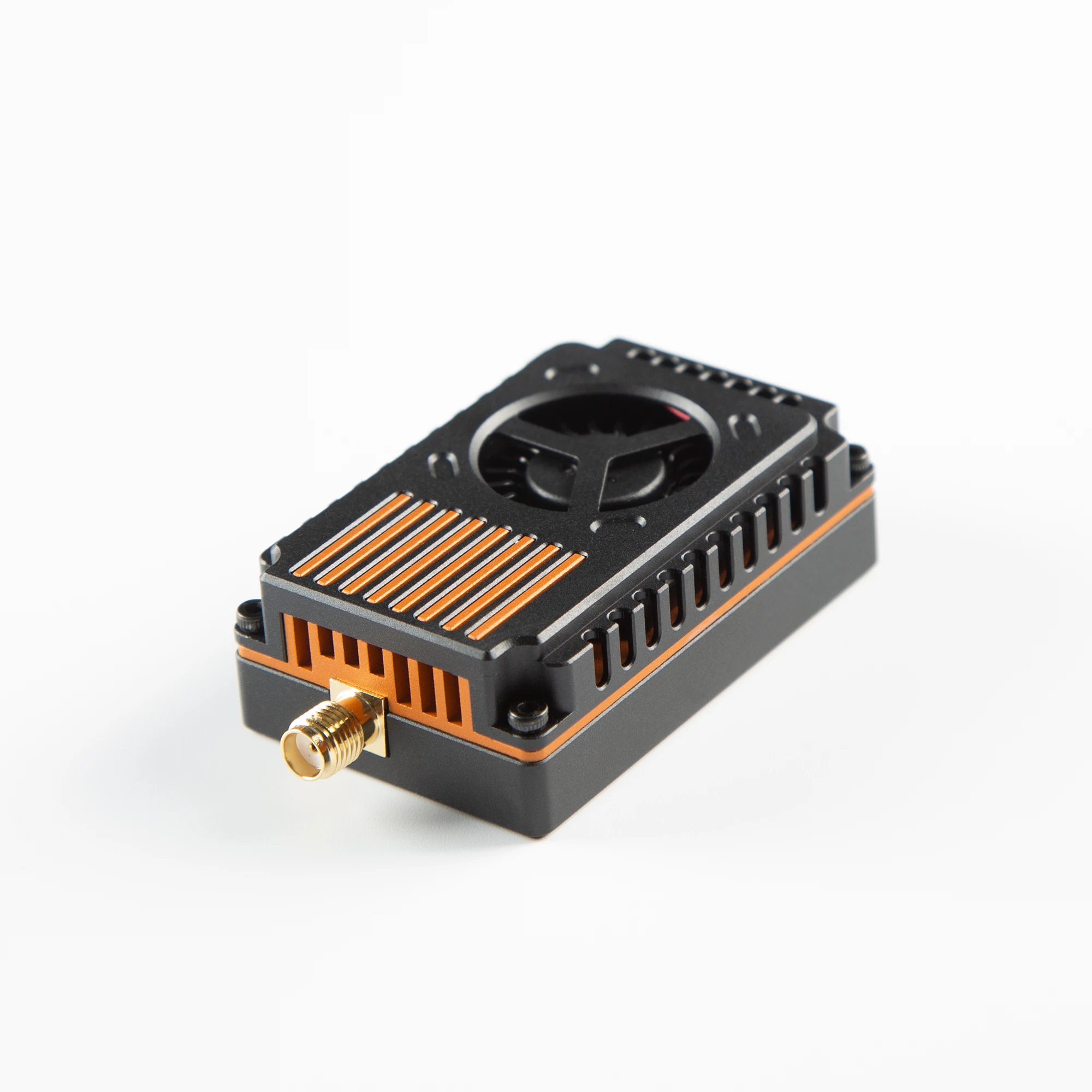

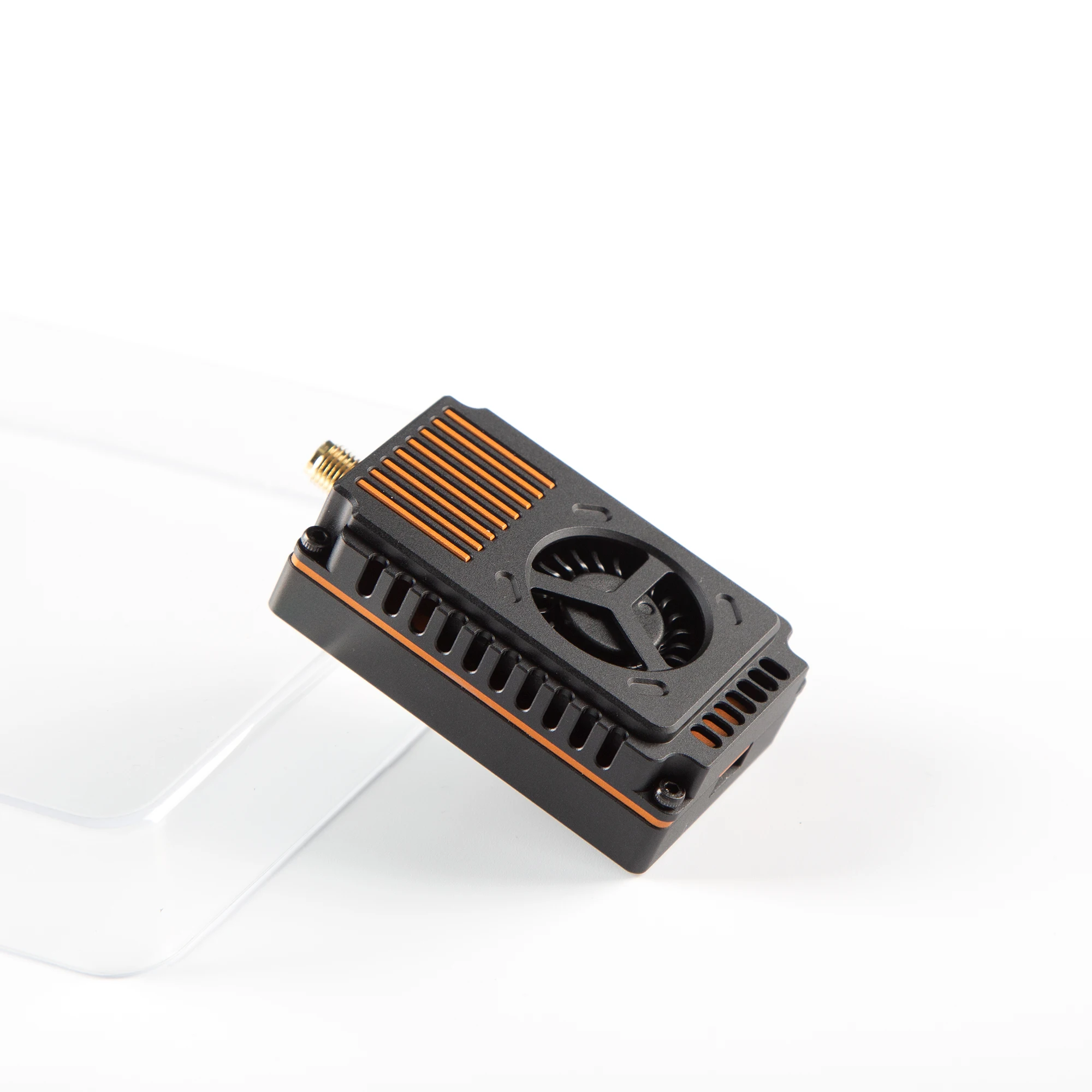

6.Heat-dissipating method: aluminum alloy shell, heat sink&fan

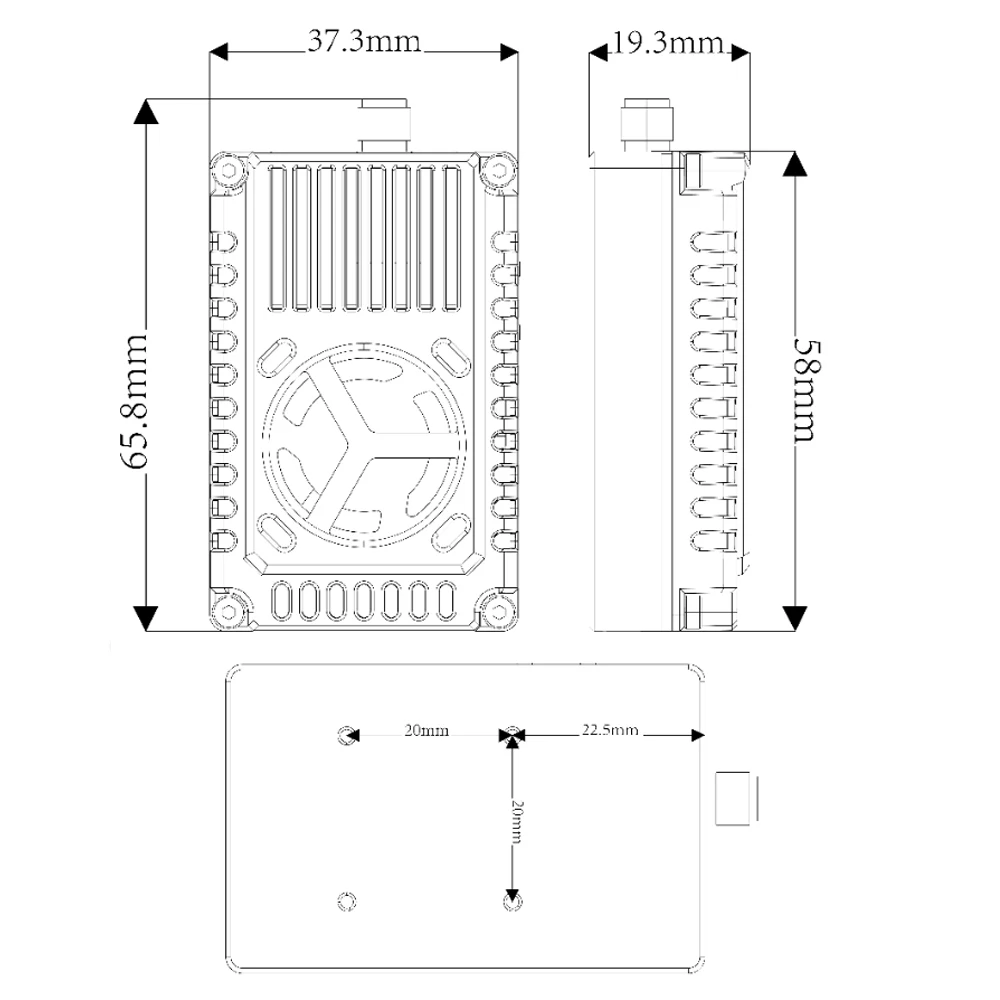

7.Hole spacing:20mm*20mm/ø2mm

8. Dimension:65.8mm*37.3mm*19.3mm

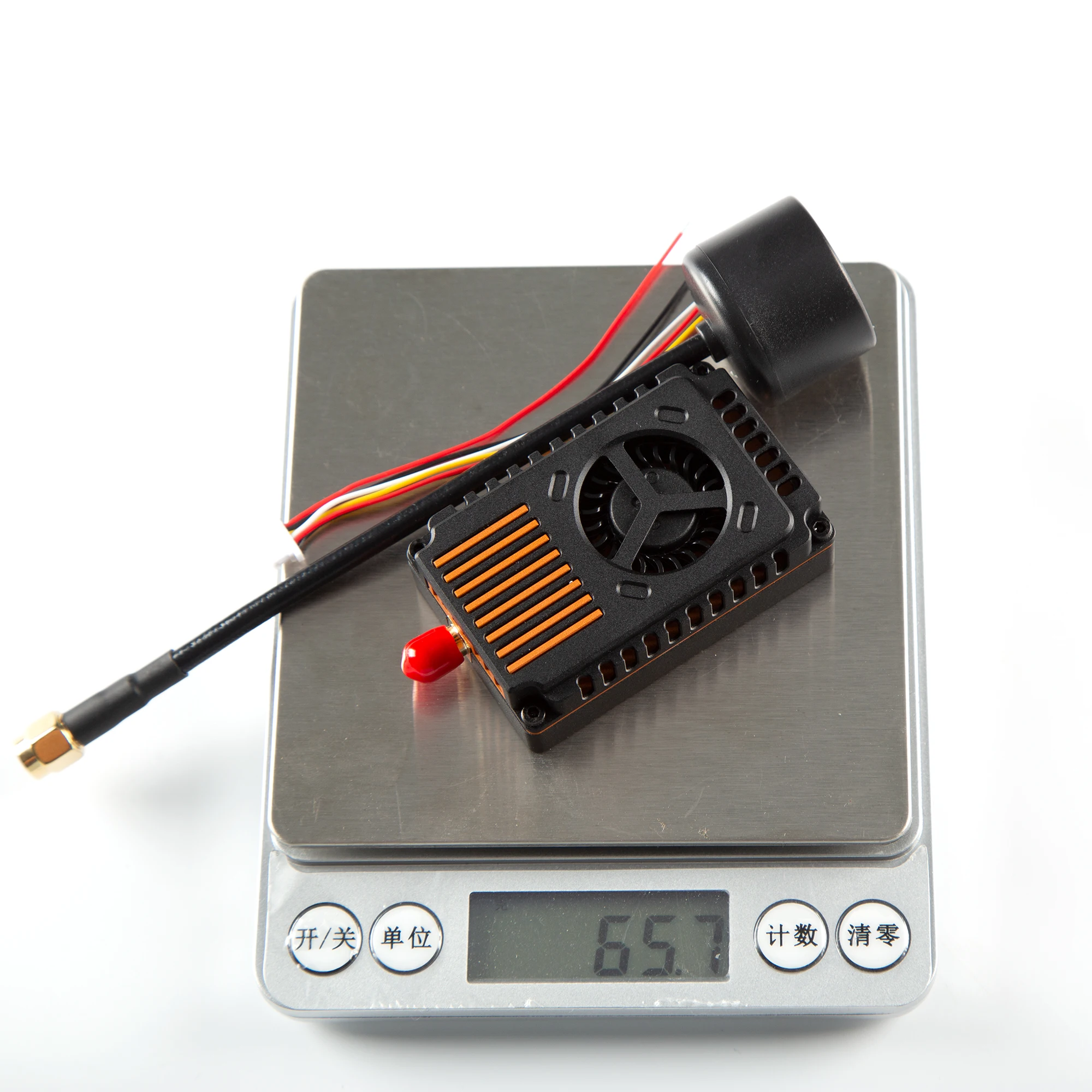

9.Weight: 48.15g

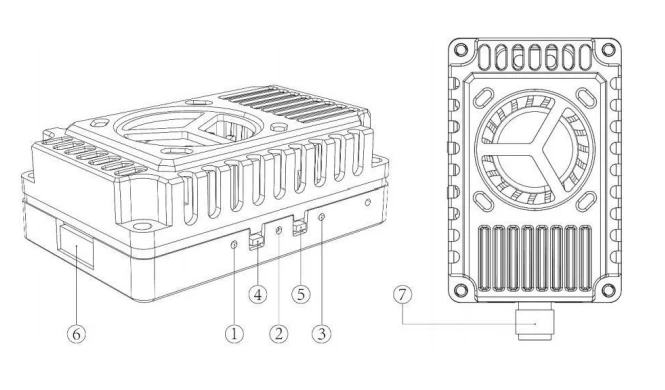

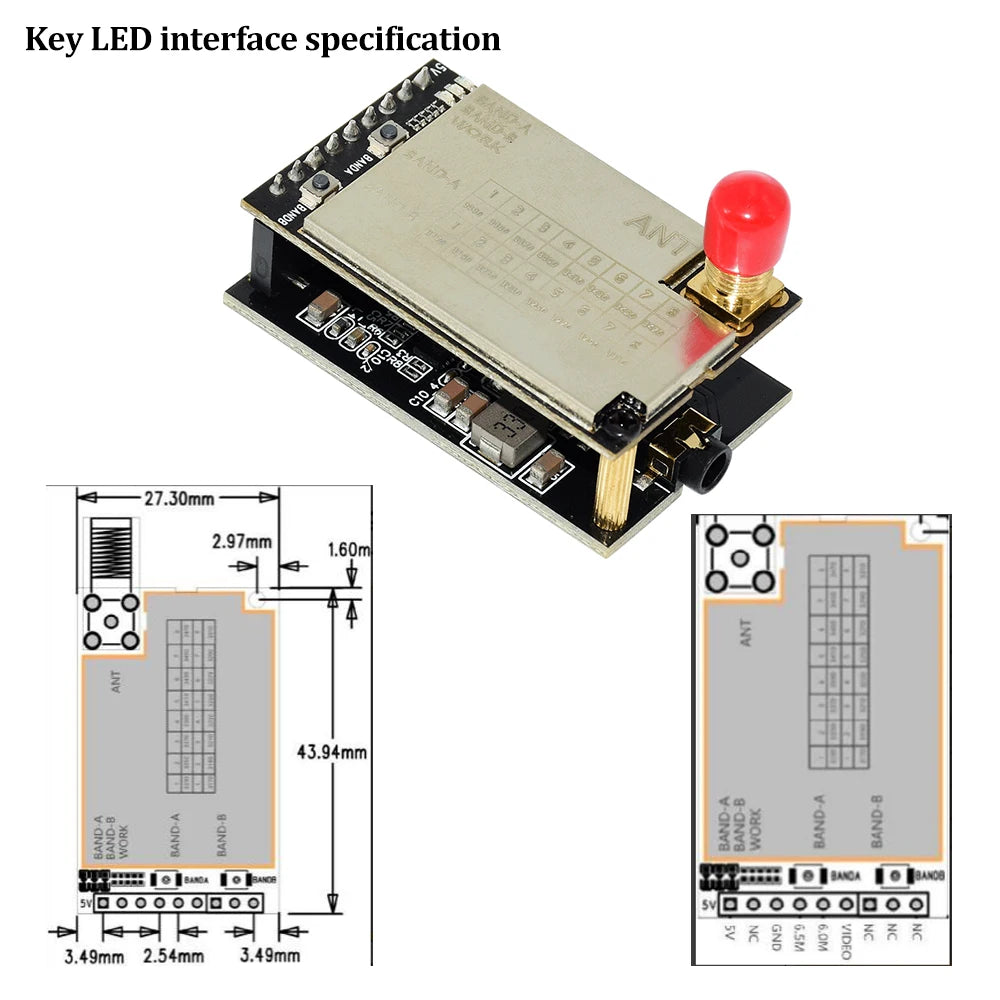

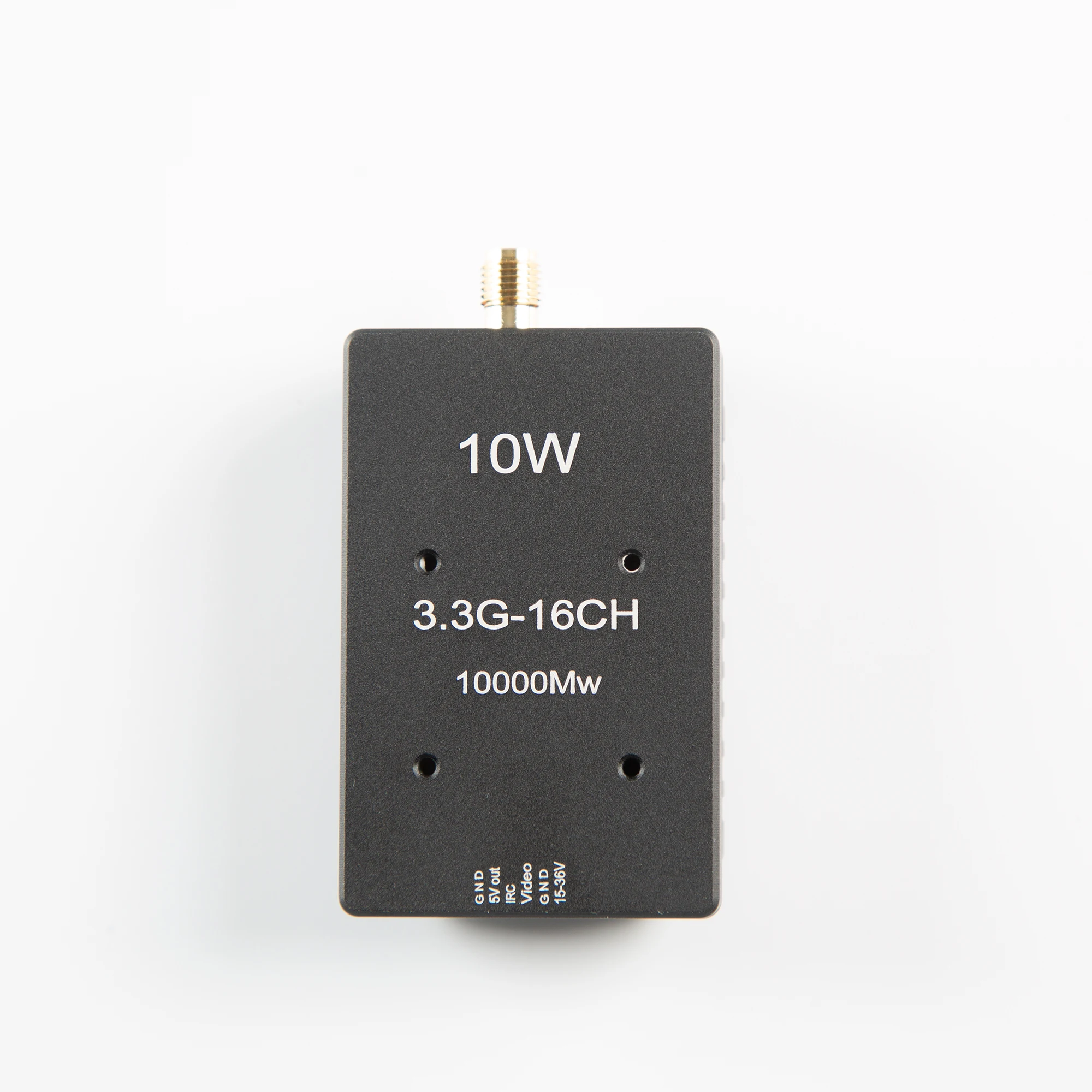

IV. Interface and button indicator layout

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power indicator: Green LED

4. Band & Channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. SMA Mother seat inner hole

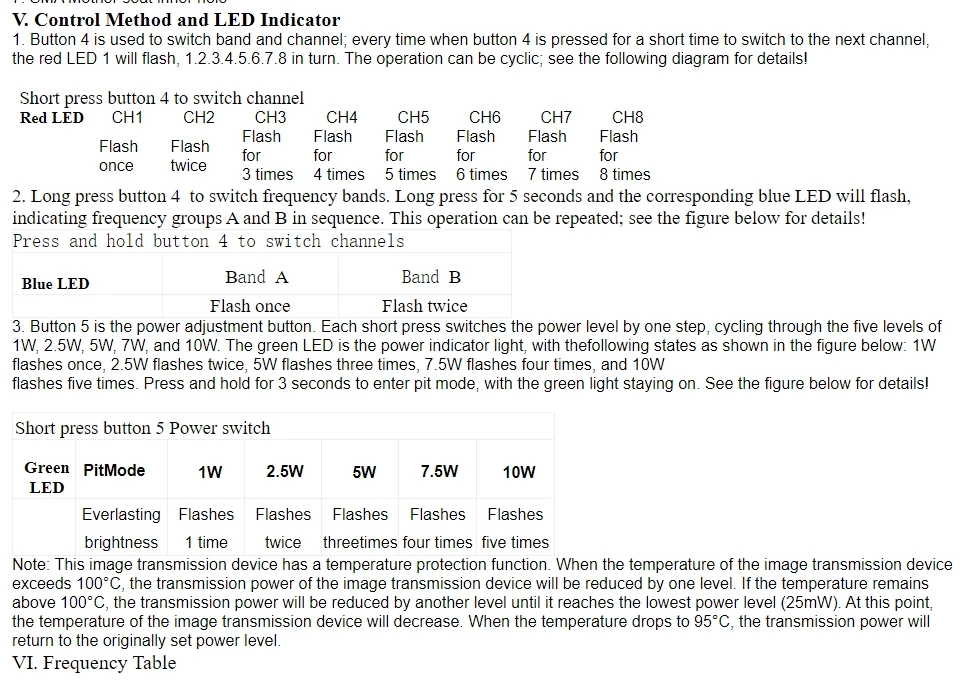

FrequencyTable
Channel		1	2	3	4	5	6	7	8
1	Band A	3330	3350	3370	3390	3410	3430	3450	3470	Mhz
2	Band B	3170	3190	3210	3230	3250	3270	3290	3310	Mhz

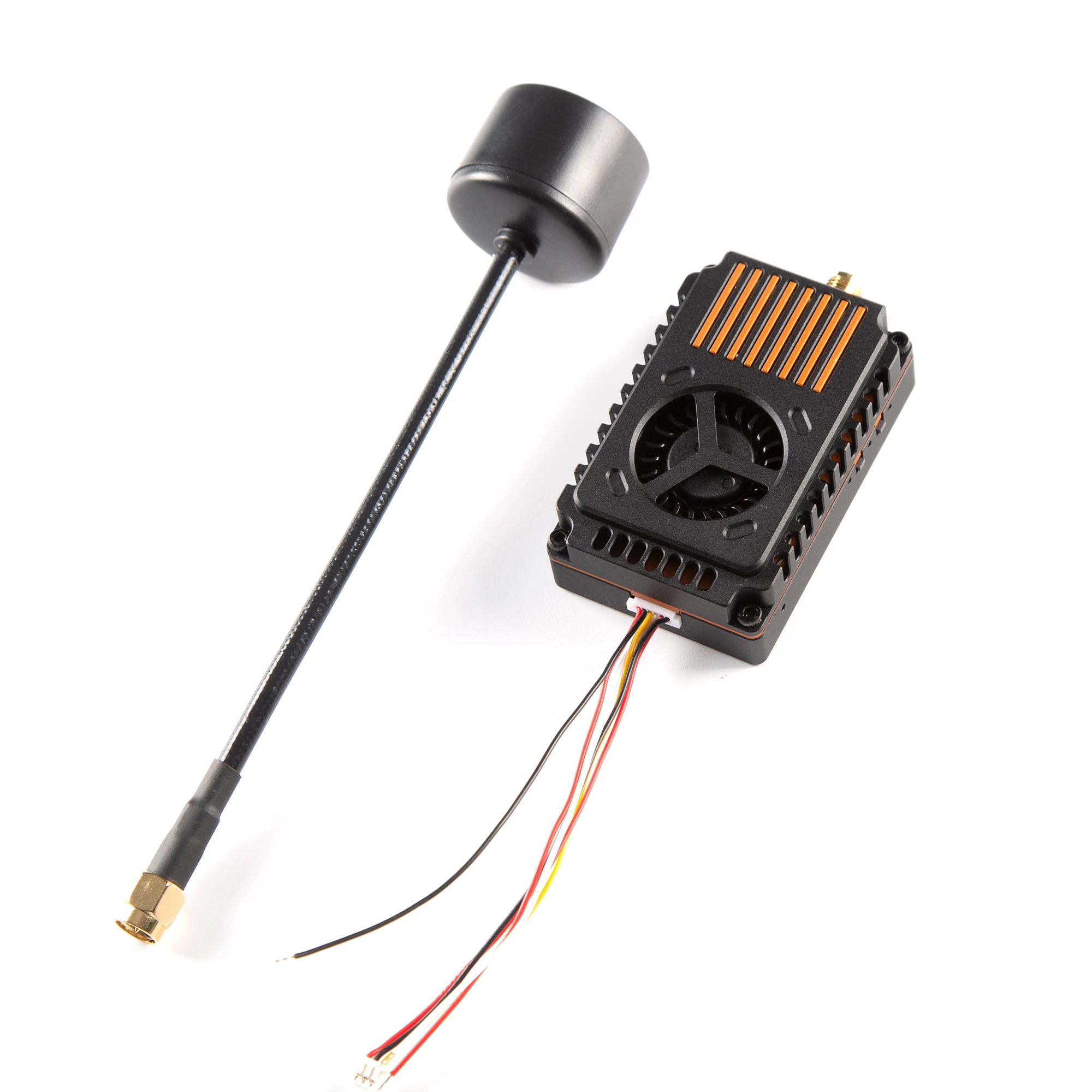

VII. Illustrate of 6P 1.0 Wiring

WiringTable:

NO	1	2	3	4	5	6
FUN	15-36V	GND	Video	IRC	5VOut	GND
Color	Red	Black	Yellow	White	Red	Black

VIII. Notice for Use:

1. The VTX must be installed with space to ensure that the air convection around the module to ensure that the module heat dissipation; otherwise, the module overheating protection start, reduce the power to transmit, or even shut down the power to transmit.

2. It is recommended that before turning on the power, to ensure that the correct voltage range, positive and negative poles are correct, so as not to burn components.

3. It is recommended that before turning on the power, make sure that the RF RF output has been installed antenna, which can extend the life of the module.

4. Please read the instruction manual before use, so that you can correctly wire and extend the module service life.
