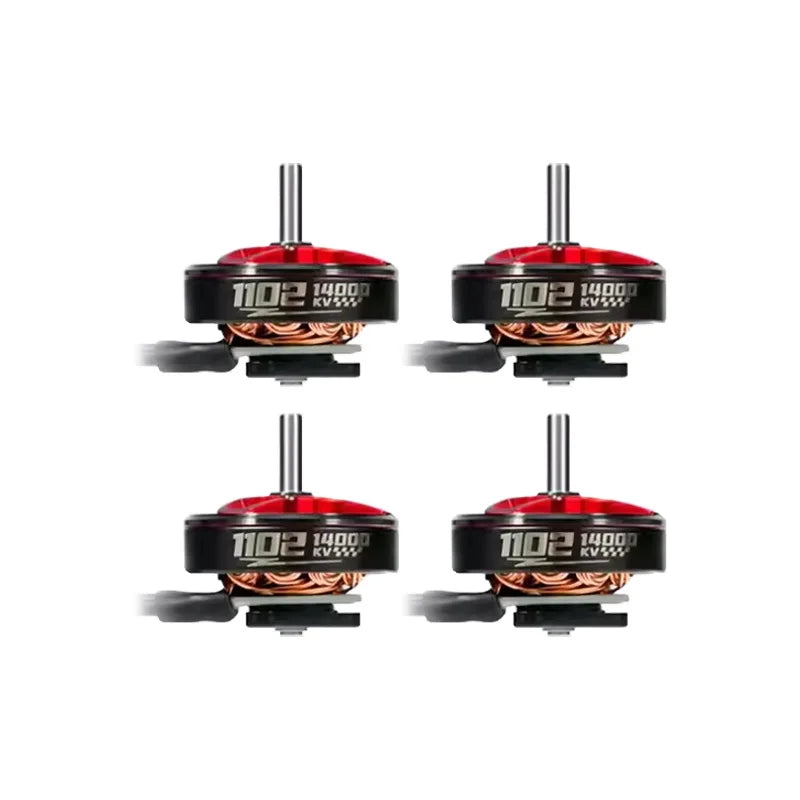

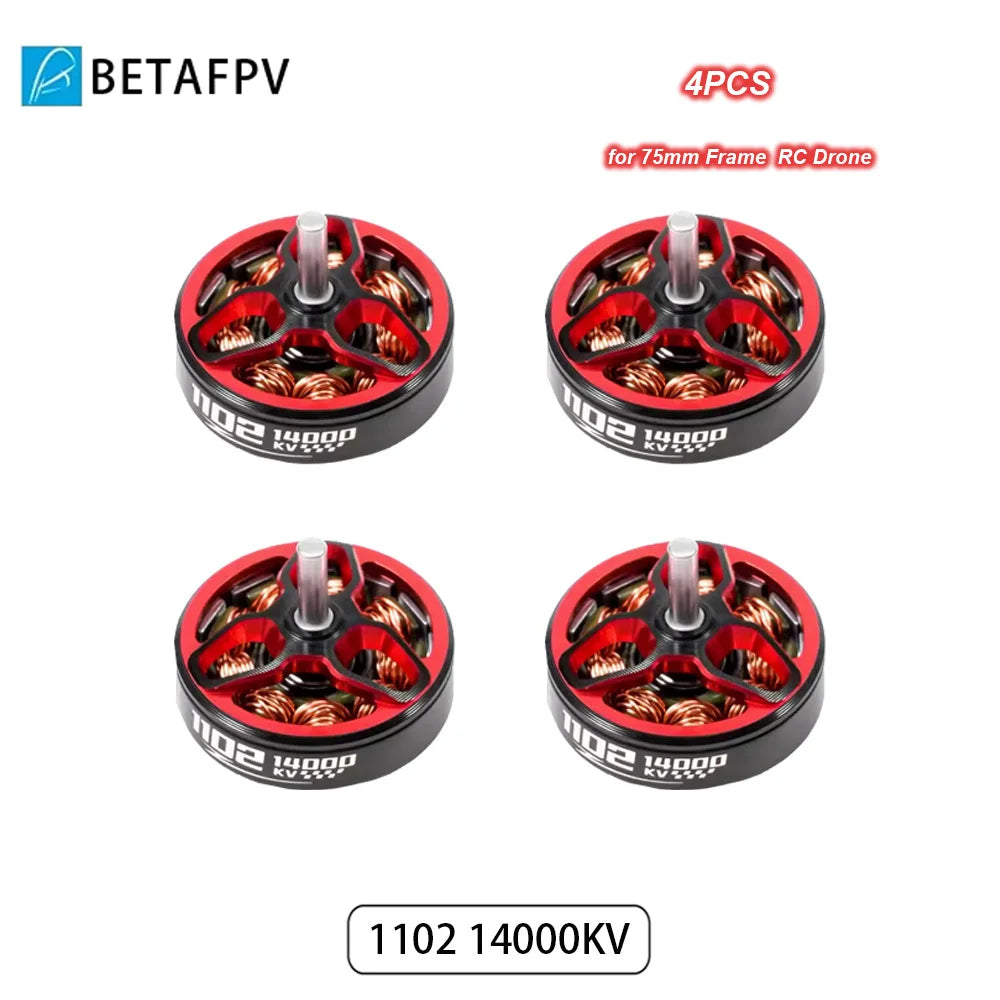

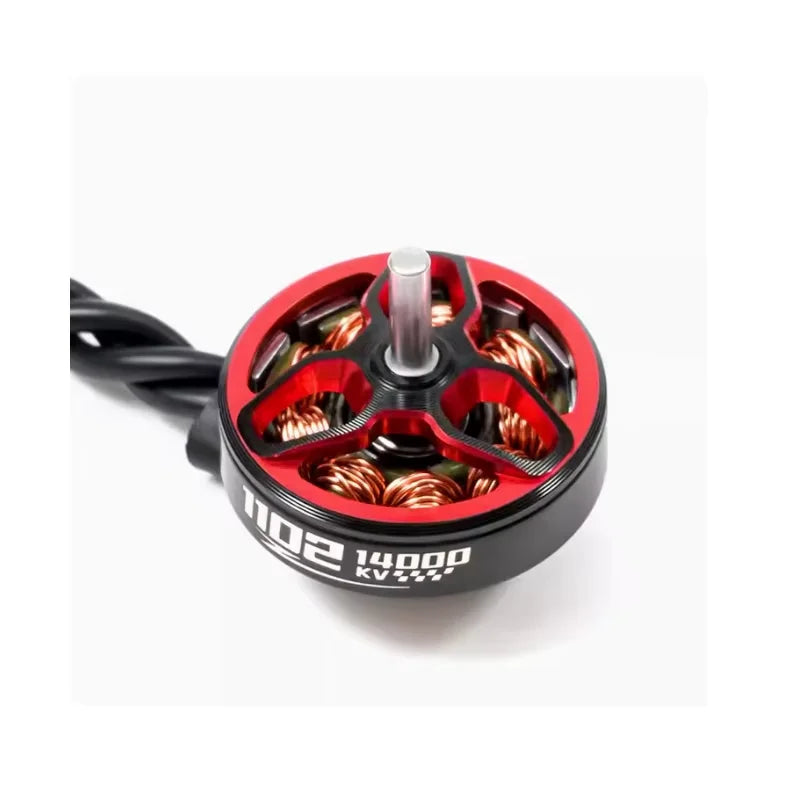

1102 14000KV (2022 Version)

Coming with a new appearance of the black and red motor bell. 2022V 1102 Brushless Motors have been released for stronger thrust in 1S whoop drone with two RPM (revolutions per minute) versions 18000KV or 22000KV, which meets pilots' needs for different flying purposes. This motor is lightweight at 2.79g/pc and is suitable for most 75mm 1S frames like Meteor75 Frame.

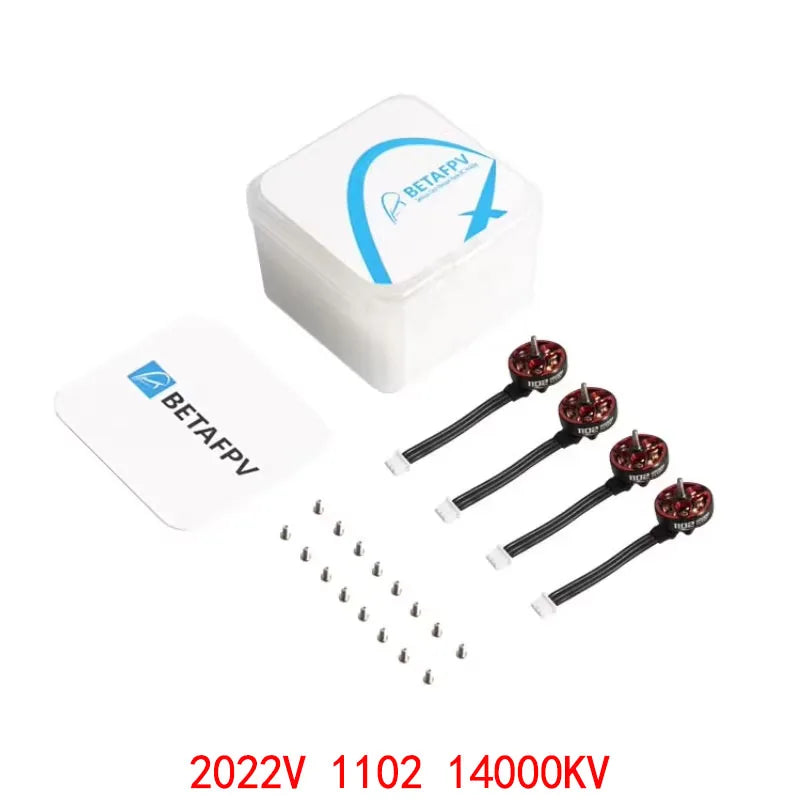

Package

• 4 * 1102 14000KV Brushless Motors (2022)

• 1 * Pack of M1.4*4 Screws

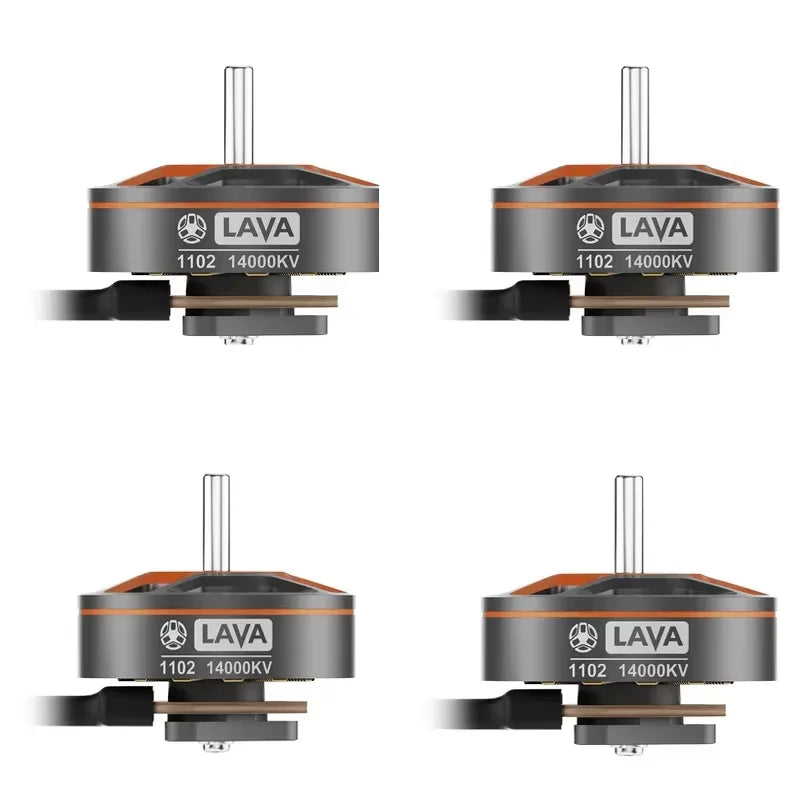

1102 14000KV (2025 Version)

The LAVA Series 1102 Brushless Motor, built for Pavo Femto, achieves nearly 130g peak thrust with advanced tile-shaped magnets, an optimized magnetic circuit, and improved coil filling ratio. Paired with the whoop's duct, Pavo Femto boasts a thrust-to-weight ratio exceeding 6.75:1. Designed for versatility, it features four M2 propeller mounting holes for compatibility with diverse propellers and whoops, making it ideal for various DIY projects. Prioritizing power, efficiency, and extended flight times, the LAVA 1102 ensures robust performance for every pilot.

Bullet Points

• Designed for Pavo Femto: Tuned 14000KV motors paired with the whoop’s duct gain enable Pavo Femto to achieve an impressive 6.75:1 thrust-to-weight ratio.


• Outstanding Efficiency: Advanced tile-shaped magnets and optimized coil design ensure efficiency above 1.5g/W at peak 130g thrust.

• Lightweight Design: Weighs just 3.4g/3.6g, minimizing overall payload for better agility.

• DIY Ready: Includes 4 M2 mounting holes to fit a wide range of props and drone builds.

Specifications

• Item: LAVA Series 1102 Brushless Motors

• KV: 14000KV

• Maximum power: 84.1W

• Maximum current: 10.51A

• Rated voltage: 2S

• Weight: 3.4 (±0.1)g (22mm cable length), 3.6 (±0.1)g (44mm cable length)

• Shaft diameter: ø1.5mm

• Shaft length: 5mm

• Wire gauge: 28AWG

• Wire length: 22mm/44mm

• Connector: JST1.25-3Pin

• Motor mounting hole size: 3*M1.4 EQS ø6.6

• Propeller mounting hole size: 4*M2 EQS ø5

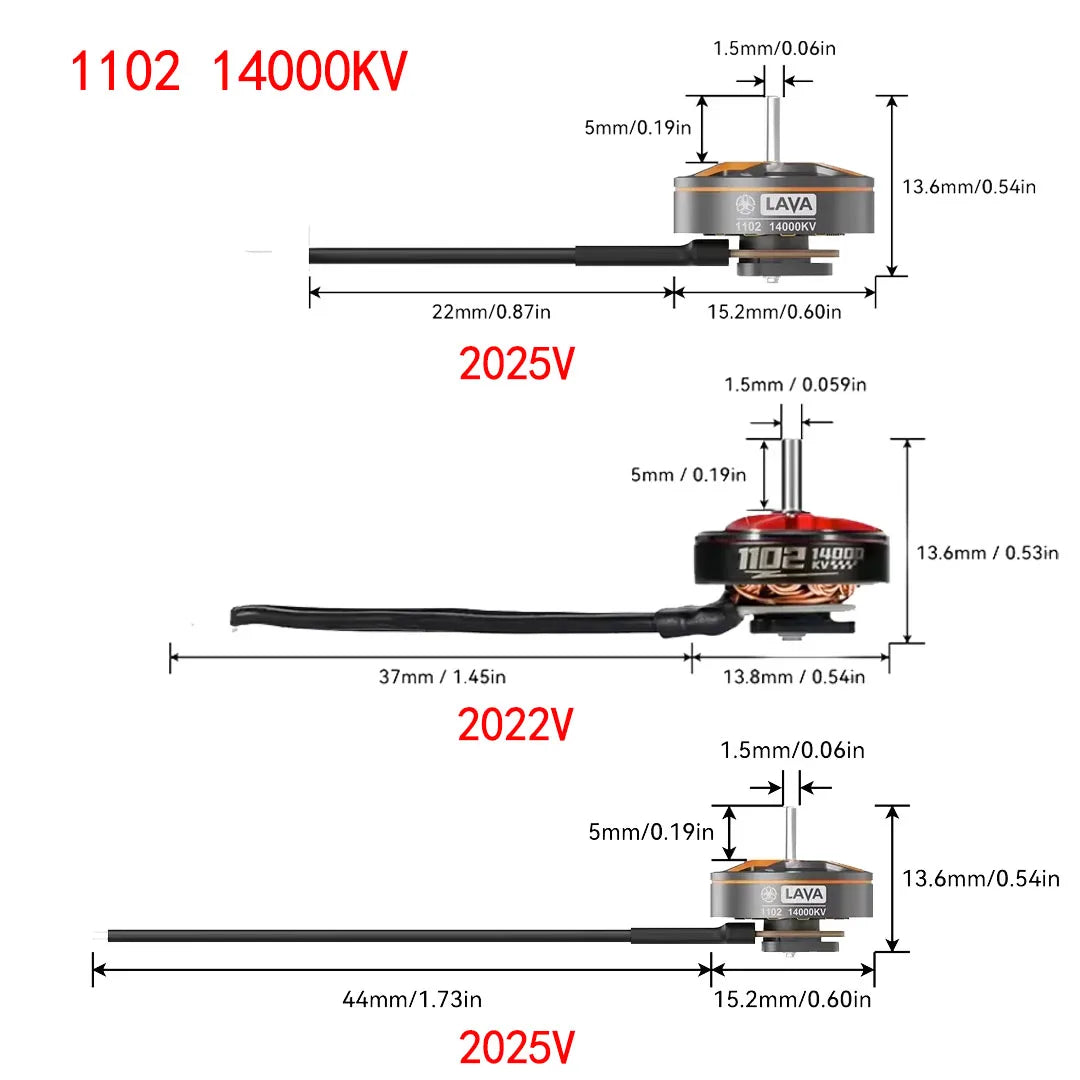

Diagram of the LAVA Series 1102 Brushless Motors (22mm):

Diagram of the LAVA Series 1102 Brushless Motors (44mm):

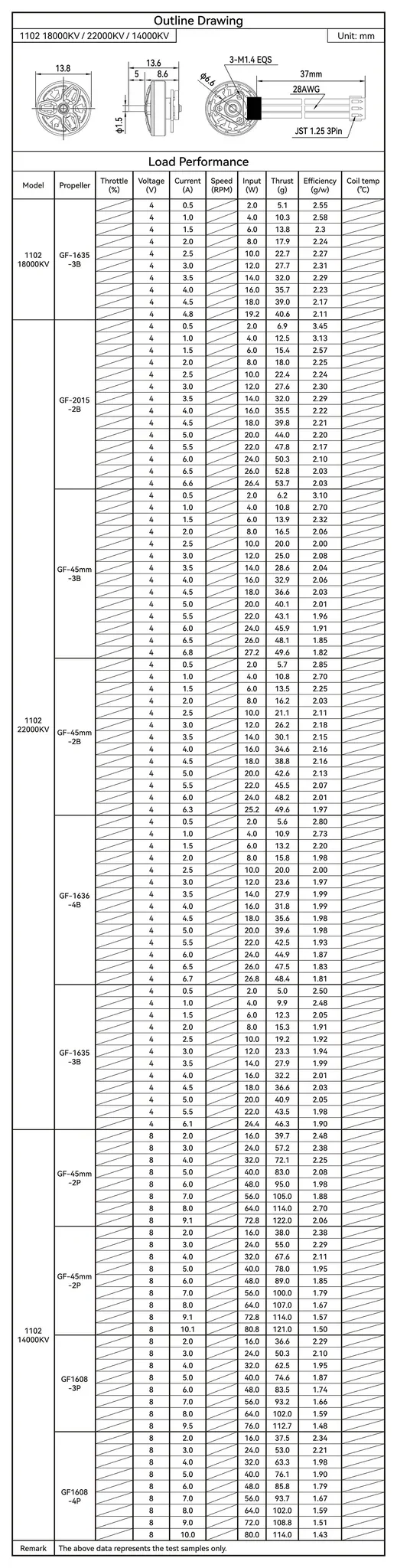

Outline drawing of the LAVA Series 1102 Brushless Motors:

Unleashing Performance

The LAVA Series 1102 Brushless Motor, a new addition to the LAVA Series, is designed specifically for Pavo Femto. With advanced tile-shaped magnets, an optimized magnetic circuit, and improved coil filling ratio, it achieves approximately 2.1g/W efficiency during steady flights. Even at peak thrust of 130g, the motor maintains an efficiency above 1.5g/W, providing exceptional power while extending flight times.

DIY Flexibility

Equipped with four M2 propeller mounting holes, the LAVA 1102 motor ensures compatibility with a variety of propellers and whoops, offering versatile DIY options for pilots.

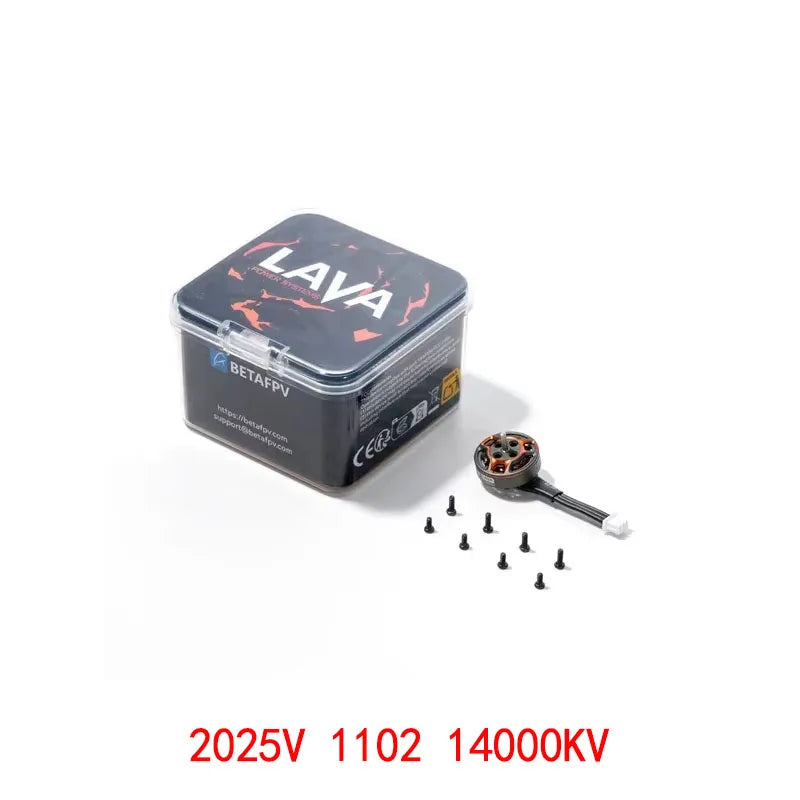

Package

• 1 * LAVA Series 1102 Brushless Motor(2025)

• 4 * M1.4 * 3 Phillips Flat Head Screws

• 4 * M1.4 * 4 Phillips Flat Head Screws
