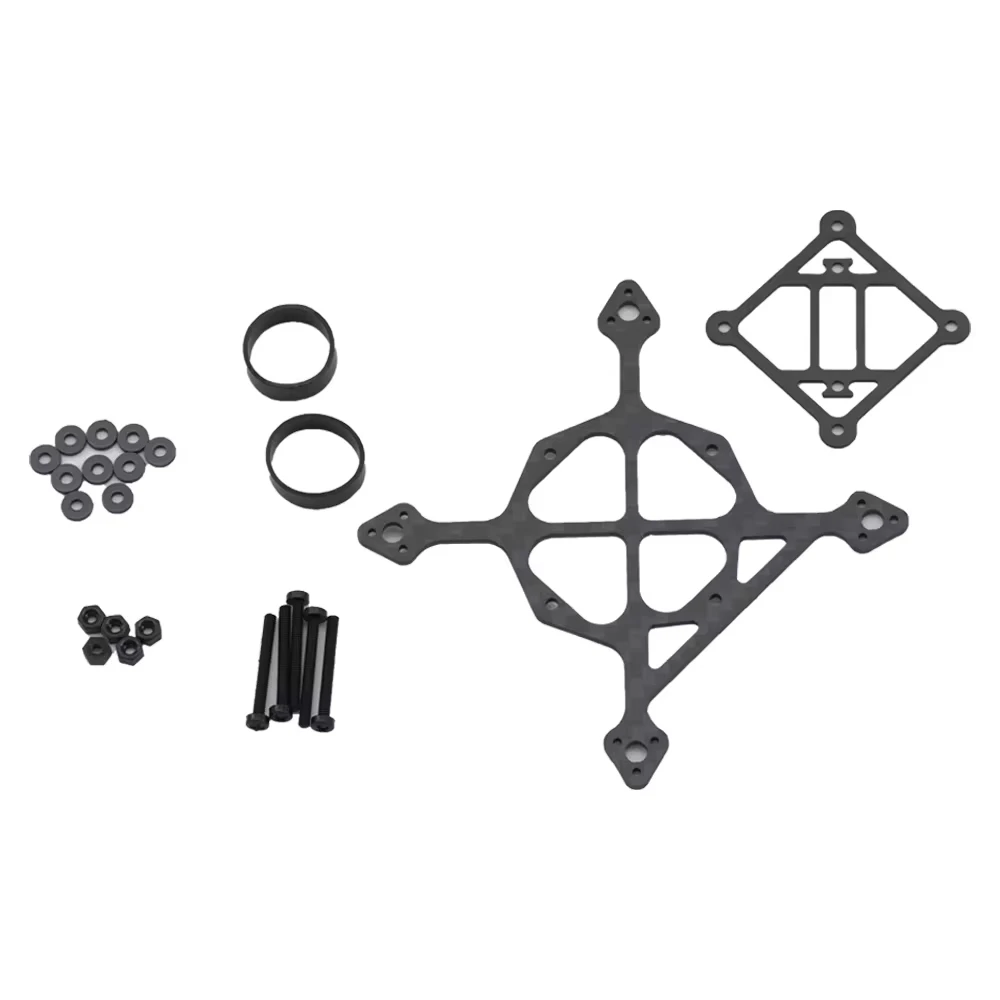

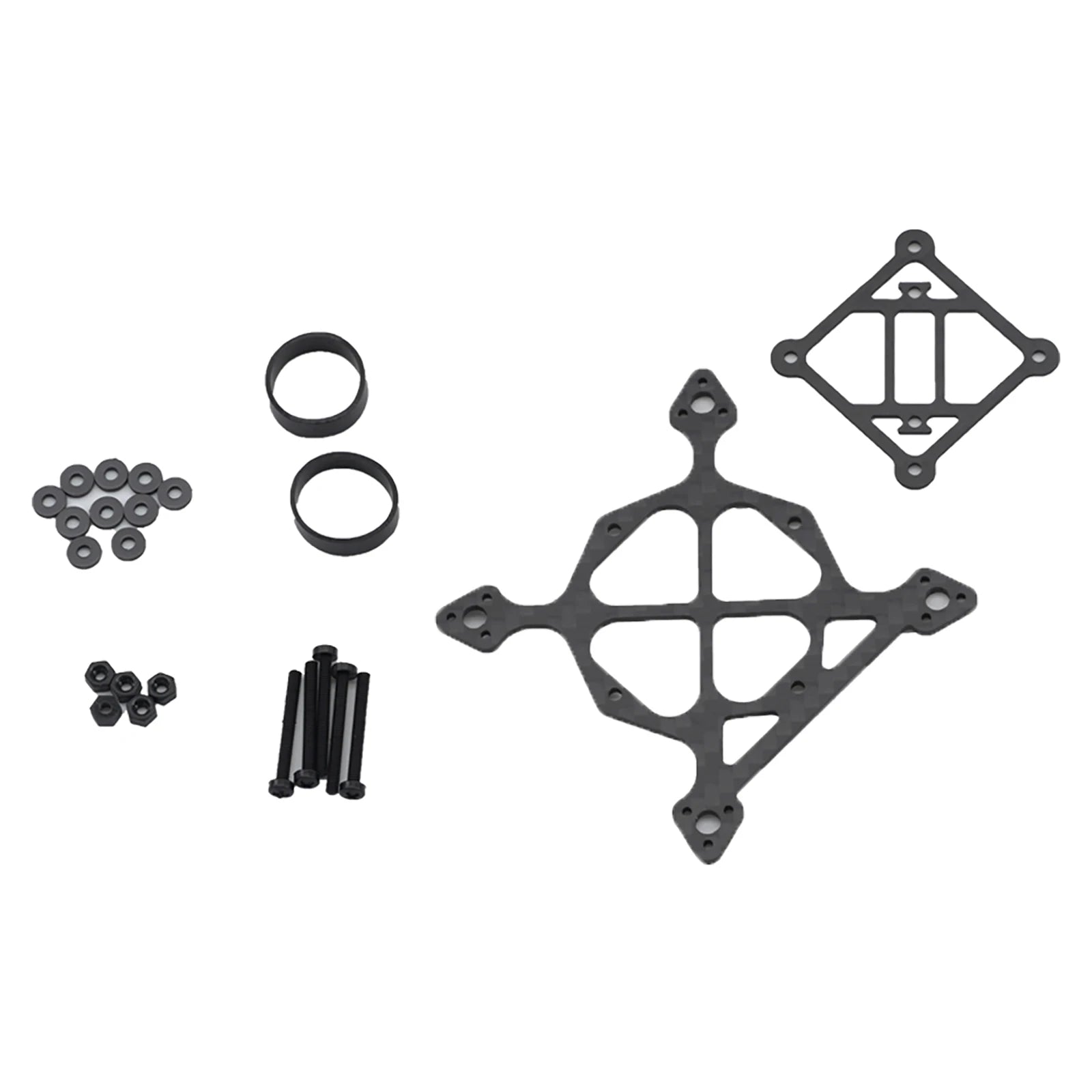

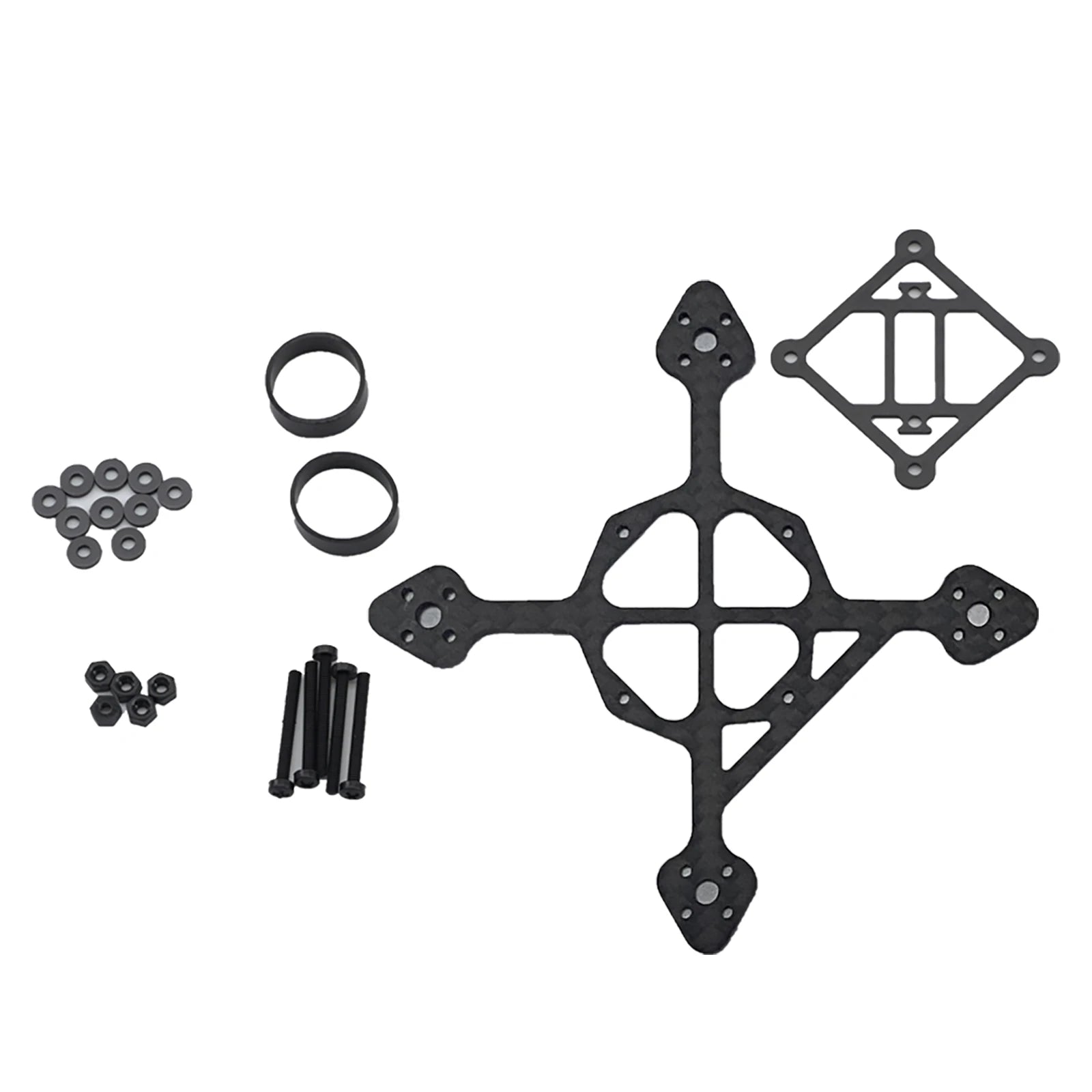

65mm 75mm 85mm 95mm Wheelbase 3K Carbon Fiber Bottom Plate Frame Kit 3-8g Toothpick Whoop Mini RC Drone FPV Racing Quadcopter
65mm 75mm 85mm 95mm Wheelbase 3K Carbon Fiber Bottom Plate Frame Kit 3-8g Toothpick Whoop Mini RC Drone FPV Racing Quadcopter
Couldn't load pickup availability
Specification:
Item Name: 65mm 75mm 85mm 95mm Wheelbase Bottom Plate Frame

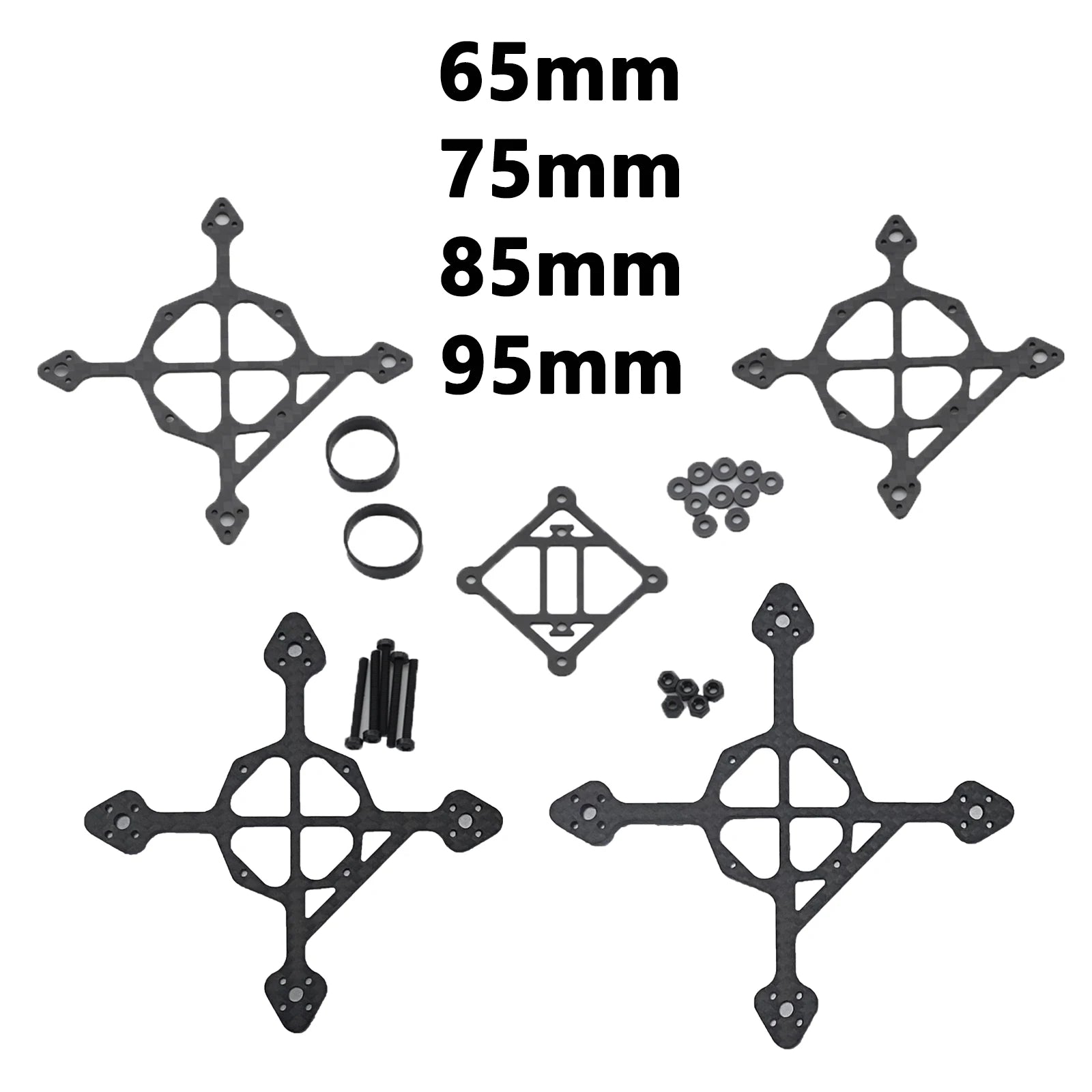

Wheelbase: 65mm or 75mm or 85mm or 95mm
Quantity: 1 PCS
Material: 3K Carbon Fiber

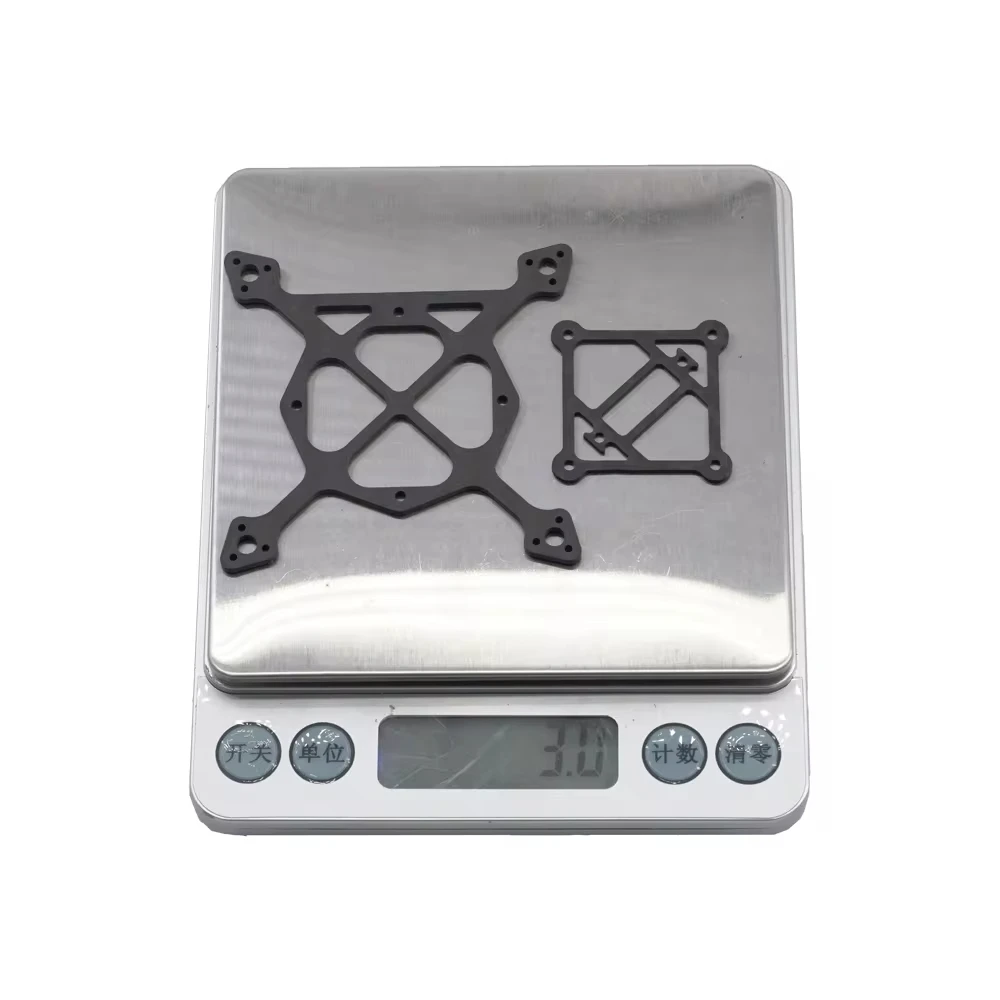

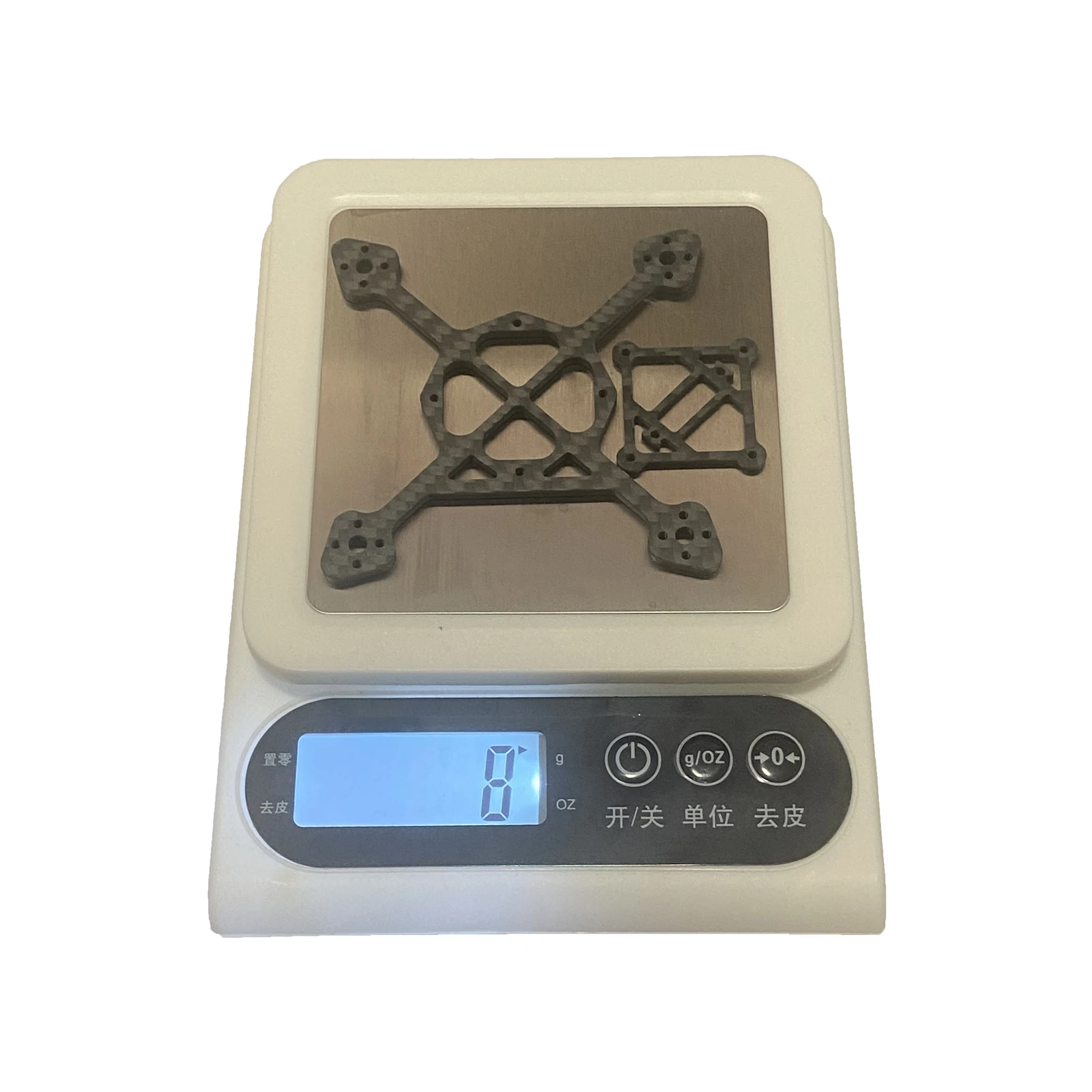

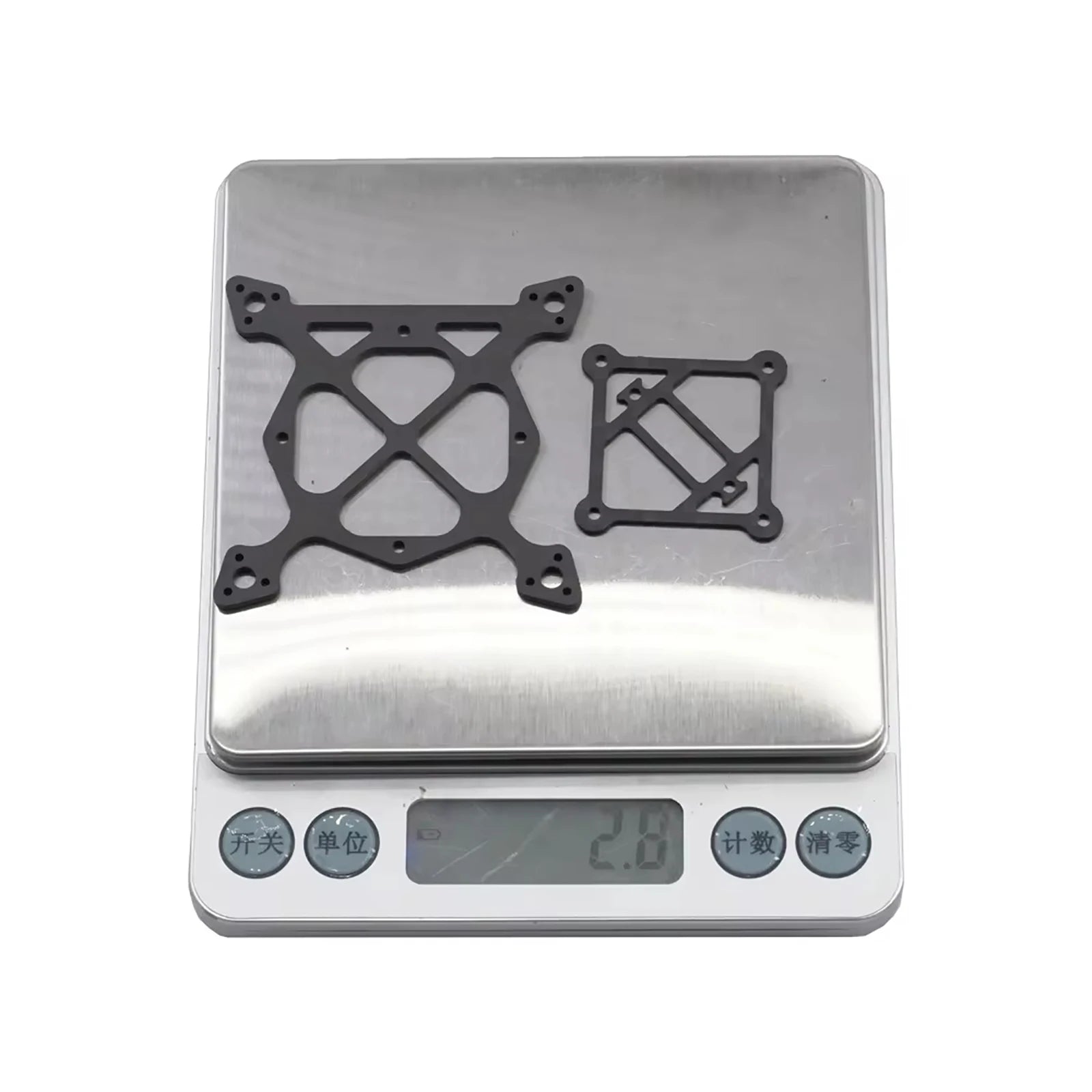

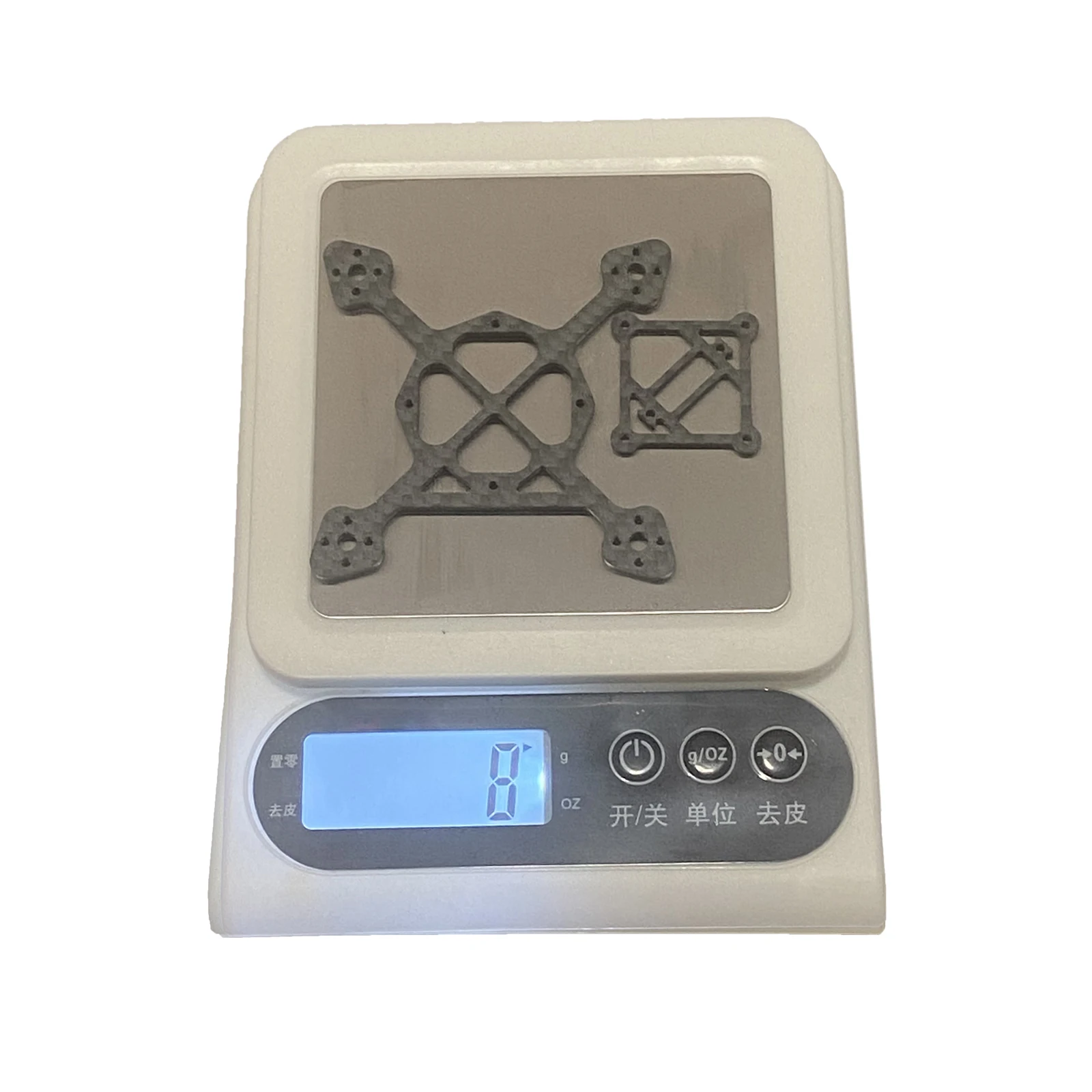

Weight: 65mm/2.8g，75mm/3g，85mm/7.8g，95mm/8g
Application: Compatible with Toothpick Whoop FPV Racing Drone

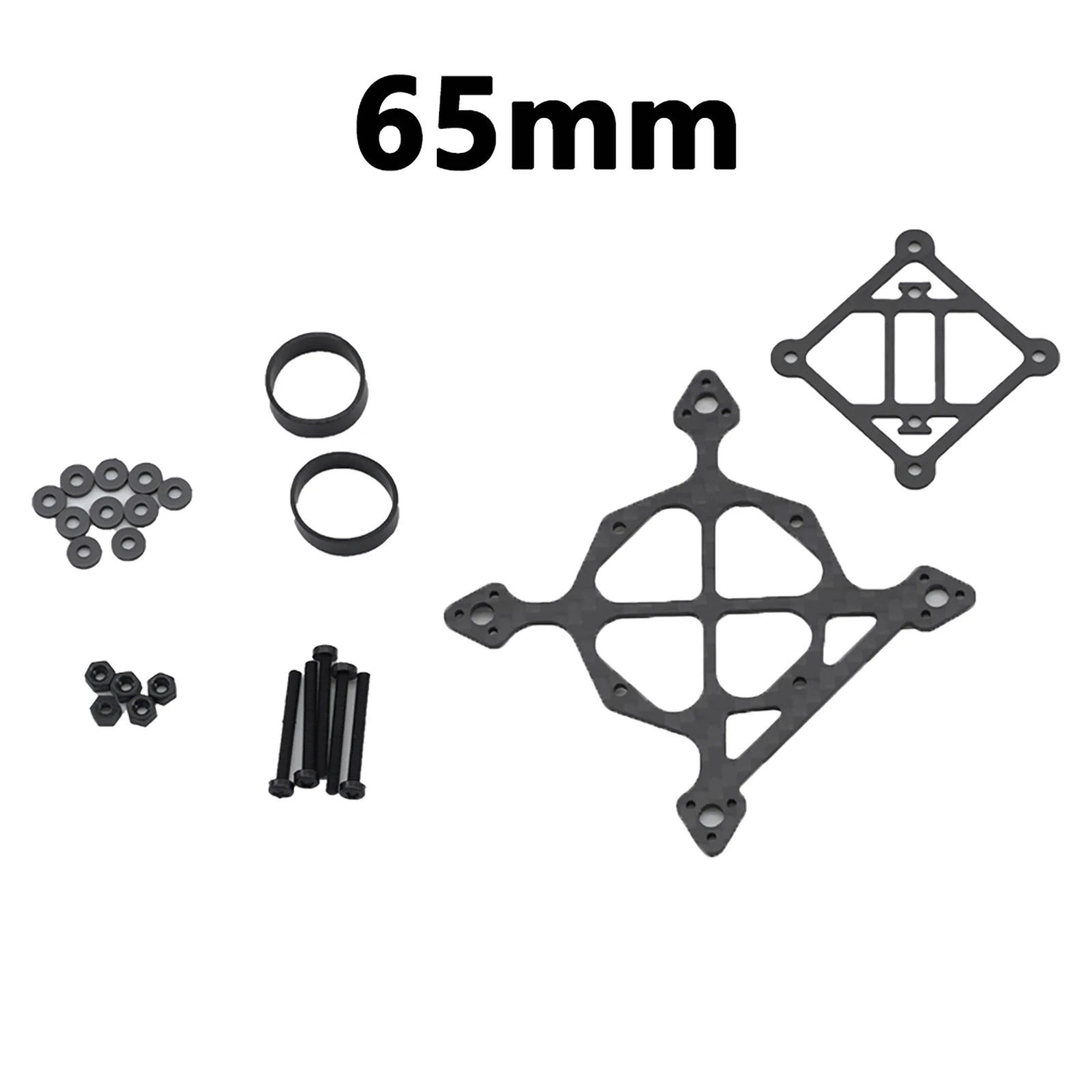

65mm
Wheelbase: 65mm
Bottom plate thickness: 1.5mm
Thickness of the clamp: 1mm
Motor installation hole: Φ 6.6 M1.4-3 hole
Flight control installation hole: 25.5 M2
Recommended motor: 0802-17000KV
Recommended propeller: 1219
Recommended battery: 1S300mah

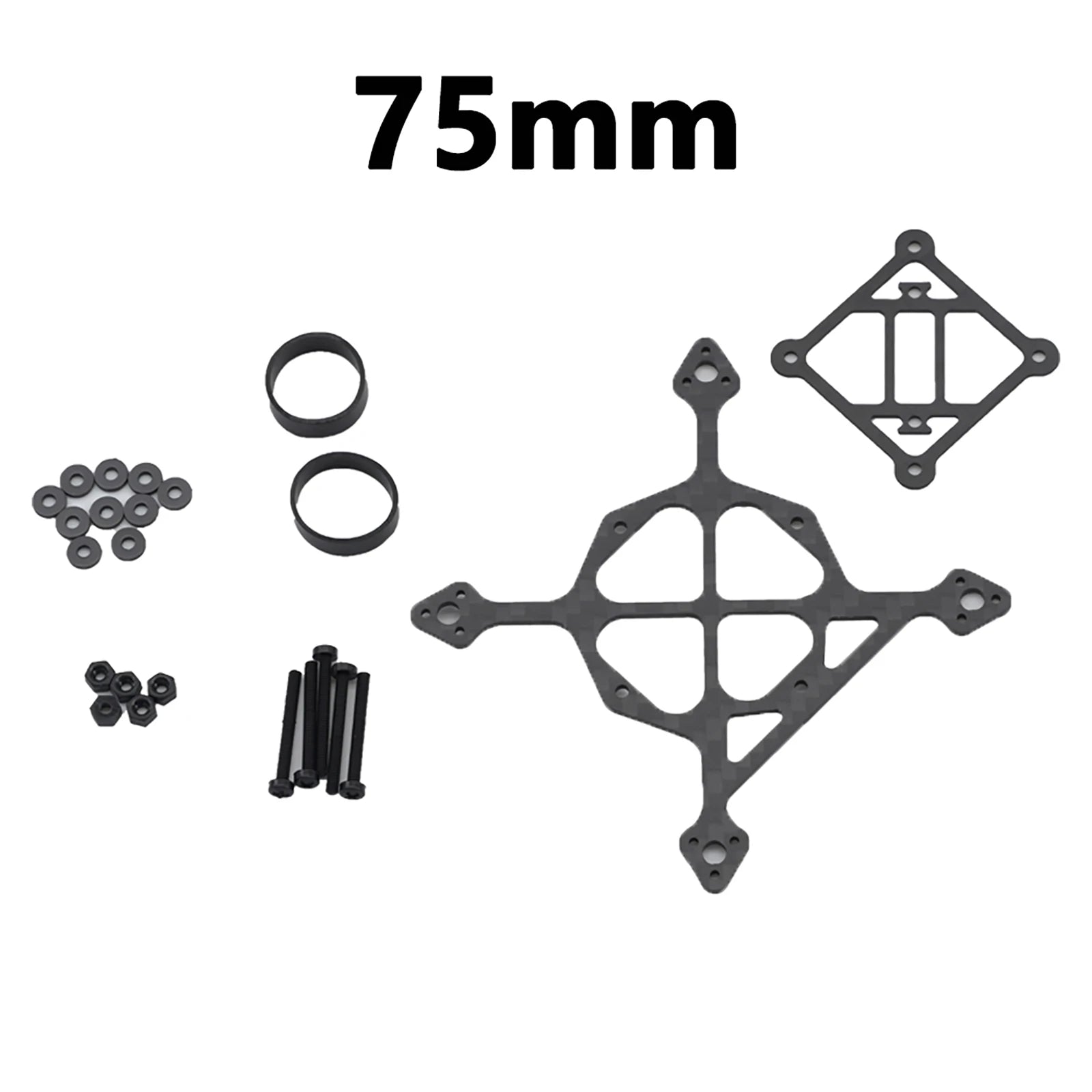

75mm
Wheelbase: 75mm
Bottom plate thickness: 1.5mm
Thickness of the clamp: 1mm
Motor installation hole: Φ 6.6 M1.4-3 hole
Flight control installation hole: 25.5 M2
Recommended motor: 0802-17000KV
Recommended propeller: 40mm
Recommended battery: 1S650mAh

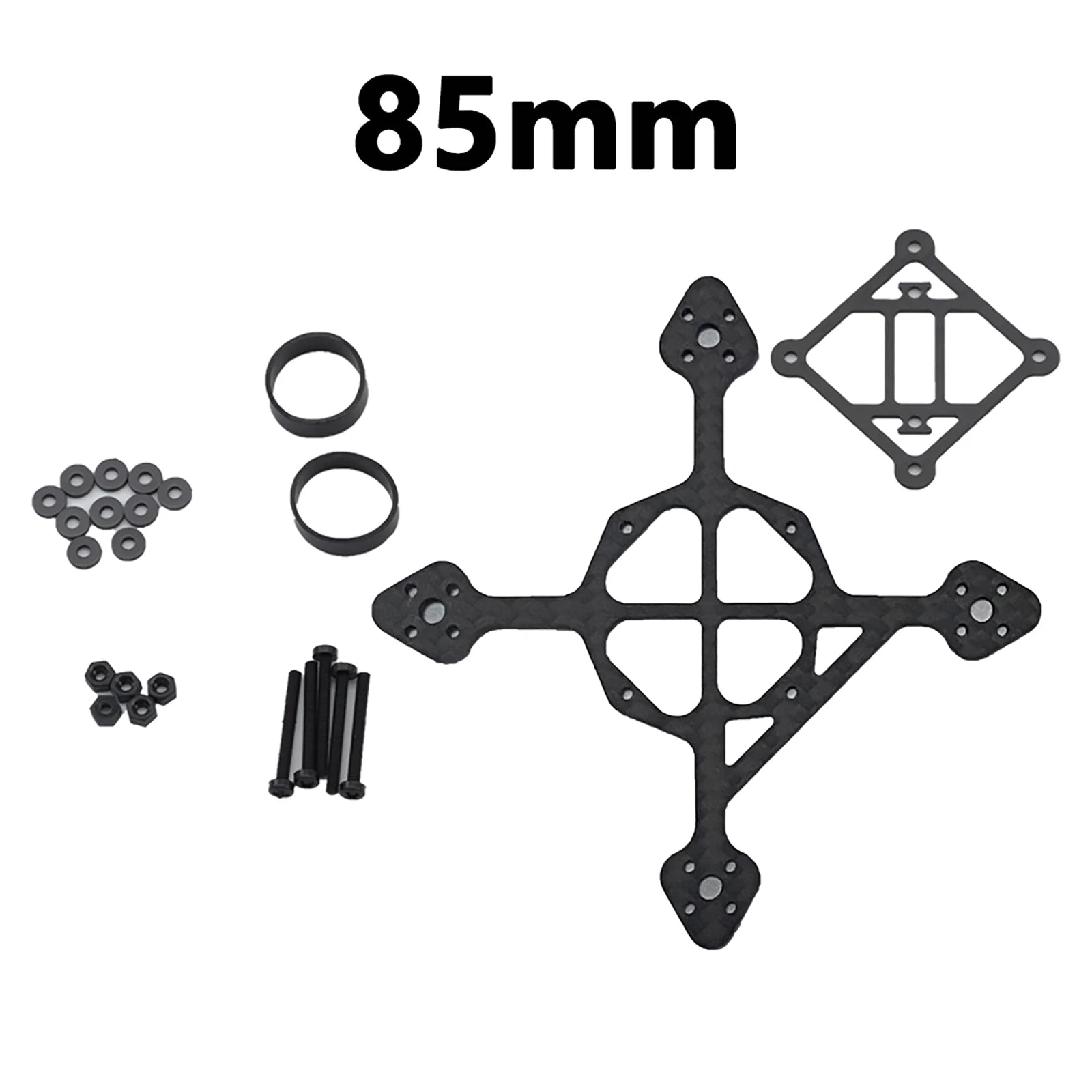

85mm
Wheelbase: 85mm
Bottom plate thickness: 3mm
Thickness of the clamp: 2mm
Motor installation hole: Φ 9 M2-4 hole
Flight control installation hole: 25.5 M2
Recommended motor: 1204-5000KV
Recommended propeller: 2-inch
Recommended battery: 3-4S 300-450mah

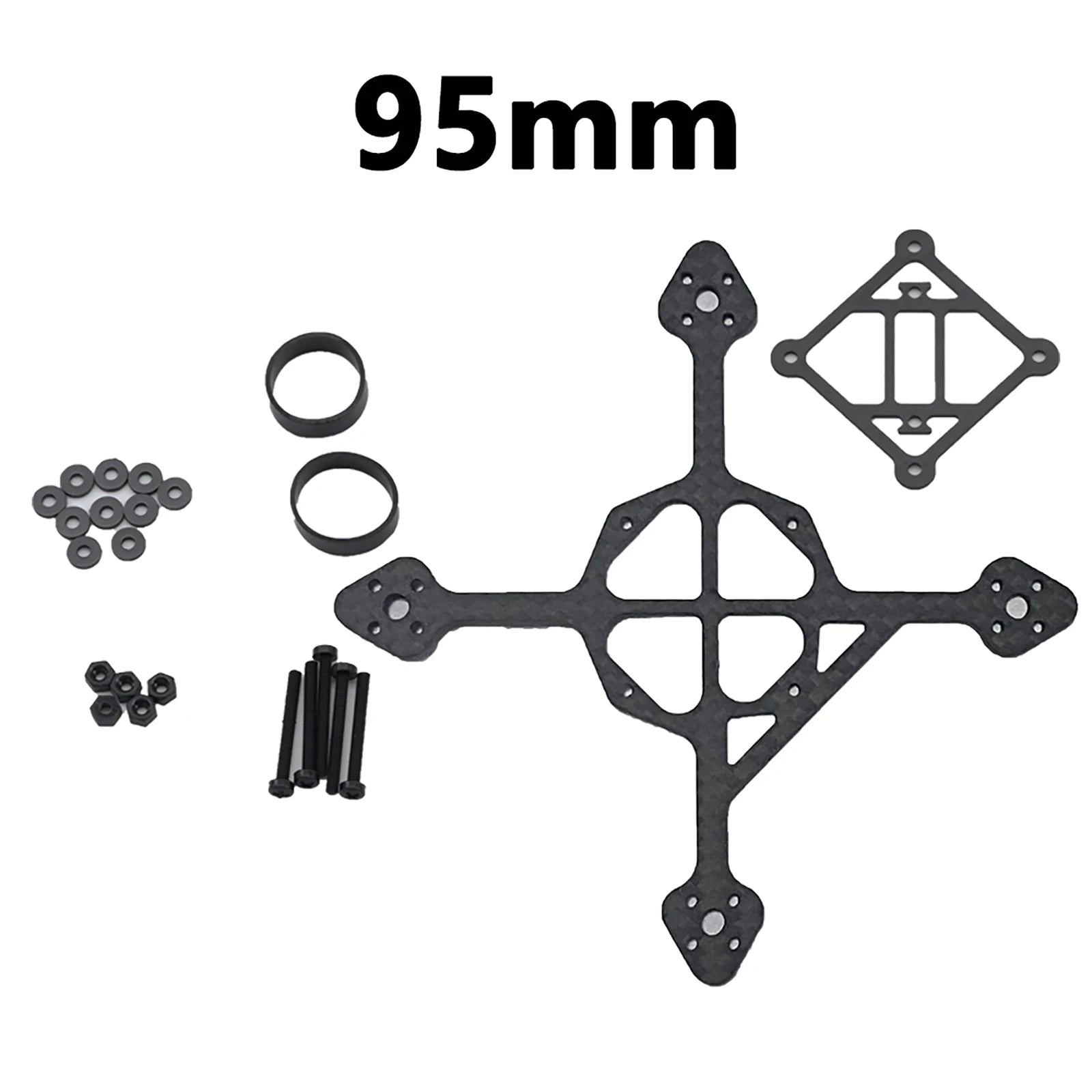

95mm
Wheelbase: 95mm
Bottom plate thickness: 3mm
Thickness of the clamp: 2mm
Motor installation hole: Φ 9 M2-4 hole
Flight control installation hole: 25.5 M2
Recommended motor: 1204-5000KV
Recommended propeller: 2.5-inch
Recommended battery: 4S 450-650mAh
Features:
- More Durable
- More light ( only 3-8g)
