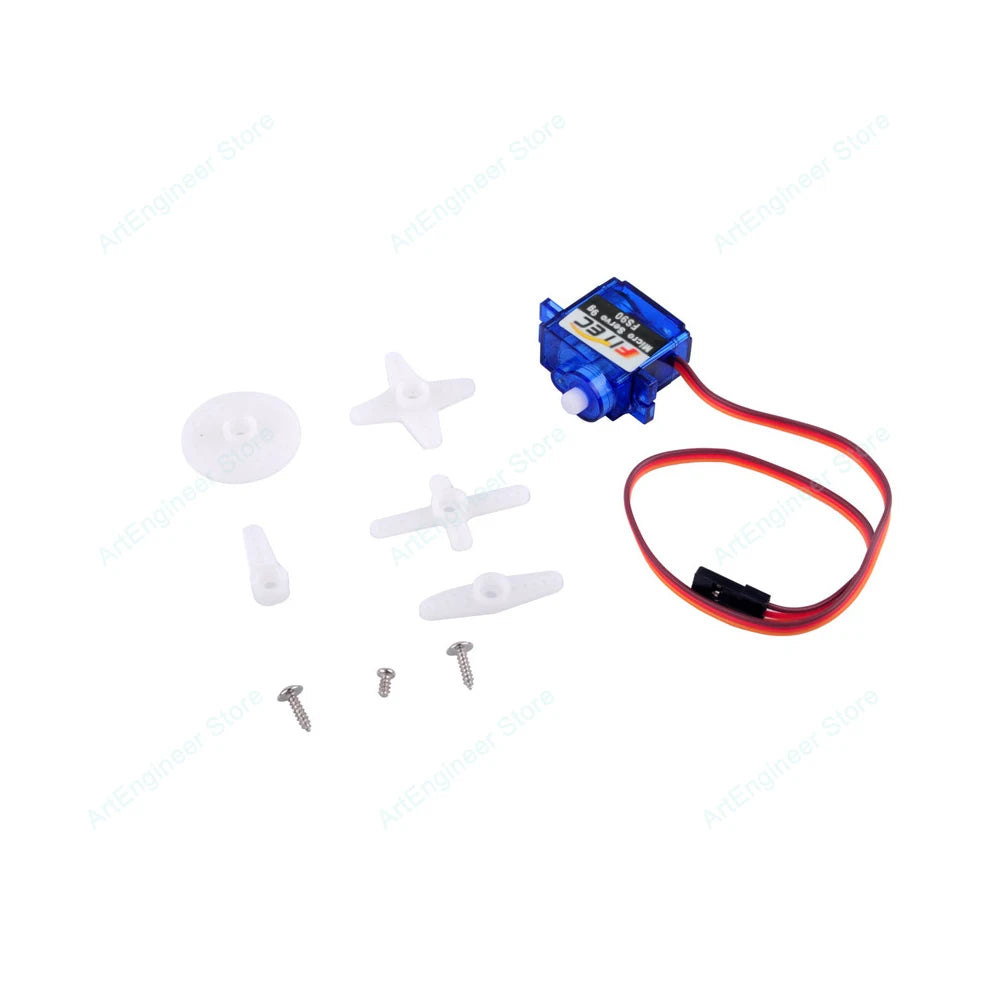

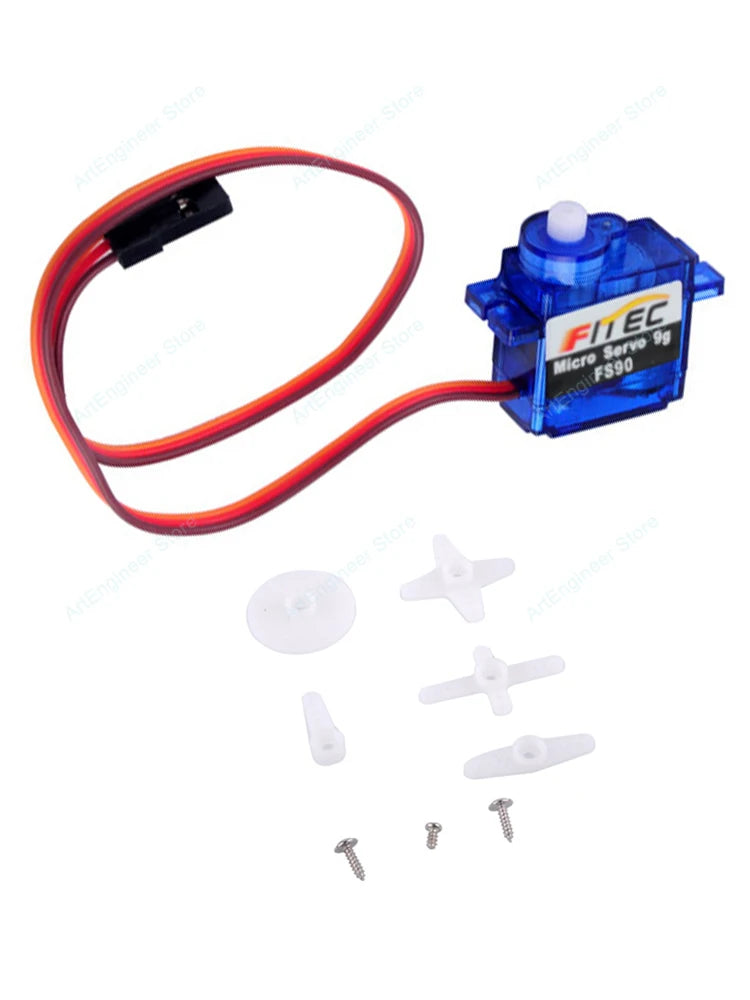

9g Micro Servo Motor Feetech FS90 4.8V 6V Servo Arm 120 Degree for Remote Control Helicopter Drones Arm RC Cars DIY Robot Toy

Feetech FS90 9g 120 degree 4.8V 6V micro servo motor for remote control robot helicopter, robotic arm RC model

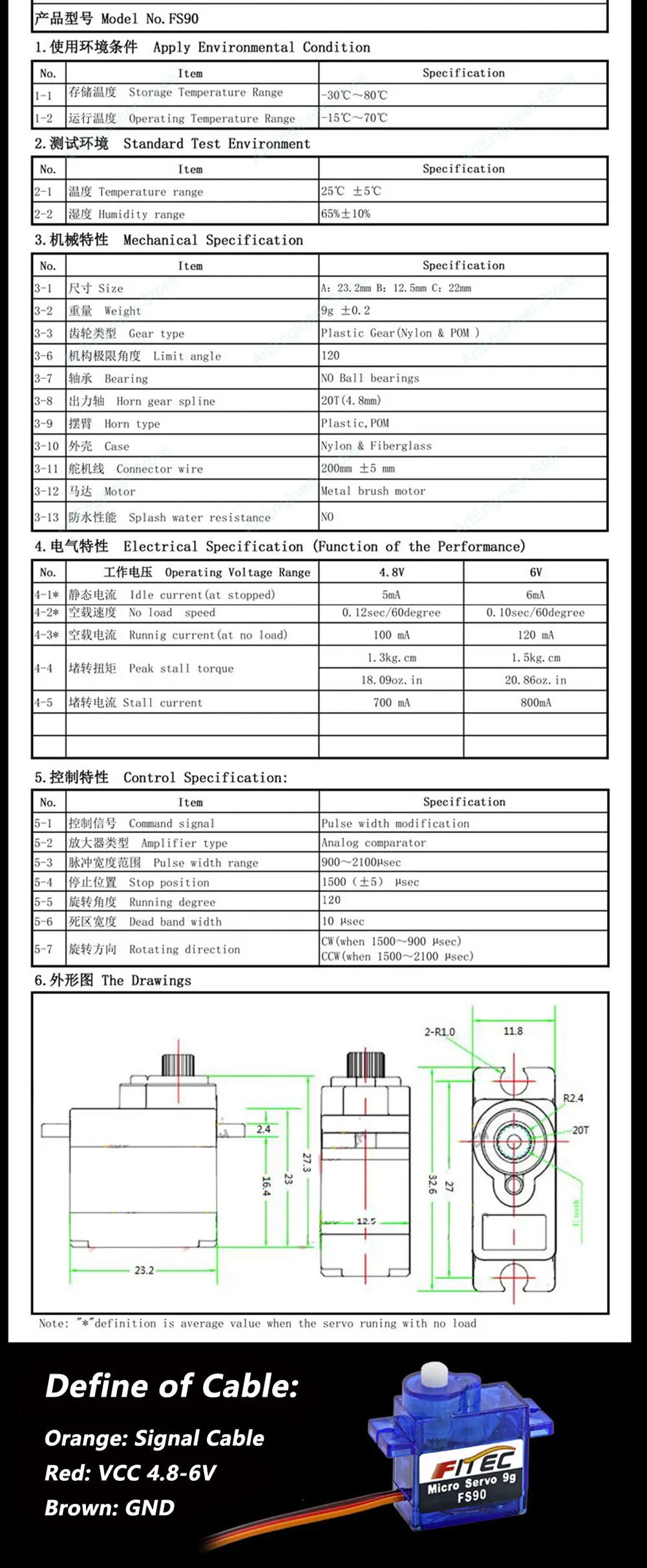

Specification Parameter:

Storage Temperature Range: -30°C～80°C

Operating Temperature Range: -15°C～70°C

Temperature Range: 25°C±5°C

Humidity Range: 65%±10%

Size: 23.2*12.5*22mm

Weight: 9g±0.2

Gear type: Plastic Gear( Nylon & POM)

Limit angle:120°

Bearing: No Ball Bearing

Horn gear spline: 20T(4.8mm)

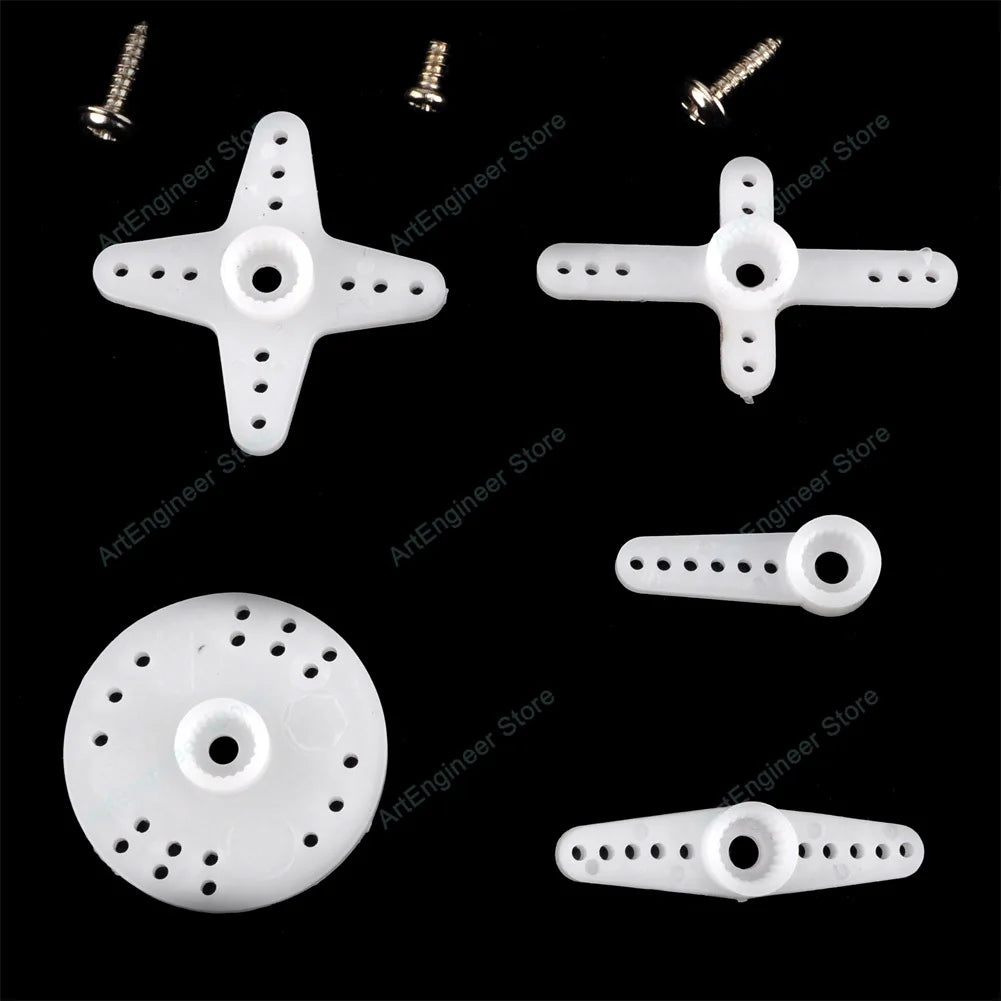

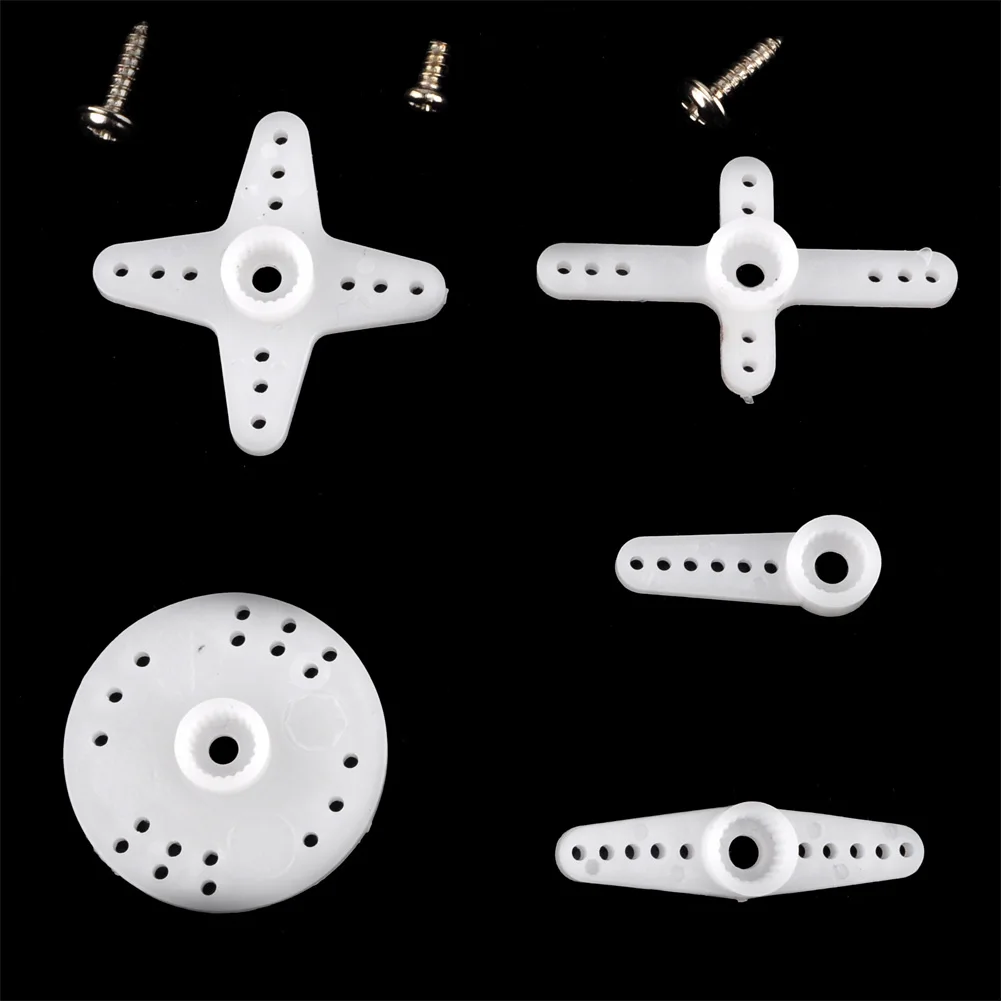

Horn type: Plastic, POM

Case: Nylon & Fiberglass

Connector wire: 200mm±5mm

Motor: Carbon brush motor

Splash water resistance: No

Operat voltage:4.8V-6.0V

No load speed: 0.12sec/60°-0.10sec/60°

Runnig current: 210mA-260mA

Peak stall torque: 1.3kg.cm-1.5kg.cm

Stall current: 700mA±10%-800mA±10%

Command signal: Pulse width modification

Amplifier type: Digital controller

Pulse width range: 900～2100usec

Neutral position: 1500(±5) usec

Running degree:120°

Deadband width: 5 usec

Rotating direction: CW (when 1500～900usec), CCW (when 1500～2100usec)
