DSpower 3KG Plastic Gear Waterproof Digital Micro Servo 5kg Torque for RC Car Plane Drone Helicopter Boat Robot Wltoys Axial
DSpower 3KG Plastic Gear Waterproof Digital Micro Servo 5kg Torque for RC Car Plane Drone Helicopter Boat Robot Wltoys Axial
Regular price
$27.99 AUD
Regular price
Sale price
$27.99 AUD
Quantity
Couldn't load pickup availability
DSpower 3KG Plastic Gear Waterproof Digital Micro Servo 5kg Torque for RC Car Plane Drone Helicopter Boat Robot Wltoys Axial
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:
Item name: DSpower 3KG Waterproof Plastic Gear Servo
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥4.5kgf·cm; 6.0V≥5kgf·cm
No Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°
Stall Current:4.8V ≦1800mA;6.0V≦2200mA
Consumption Current* (No Load):4.8V≦60mA;6.0V≦80mA

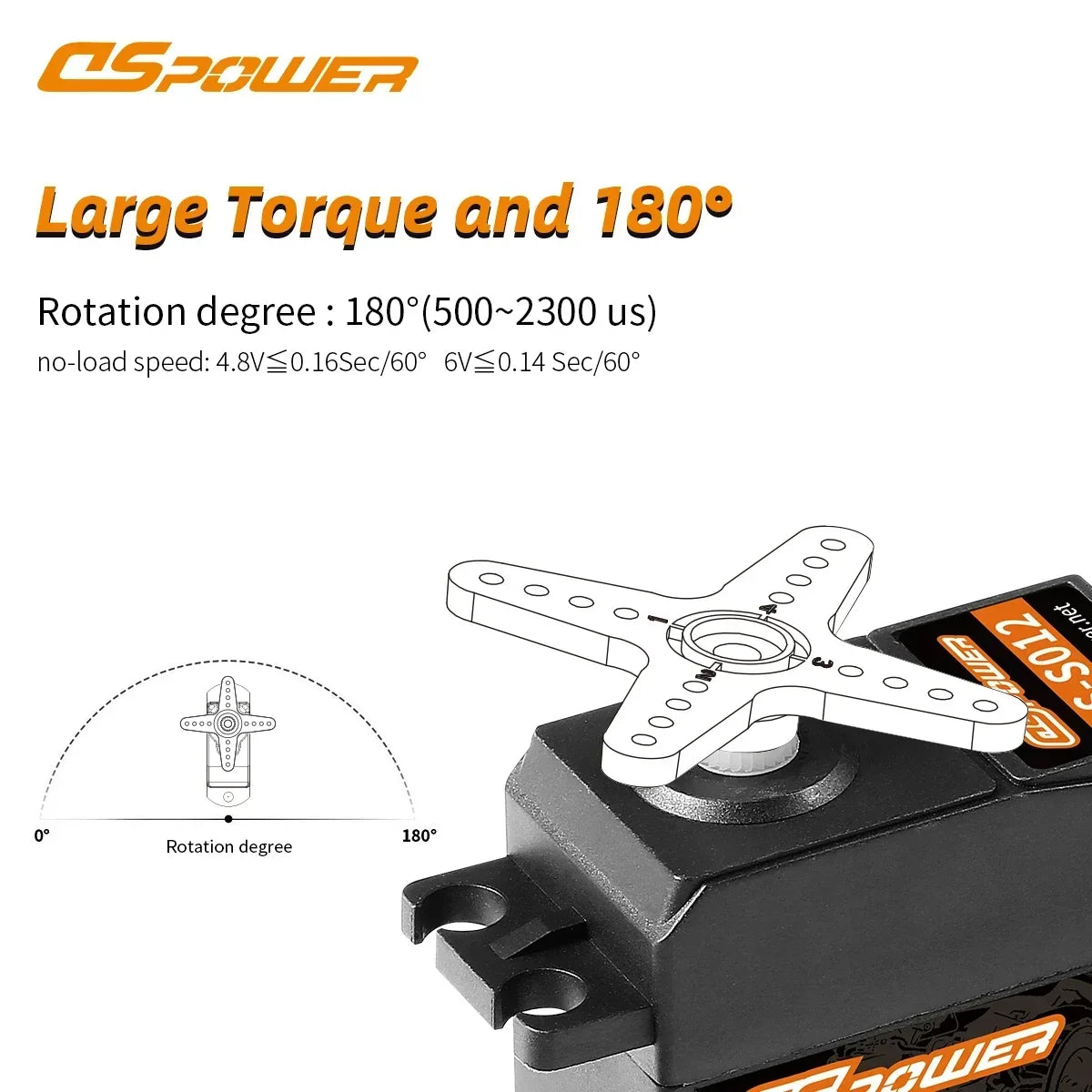

Max. Operating Travel Angle:180°±10° (500~2500μs)
Dead Band Width: ≤ 3μs
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Platic gear
Weight: 37g

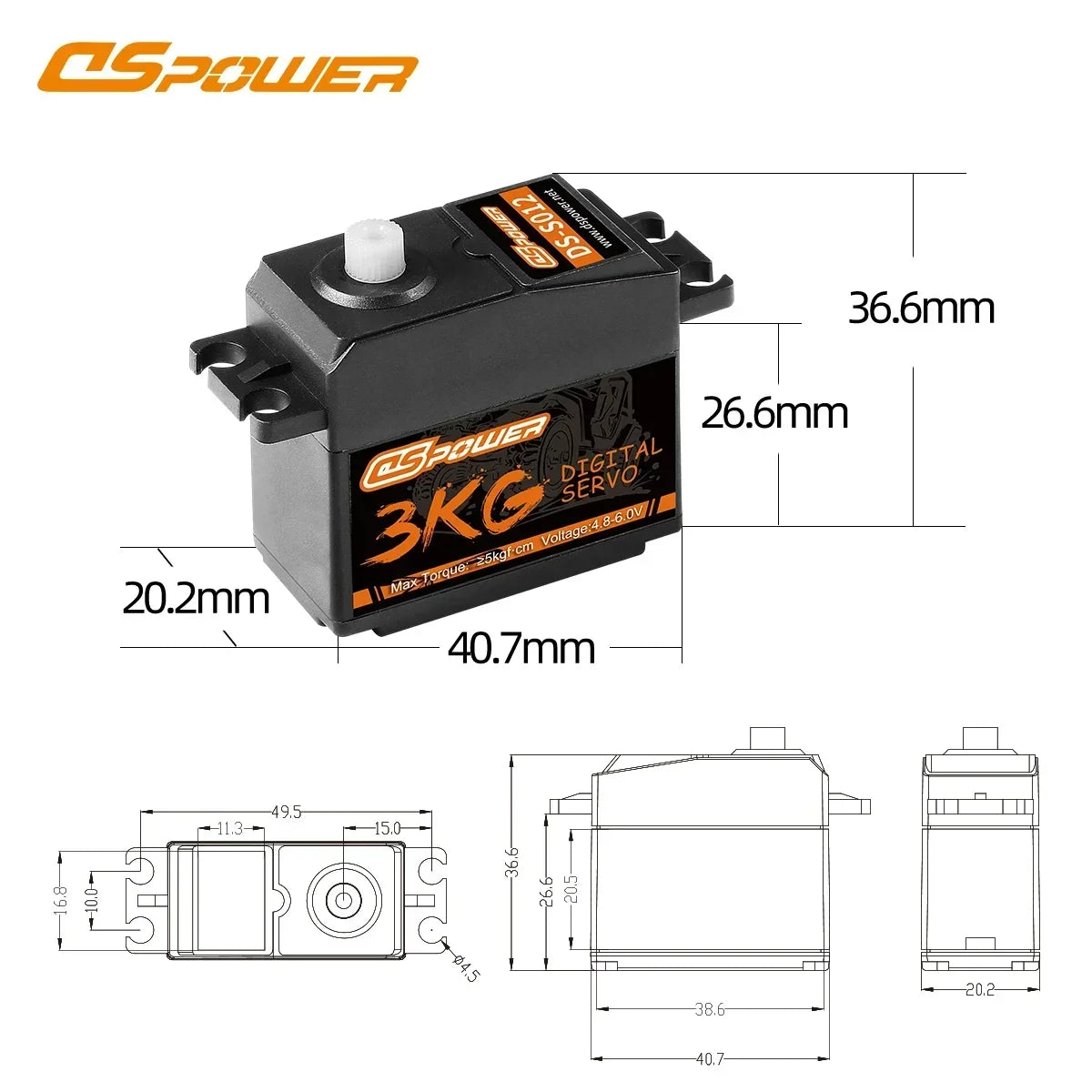

Size: 49.5 × 20.2 × 40.7mm
Length of Connector cable: JR 250MM±5mm (exposed without plug)
Package included:

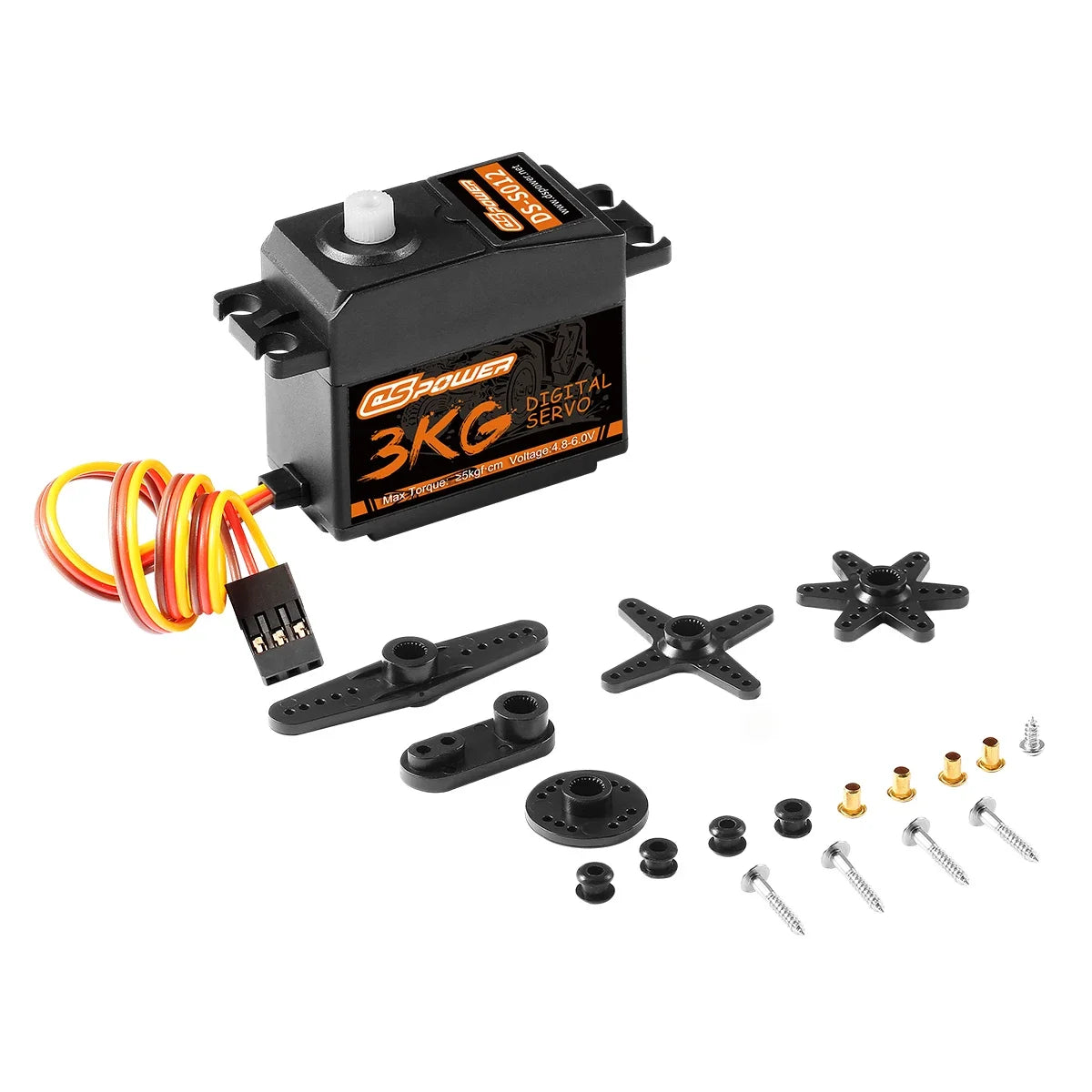

1 * 3KG Digital Servo
1 * Servo Arm Accessories
