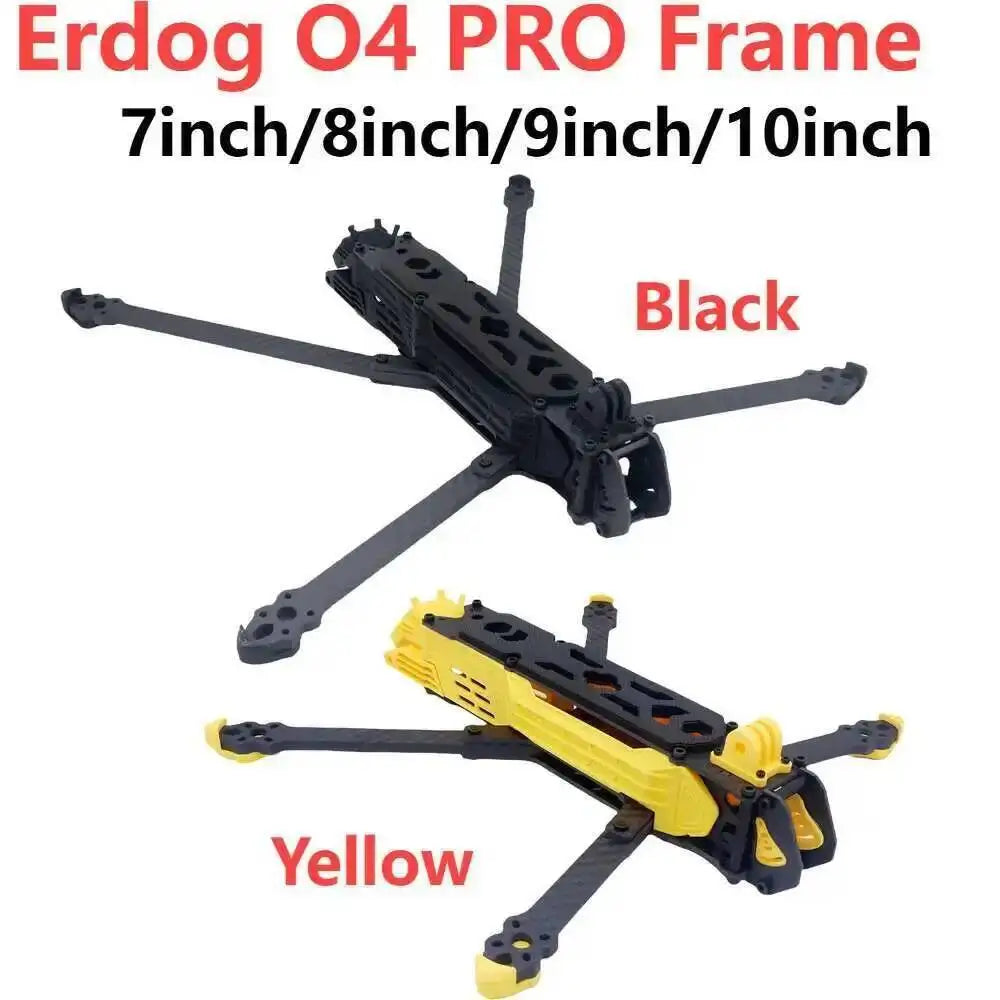

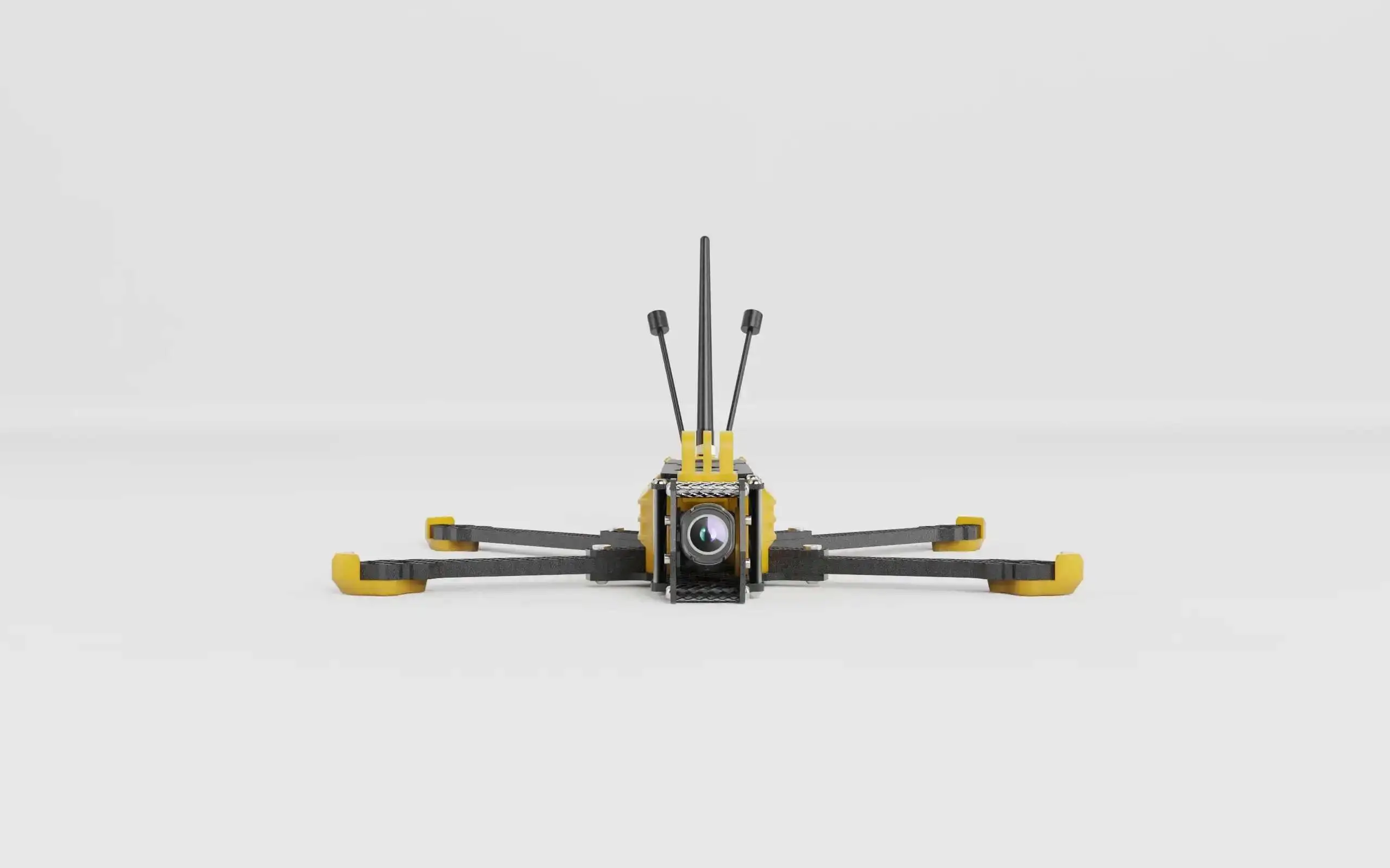

Erdog 7inch 8-9-10 inch O4 Frame FPV Freestyle RC Racing Drone with Print Parts O4 PRO Air Unit HD Carbon Fiber Quadcopter

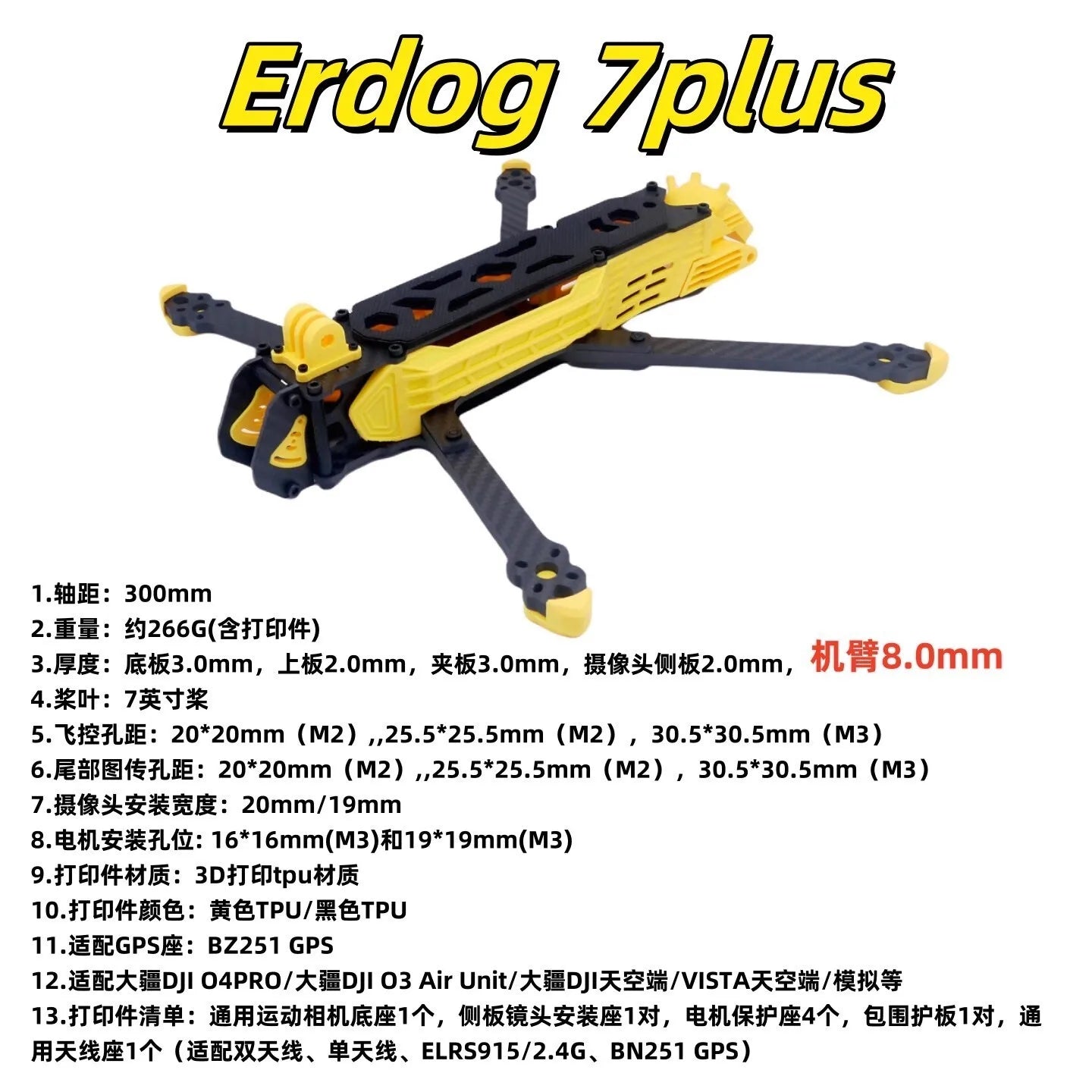

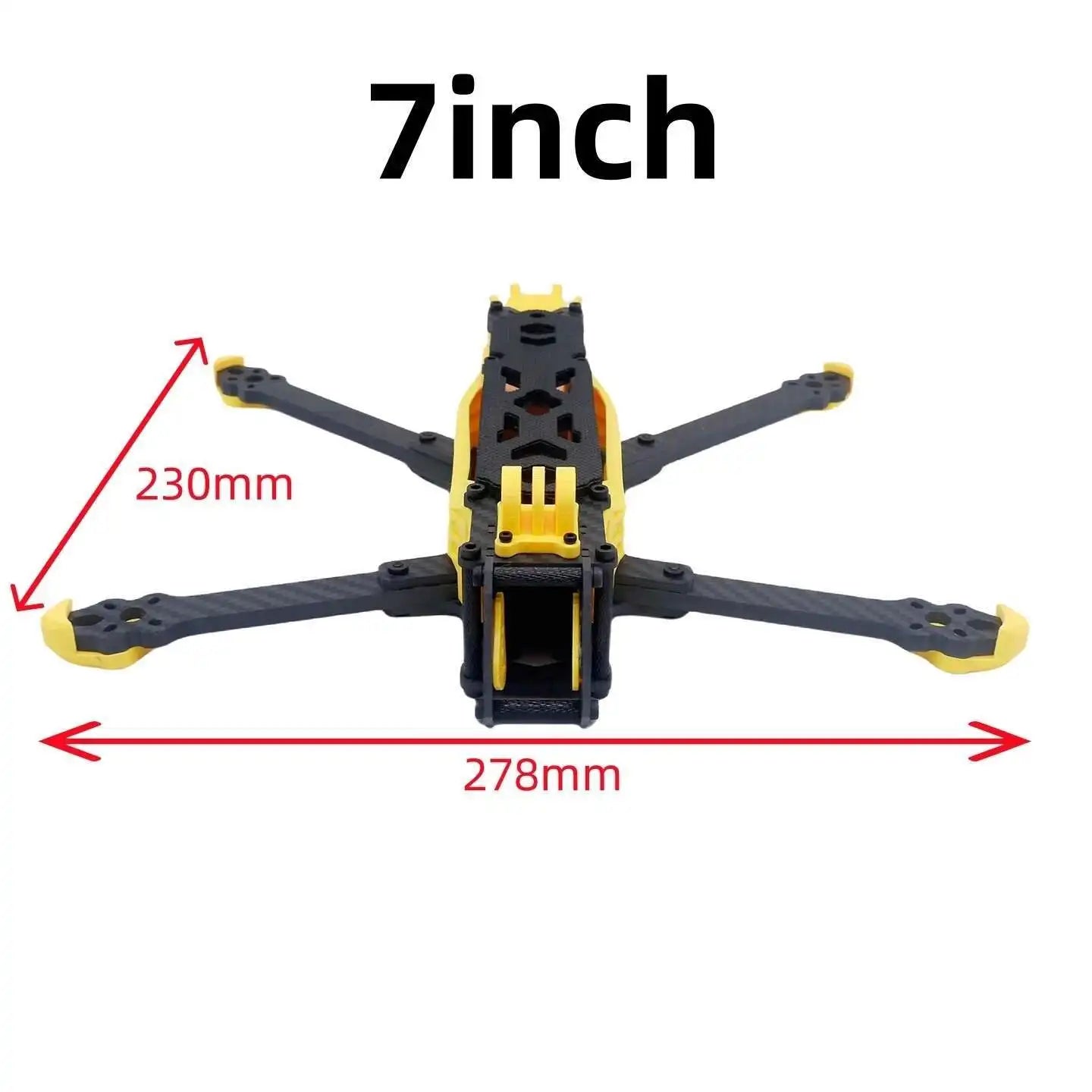

Erdog 7inch O4 PRO Frame:

Wheelbase: 300mm

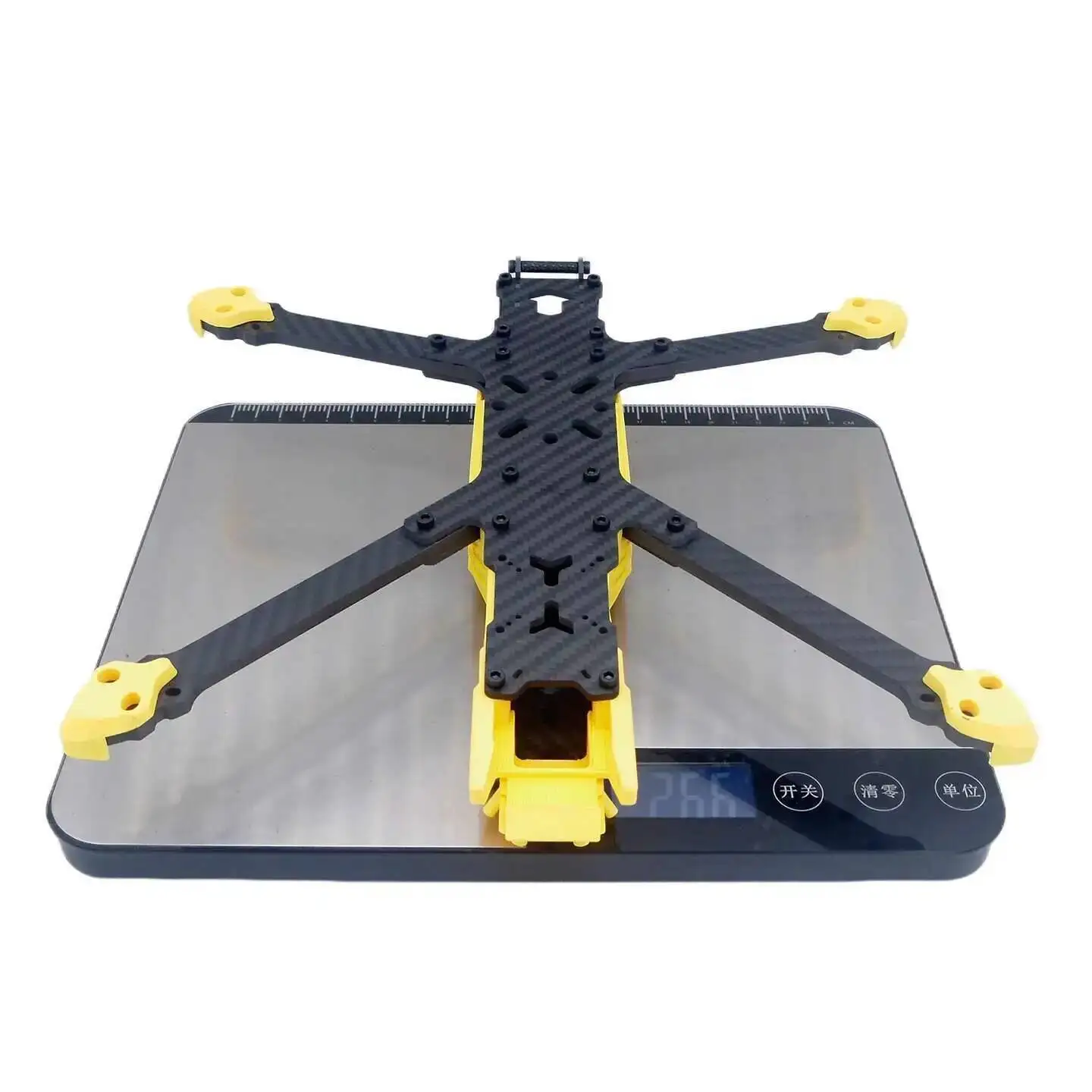

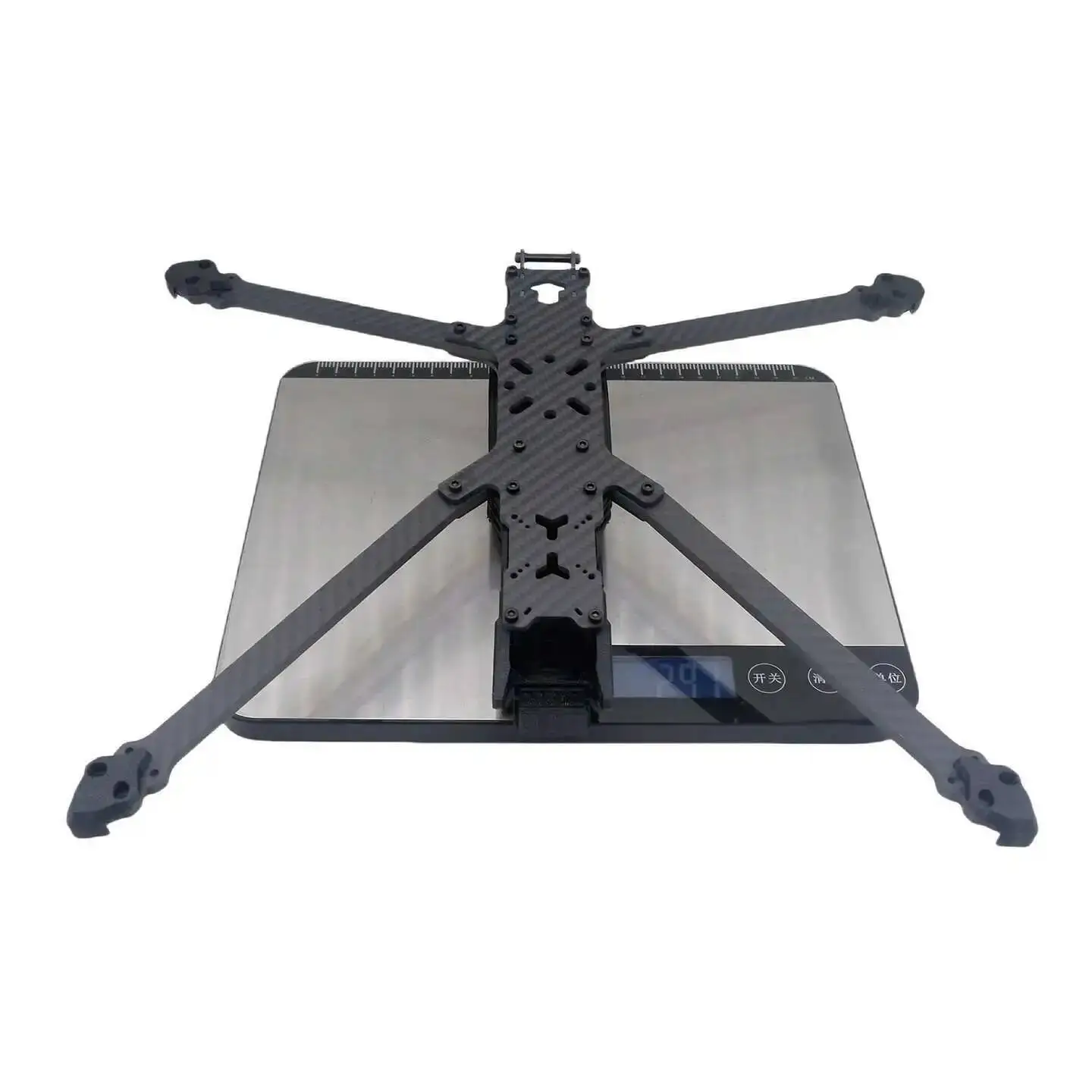

Weight: ~266g (including 3D printed parts)
Frame Thickness:Bottom Plate: 3.0mm、Top Plate: 2.0mm、Sandwich Plate: 3.0mm、Camera Side Plates: 2.0mm、Arms: 6.0mm
Propellers: 7-inch
FC (Flight Controller) Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
VTX (Video Transmitter) Rear Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
Camera Mount Width: 20mm/19mm (Micro/Nano cam compatibility)
Motor Mount Pattern: 16×16mm (M3) & 19×19mm (M3)

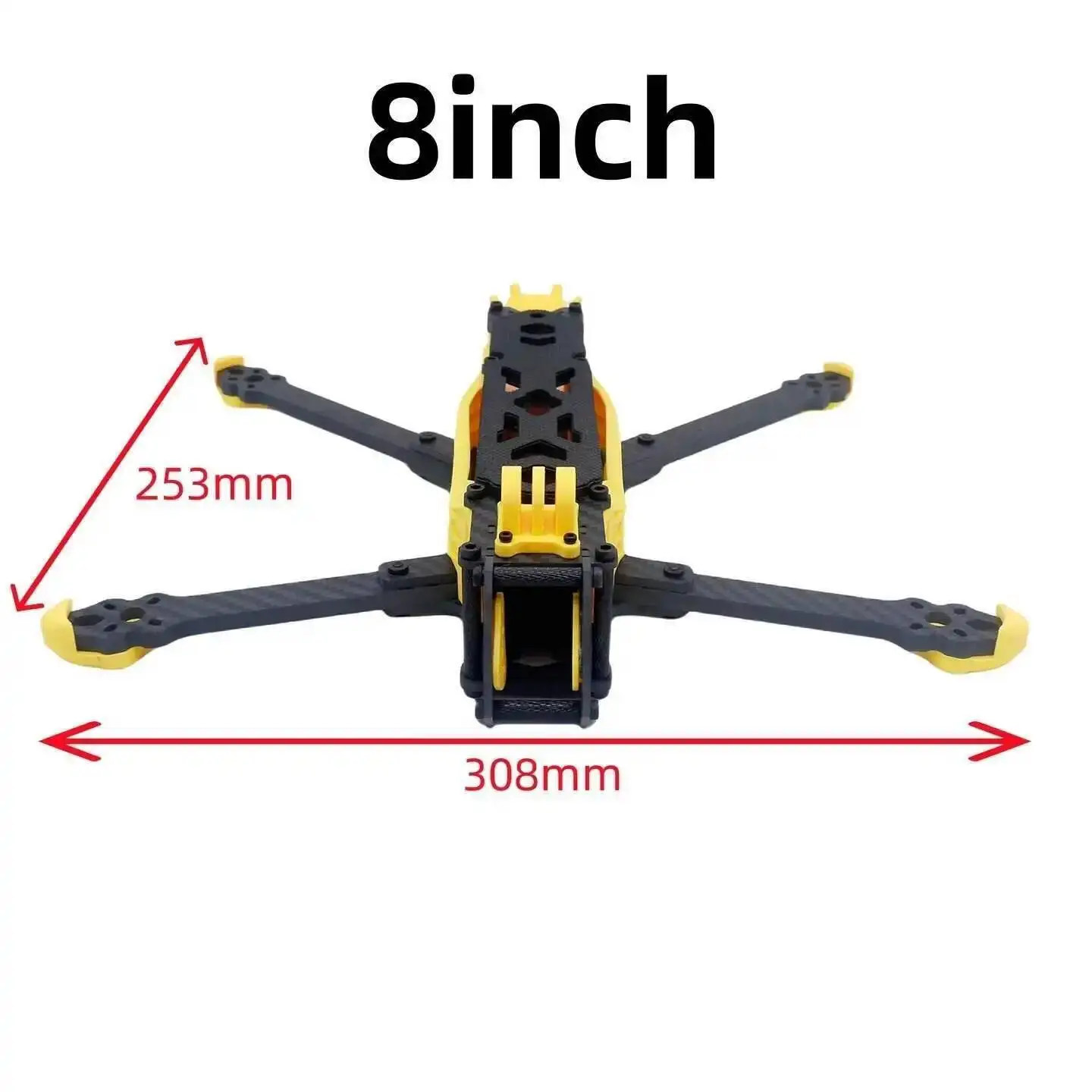

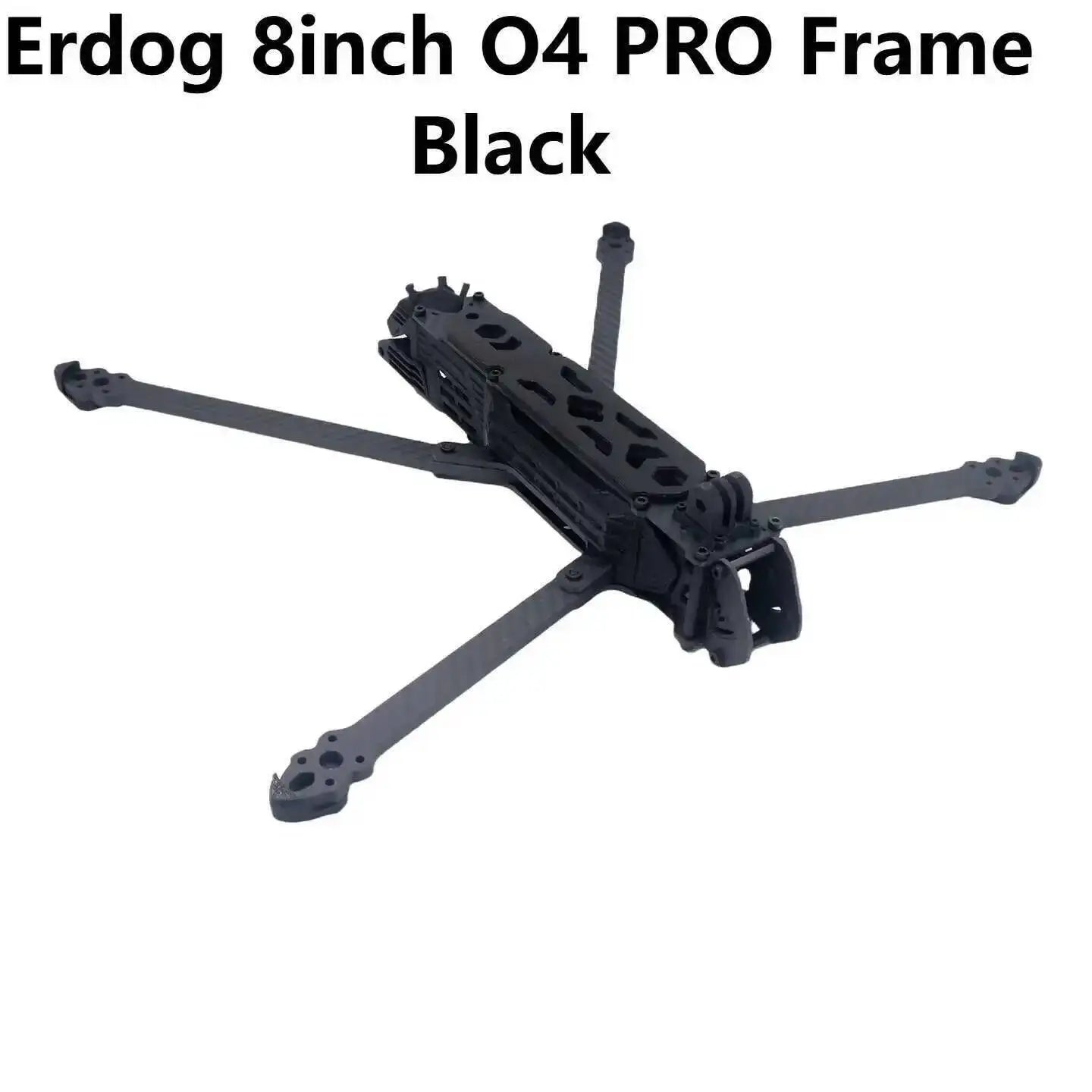

Erdog 8inch O4 PRO Frame:

Wheelbase: 340mm
Weight: ~275g (including 3D printed parts)
Frame Thickness:Bottom Plate: 3.0mm、Top Plate: 2.0mm、Sandwich Plate: 3.0mm、Camera Side Plates: 2.0mm、Arms: 6.0mm
Propellers: 8-inch
FC (Flight Controller) Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
VTX (Video Transmitter) Rear Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
Camera Mount Width: 20mm/19mm (Micro/Nano cam compatibility)
Motor Mount Pattern: 16×16mm (M3) & 19×19mm (M3)

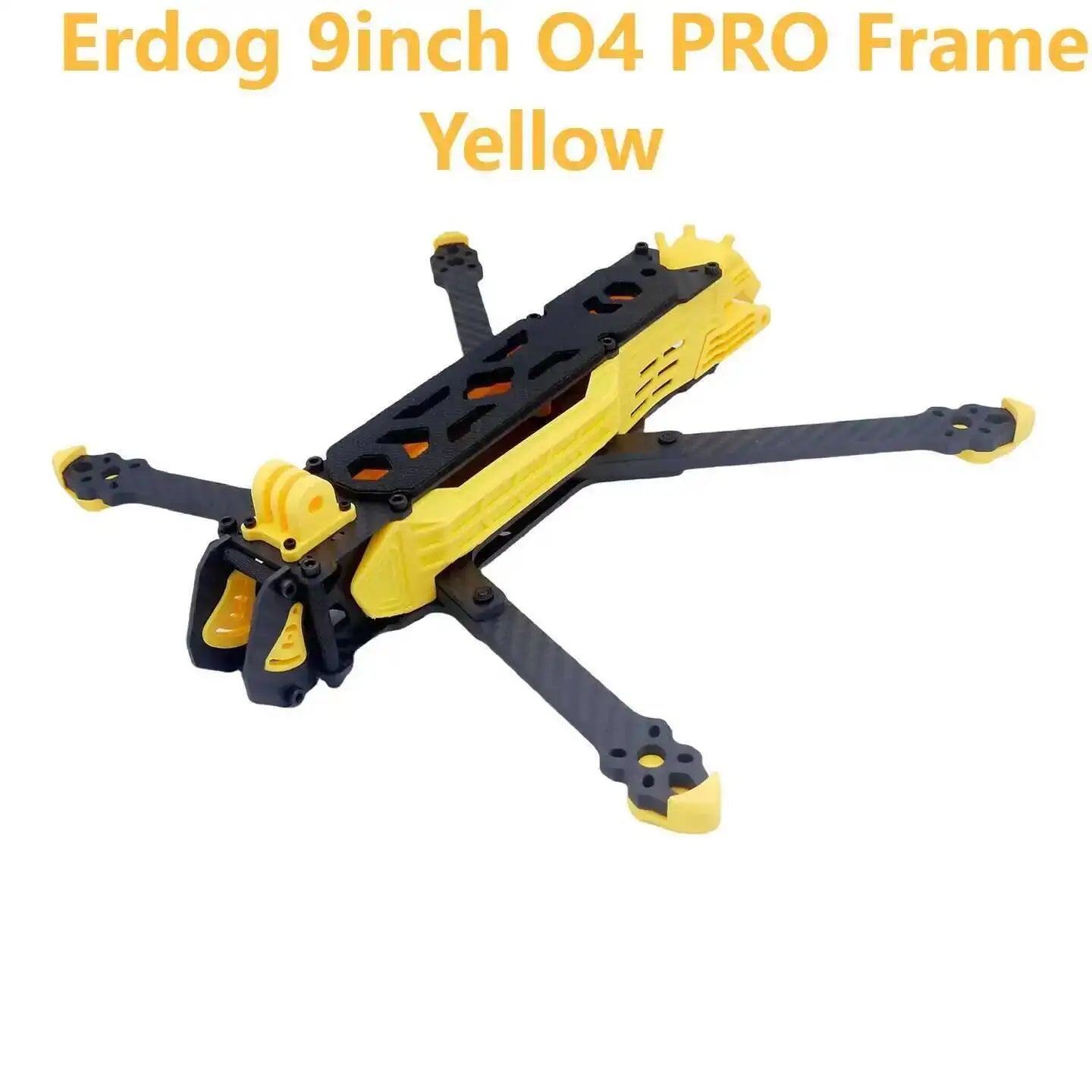

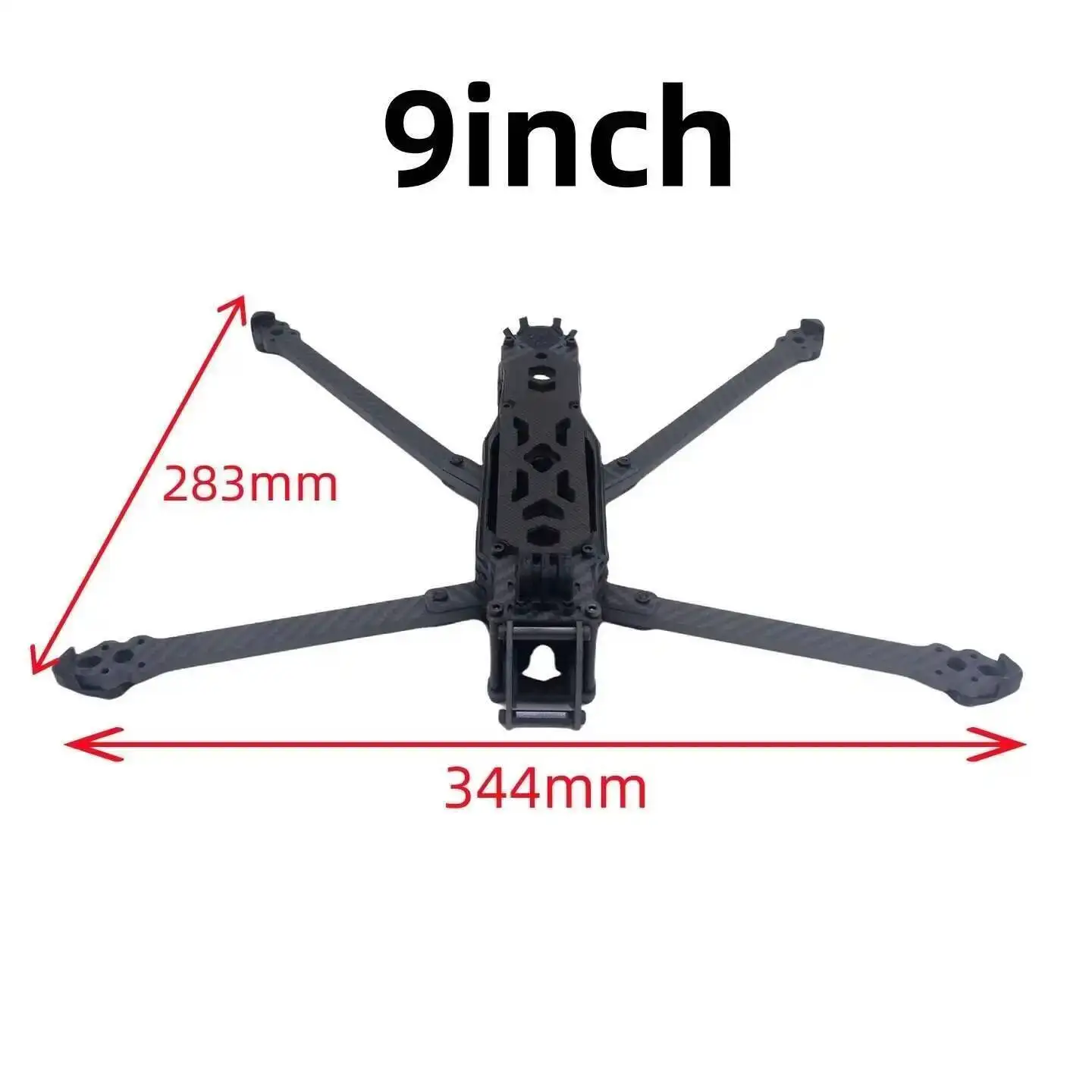

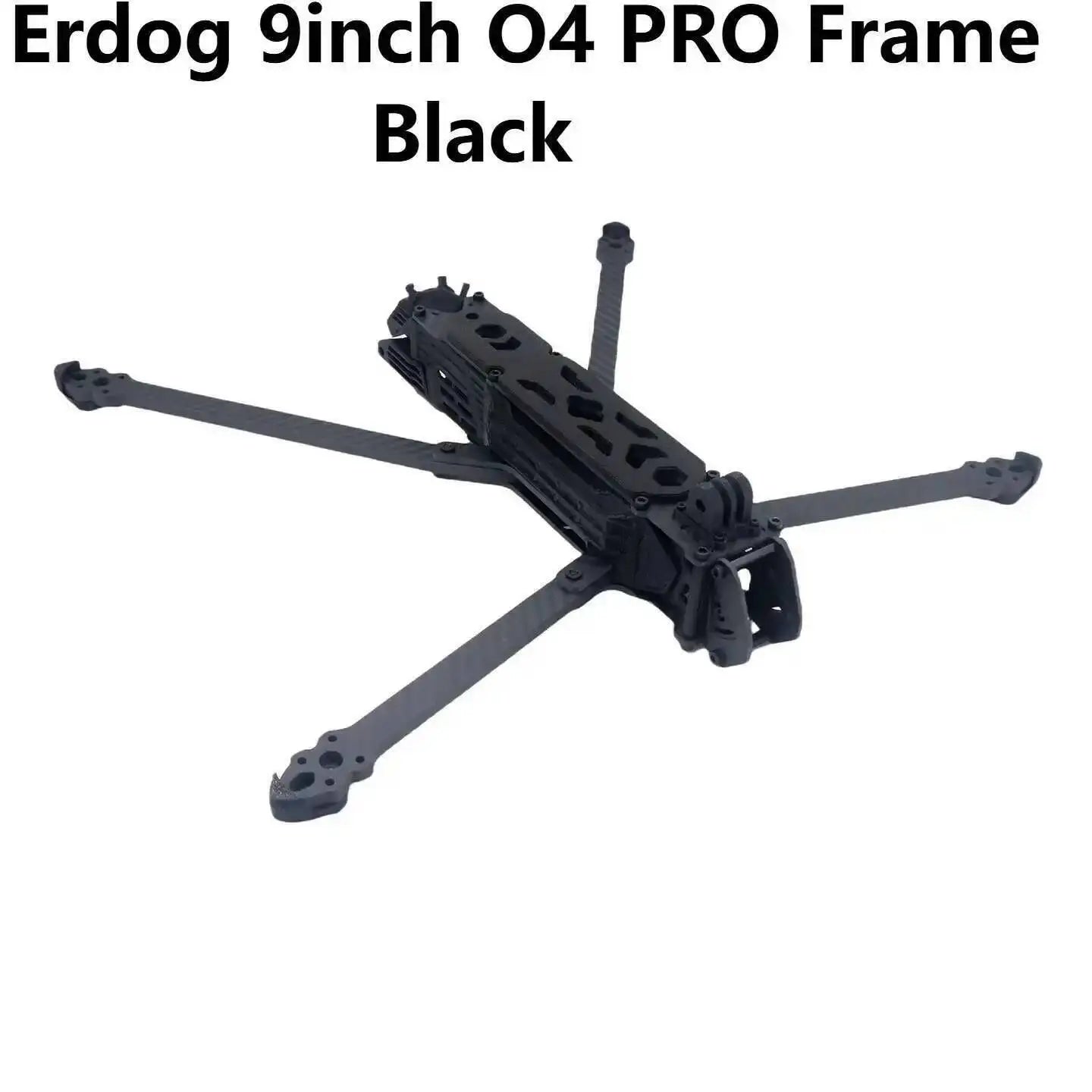

Erdog 9inch O4 PRO Frame:

Wheelbase: 377mm
Weight: ~286g (including 3D printed parts)
Frame Thickness:Bottom Plate: 3.0mm、Top Plate: 2.0mm、Sandwich Plate: 3.0mm、Camera Side Plates: 2.0mm、Arms: 6.0mm
Propellers: 9-inch
FC (Flight Controller) Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
VTX (Video Transmitter) Rear Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
Camera Mount Width: 20mm/19mm (Micro/Nano cam compatibility)
Motor Mount Pattern: 16×16mm (M3) & 19×19mm (M3)

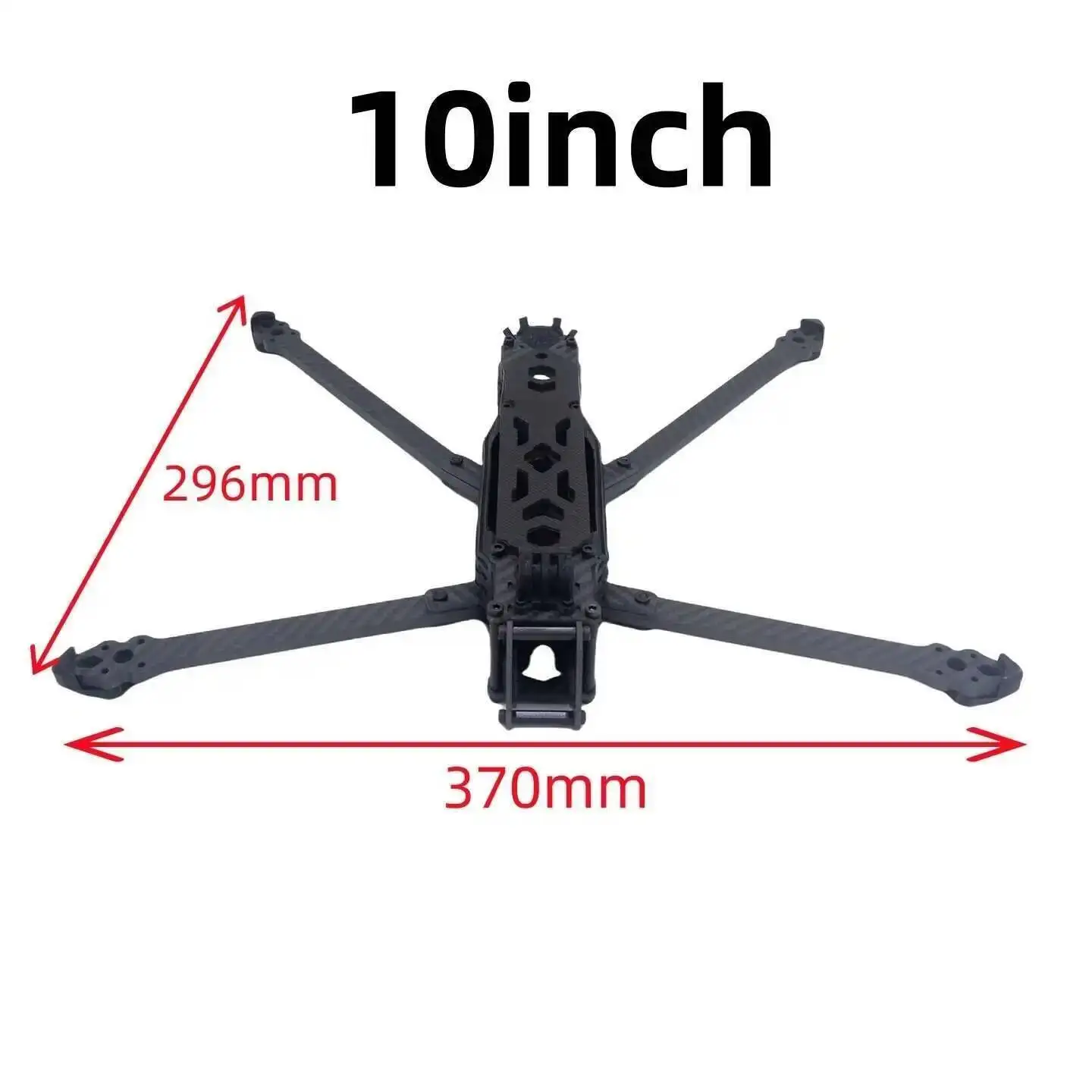

Erdog 10inch O4 PRO Frame:

Wheelbase: 411mm
Weight: ~297g (including 3D printed parts)
Frame Thickness:Bottom Plate: 3.0mm、Top Plate: 2.0mm、Sandwich Plate: 3.0mm、Camera Side Plates: 2.0mm、Arms: 6.0mm
Propellers: 10-inch
FC (Flight Controller) Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
VTX (Video Transmitter) Rear Mounting Pattern:20×20mm (M2)、25.5×25.5mm (M2)、30.5×30.5mm (M3)
Camera Mount Width: 20mm/19mm (Micro/Nano cam compatibility)
Motor Mount Pattern:  19×19mm (M3)

1. 3D Printed Material: TPU

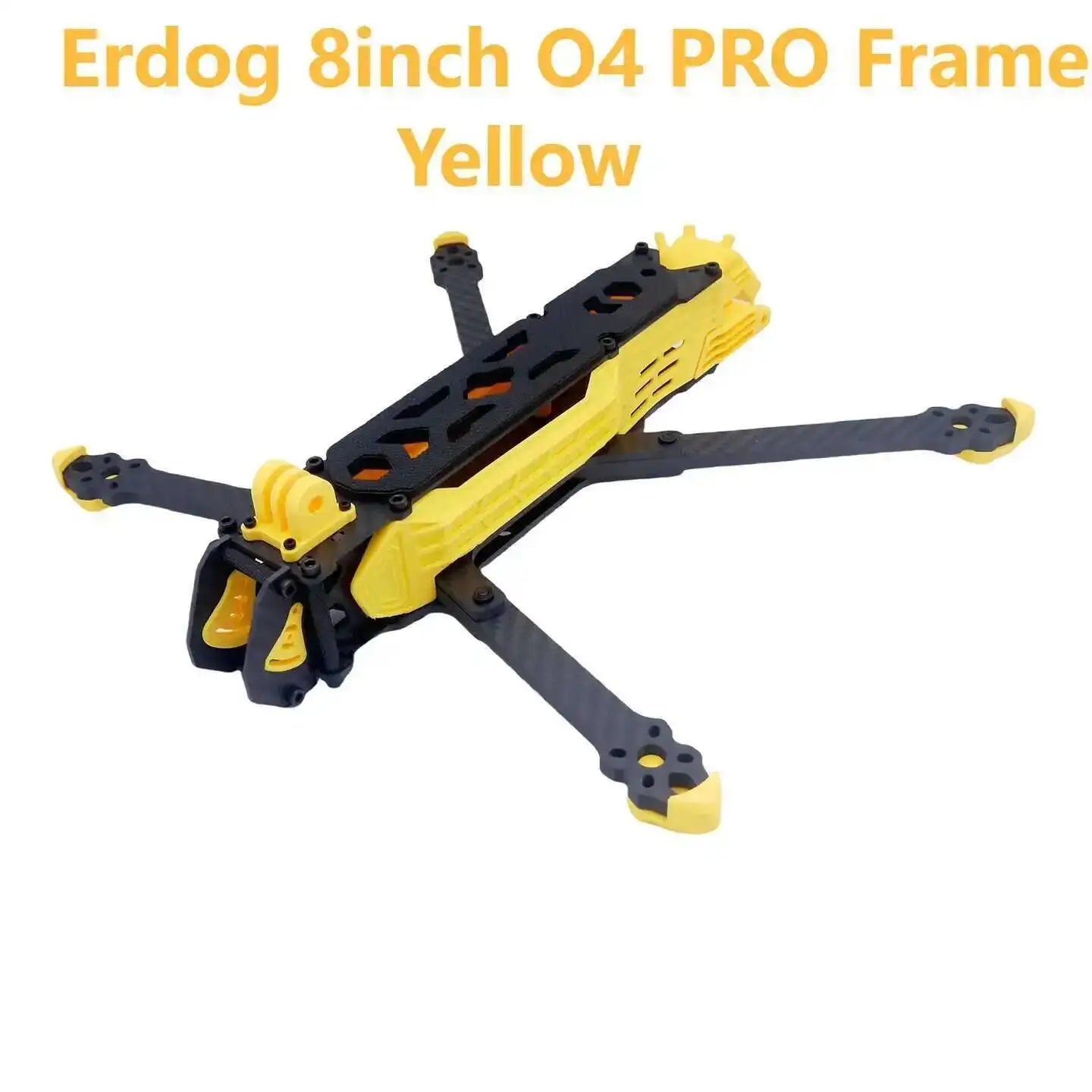

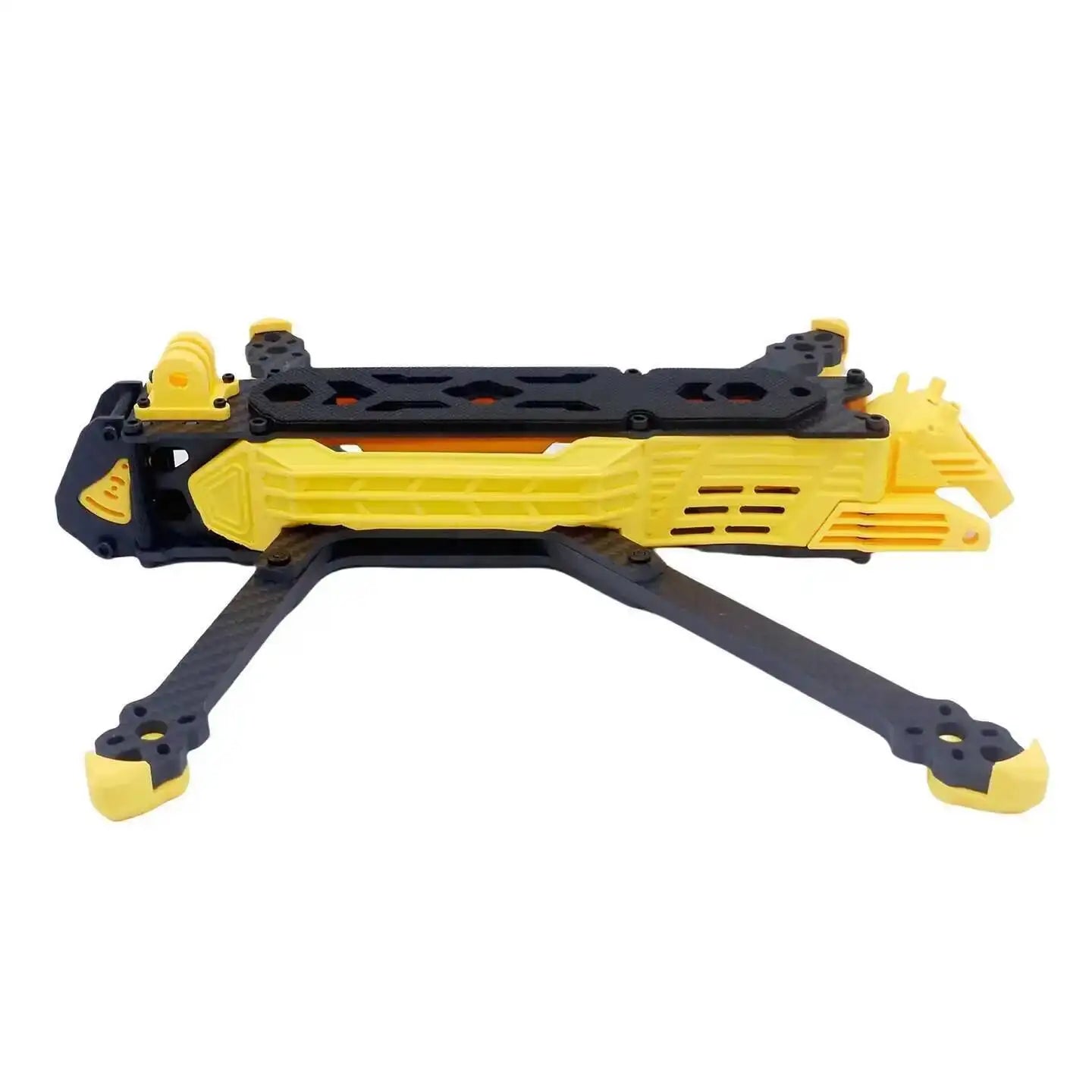

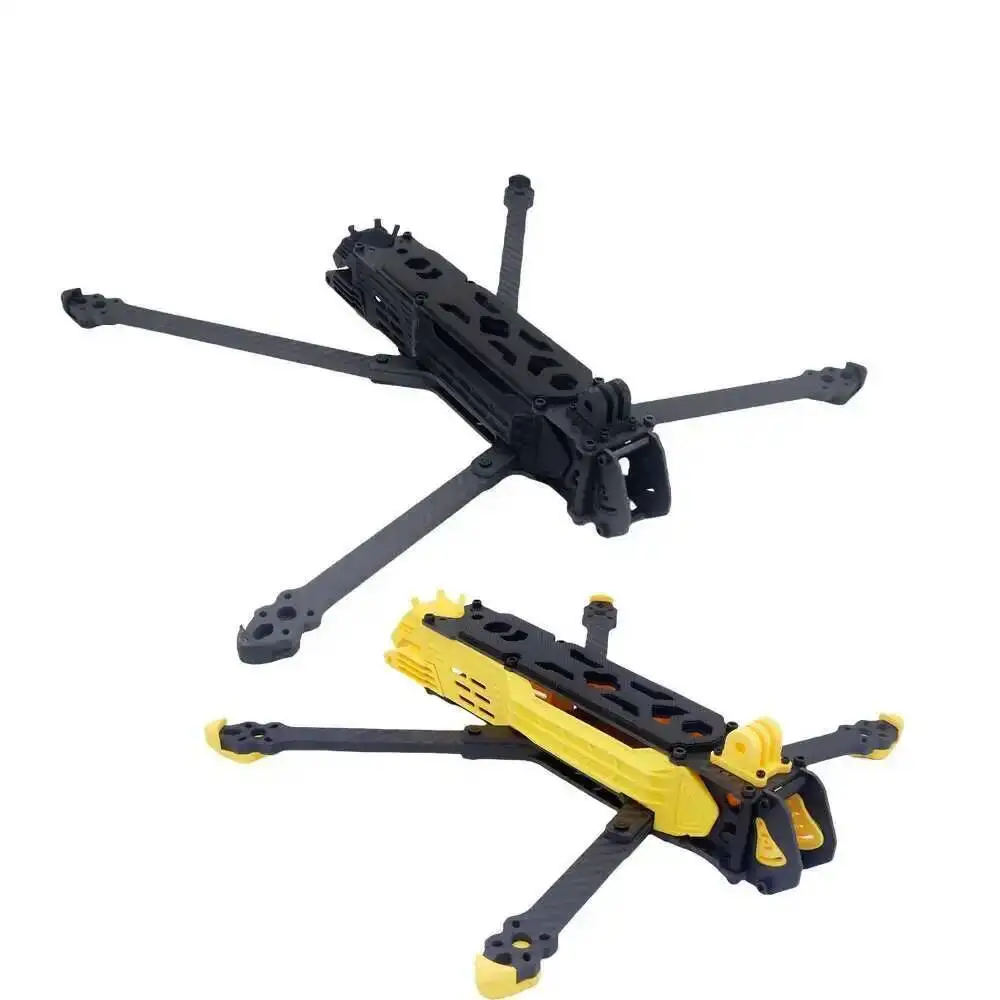

2. 3D Print Colors: Black TPU / Yellow TPU

3. Compatible GPS Mount: BN-220 GPS

4. Compatible Video Systems:DJI O4 Pro Air Unit、DJI O3 Air Unit、DJI Air Unit (Original)、DJI Vista Unit、Analog VTX Systems

5. 3D Printed Parts List:

6.

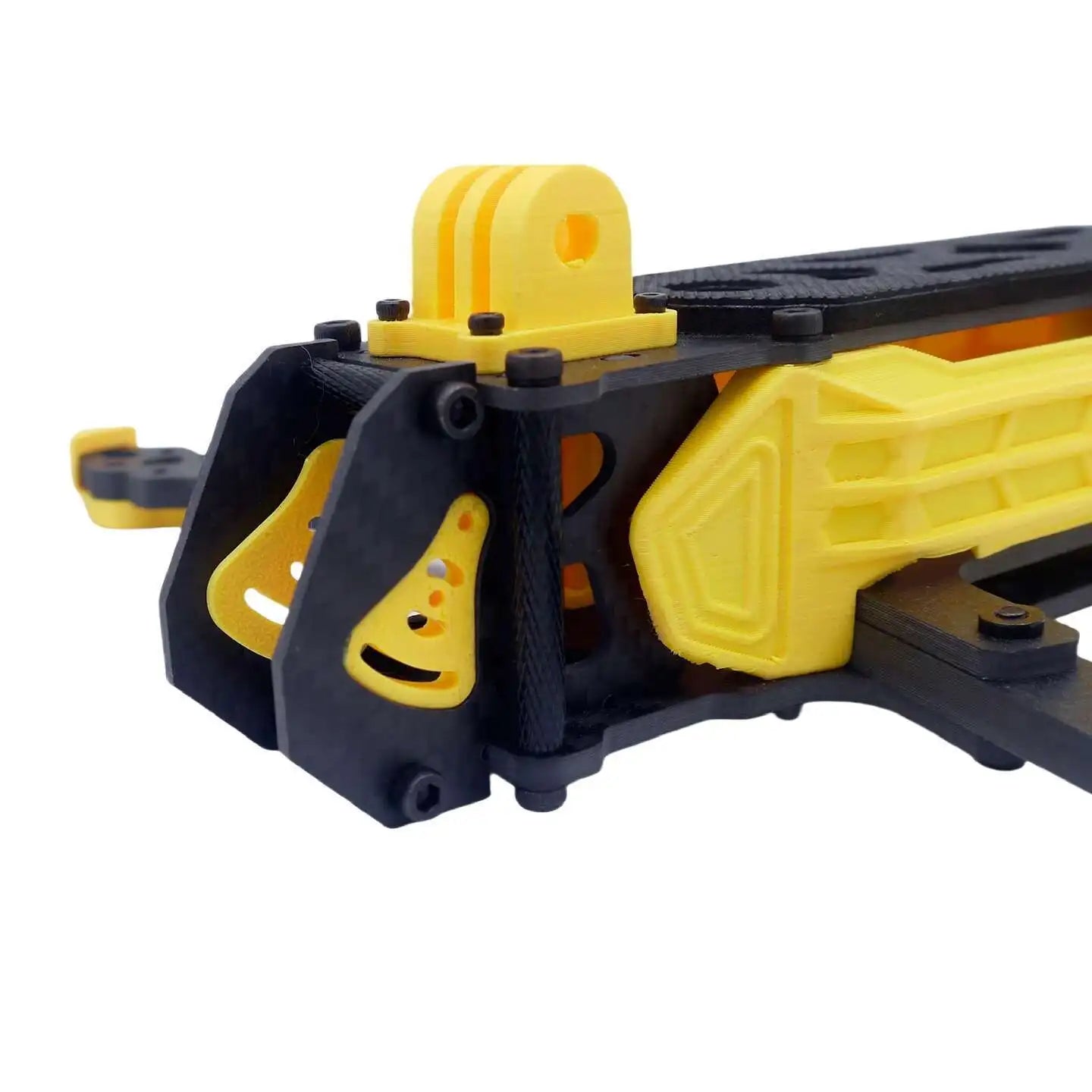

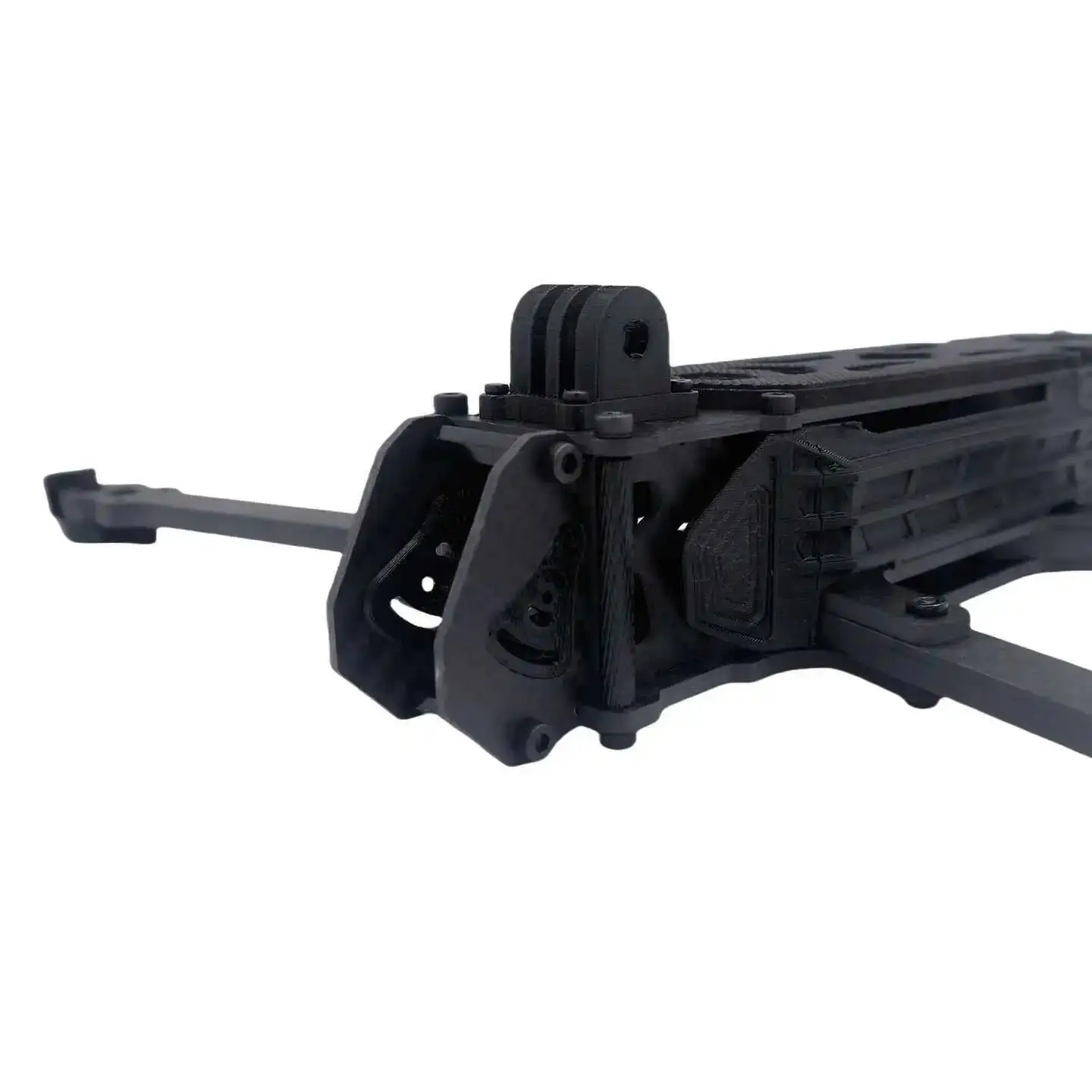

•   Universal Action Camera Mount ×1

•   Camera Lens Mount (Side Plates) ×1 pair

•   Motor Protectors ×4

•   Bumper Guards ×1 pair

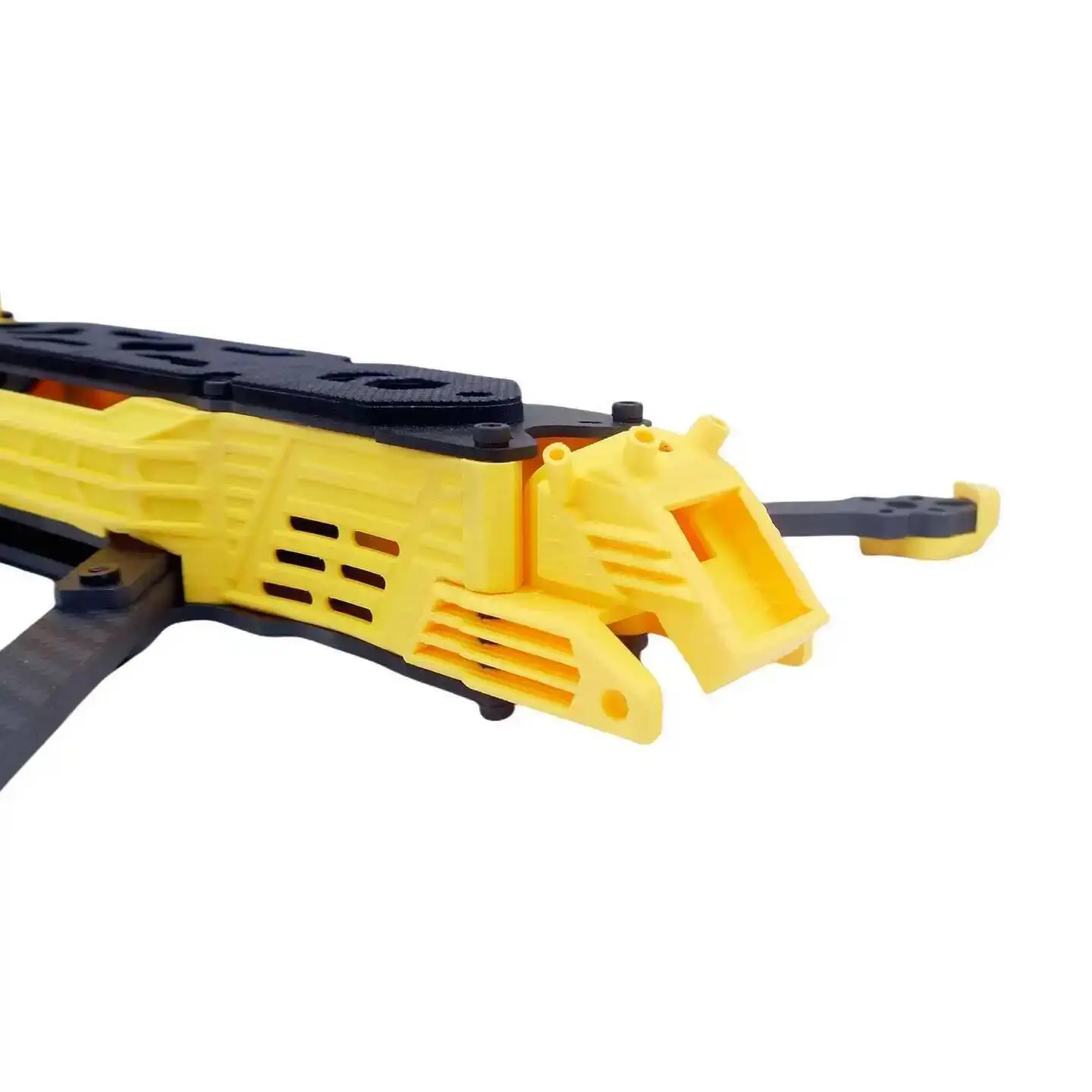

•   Universal Antenna Mount ×1
    (Compatible with: Dual antennas/Single antenna/ELRS 915MHz & 2.4GHz/BN-220 GPS)
