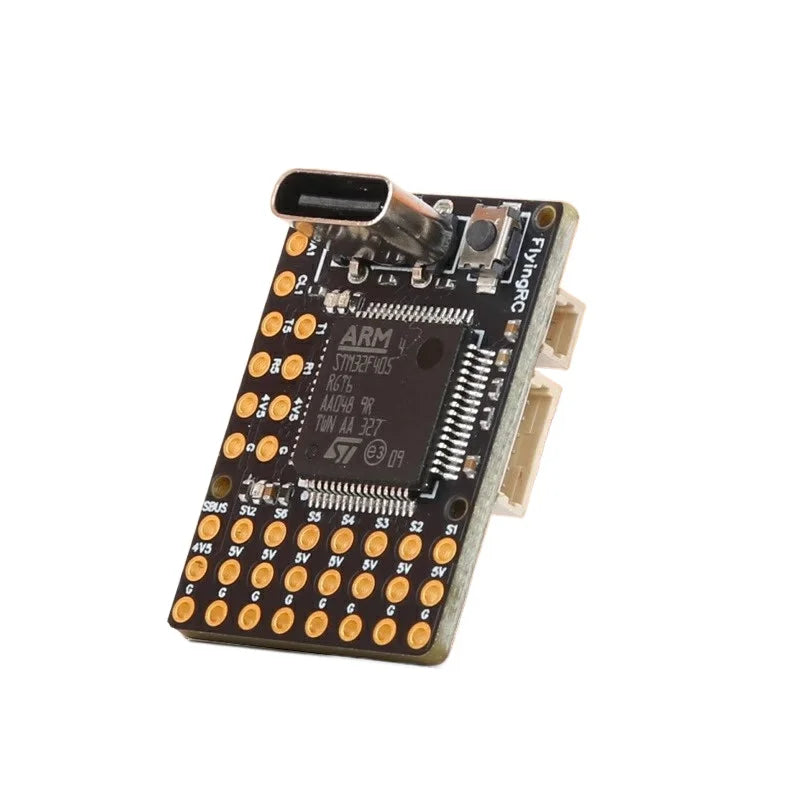

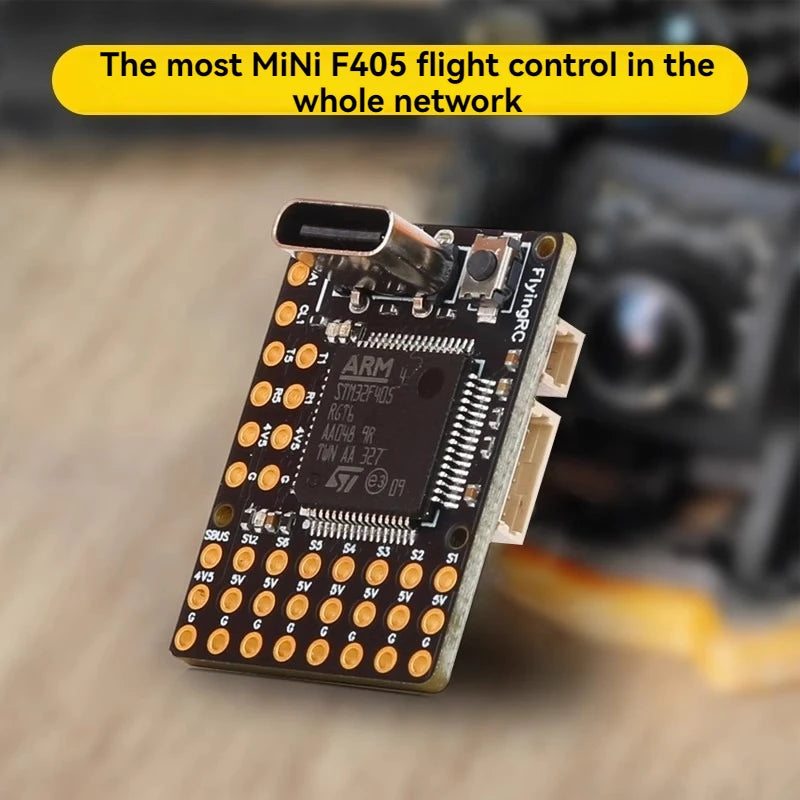

FlyingRC F4Wing Mini MK1 Fixed Wing Flight Controller F405 FC Support AP/INAV/BF Firmware 1-6S Lipo for FPV RC Fixed Wing Plane

FlyingRC F4Wing Mini MK1 Fixed Wing Flight Controller F405 FC Support AP/INAV/BF Firmware 1-6S Lipo for FPV RC Fixed Wing Plane

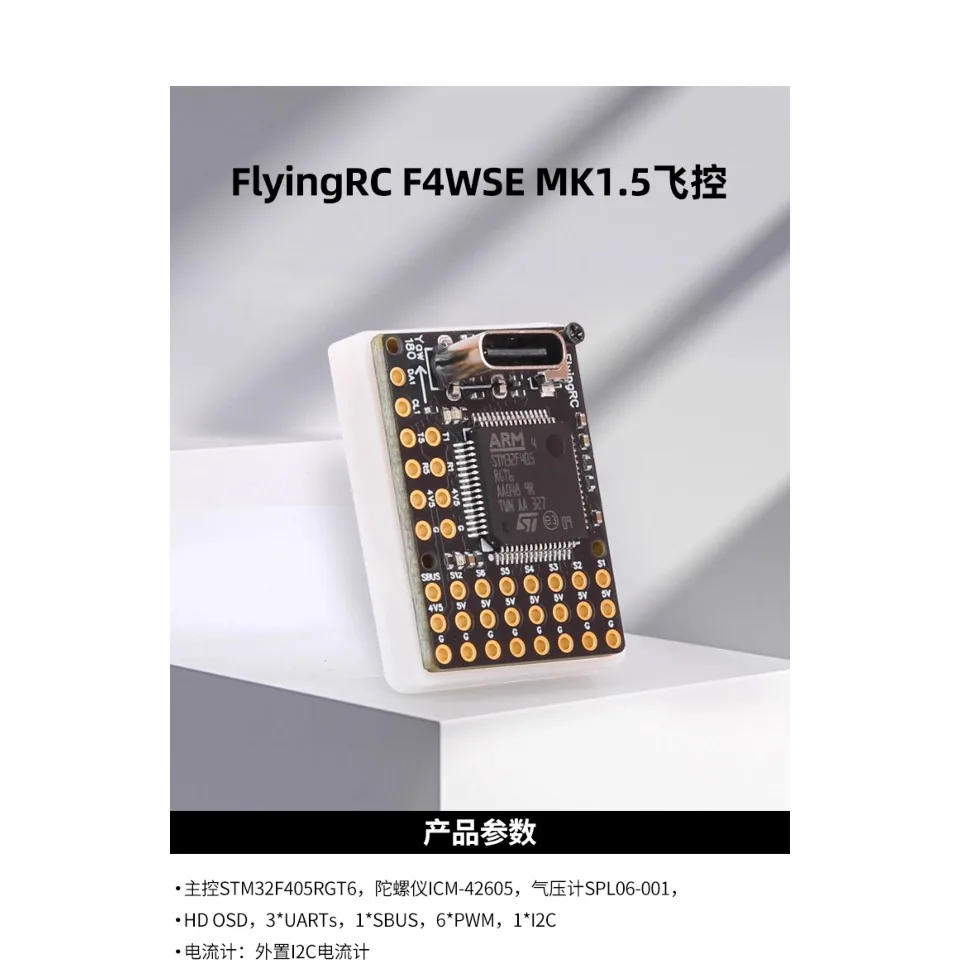

Product parameters

Main control STM32F405RGT6, gyroscope ICM-42605, barometer SPL06-001
HD OSD，3*UARTS，1*SBUS，6*PWM，1*I2C
Ammeter: External 12C ammeter
·Voltage meter: 2.5-30V, 1-6S LiPo
·Power input: 5V
·Size and weight: 27.9mm * 20.3mm * 11.2mm, 2.8g

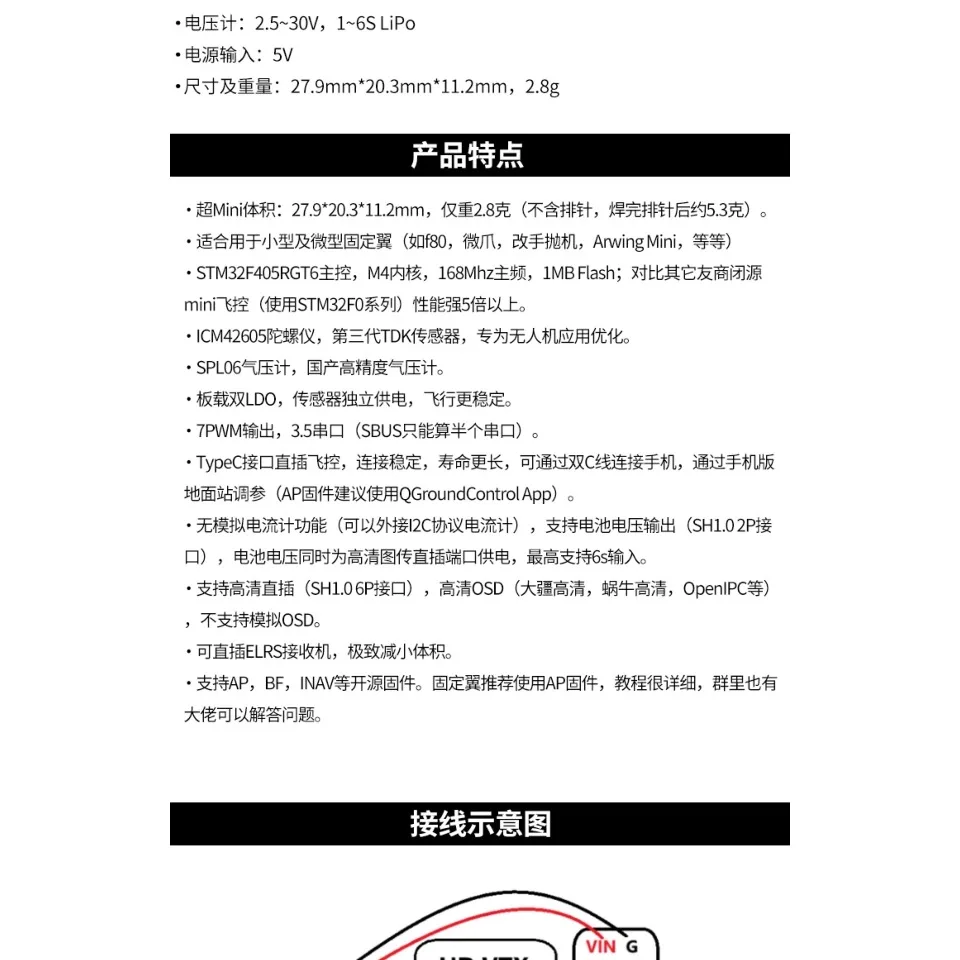

Product Features

·Super Mini size: 27.9 * 20.3 * 11.2mm, weighing only 2.8 grams (excluding the pin arrangement, approximately 5.3 grams after welding the pin arrangement)

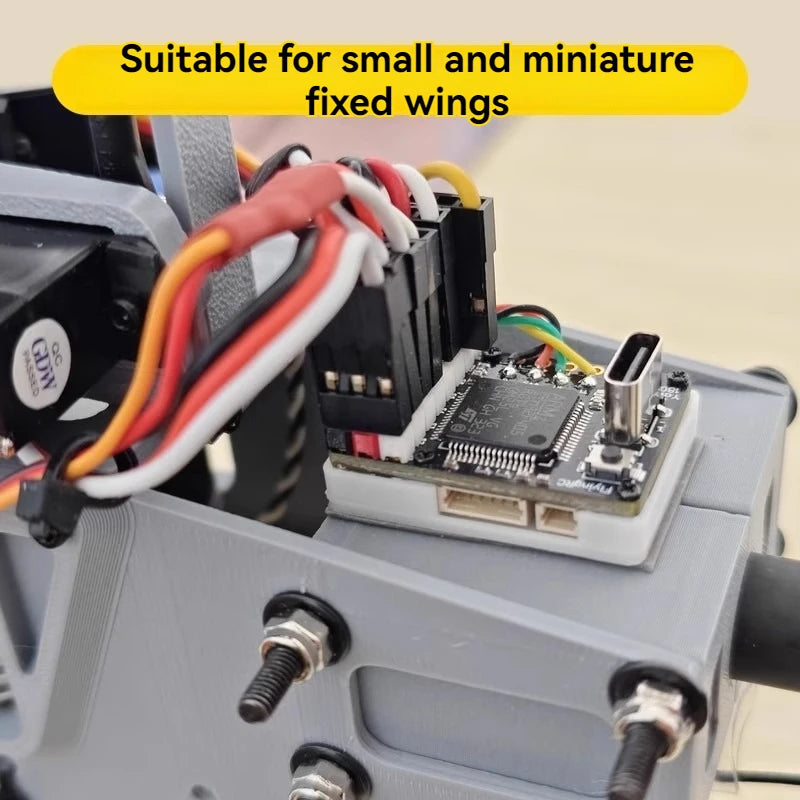

·Suitable for small and micro fixed wings (such as F80, micro claws, modified hand throwers, etc.), ArwingMini， Wait a minute

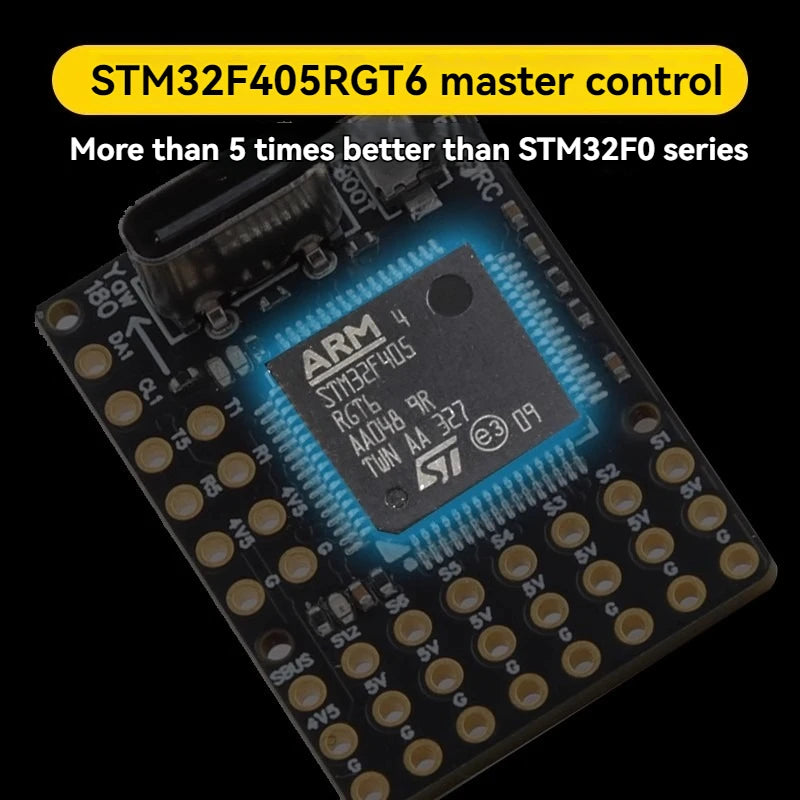

STM32F405RGT6 main control, M4 core, 168MHz main frequency, 1MBFlash; Compared to other closed source merchants
Mini flight controller (using STM32F0 series) has more than 5 times stronger performance.
·ICM42605 gyroscope, third-generation TDK sensor, optimized for applications.
·SPL06 barometer, a domestically produced high-precision barometer.

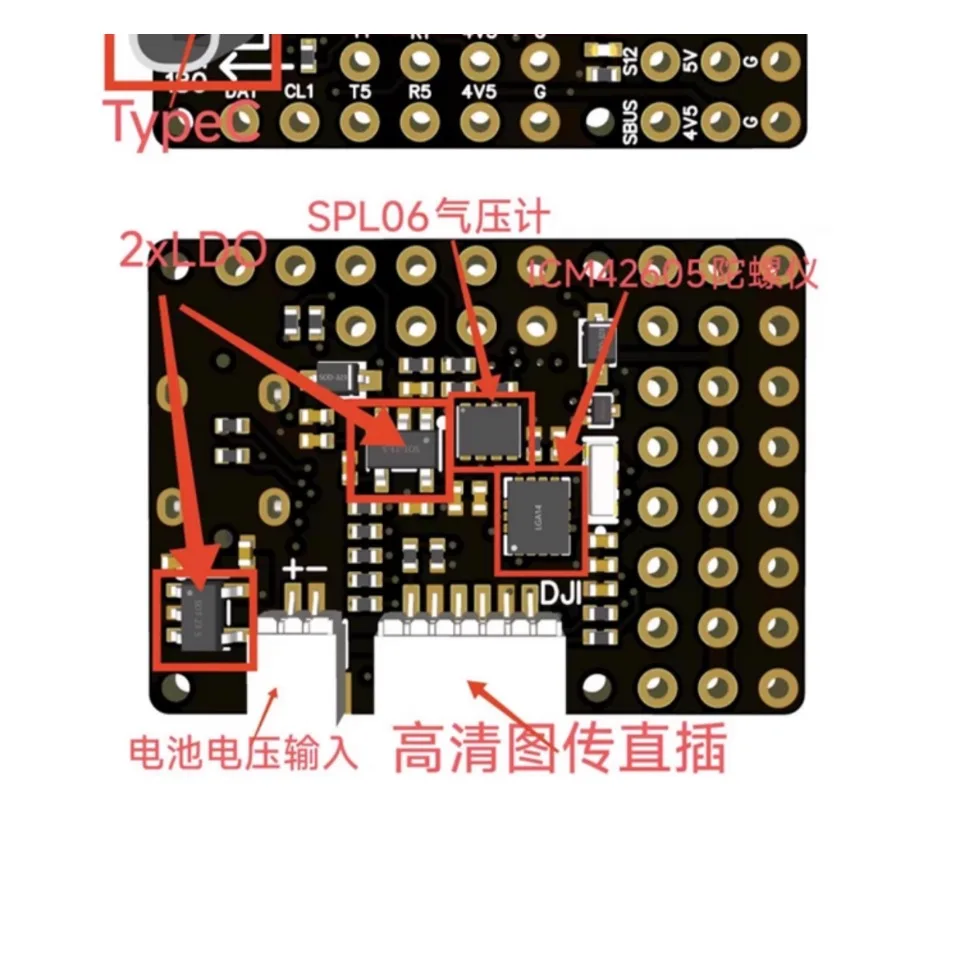

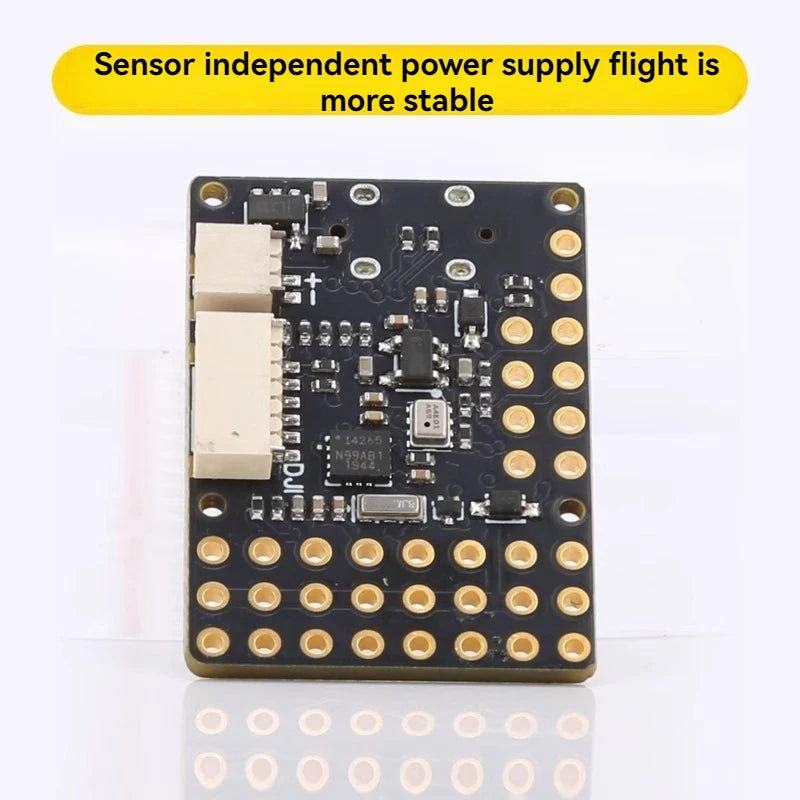

Onboard dual LDO, sensor independent power supply, more stable flight.
·7PWM output, 3.5 serial ports (SBUS can only count half of the serial ports)
·TypeC interface is directly inserted into the flight controller, with stable connection and longer lifespan. It can be connected to a mobile phone through a dual C-cable, and is compatible with the mobile version
Ground station tuning (AP firmware recommended to use QGroundControlApp)
·No analog ammeter function (can be connected to an external I2C protocol ammeter), supports battery voltage output (SH1.02P connection)
At the same time, the battery voltage supplies power to the high-definition image transmission direct insertion port, supporting up to 6 seconds of input.

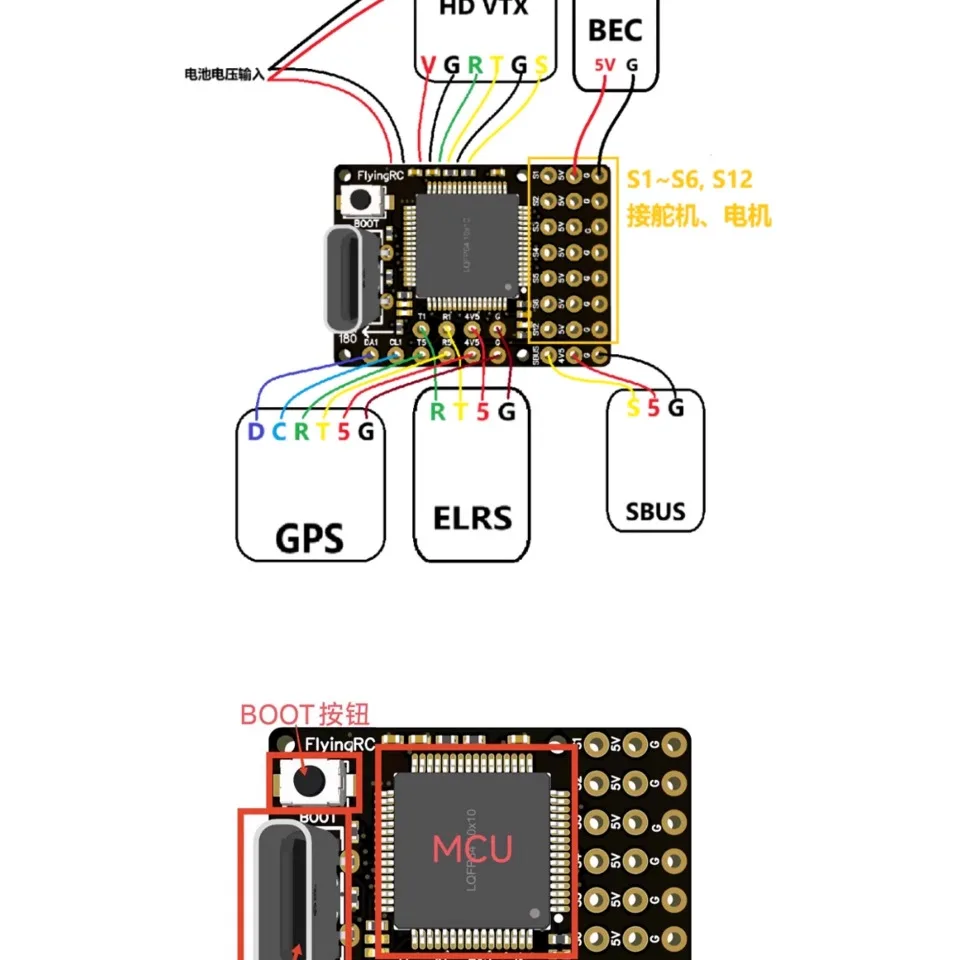

·Supports high-definition direct insertion (SH1.06P interface), high-definition OSD (DJI HD, Snail HD, OpenIPC, etc.)
Does not support simulating OSD.
·Can be directly inserted into ELRS receiver, greatly reducing size.
·Support open source firmware such as AP, BF, INAV, etc. It is recommended to use AP firmware for fixed wings, and the tutorial is very detailed

Frequently Asked Questions Q&A

1. The flight control comes with Ardupilot firmware
Which GPS does the flight control support?
Answer: 181182 251 880 121 122 can be used, choose according to your needs, it's faster to search for stars.
3. FlyingRC fixed wing flight control F4Wing MK1 MINI flight control supports V-tail hanging
4. FlyingRC fixed wing flight control F4Wing supports QGC ground station and MP ground station
Where is the PWM signal input to which port?
Answer: PWM input is not supported, only SBUS CRSF is supported

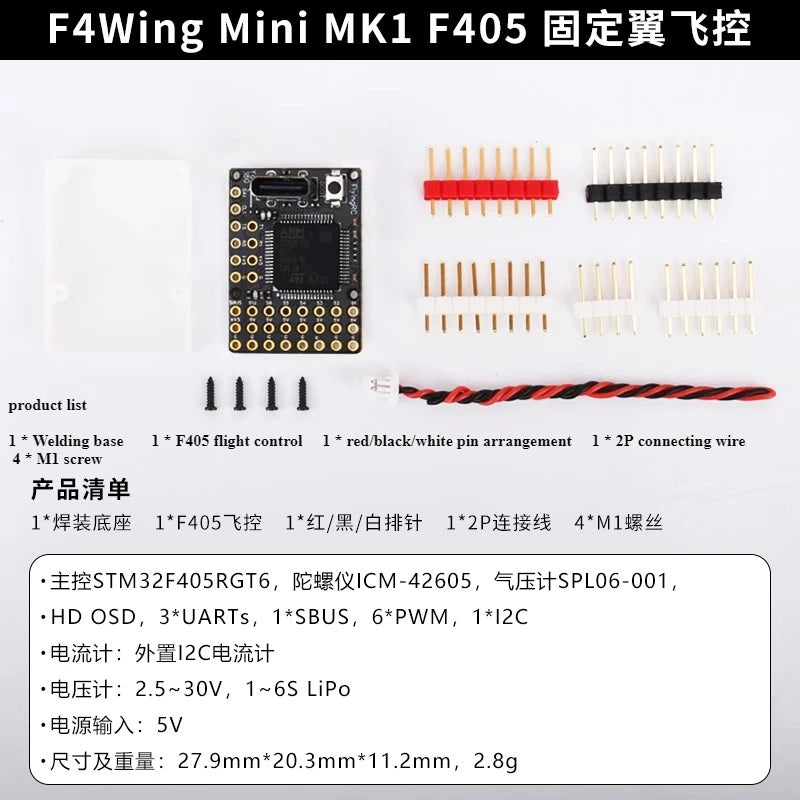

product list

1 * Welding base
1 * F405 flight control 1 * red/black/white pin arrangement 1 * 2P connecting wire 4 * M1 screw
