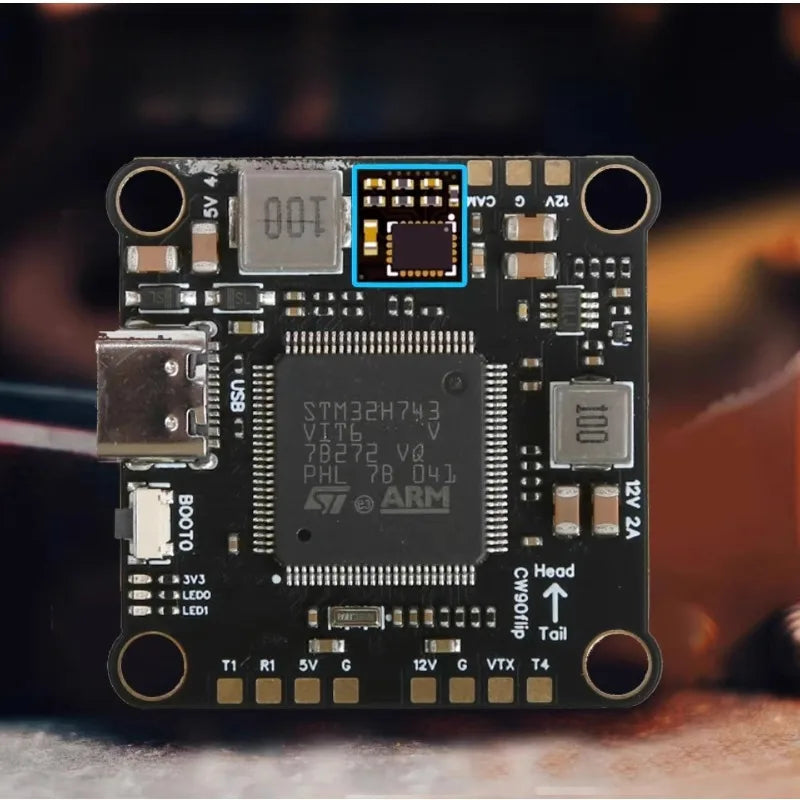

FlyingRC H7D H743 Flight Controller 4in1 ESC ELRS 2.4G Receiver Dual Gyro Supports BF INAV AP Firmware for FPV Drones DIY Parts

FlyingRC H7D H743 Flight Controller 4in1 ESC ELRS 2.4G Receiver Dual Gyro Supports BF INAV AP Firmware for FPV Drones DIY Parts

$199.99 AUD
$199.99 AUD
Sale Sold out
Color

FlyingRC H7D H743 Flight Controller 4in1 ESC ELRS 2.4G Receiver  Dual Gyro Supports BF INAV AP Firmware for FPV Drones DIY Parts

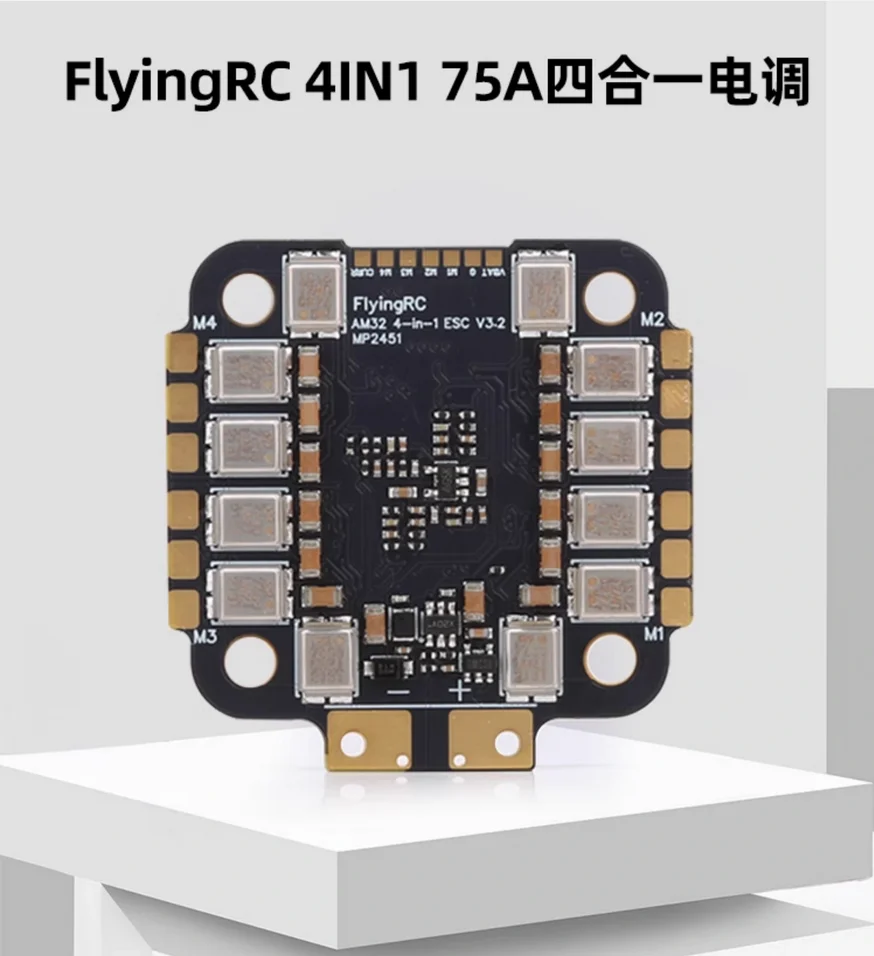

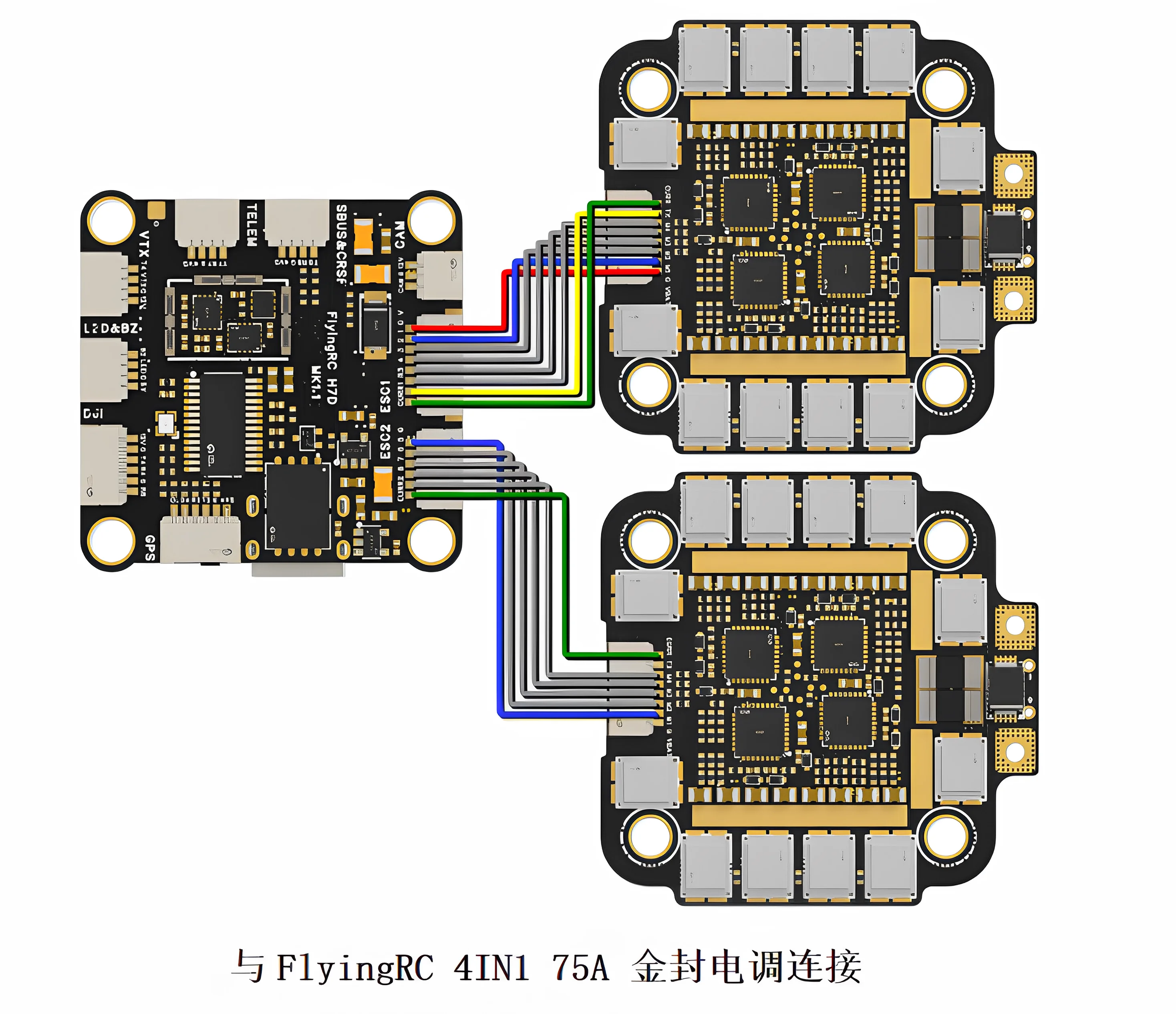

FlyingRC 75A 4IN1 ESC V3.2 Gold sealed MOS Four in One Crossover Electromechanical Adjustment is launched, with 10 layers and an inner and outer 20Z! For specific information, please refer to the electrical adjustment product page.
Product manual: https://kdocs.cn/l/cgMBmwjab3gB

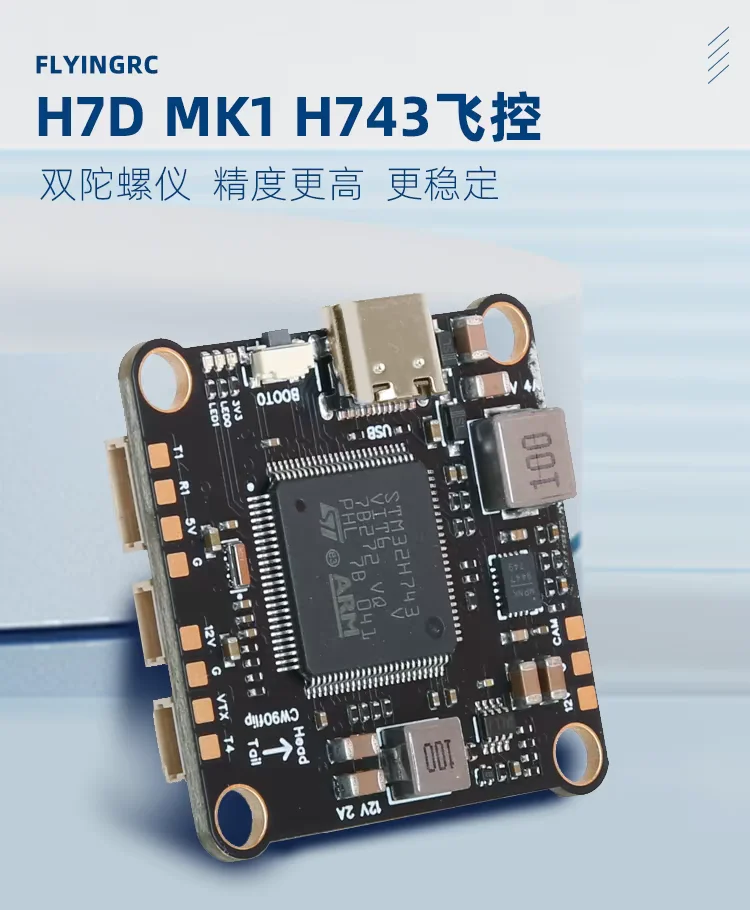

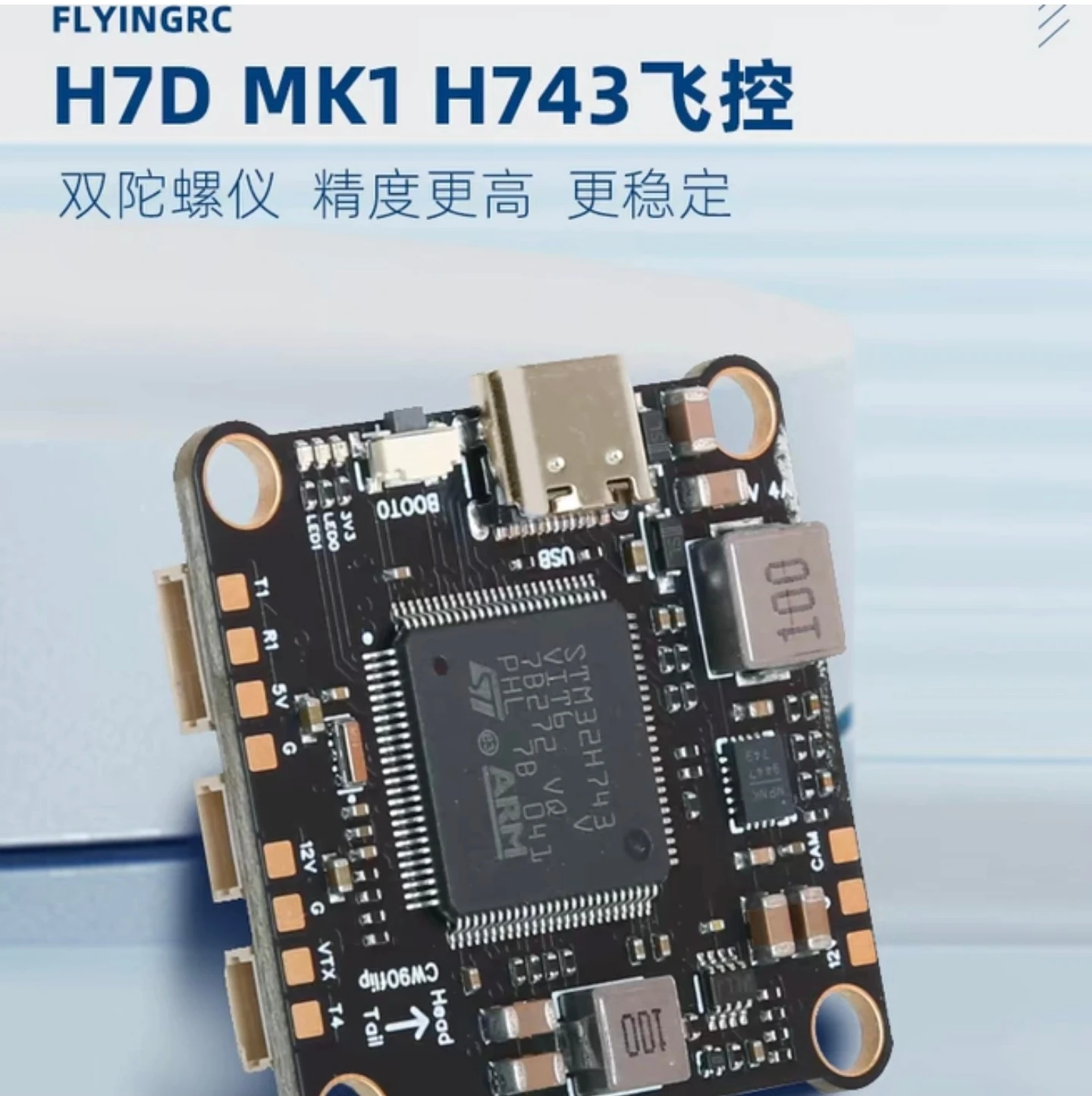

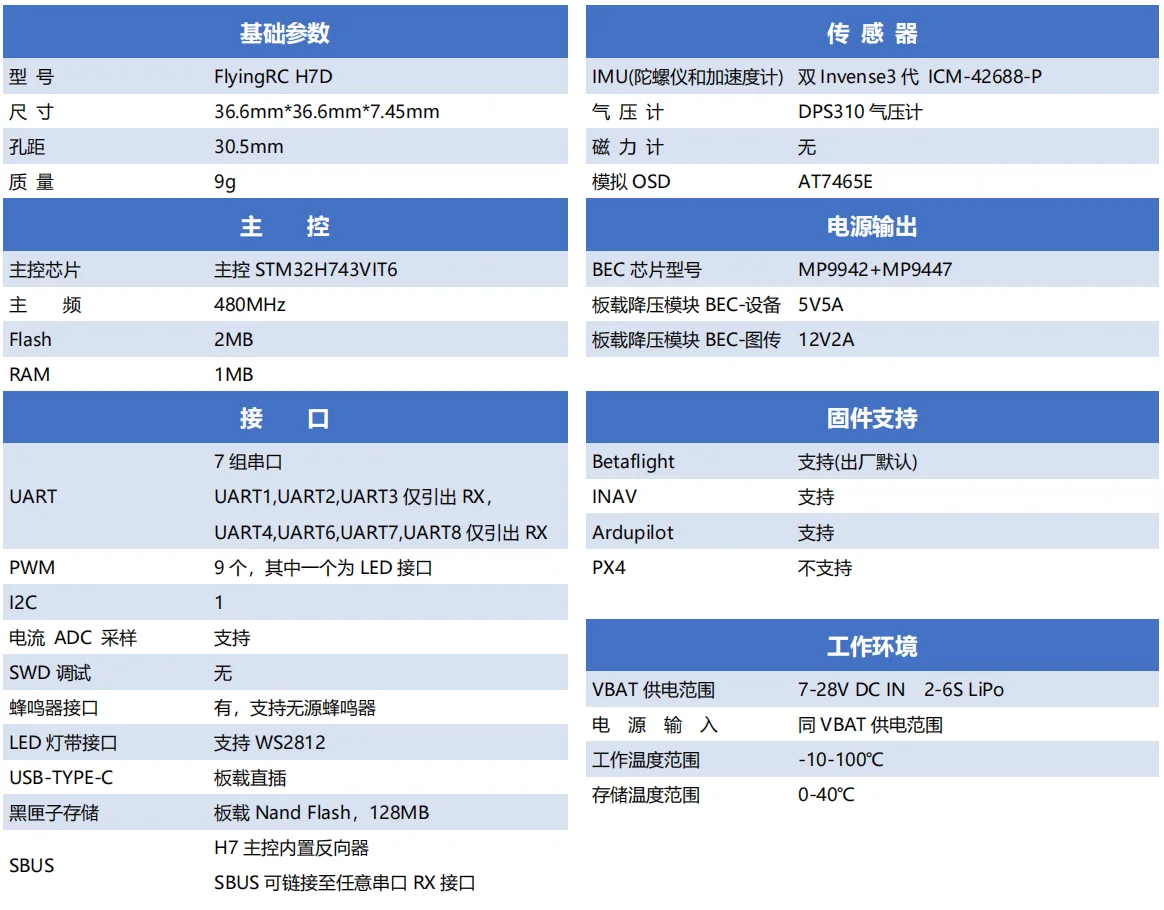

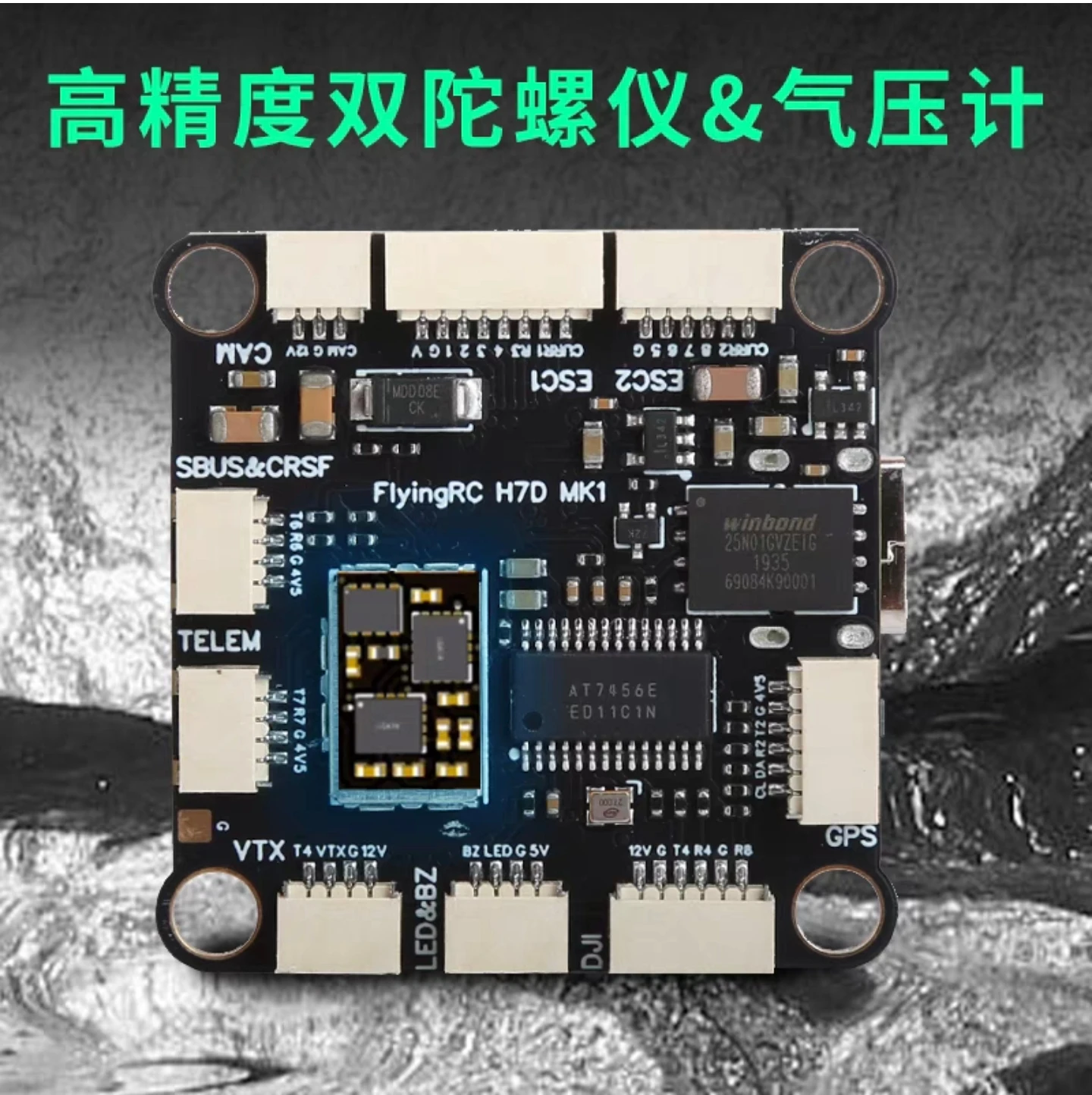

FlyingRC H7D Flight Controller Specifications

Basic Parameters
Model: FlyingRC H7D

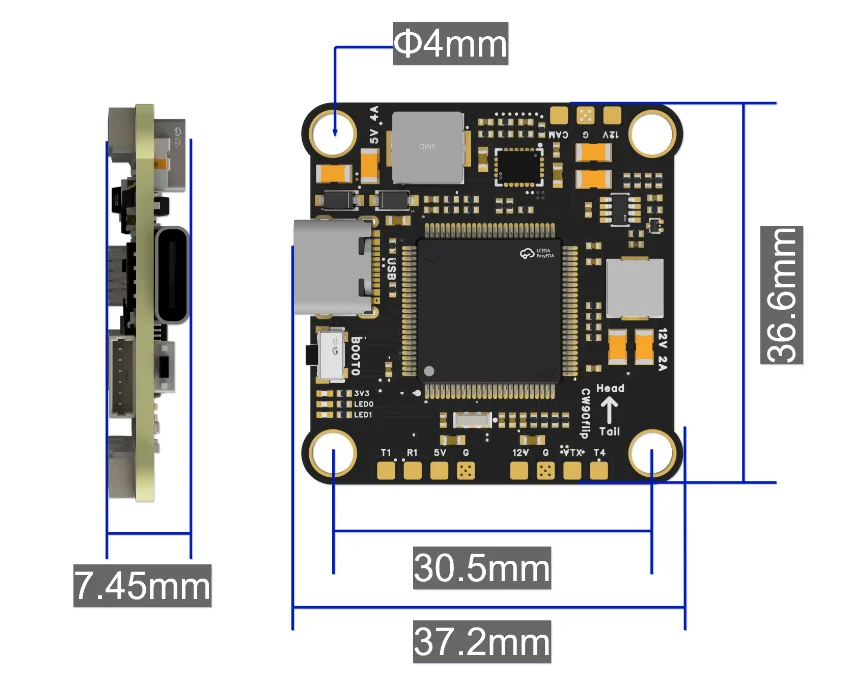

Dimensions: 36.6mm×36.6mm×7.45mm
Hole Pitch: 30.5mm
Weight: 9g
Main Control

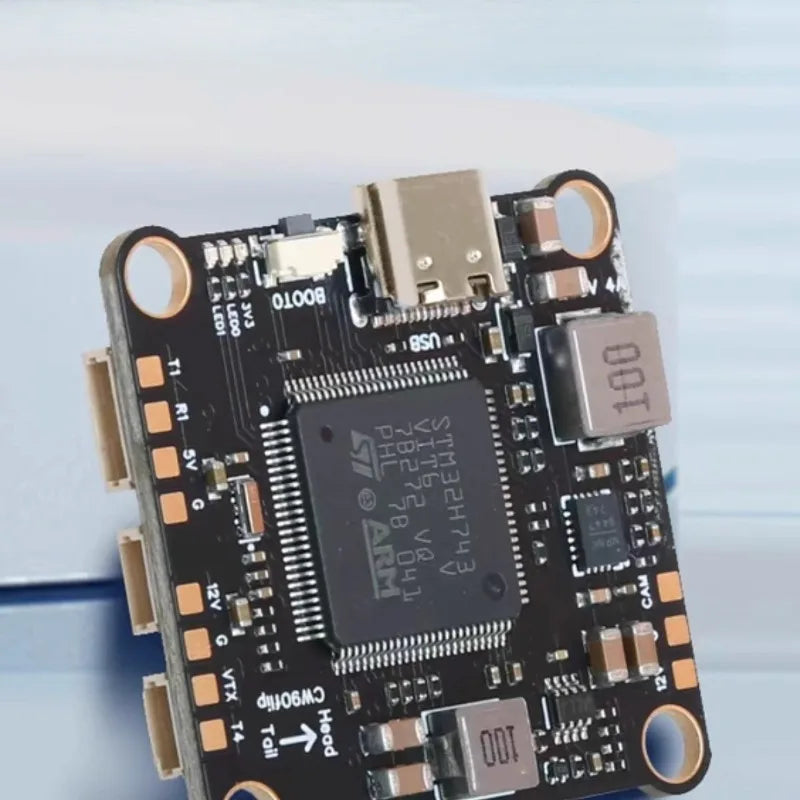

Chip: STM32H743VIT6
Frequency: 480MHz
Flash: 2MB
RAM: 1MB
Interfaces & Features
UART: 7 groups (UART1-3: RX only; UART4,6-8: RX only)
PWM: 9 channels (1 for LED)
I2C: Supported
Current ADC Sampling: Included
SWD Debugging: Supported
Buzzer: Interface for passive buzzer
LED Strip: Supports WS2812
USB: Onboard TYPE-C
Blackbox: Onboard 128MB Nand Flash
SBUS: Supported (H7 built-in inverter; connectable to any UART RX)

Sensors
IMU: Dual InvenSense Gen 3 ICM-42688-P (gyro + accelerometer)
Barometer: DPS310
Magnetometer: None
Analog OSD: AT7465E

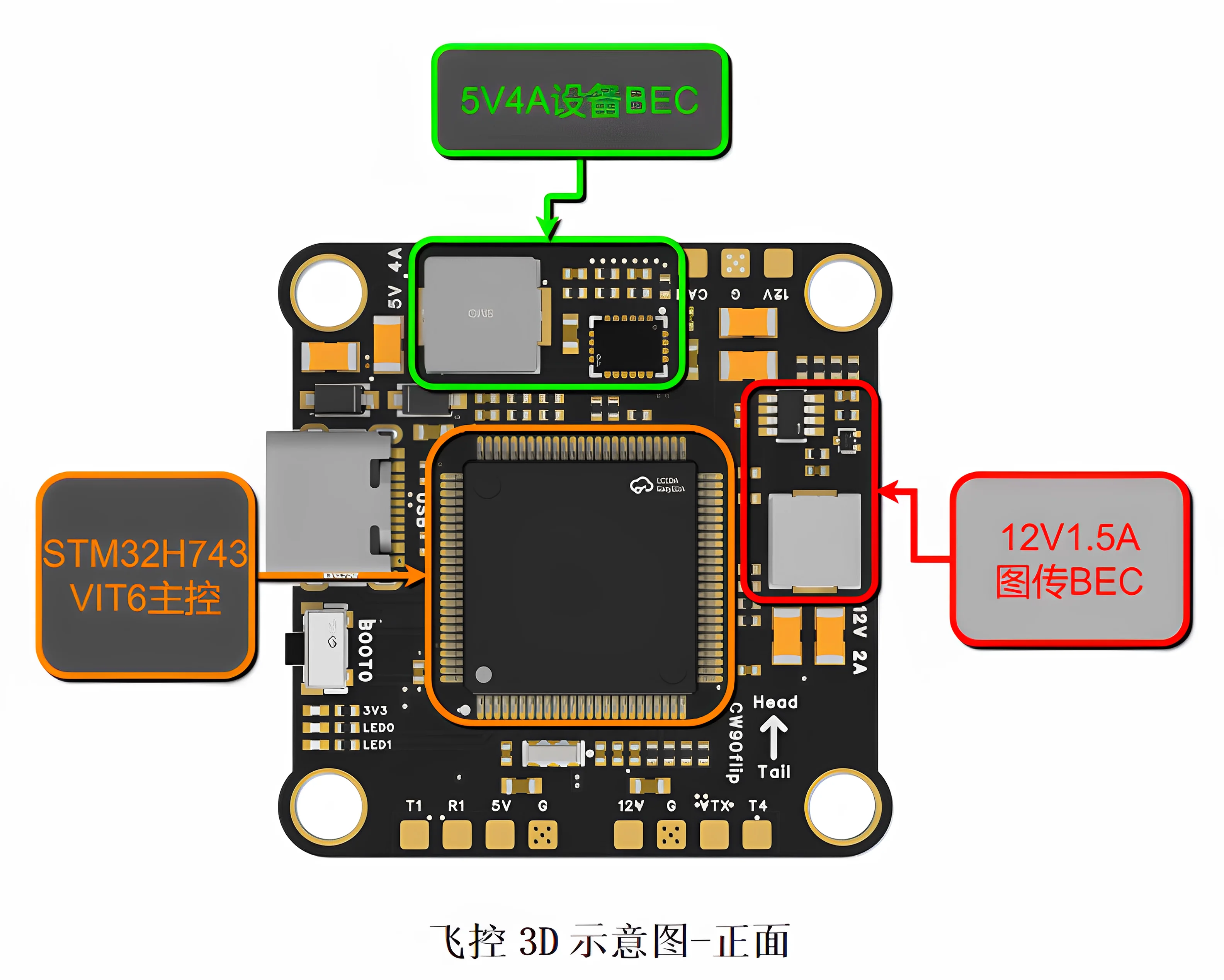

Power Output
BEC Chips: MP9942 + MP9447

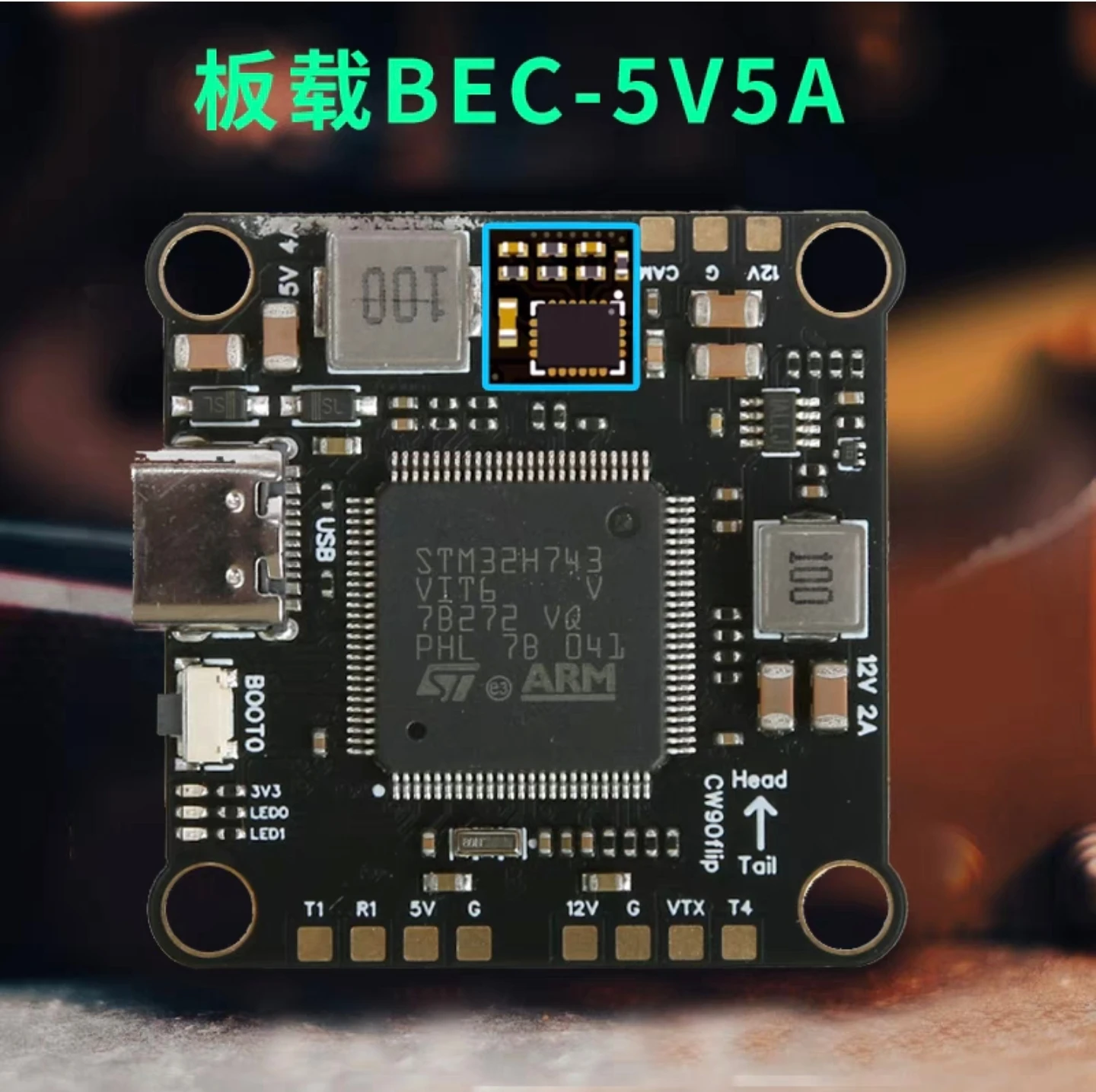

Onboard BEC (Devices): 5V SA
Onboard BEC (VTX): 12V 2A
Firmware Support
Betaflight: Supported (default)
INAV: Supported
Ardupilot: Supported
PX4: Not supported
Operating Environment
VBAT Input: 7-28V DC (2-6S LiPo)
Operating Temperature: -10°C to 100°C
Storage Temperature: 0°C to 40°C
