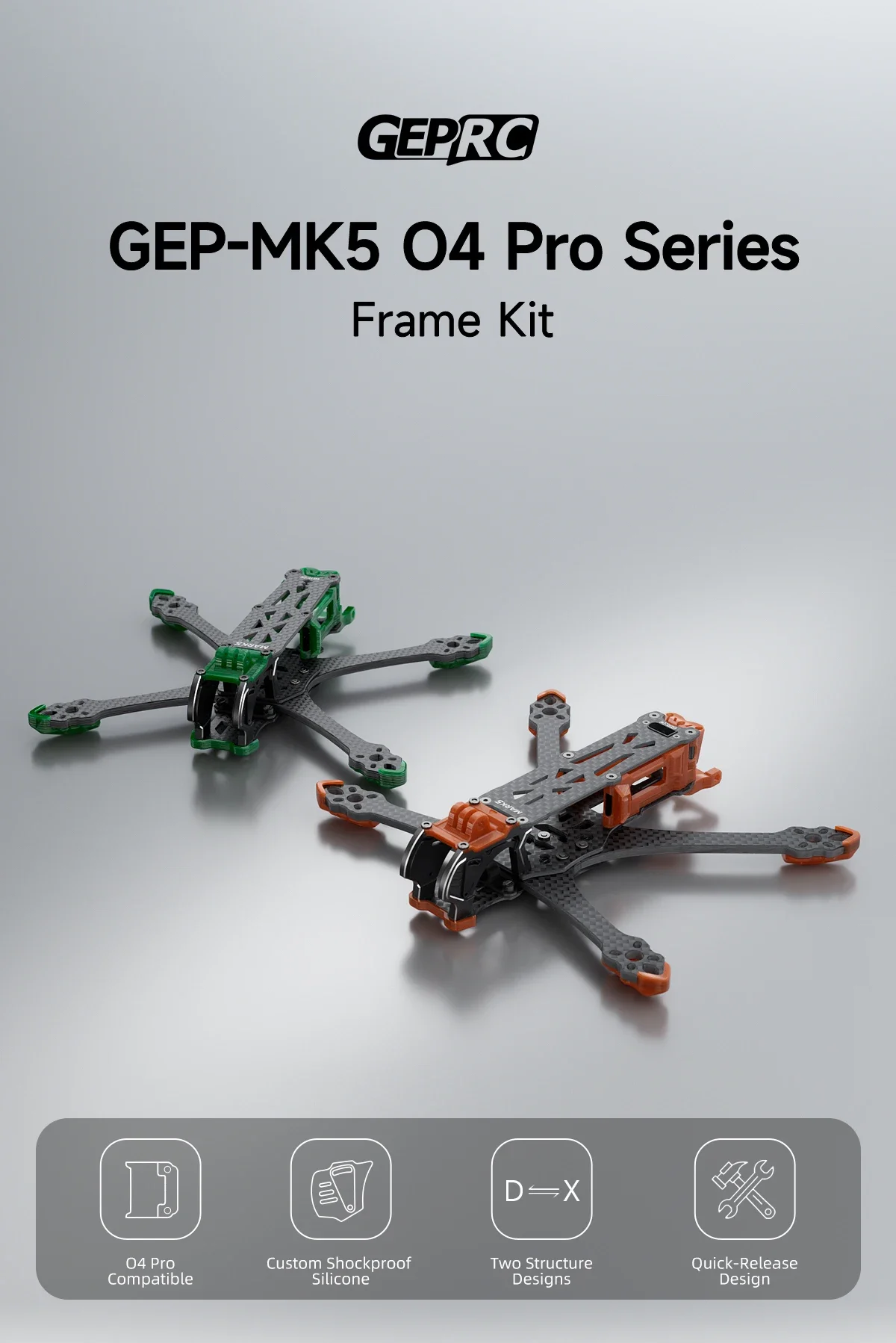

GEPRC GEP-MK5 O4 Pro Wide X/DC Frame 5Inch Drone Carbon Fiber Frame Kit for GEPRC Mark5 5 Inch FPV Quadcopter Original Accessory

Summary

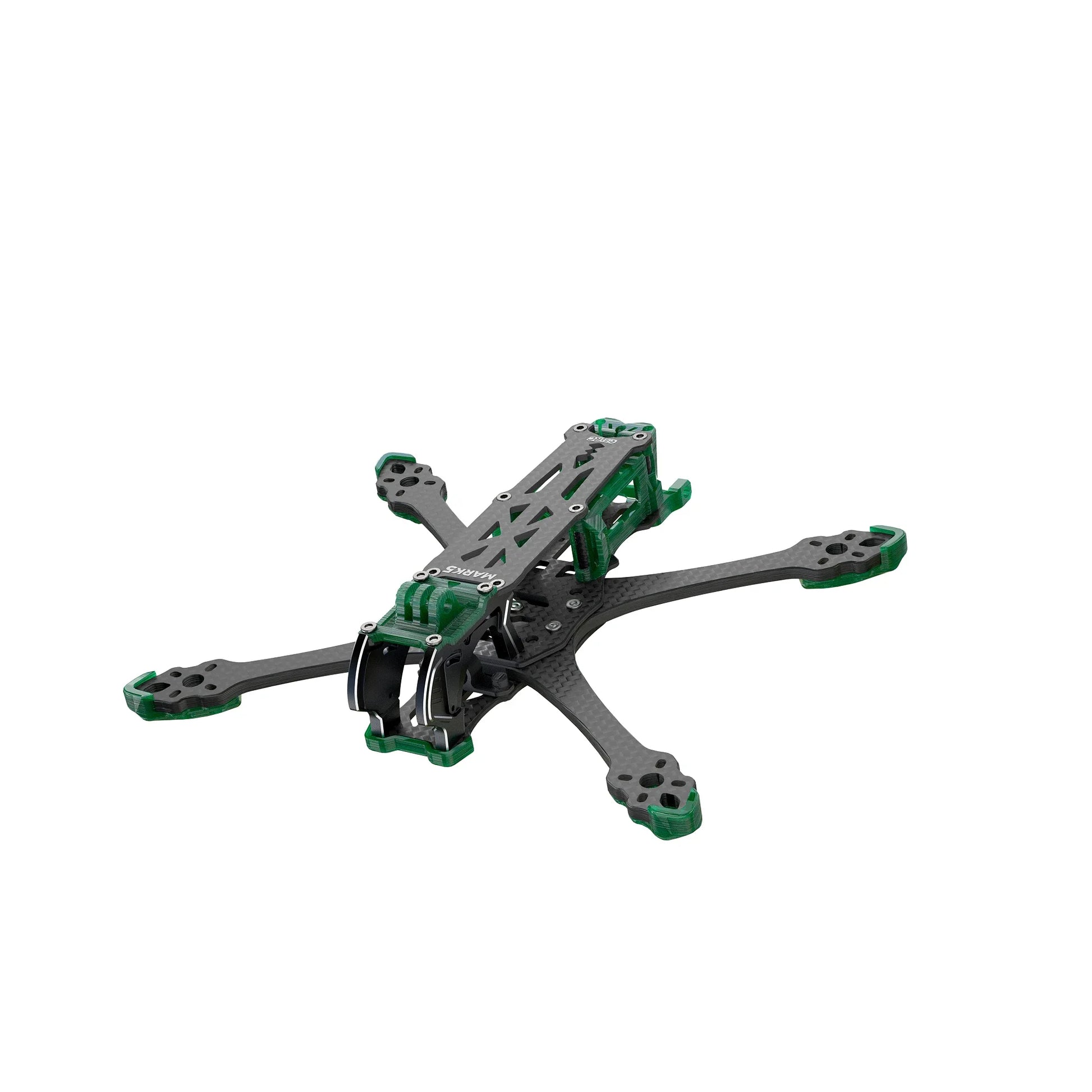

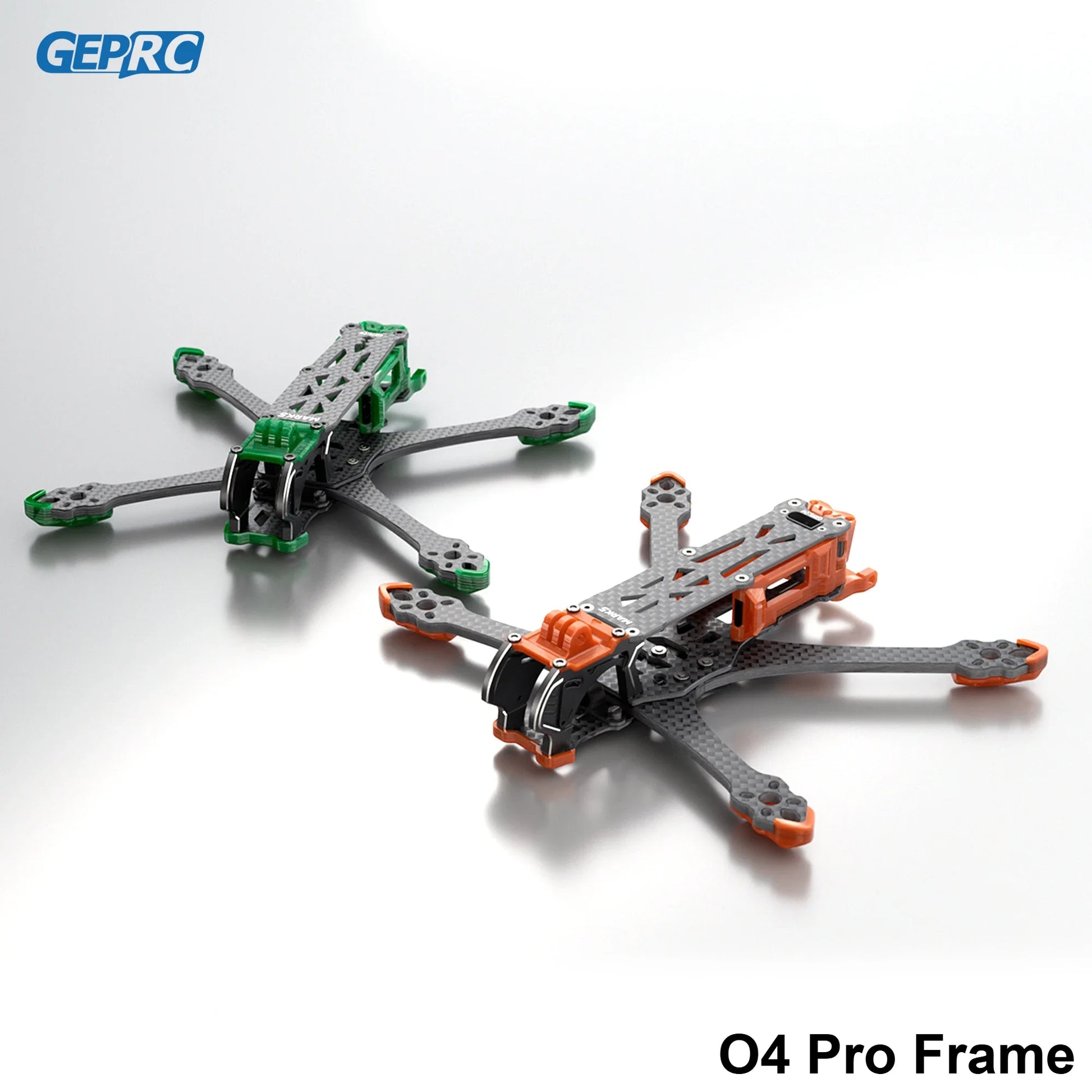

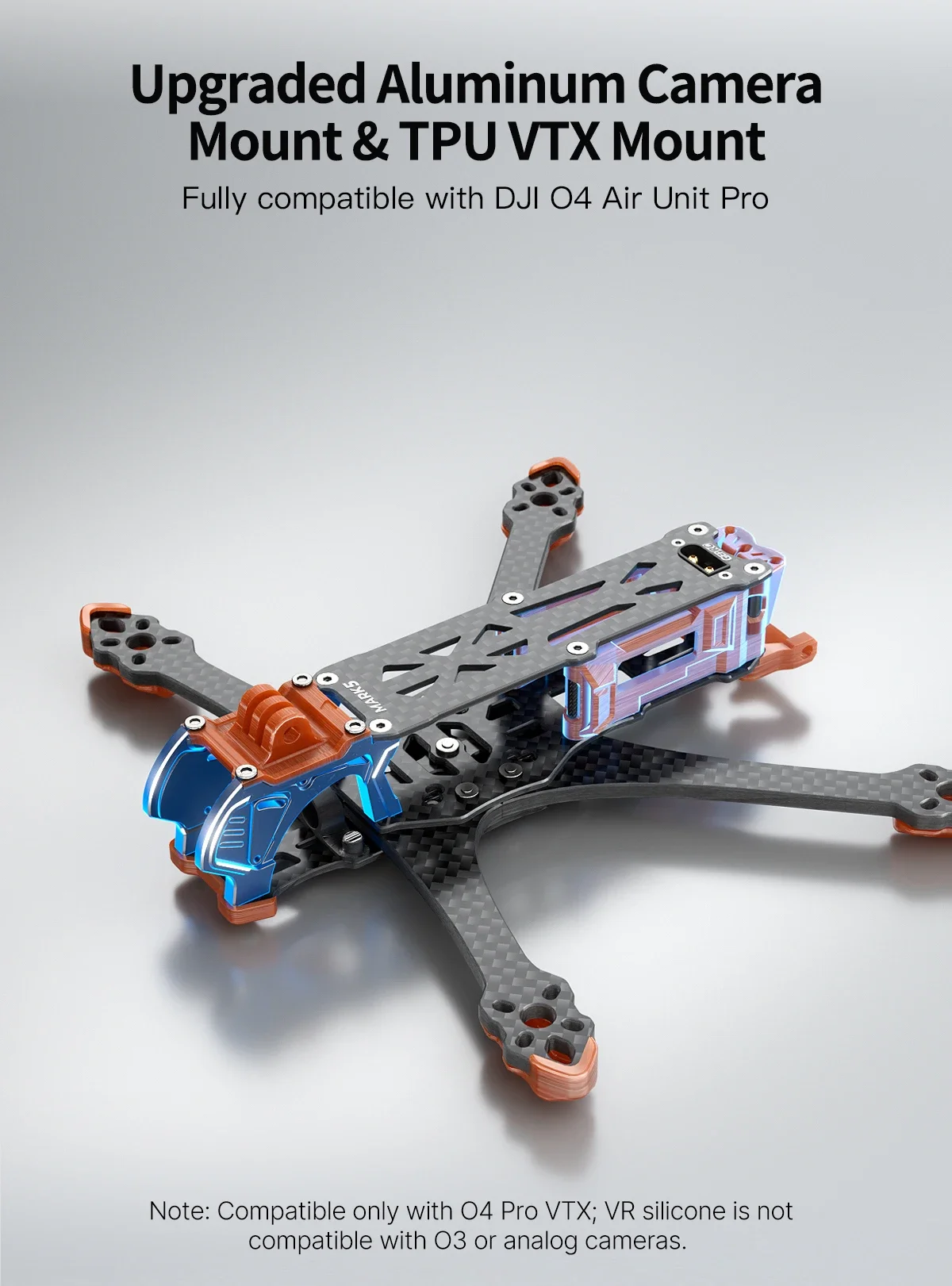

  The GEPRC MARK5 O4 Pro frame is designed specifically for the O4 Air Unit Pro.
It features a redesigned camera mount and custom shock-absorbing silicone, improving compatibility and vibration resistance for a more stable flight experience.

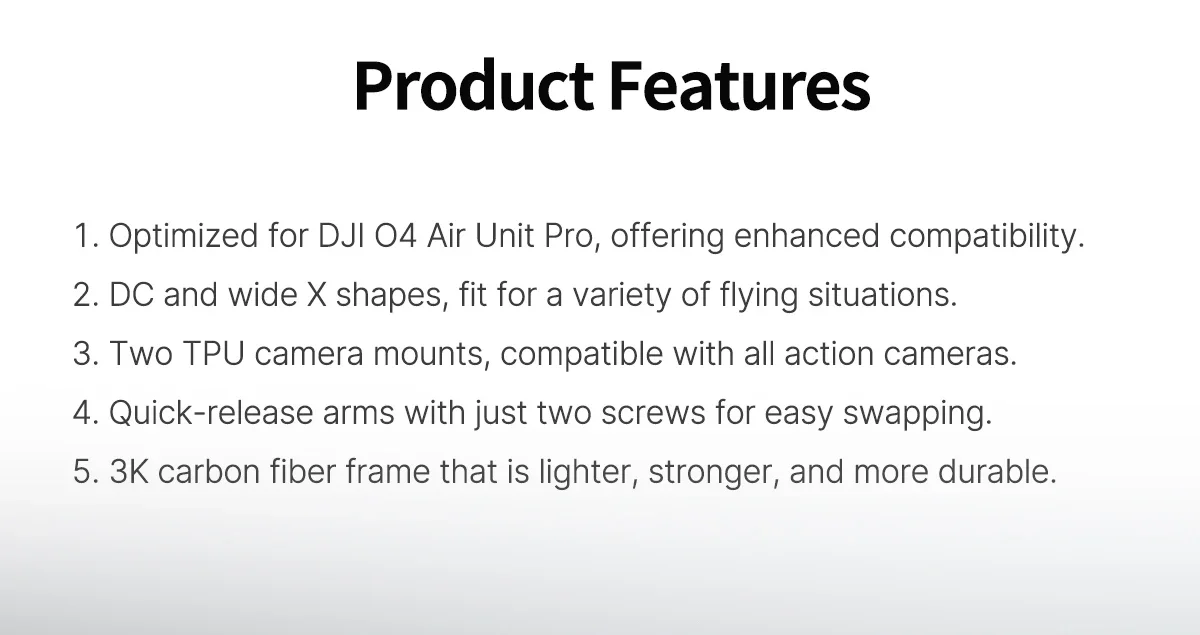

Feature

1. Optimized for  O4 Air Unit Pro, offering enhanced compatibility.

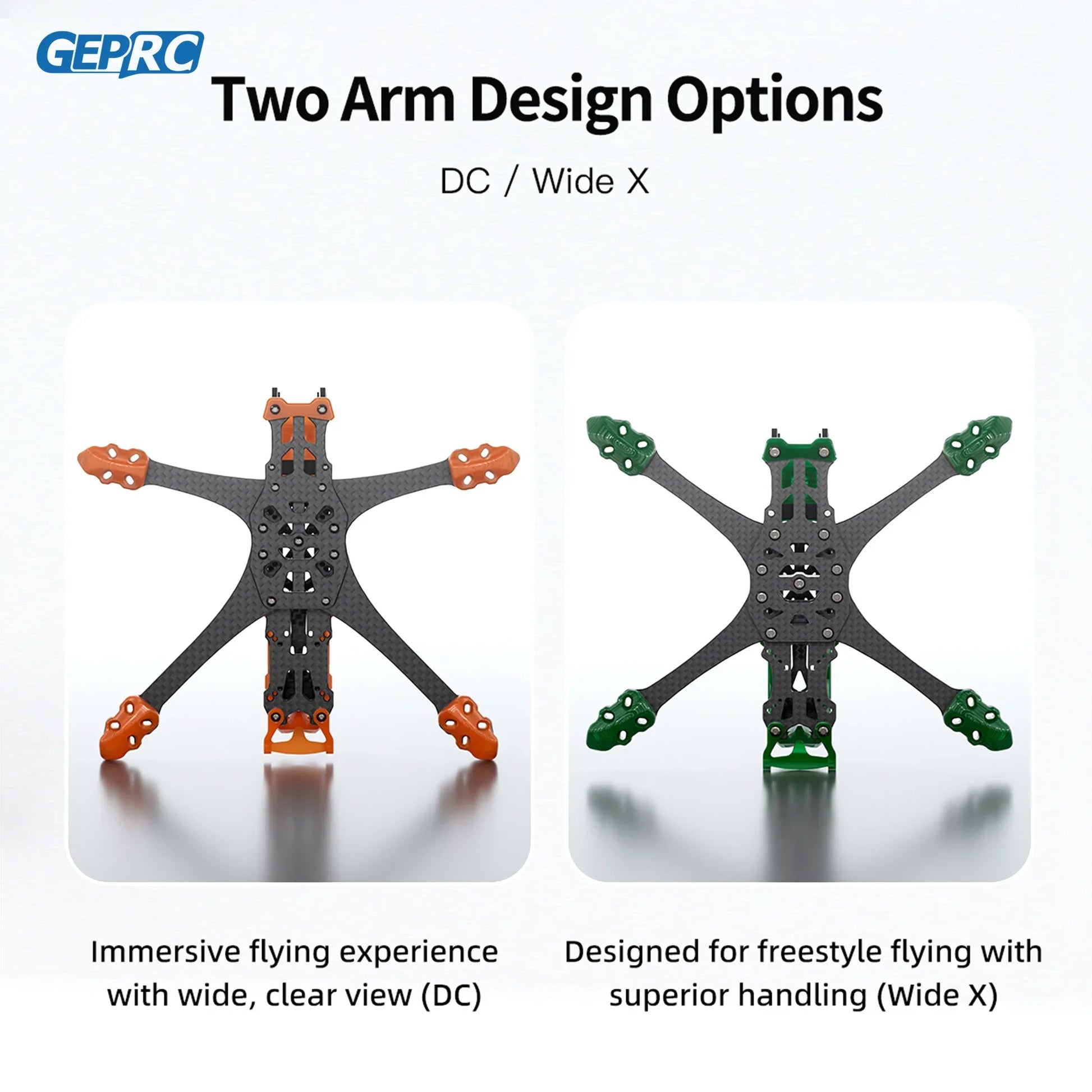

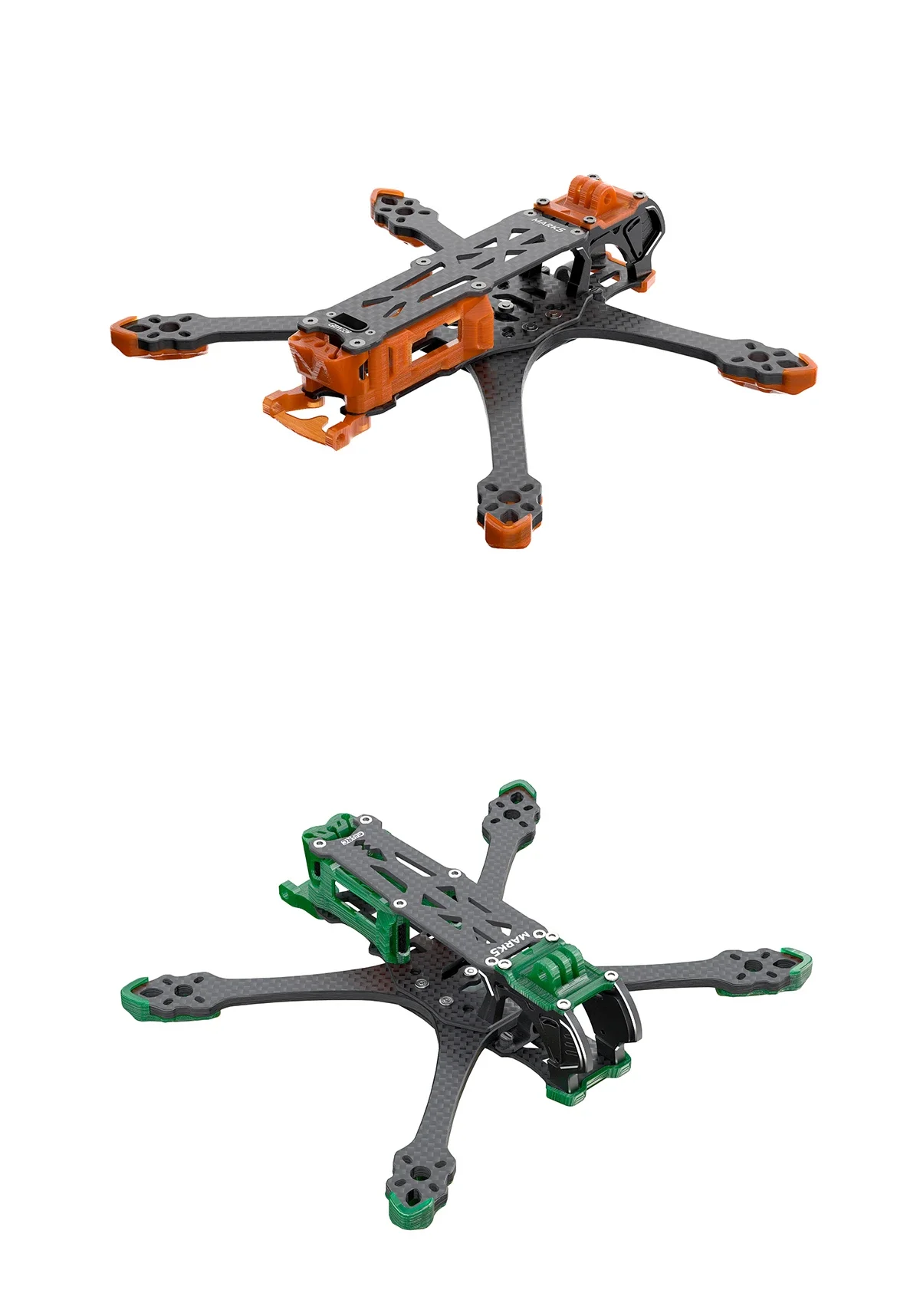

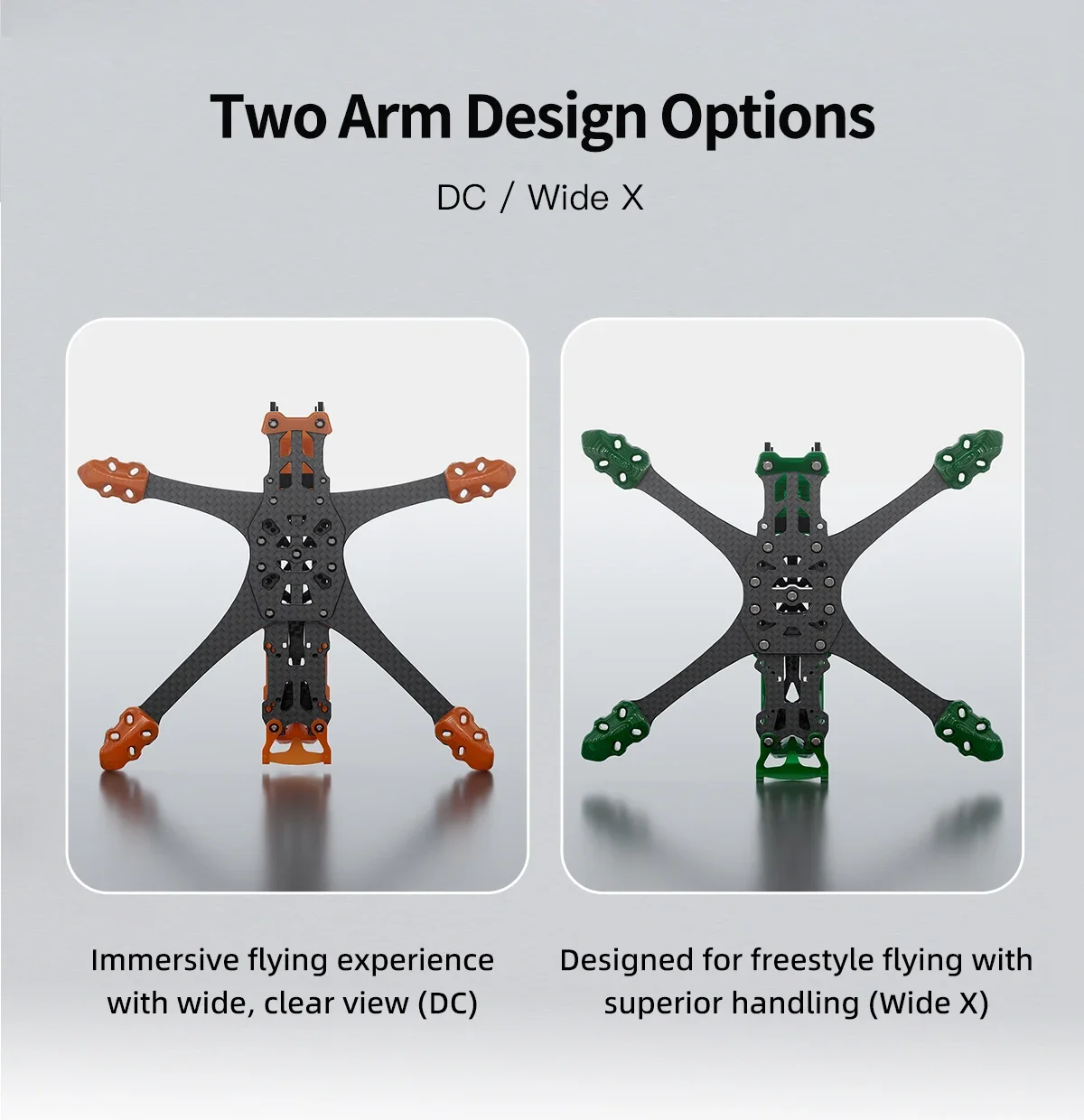

2. DC and wide X shapes, fit for a variety of flying situations.
3. Two TPU camera mounts, compatible with all action cameras.
4. Quick-release arms with just two screws for easy swapping.
5. 3K carbon fiber frame that is lighter, stronger, and more durable.

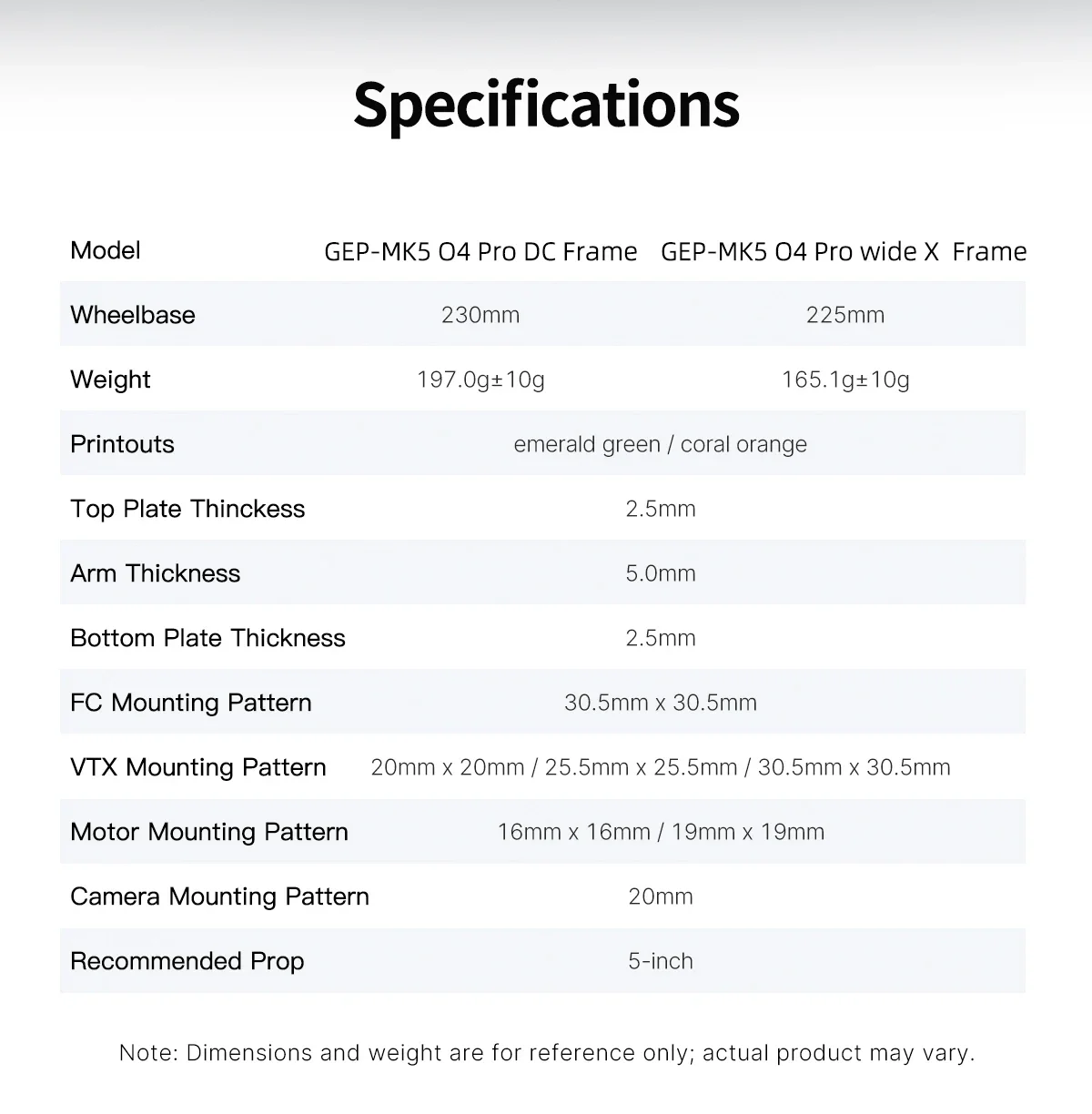

Specification--GEP-MK5 O4 Pro DC

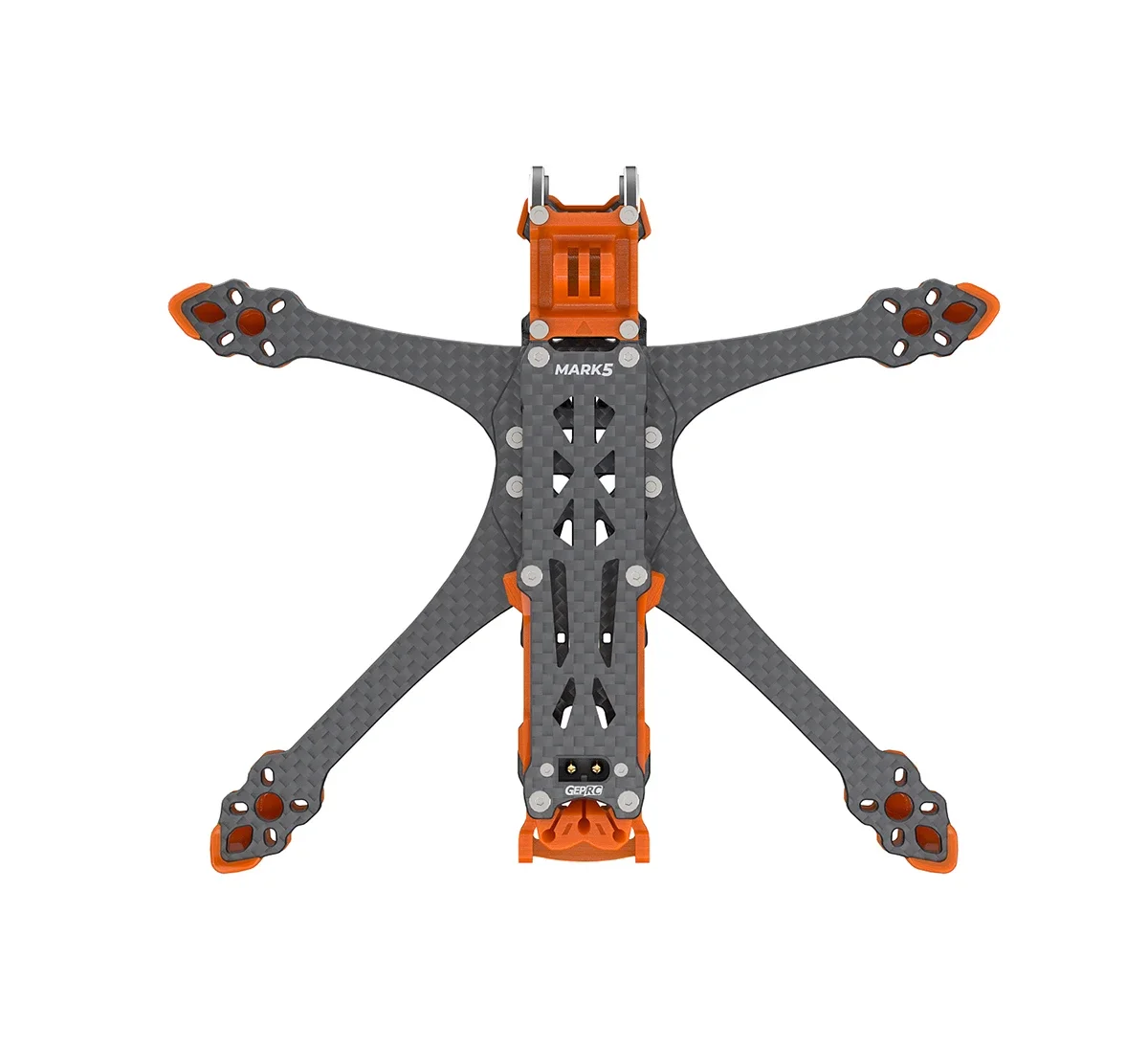

•  Model: GEP-MK5 O4 Pro DC  Frame

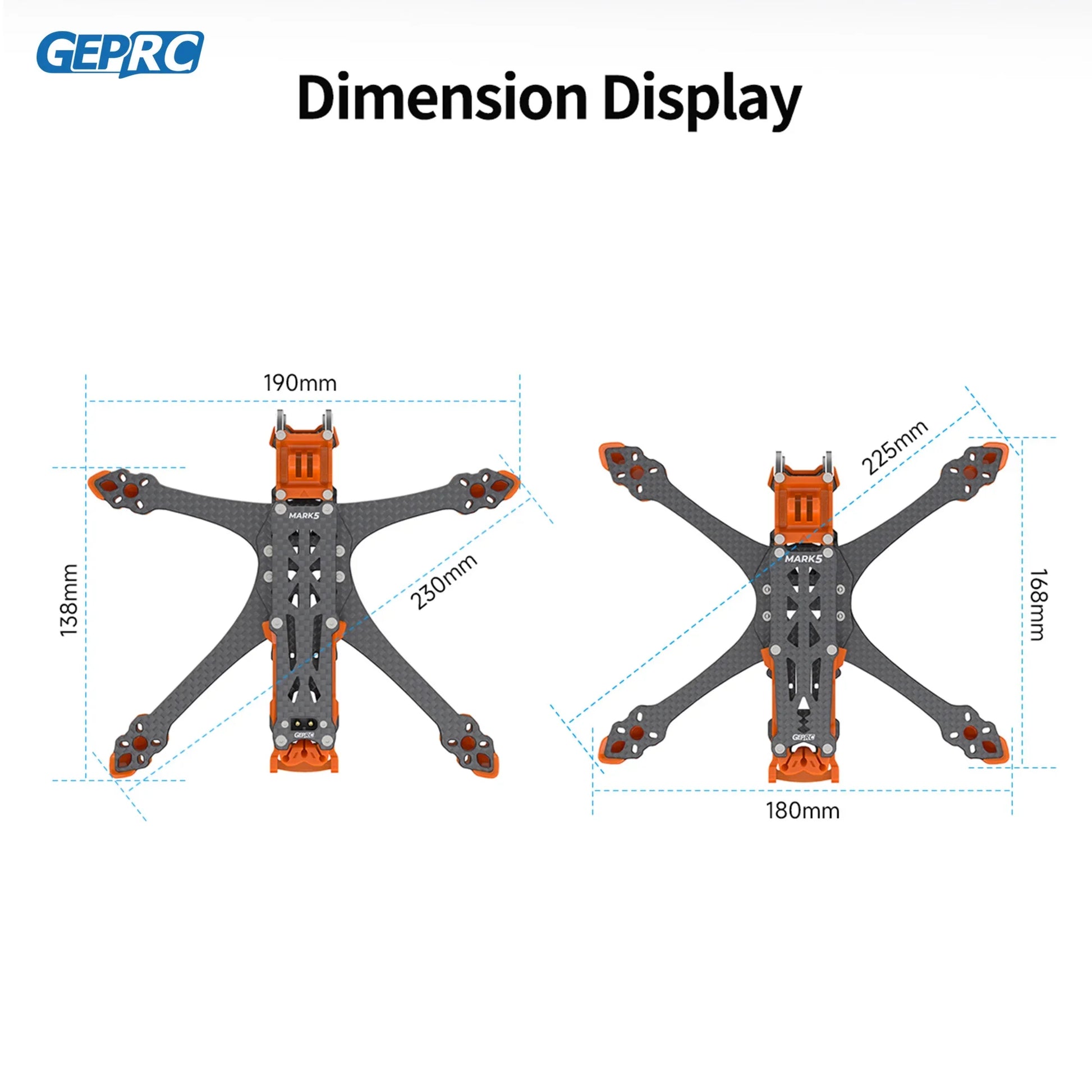

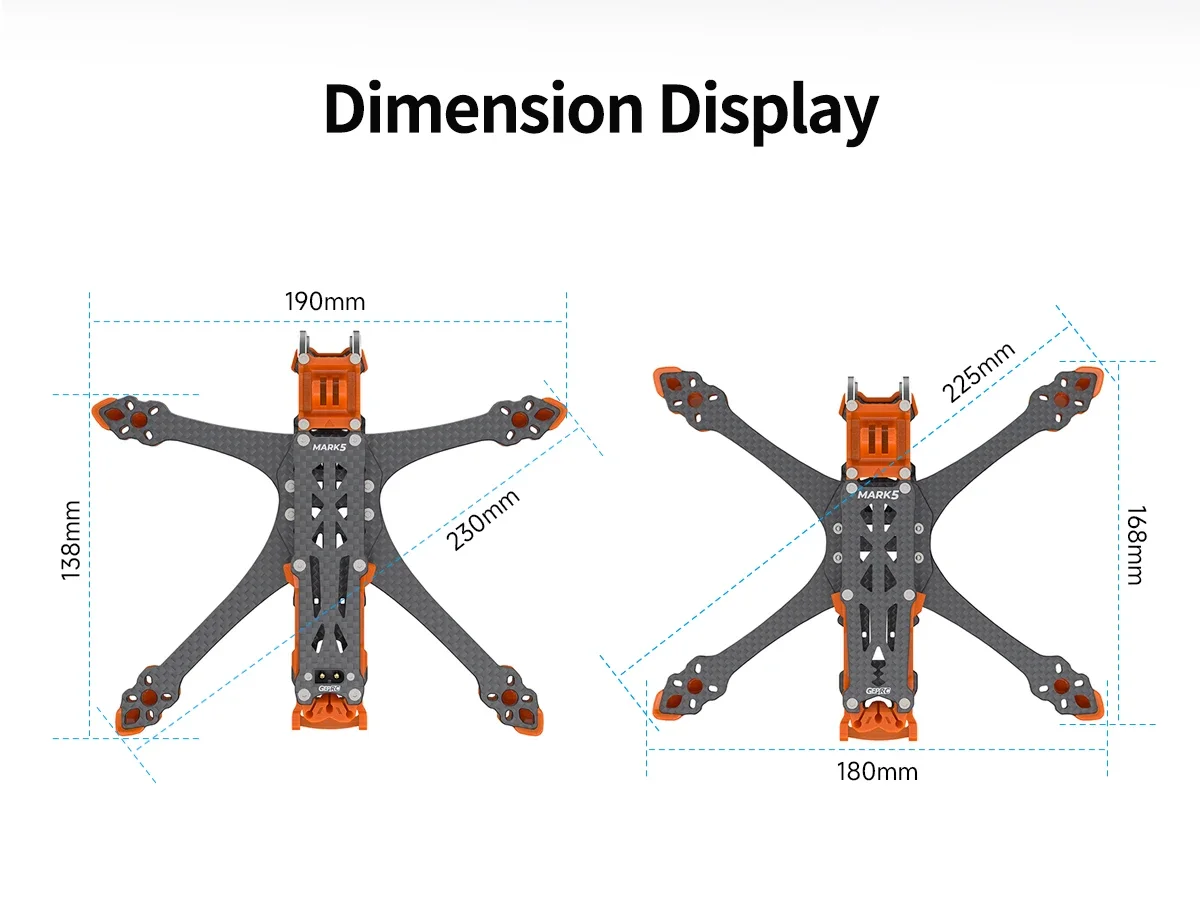

•  Wheelbase: 230mm

•  Weight: 197.0g ± 10g

•  Color: emerald green / coral orange

•  Top Plate Thickness: 2.5mm

•  Arm Thickness: 5.0mm

•  Bottom Plate Thickness: 2.5mm

•  FC Mounting Pattern: 30.5mm * 30.5mm

• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm

•  Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm

•  Camera Mounting Pattern: 20mm

•  Recommended Prop：5-inch

Specification--GEP-MK5 O4 Pro wide X

• Model: GEP-MK5 O4 Pro wide X Frame

• Wheelbase: 225mm

• Weight: 165.1g ± 10g

• Color: emerald green/coral orange

• Top Plate Thickness: 2.5mm

• Arm Thickness: 5.0mm

• Bottom Plate Thickness: 2.5mm

• FC Mounting Pattern: 30.5mm * 30.5mm

• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm

• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm

• Camera Mounting Pattern: 20mm

• Recommended Prop：5-inch

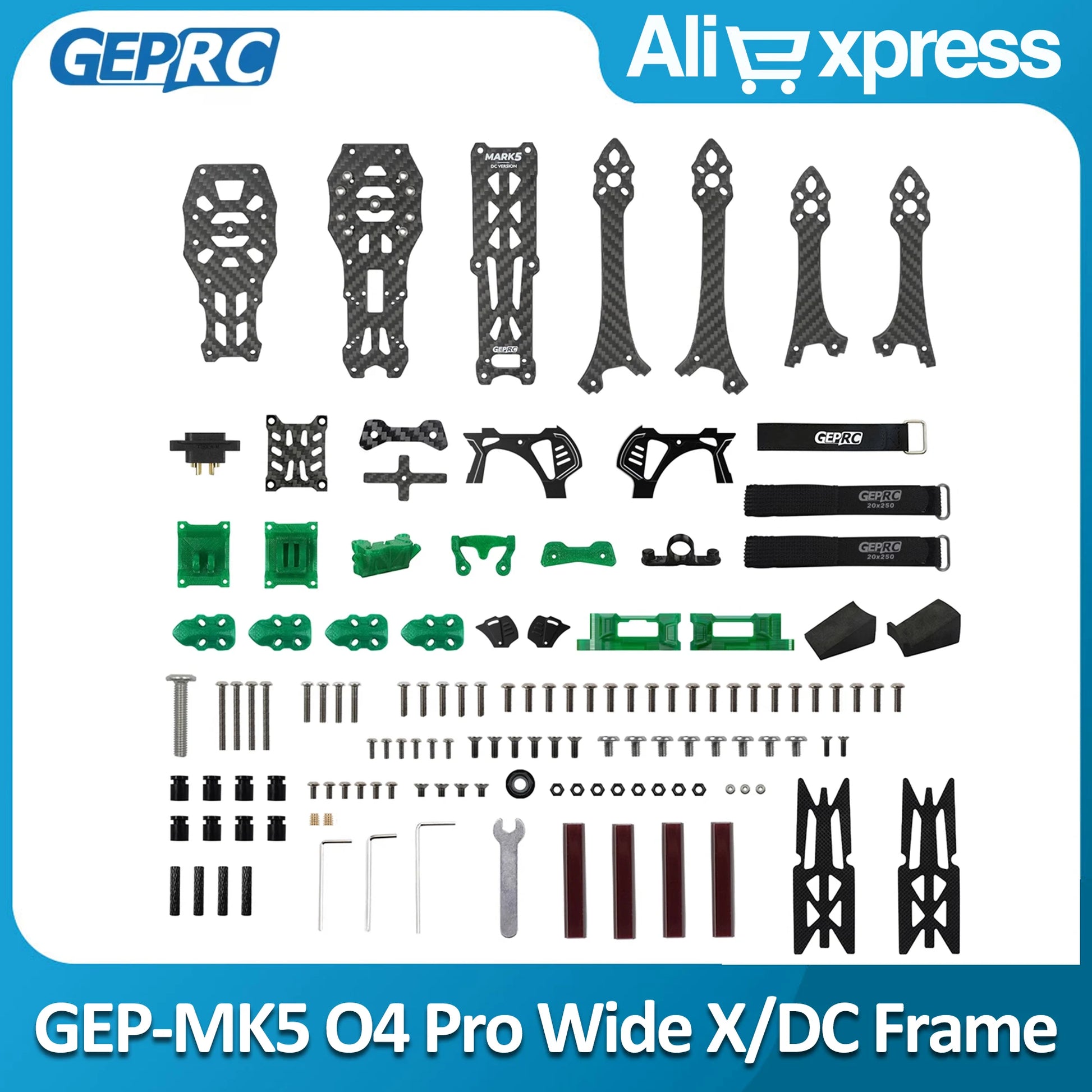

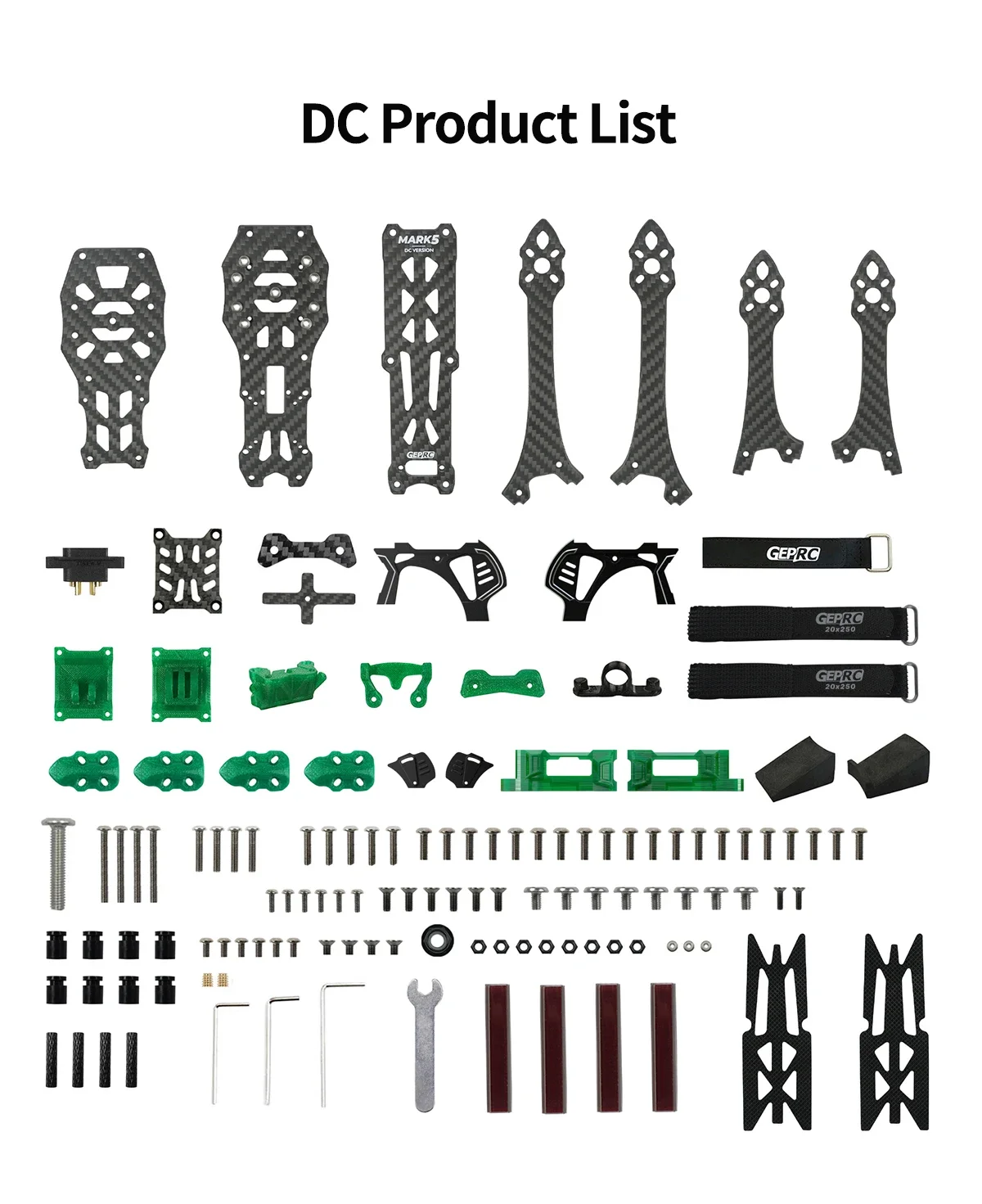

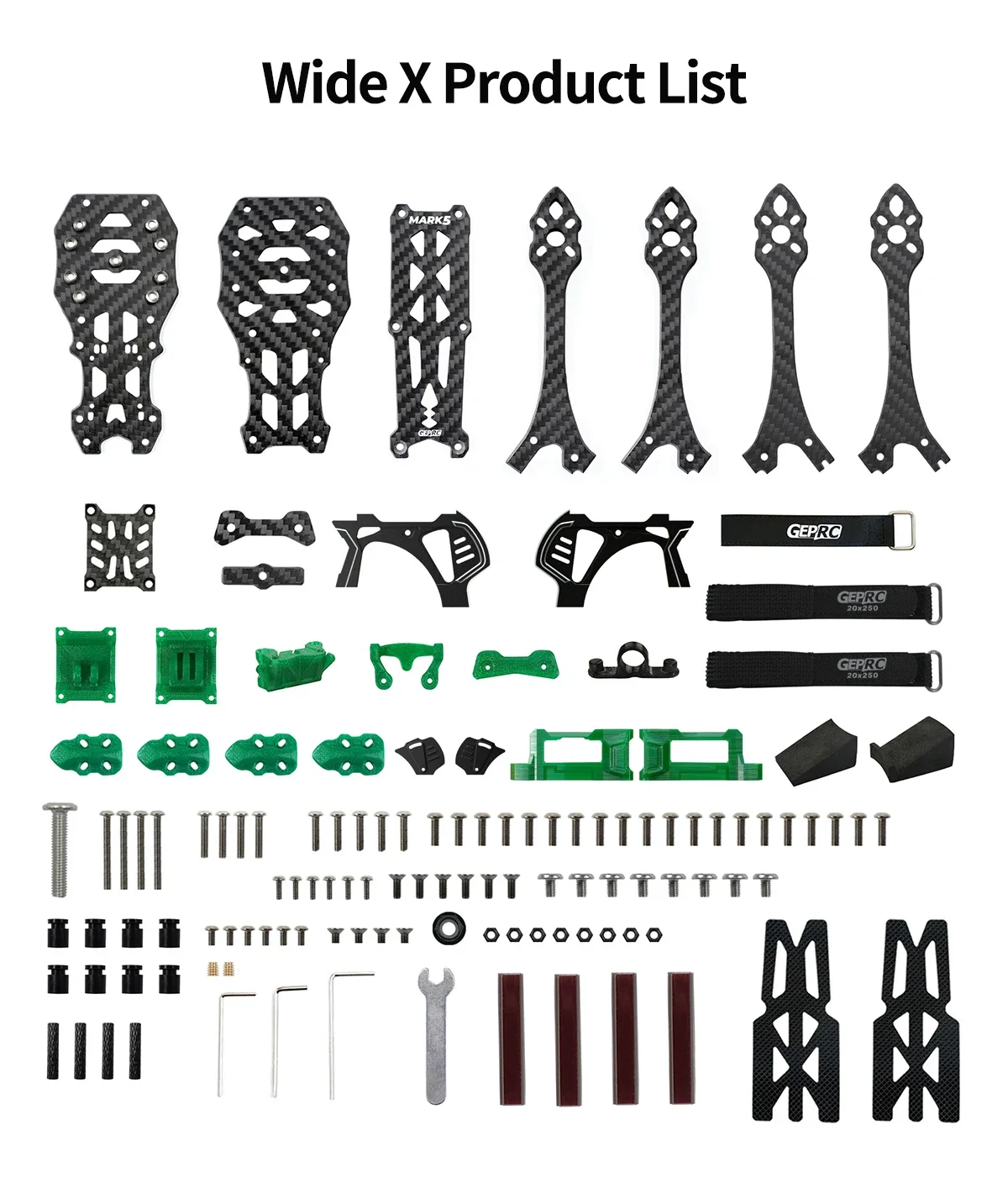

Includes

1 x GEP-MK5 O4 Pro Frame
1 x 15*250mm heavy-duty Velcro straps
2 x Battery anti-slip pads
1 x 3D printouts pack
2 x 20*250mm rubber anti-slip straps
1  x  L-shaped screwdriver 1.5mm
1  x  L-shaped screwdriver 2mm
1  x  L-shaped screwdriver 3mm
1  x  M8 wench
1  x  Screw pack
