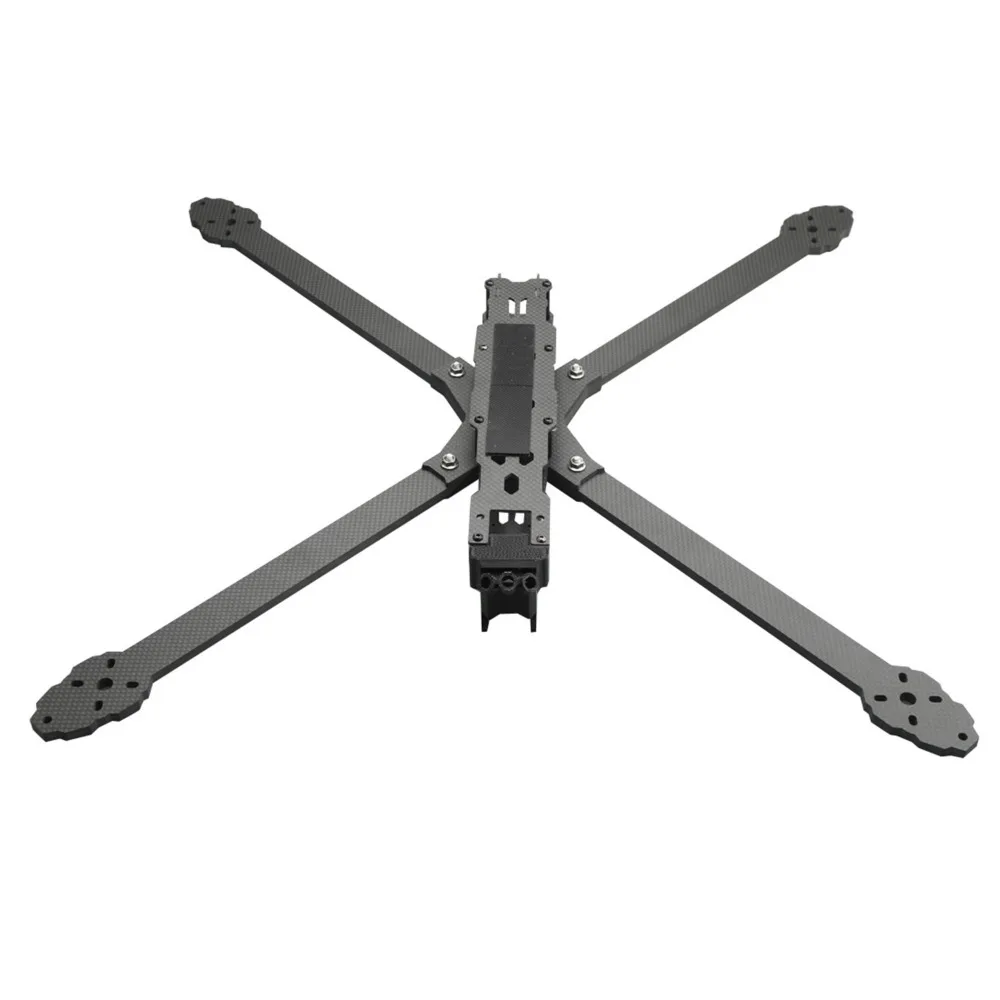

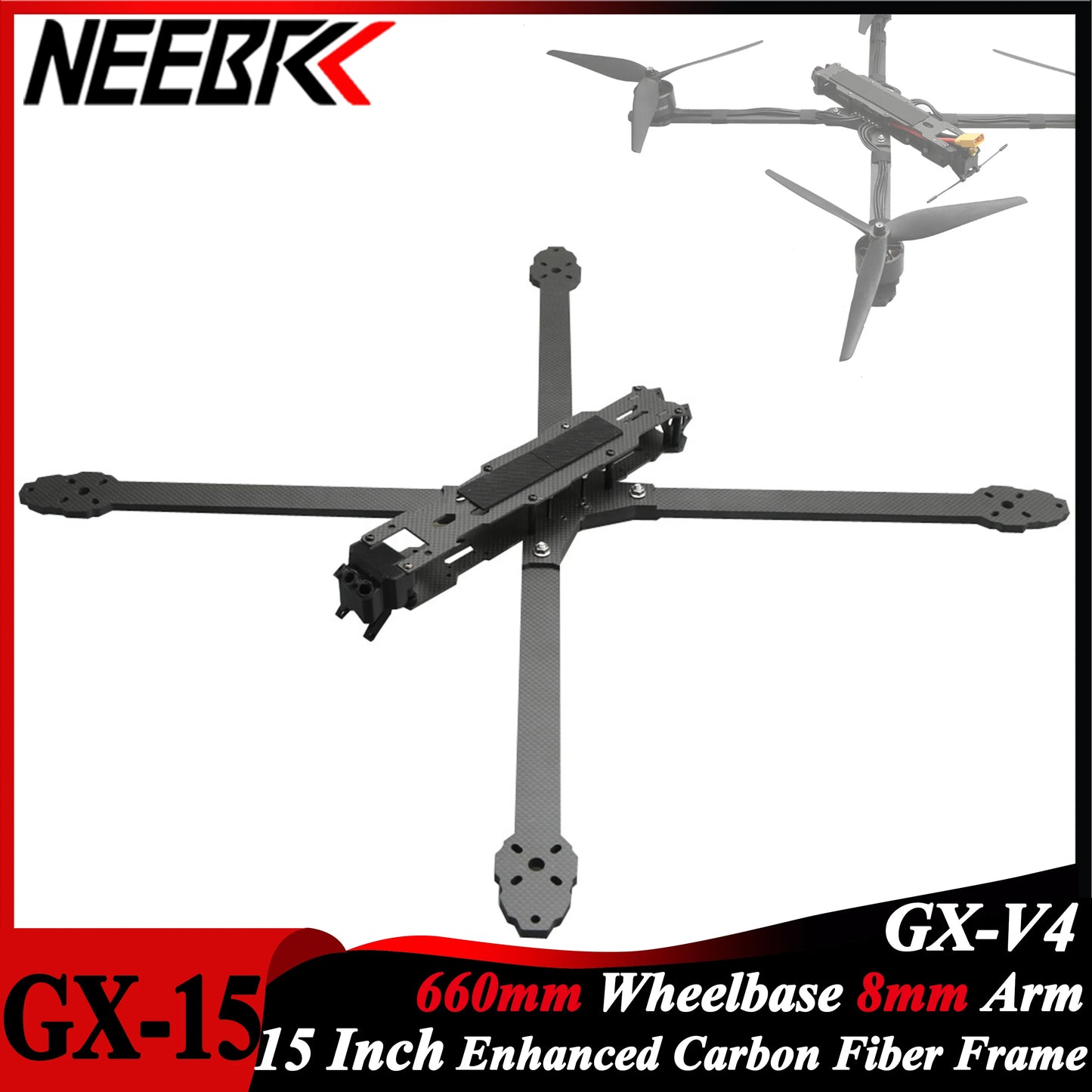

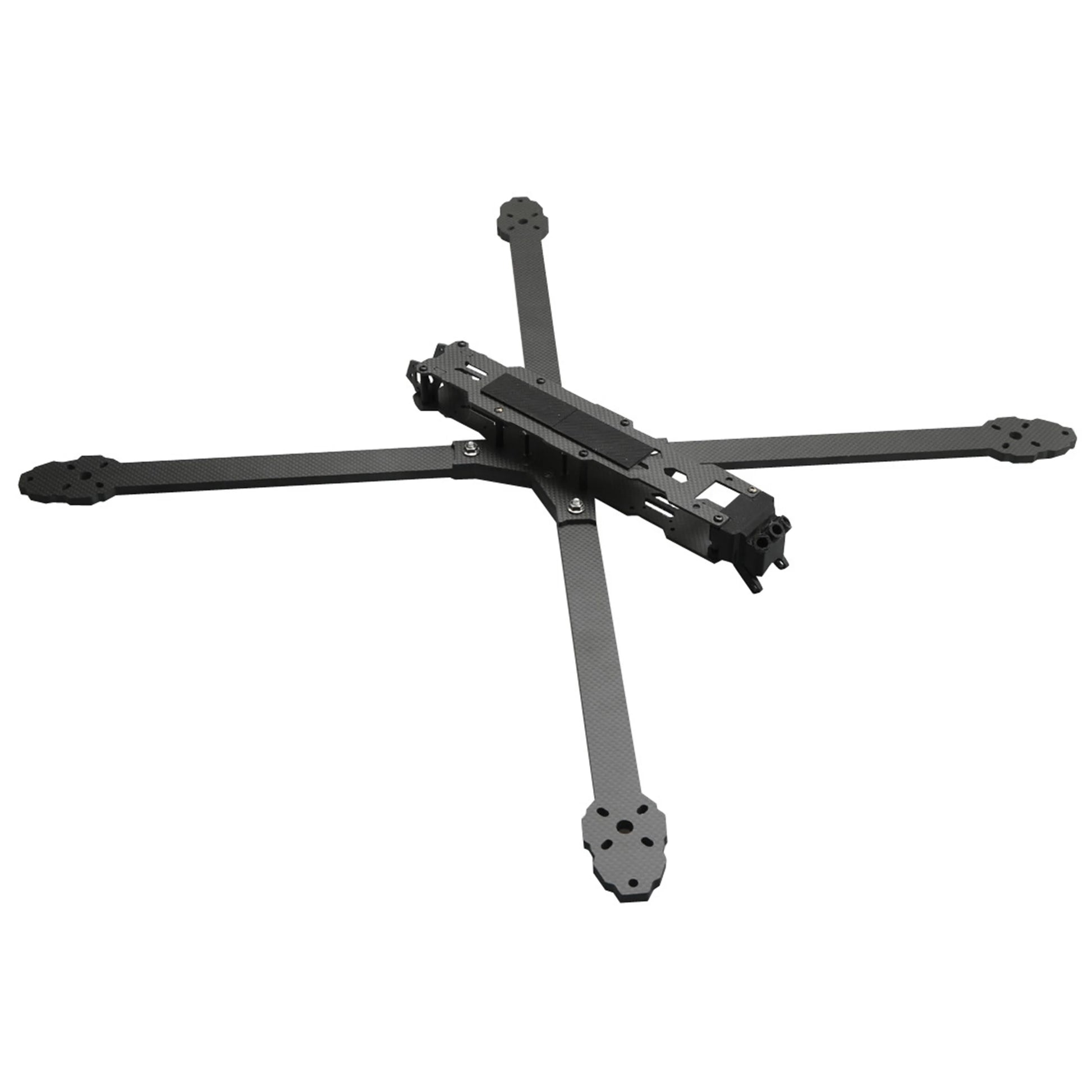

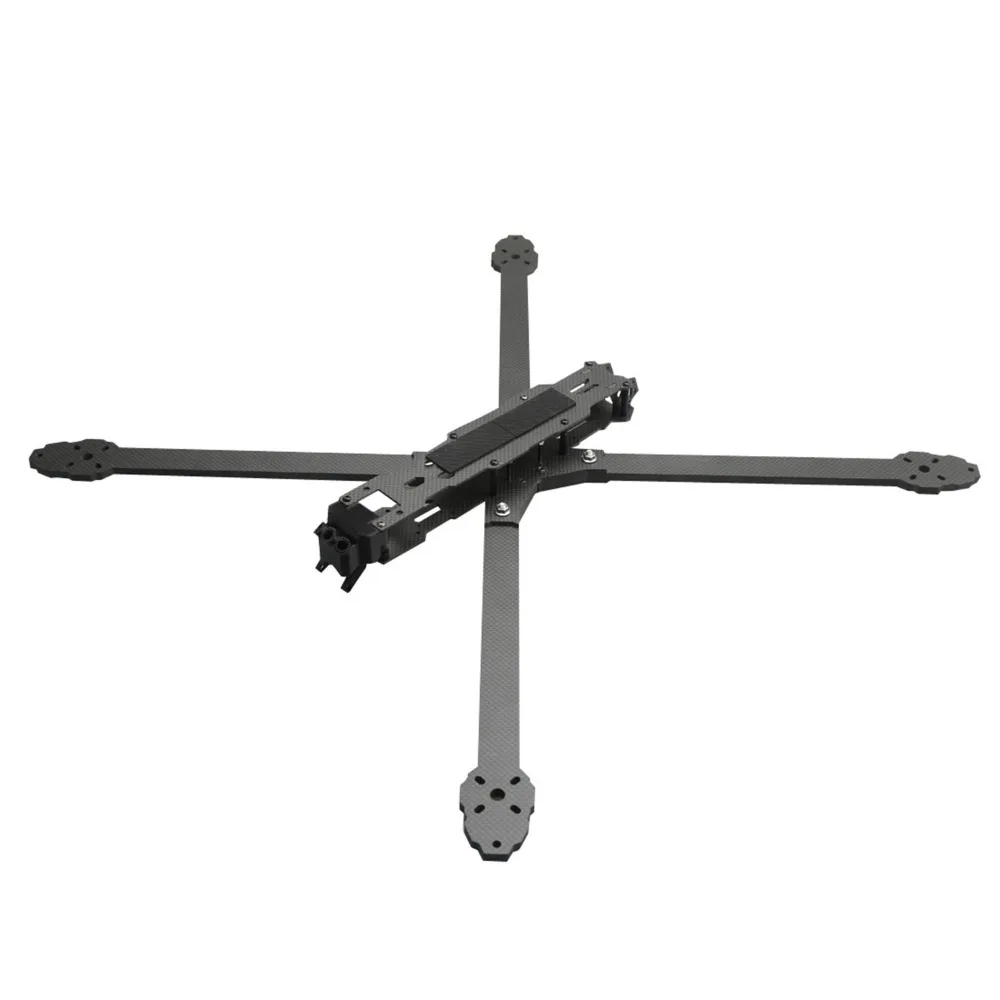

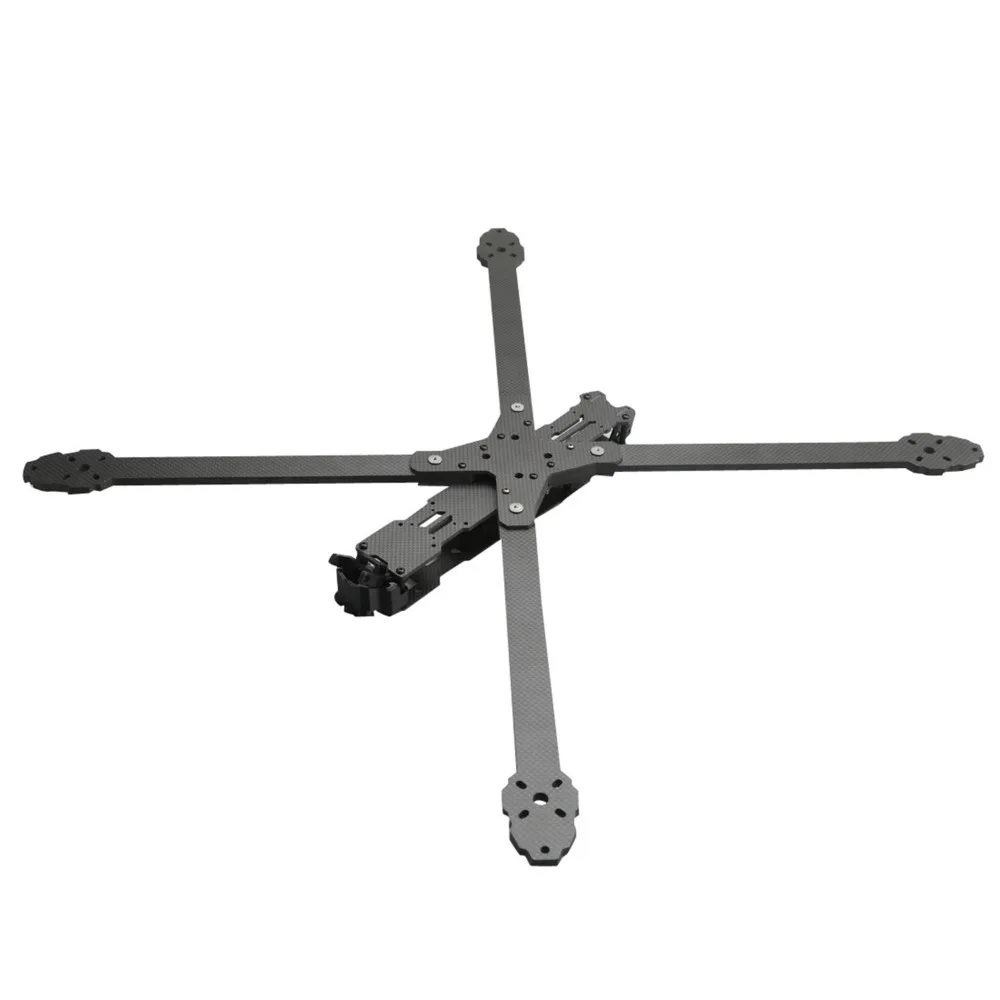

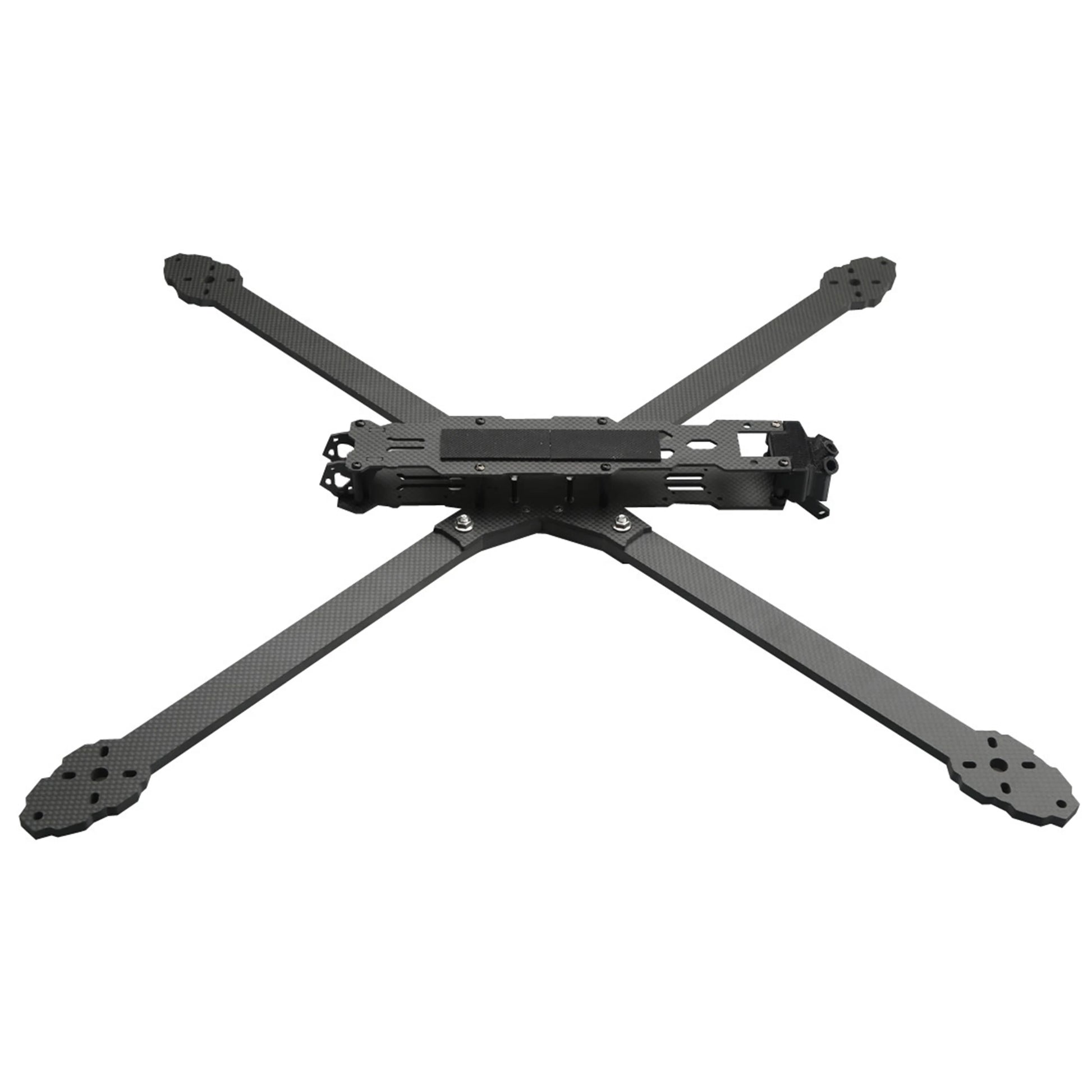

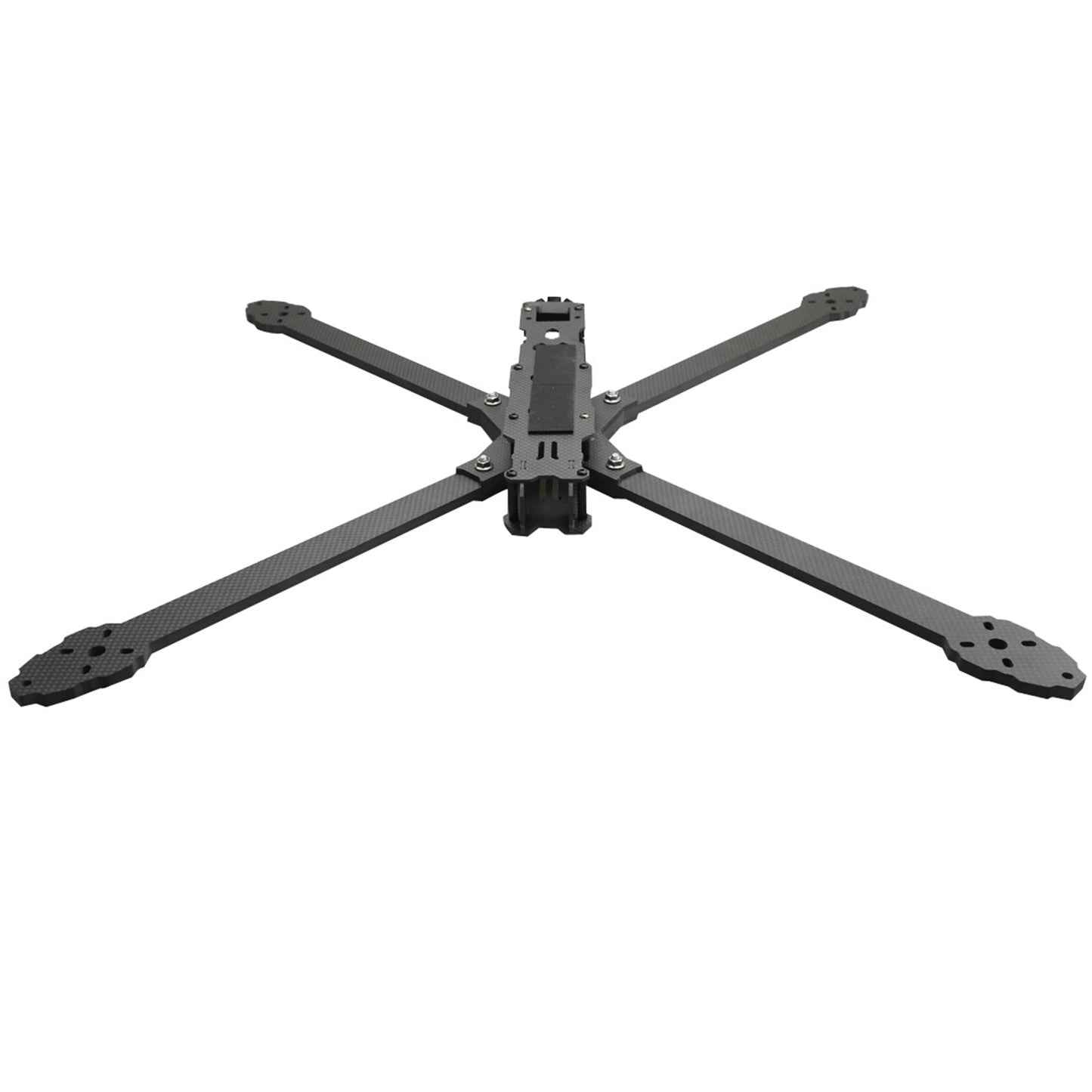

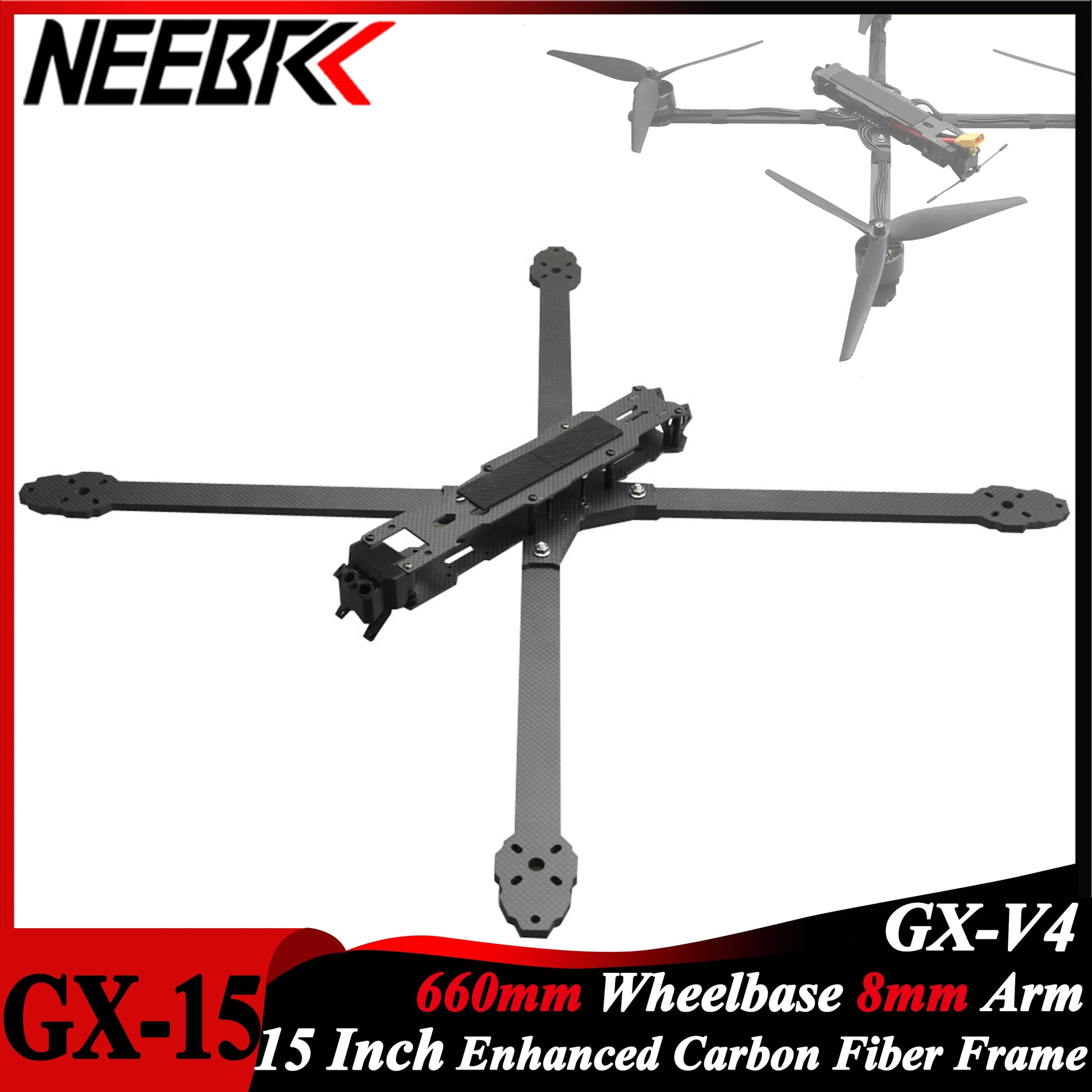

GX-15 15 Inch FPV Frame Kit 660mm Enhanced Carbon Fiber Rack 8mm Arm for RC Freestyle X-Class Long Range Drone X-class DIY Parts

GX-15 15 Inch FPV Frame Kit 660mm Enhanced Carbon Fiber Rack 8mm Arm for RC Freestyle X-Class Long Range Drone X-class DIY Parts

Attention: This model has been upgraded to the latest thickened model for greater durability and stability.
The  15-inchmodels have been upgraded to 8MM arms
Advantages: high-quality pure carbon fiber material, strong stability and durability, long top and bottom plate design, can carry a larger capacity battery and load weight

Specification:

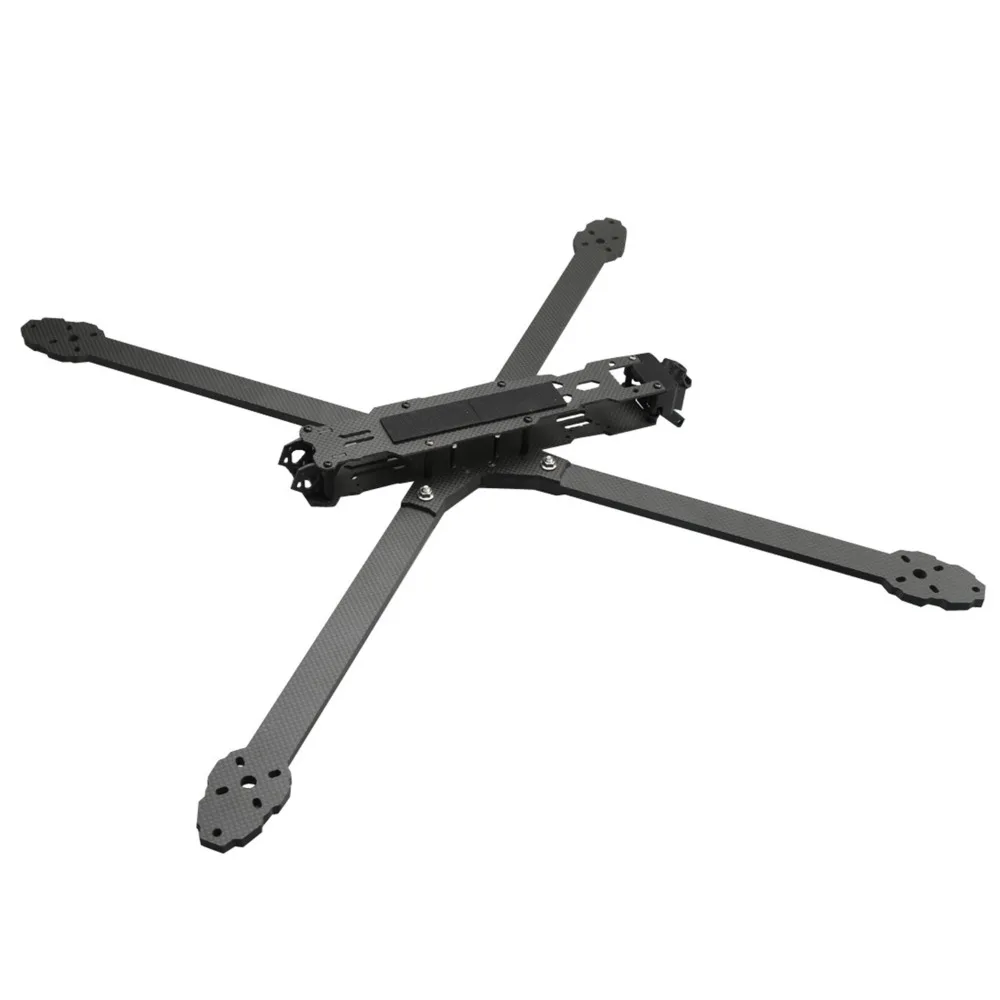

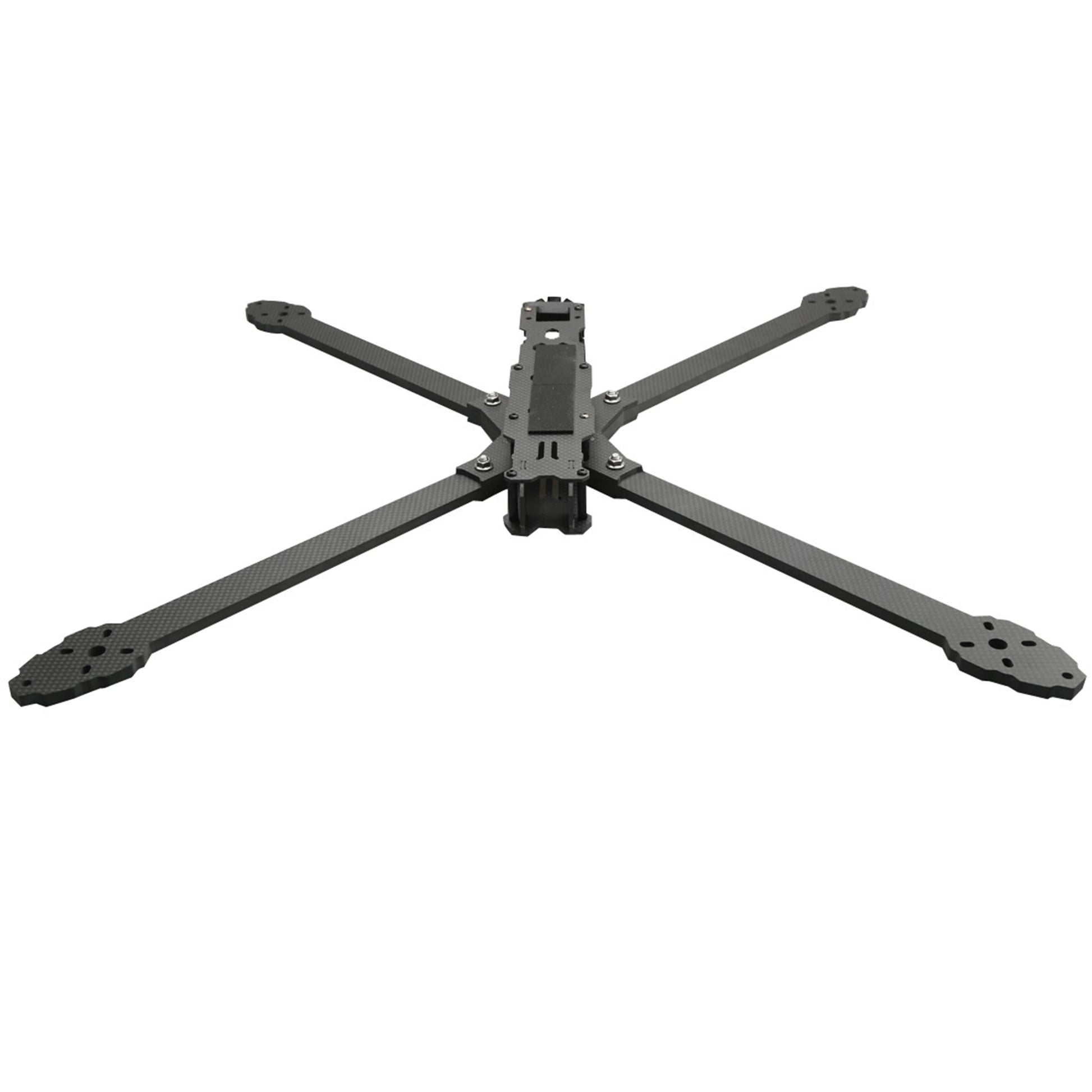

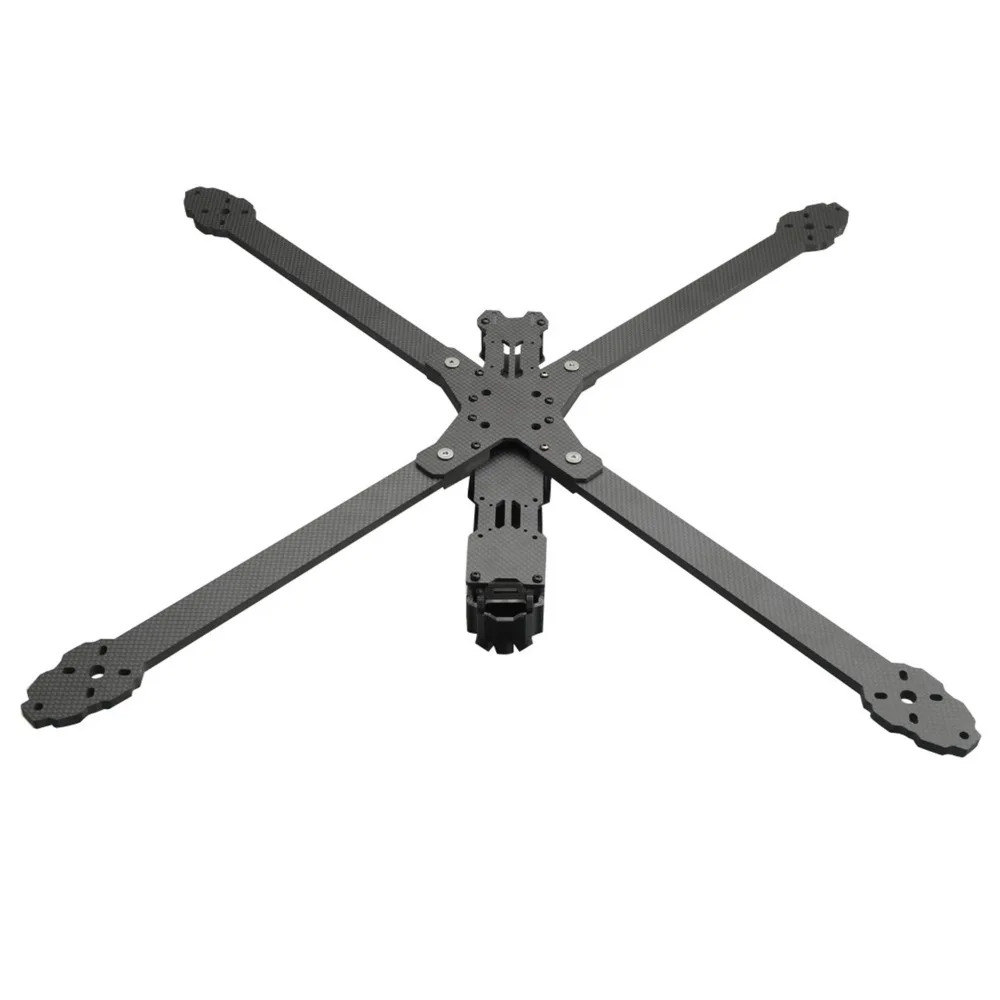

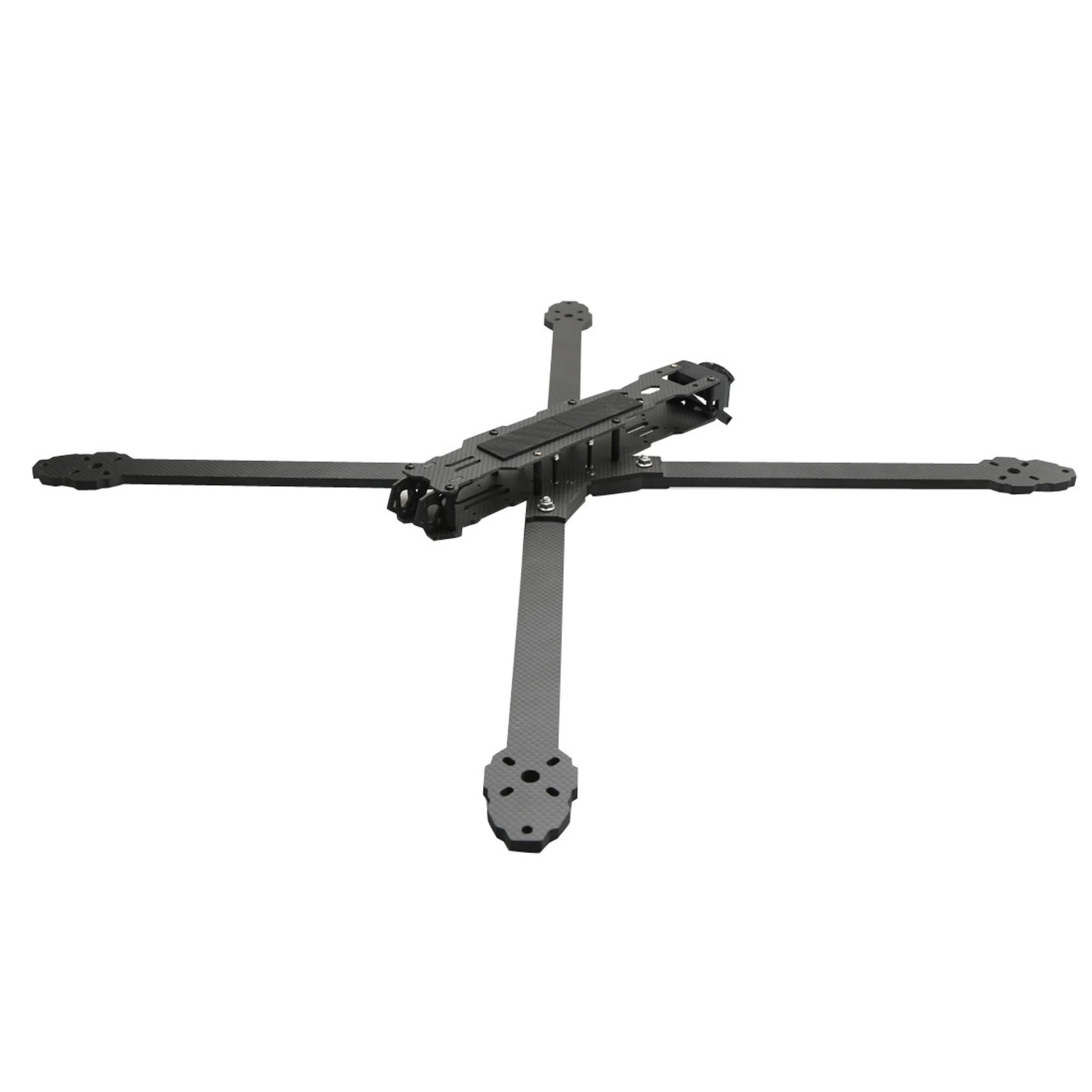

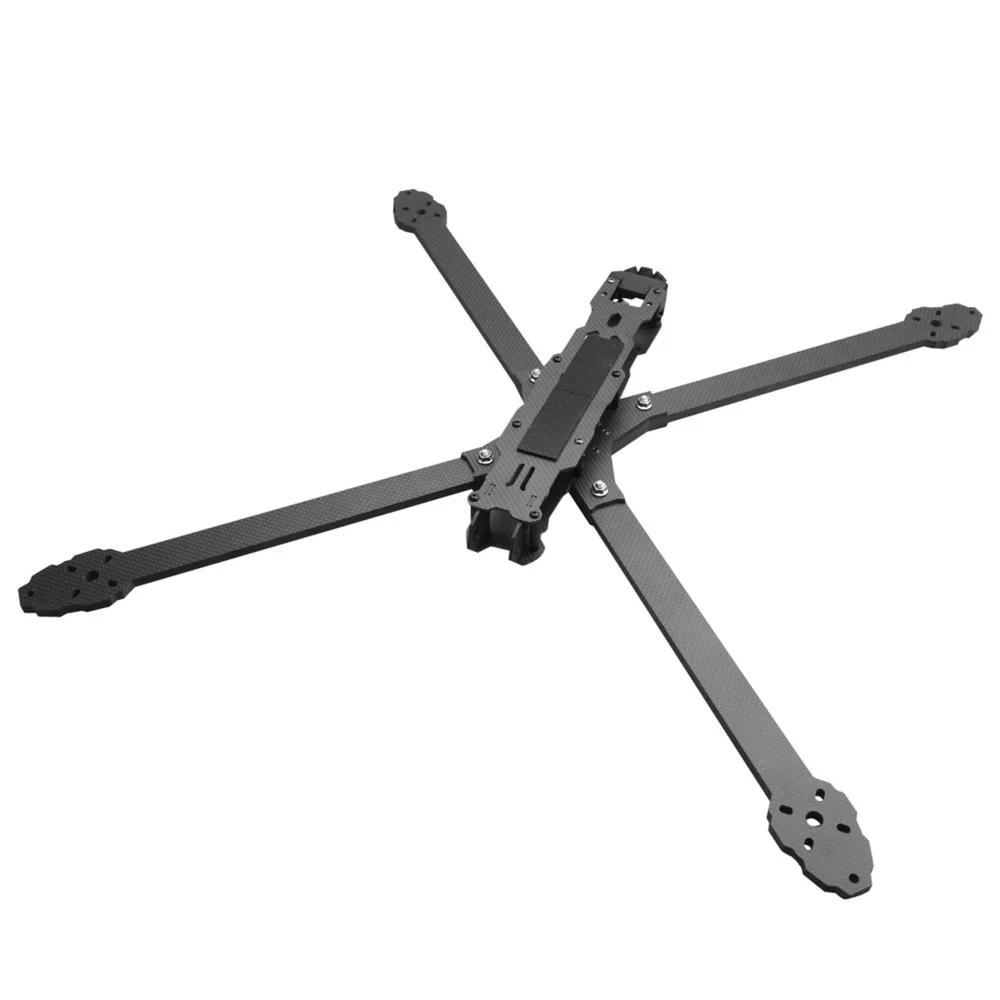

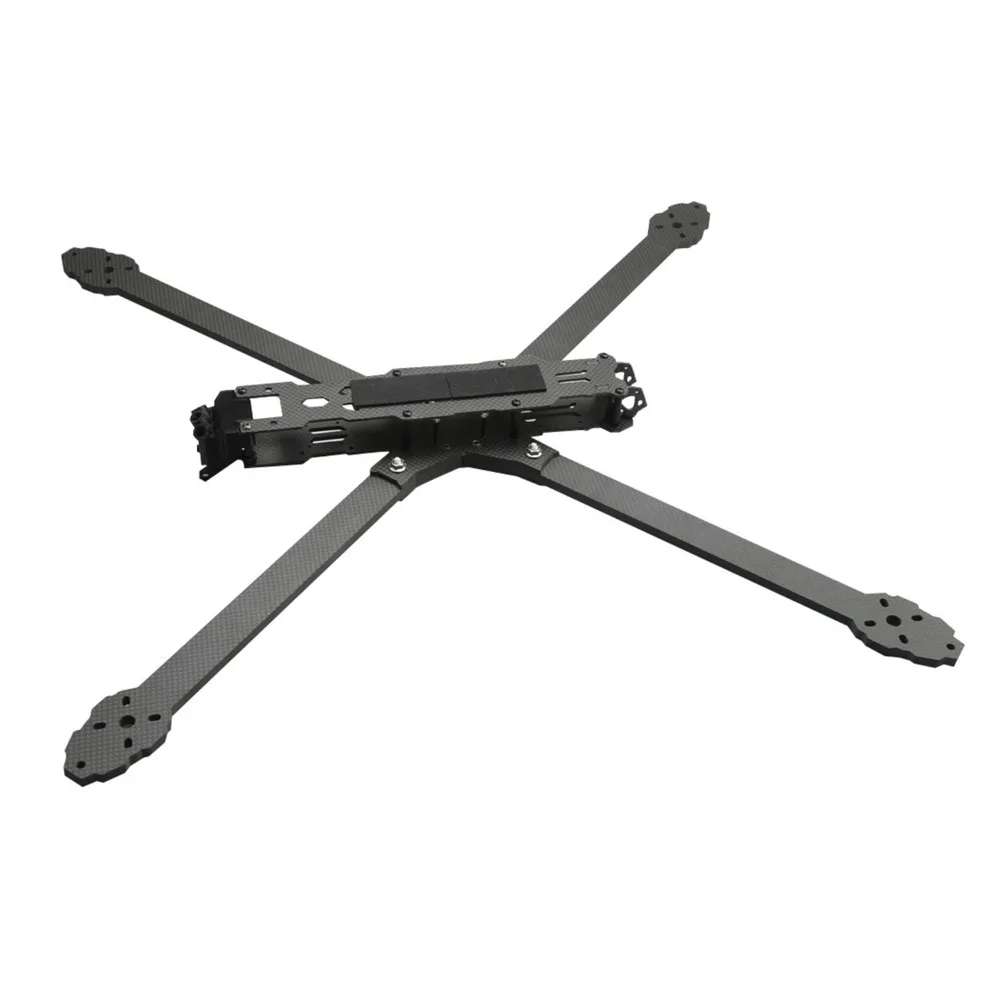

GX-V4-15 inch FPV drone frame assembly carbon fiber frame
Model: GX-15 inch V4 carbon fiber
Wheelbase:  660mm
Weight:655g
Top plate thickness: 2.5 millimeters
Bottom plate thickness: 2.5 millimeters
Arm thickness: 8mm
Camera mounting hole spacing: 19mm
Measurement and installation hole spacing of 20 * 20mm&30.5 * 30.5mm
Flight controller installation spacing: 30.5 * 30.5 millimeters
Internal space height: 40mm
Motor installation hole spacing: 25 * 25mm&30 * 30mm

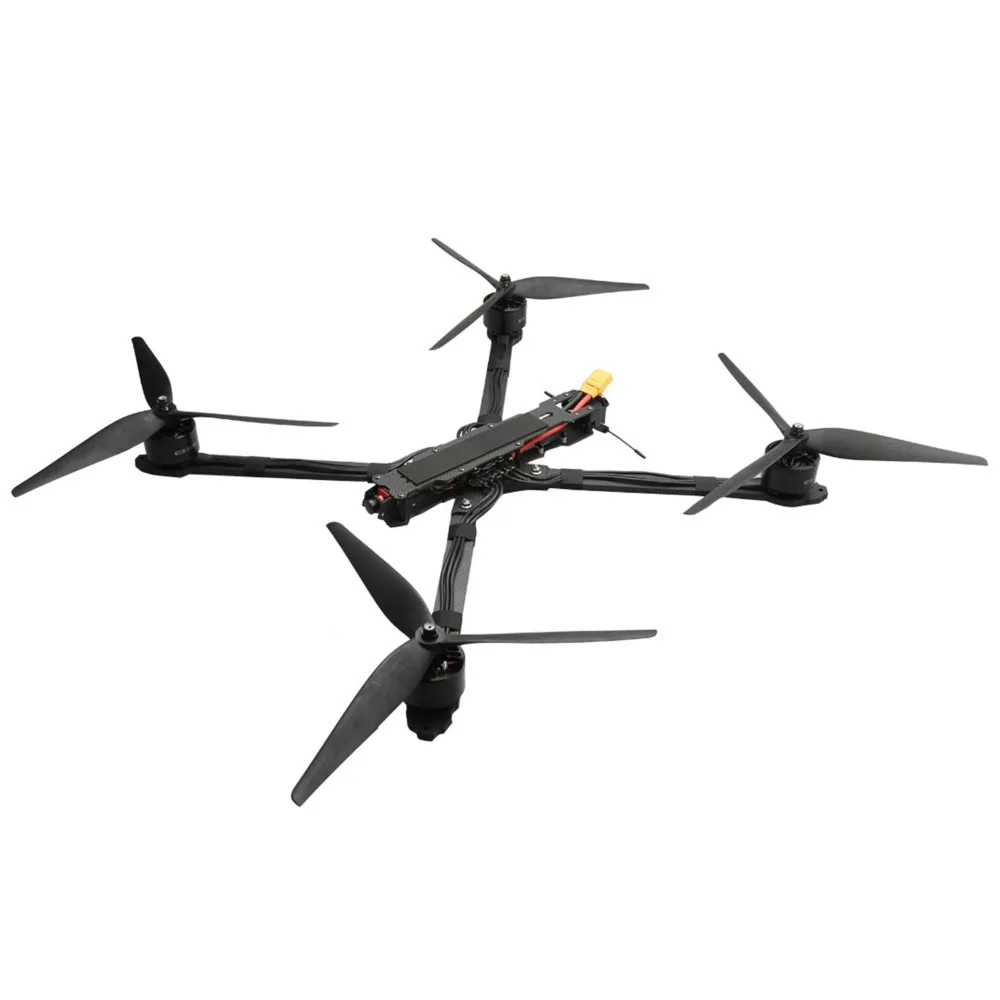

Recommended configuration: (not included)
Motor: 4215/4218/4312/5215
Electric tuning: 80A-100A 6S-8S
Propeller: 15 inches
Camera: 19 * 19mm
Flight control: F4/F7/F405/F722
VTX: 5.8 G/1.2 G/4.9G-1.2 W-5W
Battery: 6s-8s-12000MAH-22000MAH

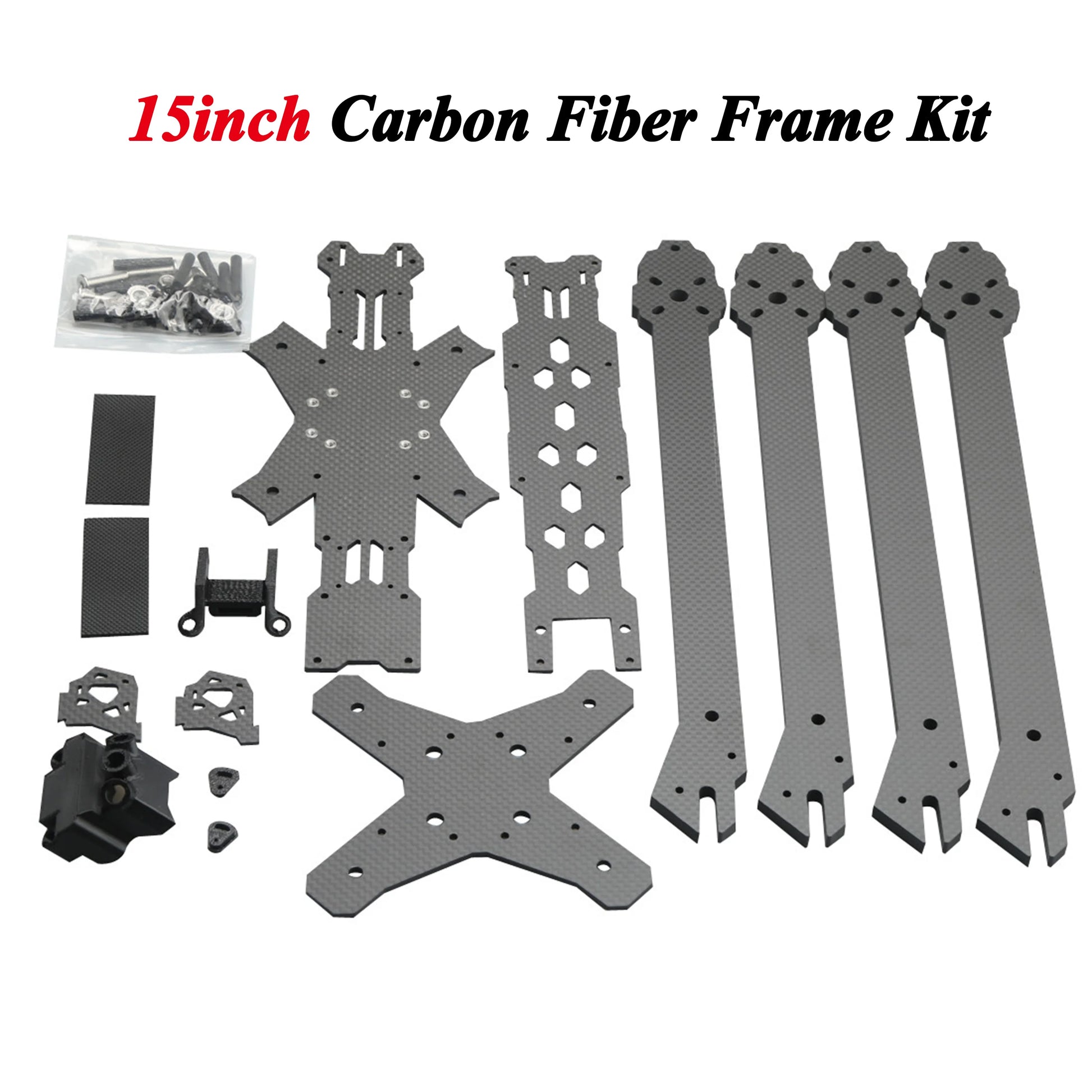

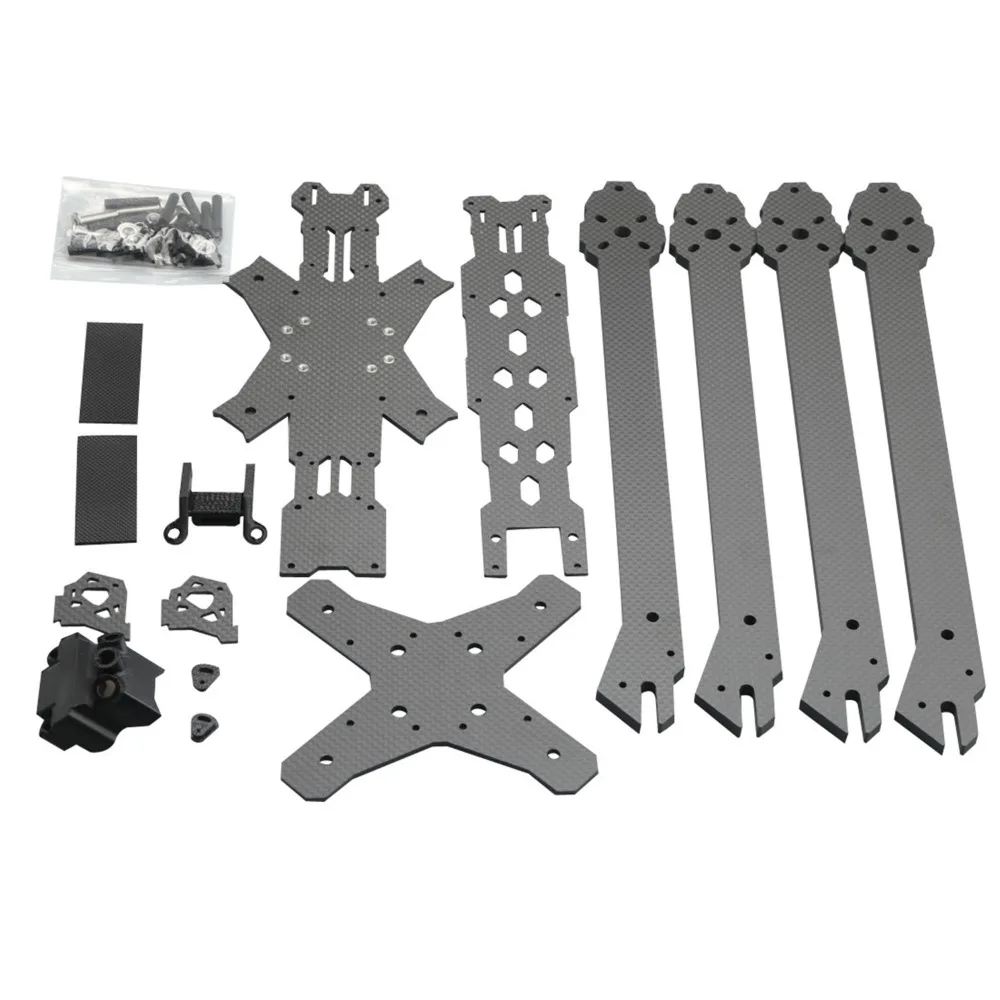

Package included:
1* GX-15inch V4 FPV Drone Frame  660mm Carbon Fiber

Note:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
