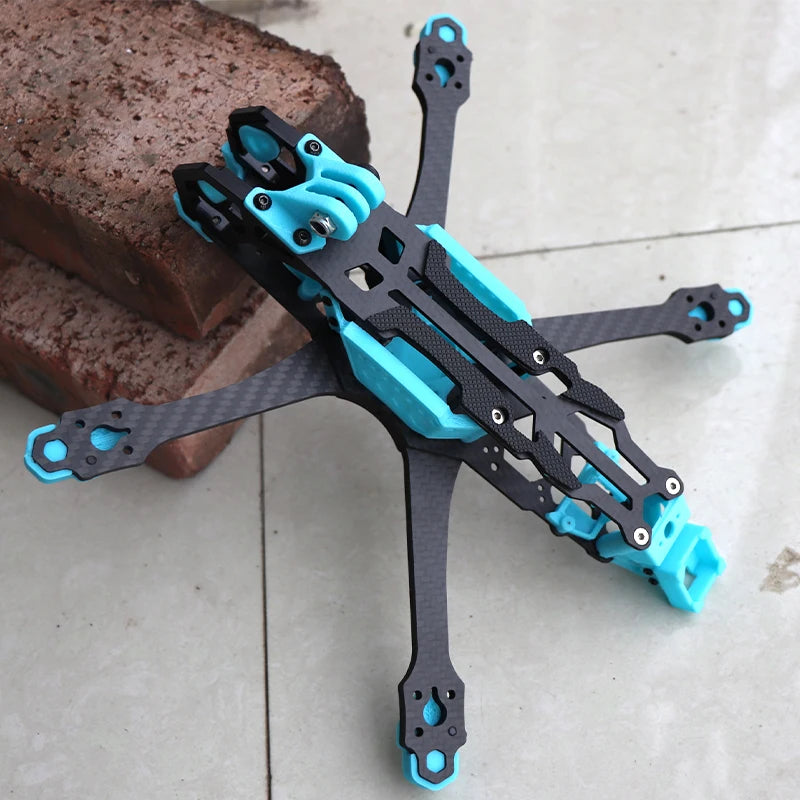

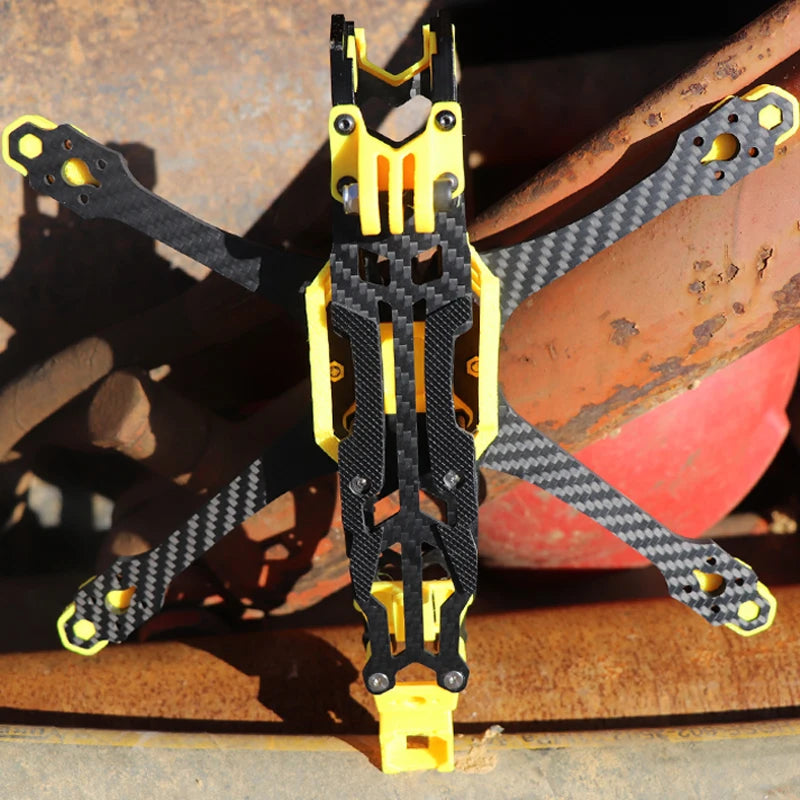

HSKRC S5 V2 5 Inch Carbon Fiber Frame for DJI O3 Air Unit Digital Anolog FPV RC Drone Freestyle

HSKRC S5 V2 5 Inch Carbon Fiber Frame for DJI O3 Air Unit Digital Anolog FPV RC Drone Freestyle


Rack type: H-type

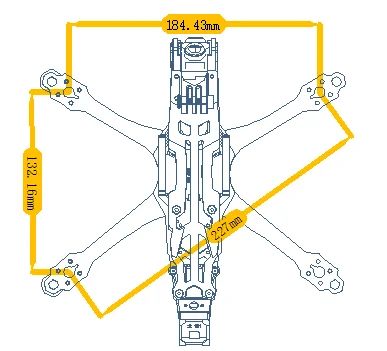

Wheelbase: 227MM
Dimensions 184.43MM x 132.16MM

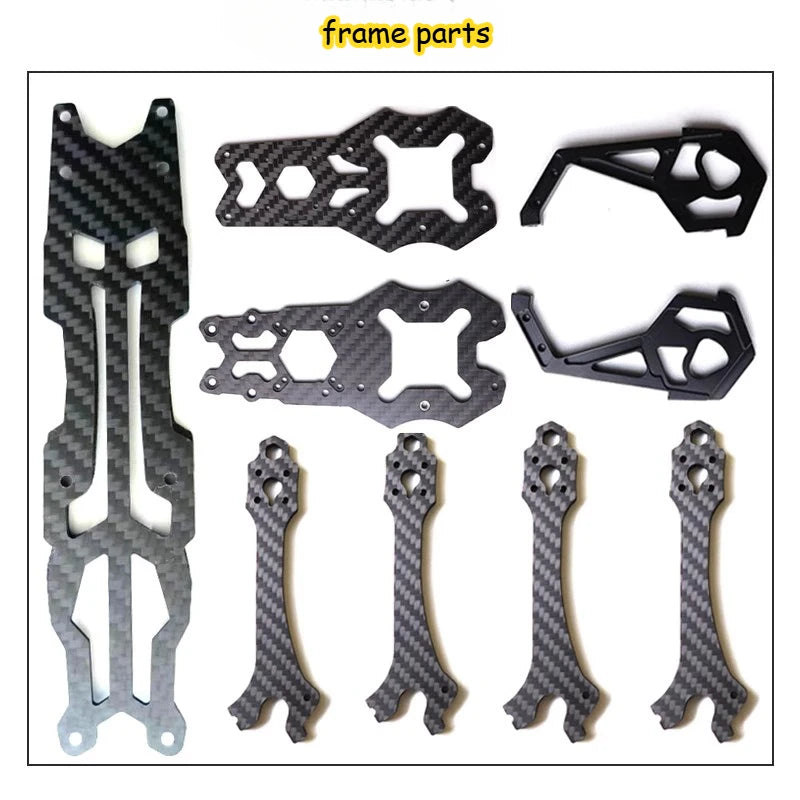

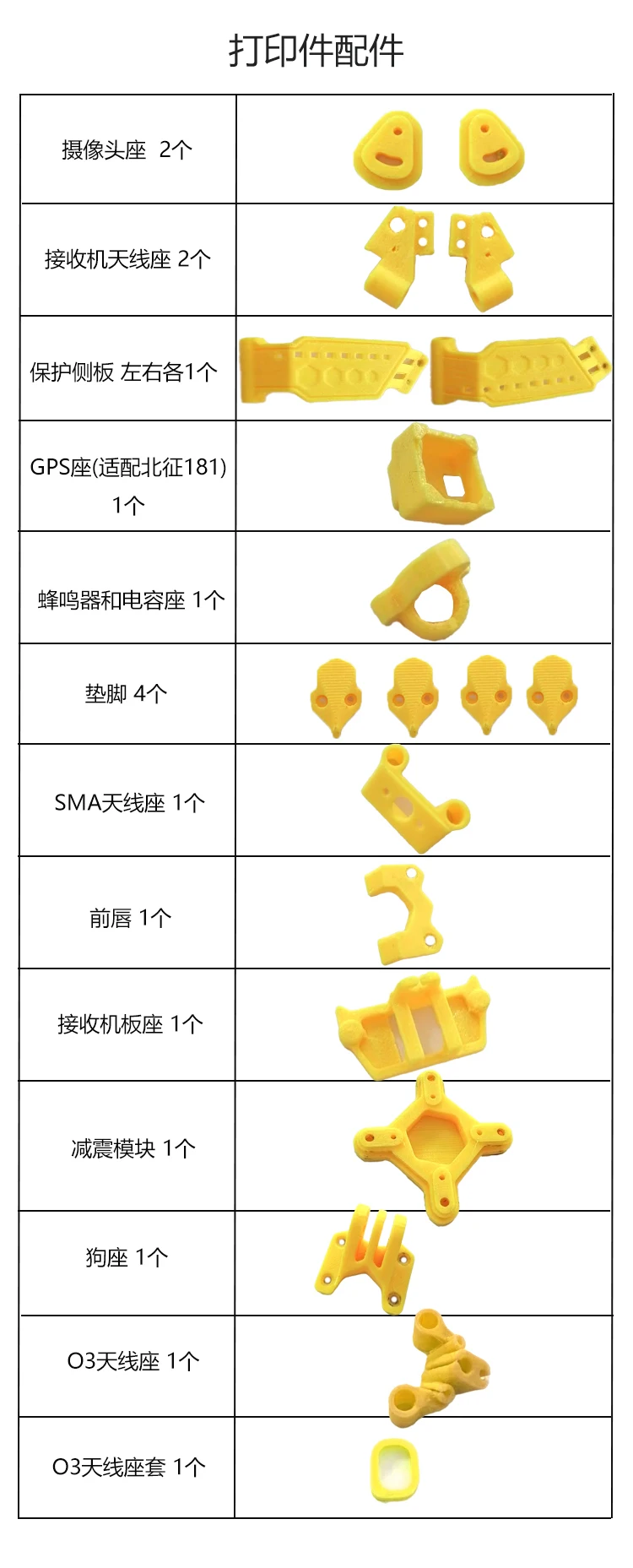

Weight: About 180G with printing parts or 140g without printing parts Bottom Bottom plate Thickness: 2.5MM
Mid plate thickness: 2.0MM
Top plate thickness: 2.0MM
Arm thickness: 5.0MM
Camera mounting holes 19MM and 20MM
picture transmission mounting holes Distance: 20*20MM&25.5*25.5MM&30.5*30.5MM
Flight control mounting hole distance: 20*20 mm &30.5*30.5 mm
Inner height: 21MM
Motor mounting hole: 16*16MM
GPS seat size: 18*18 mm (suitable for north 181GPS)
 Antenna installation: supports DJIO3 SMA adapter
head material: 7075 aluminum alloy
