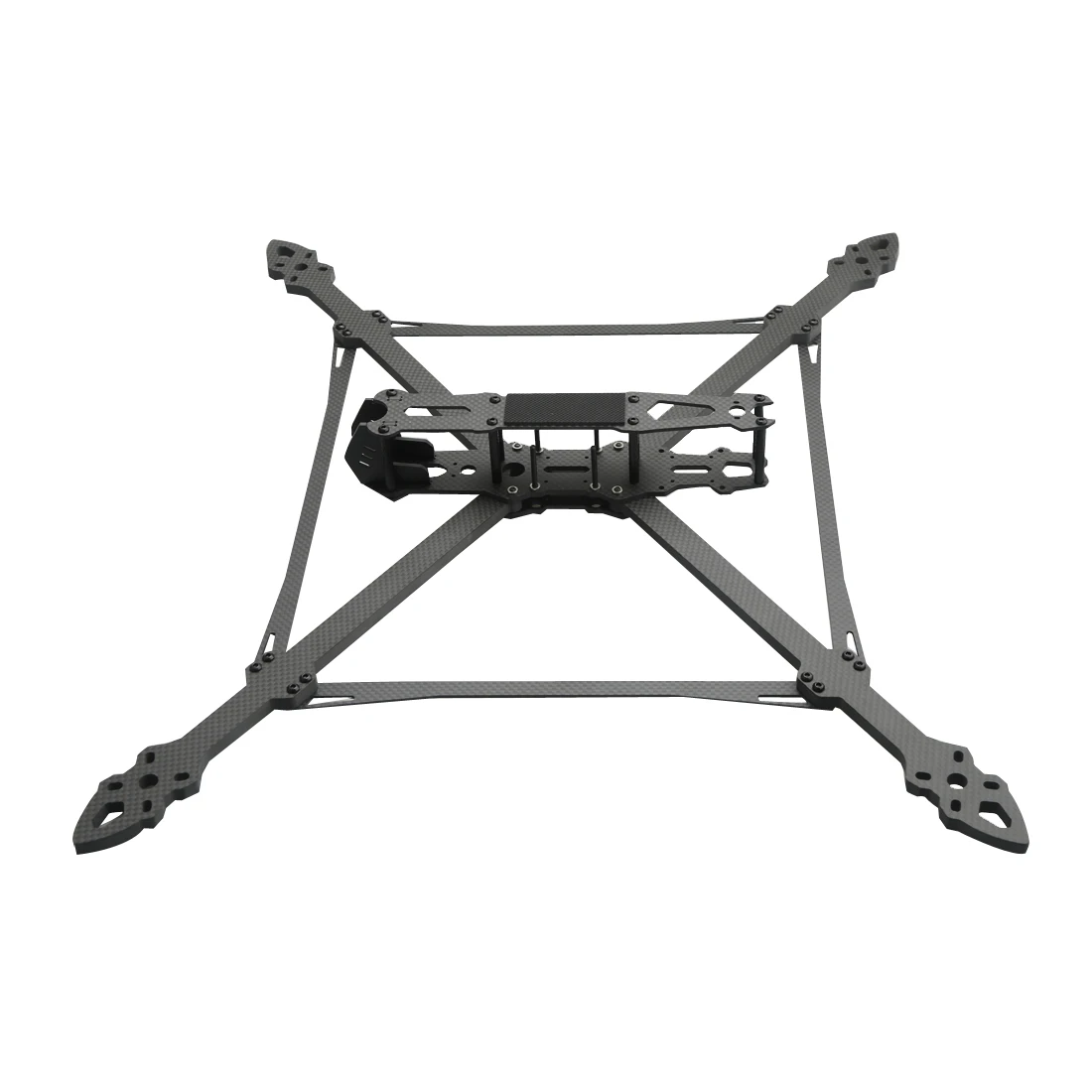

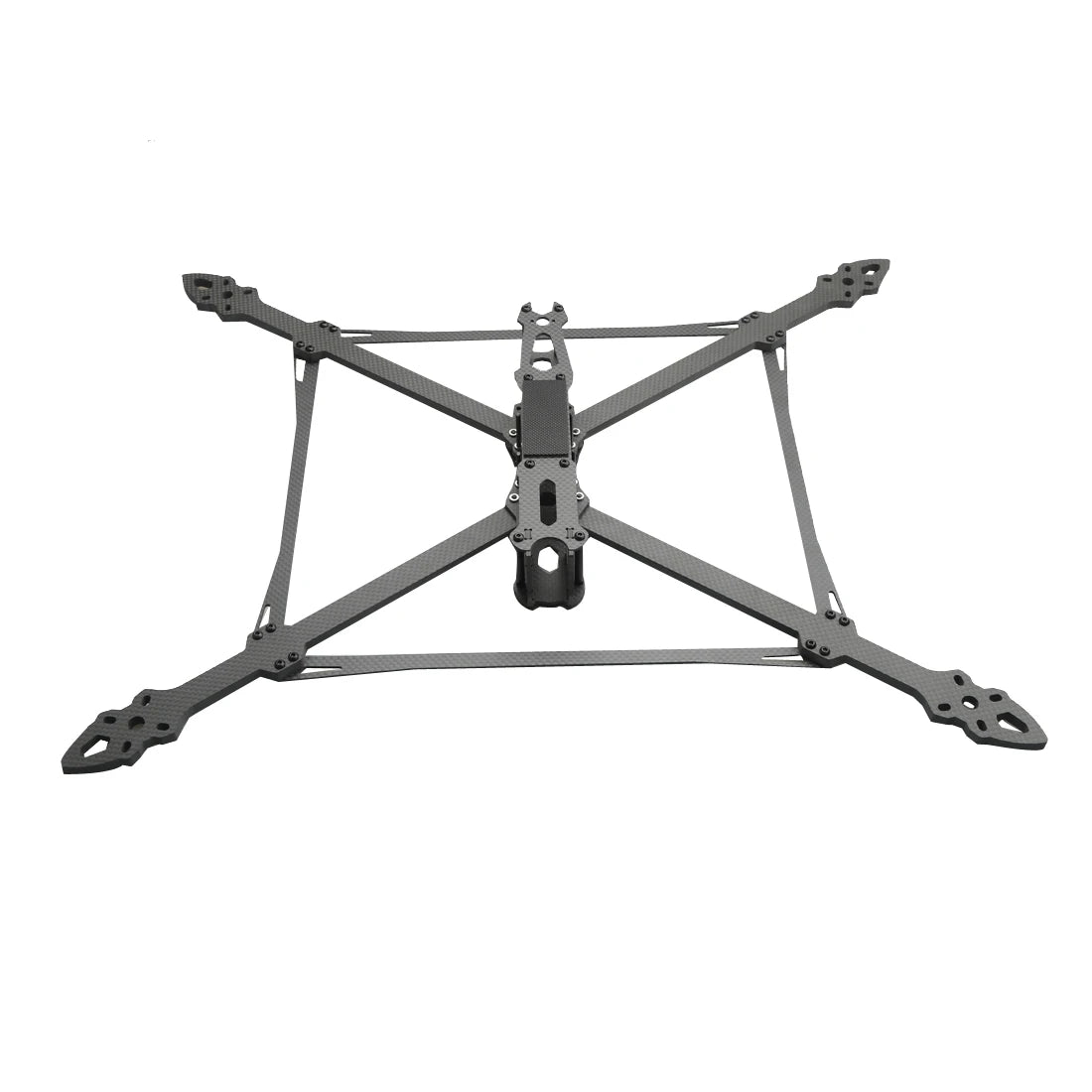

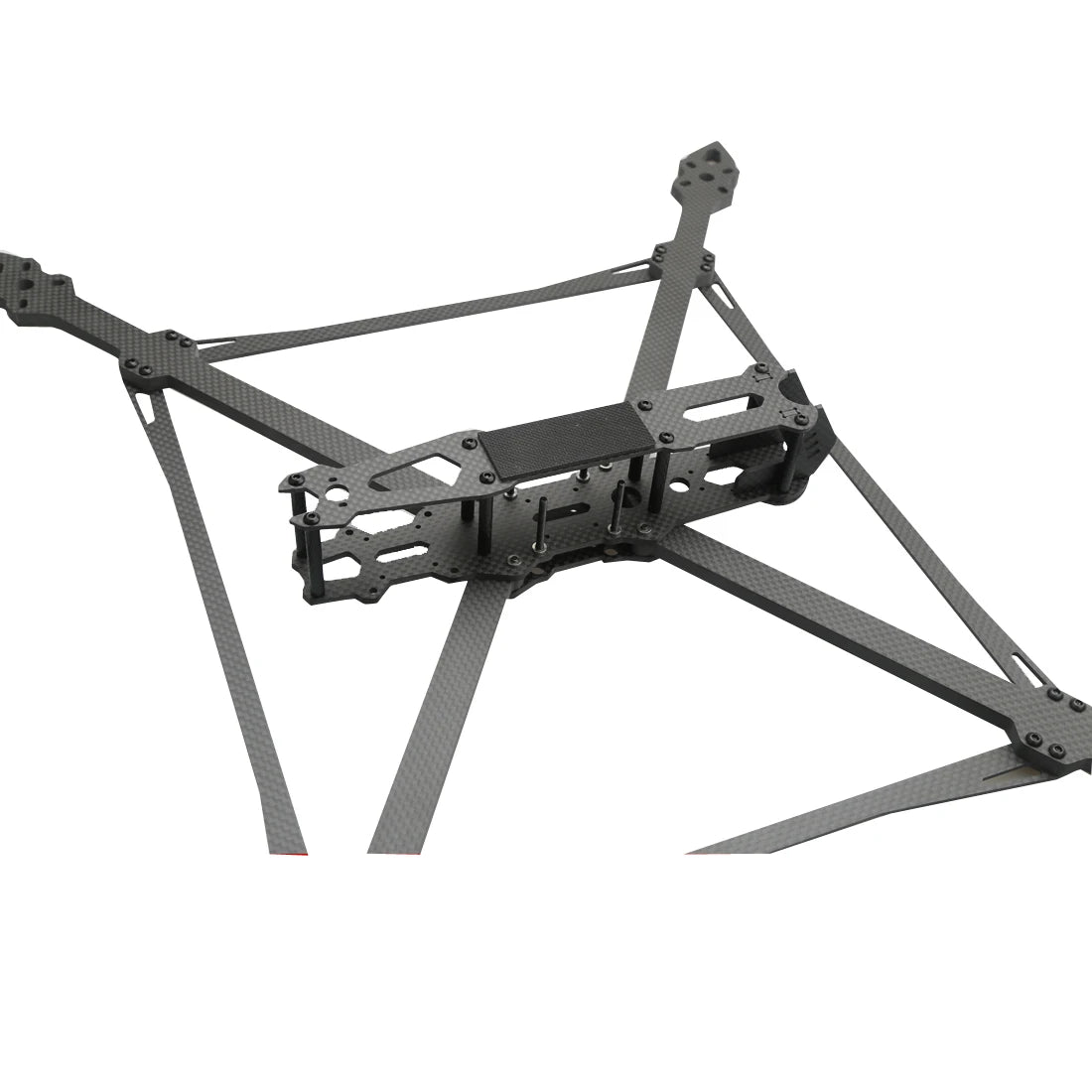

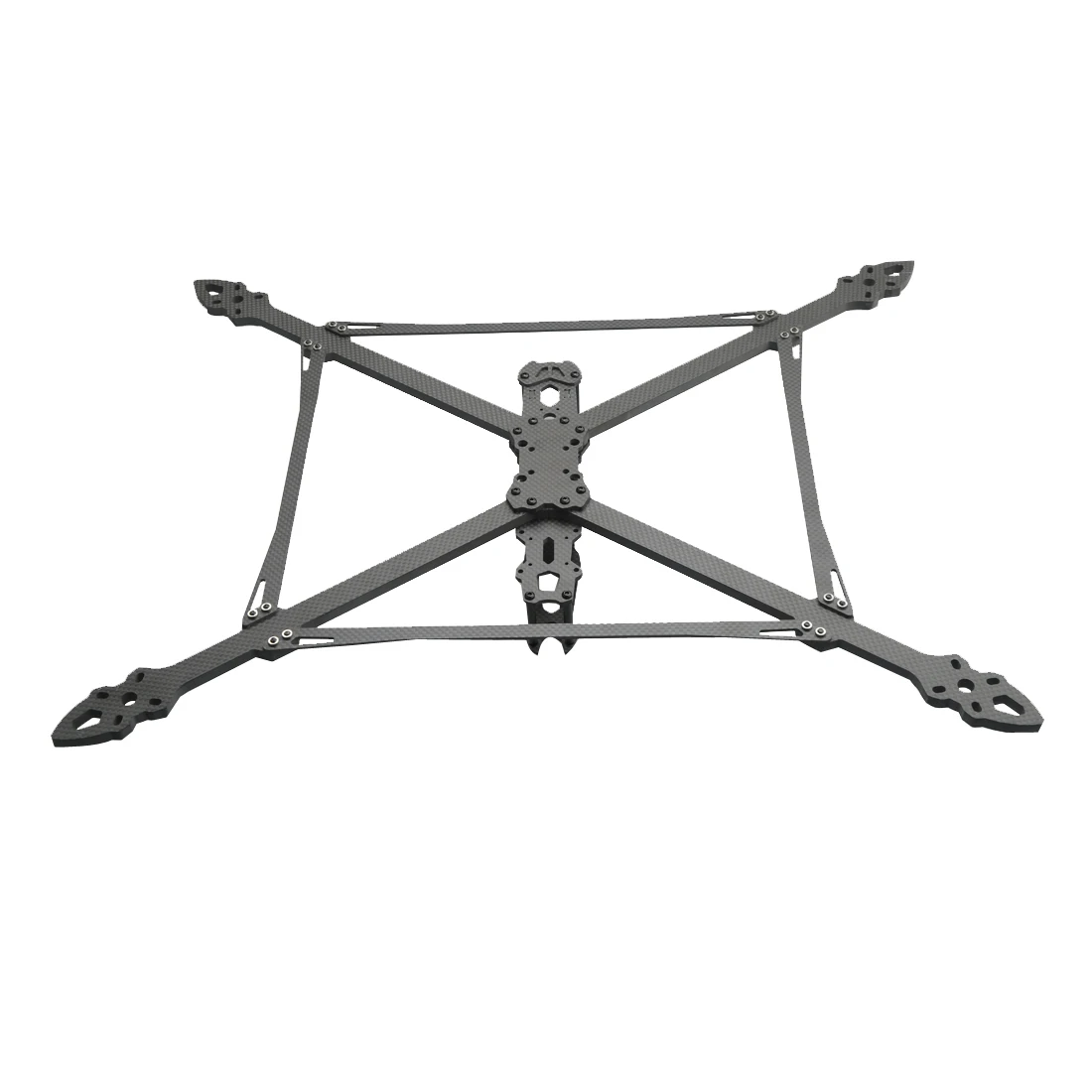

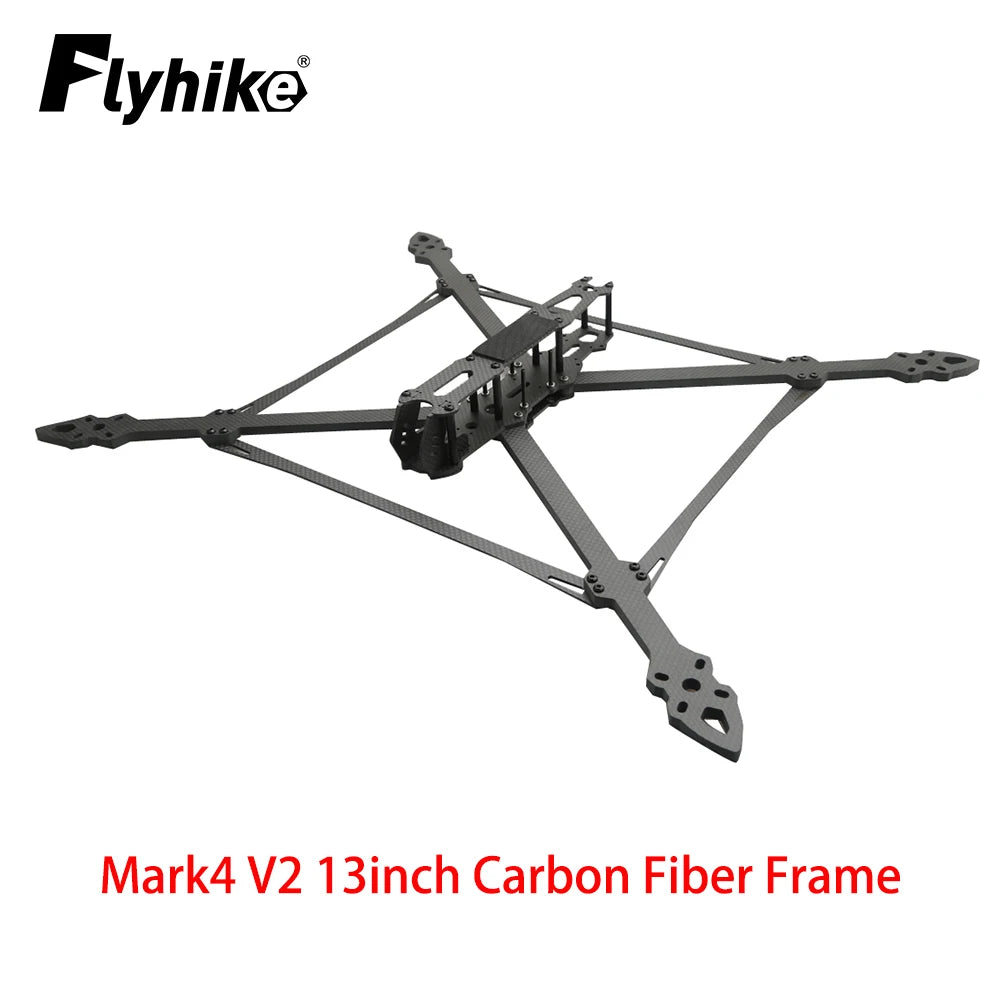

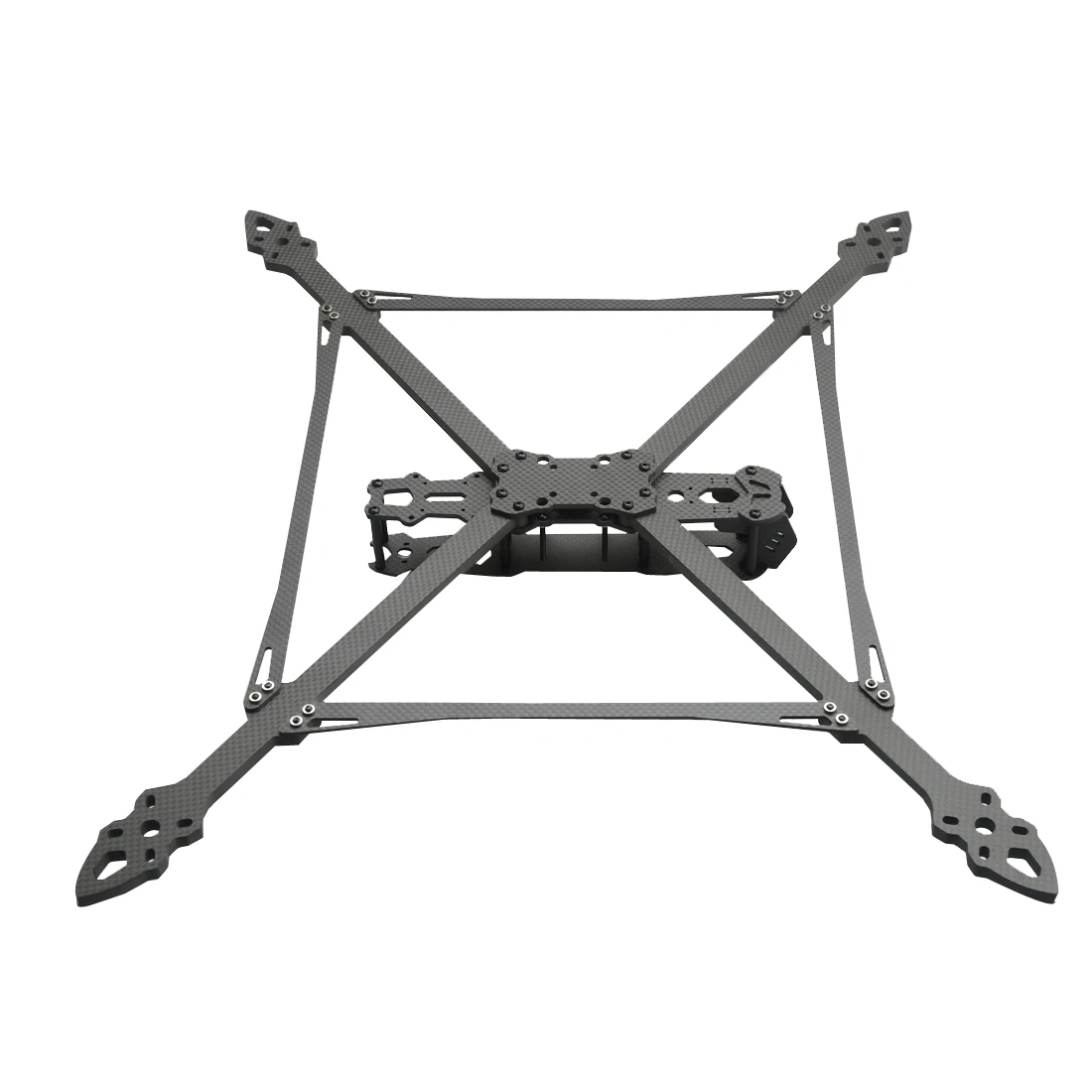

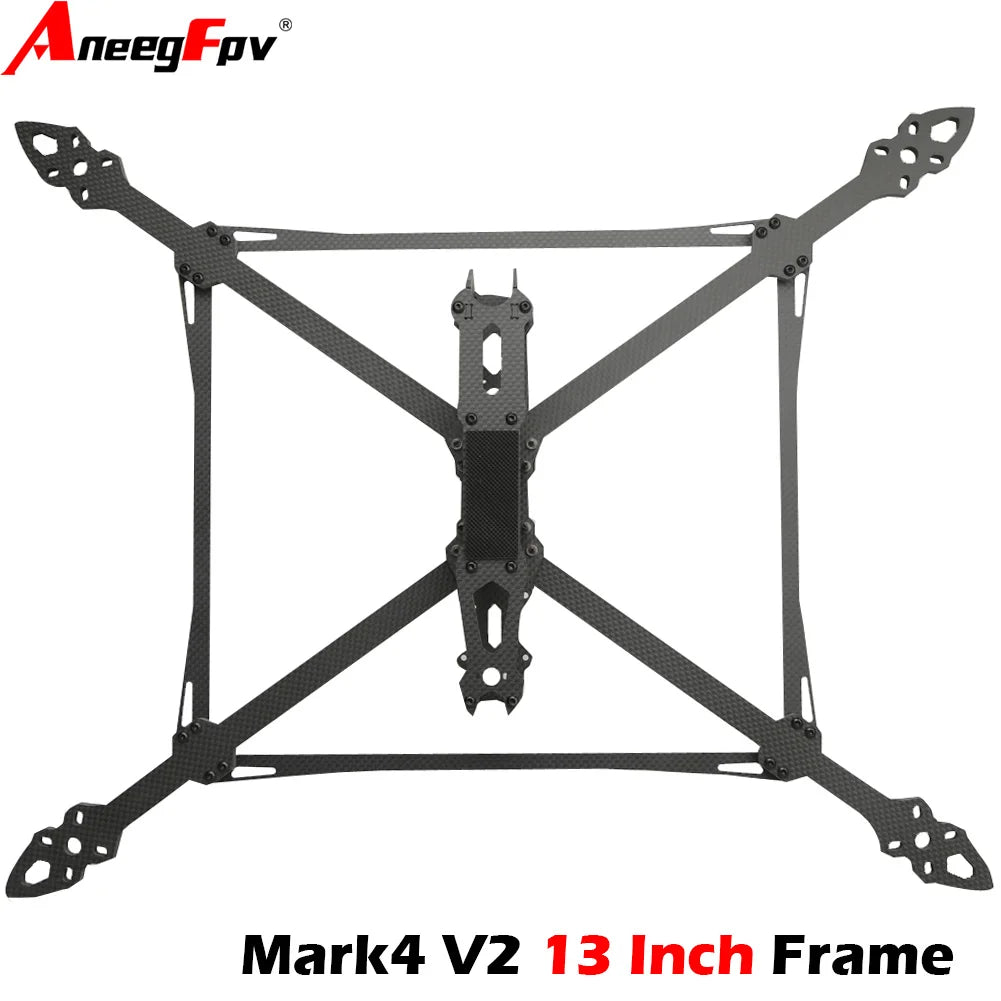

Mark4 V2 13 Inch Carbon Fiber FPV Frame Fpv Crossing Drone FrameEndurance Heavy Load Drone Frame

Mark4 V2 13 Inch Version Carbon Fiber Rc Racing Fpv Crossing Drone Frame Fpv Crossing Captain Endurance Heavy Load Frame

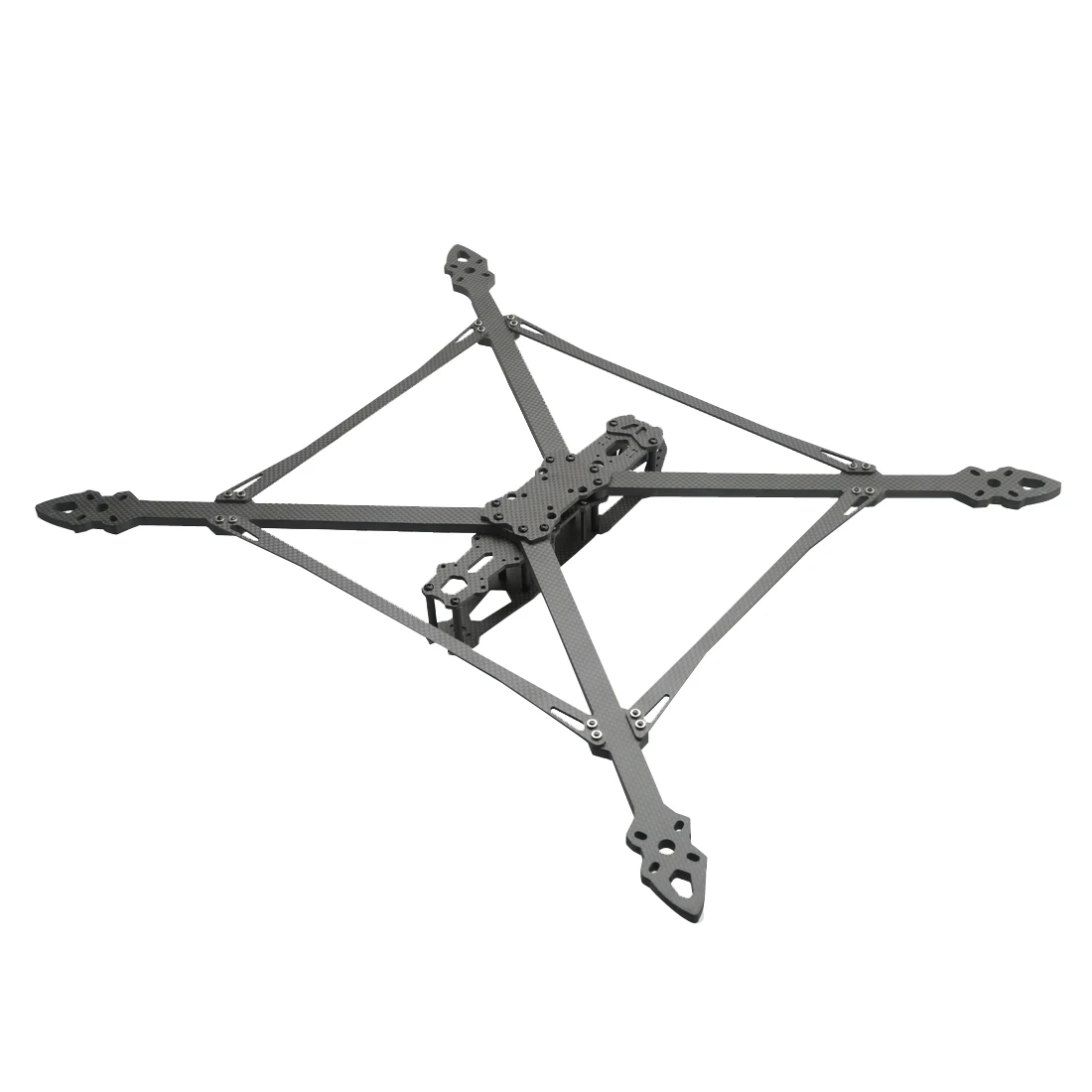

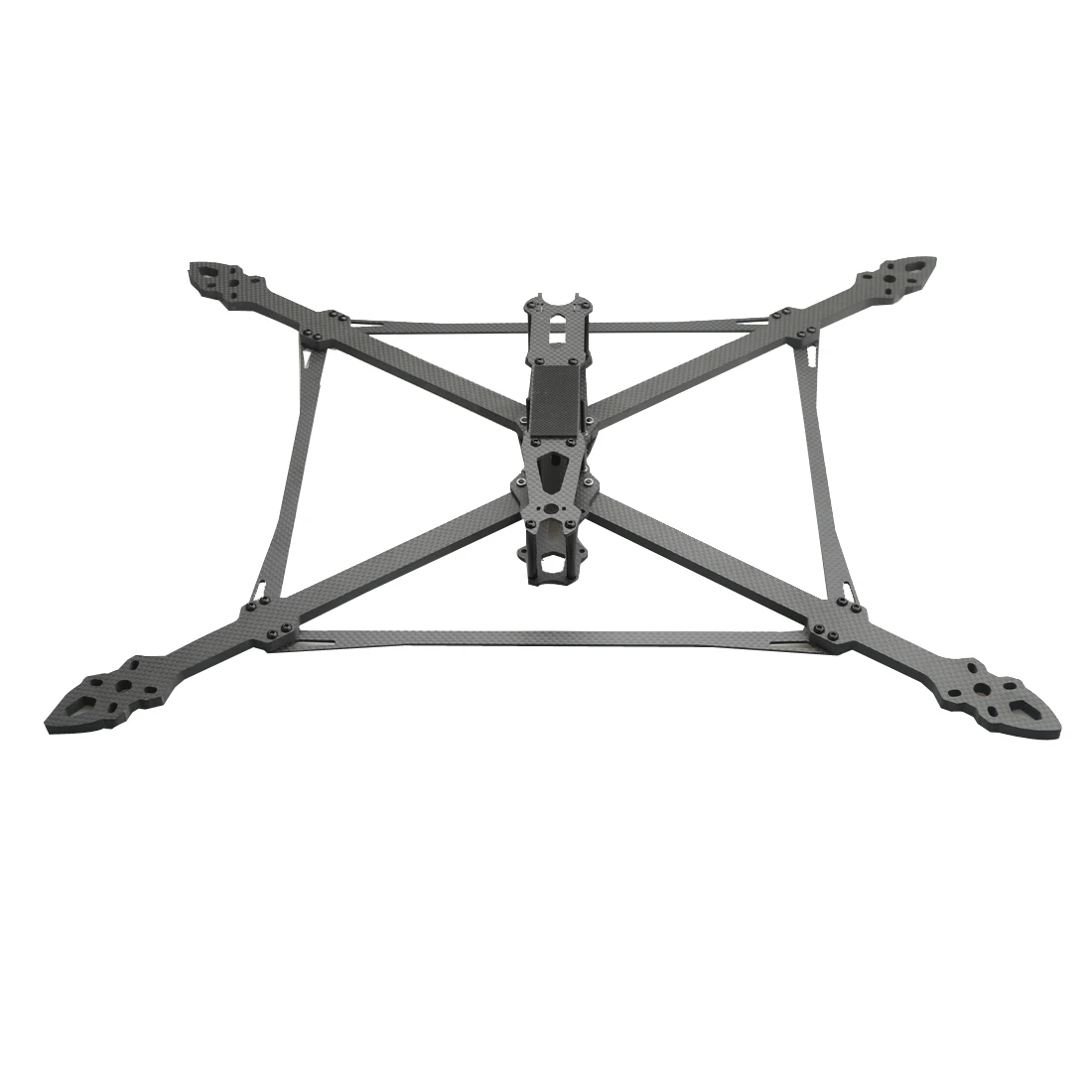

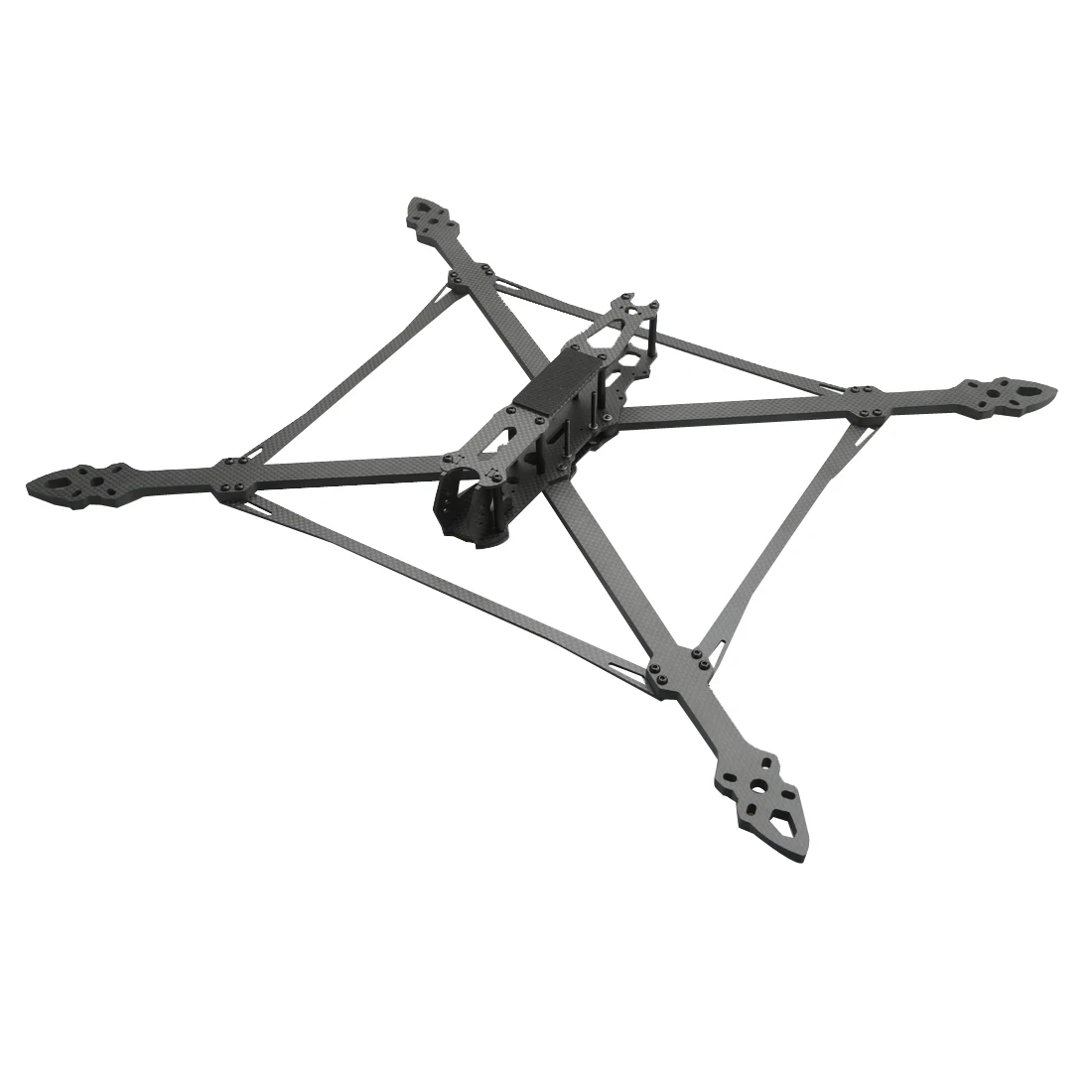

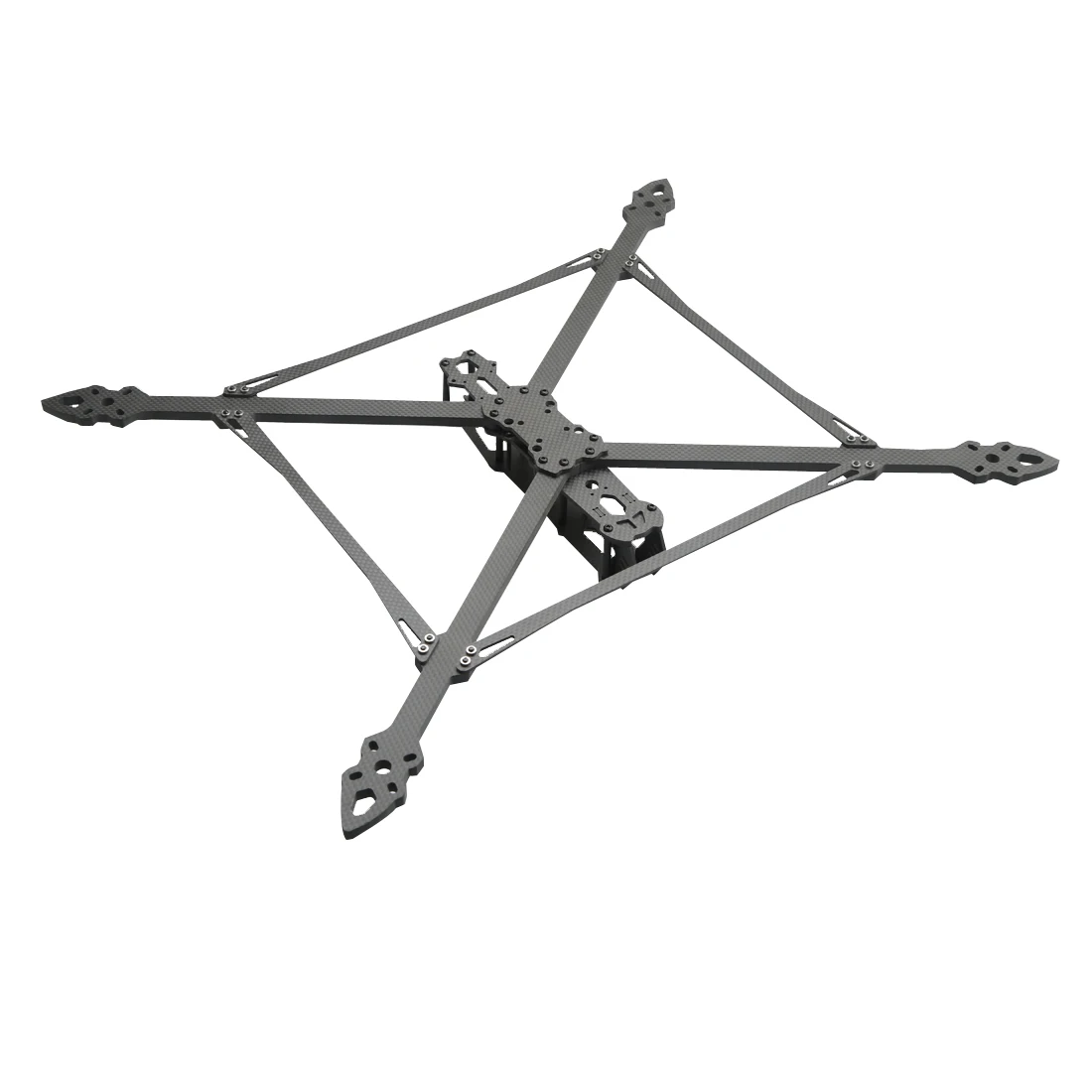

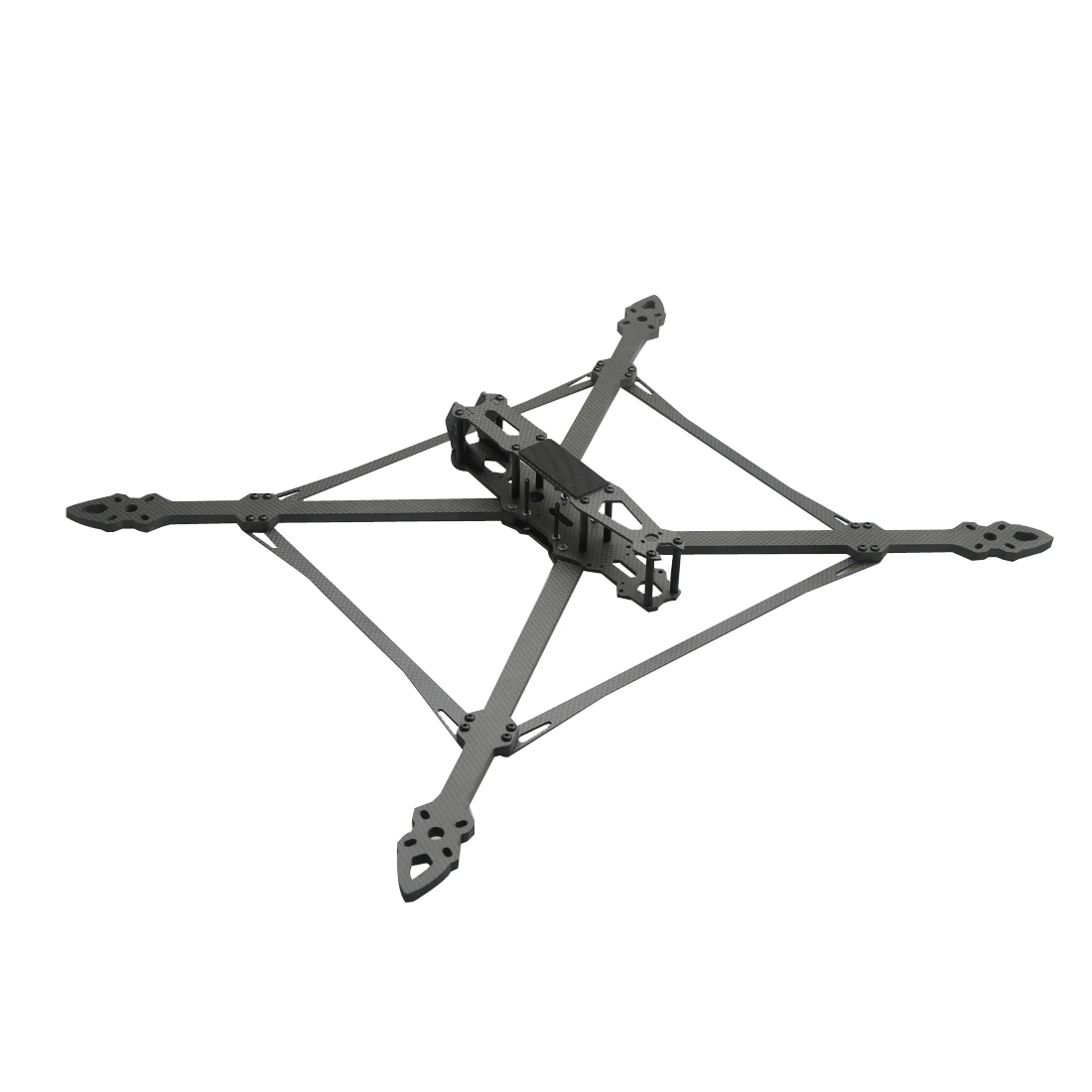

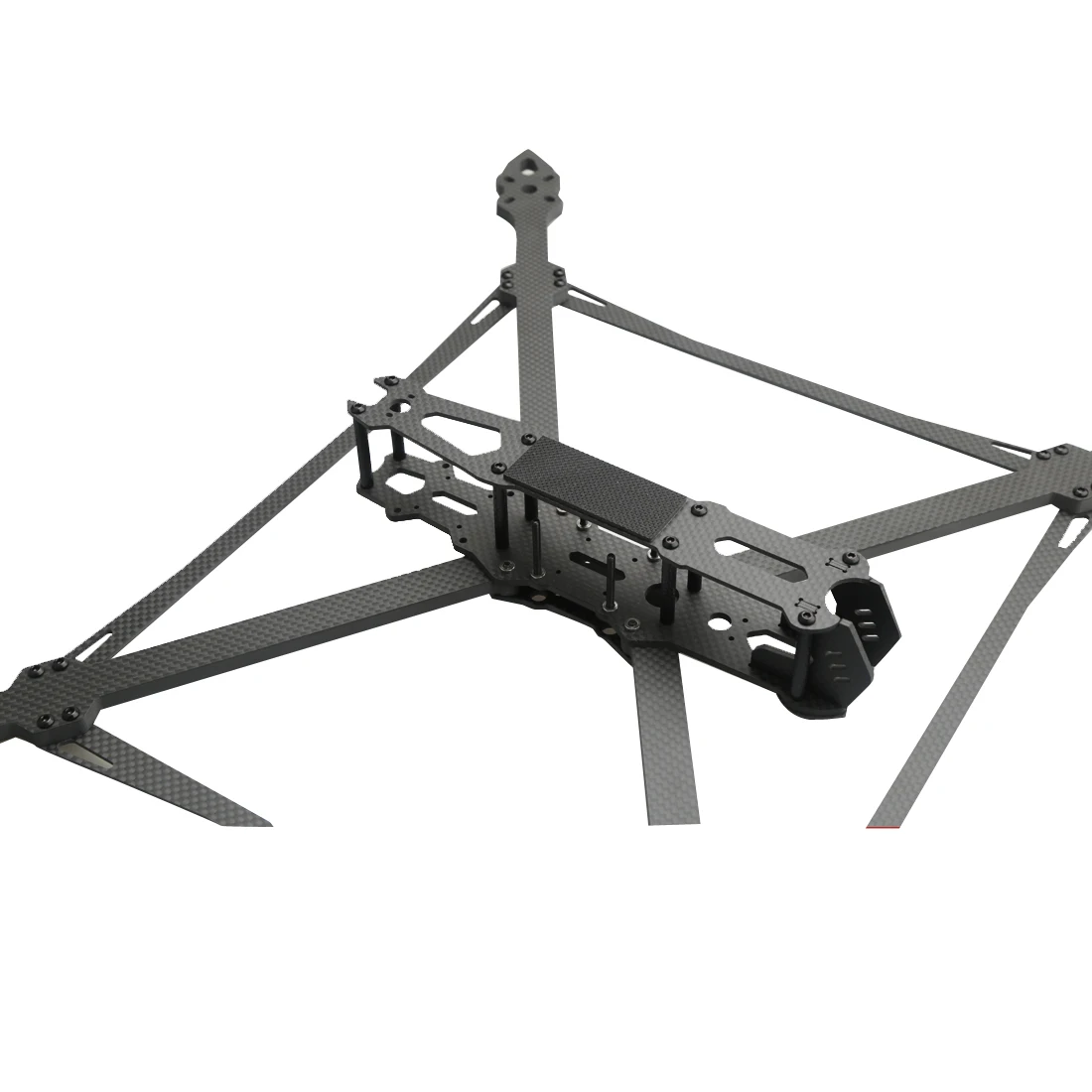

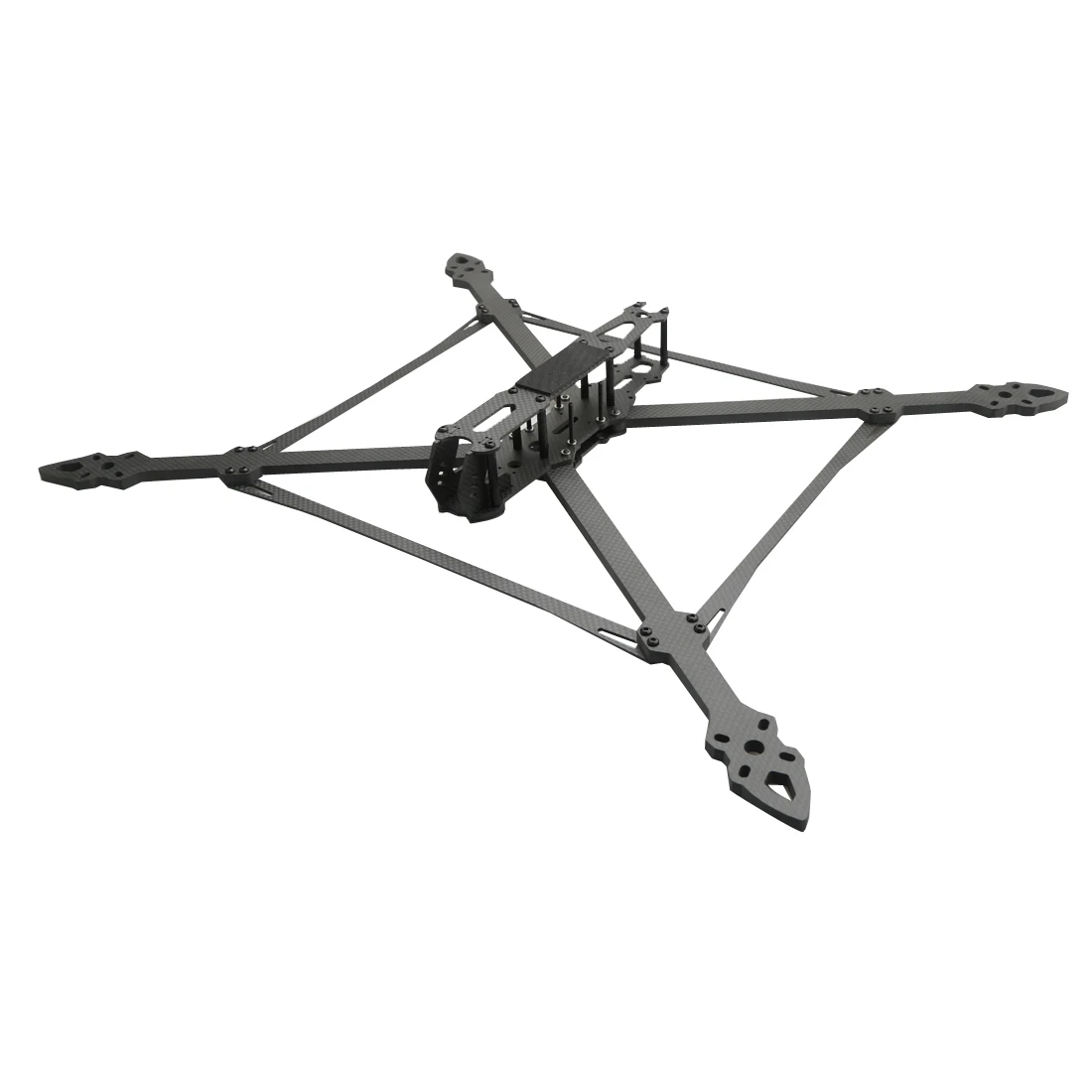

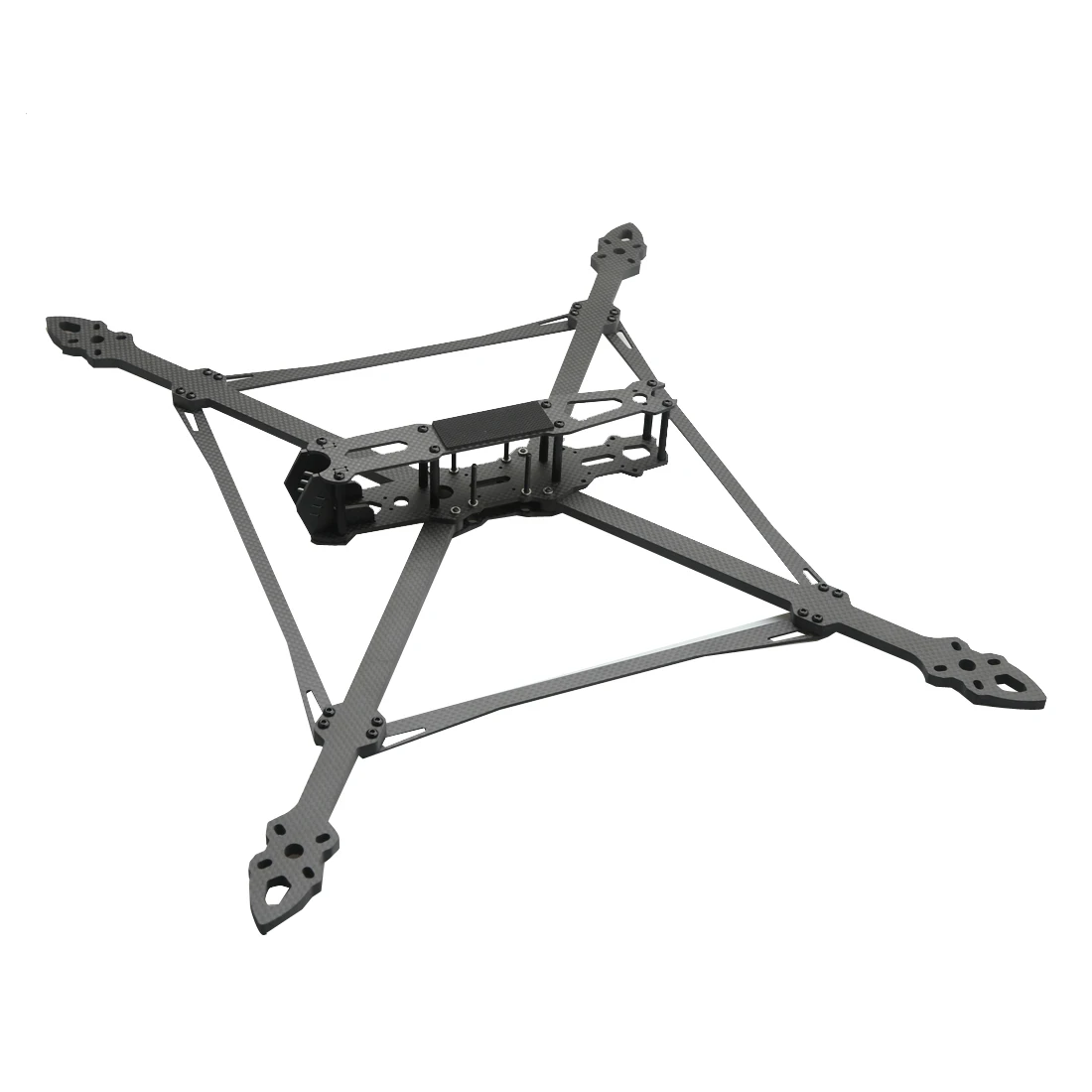

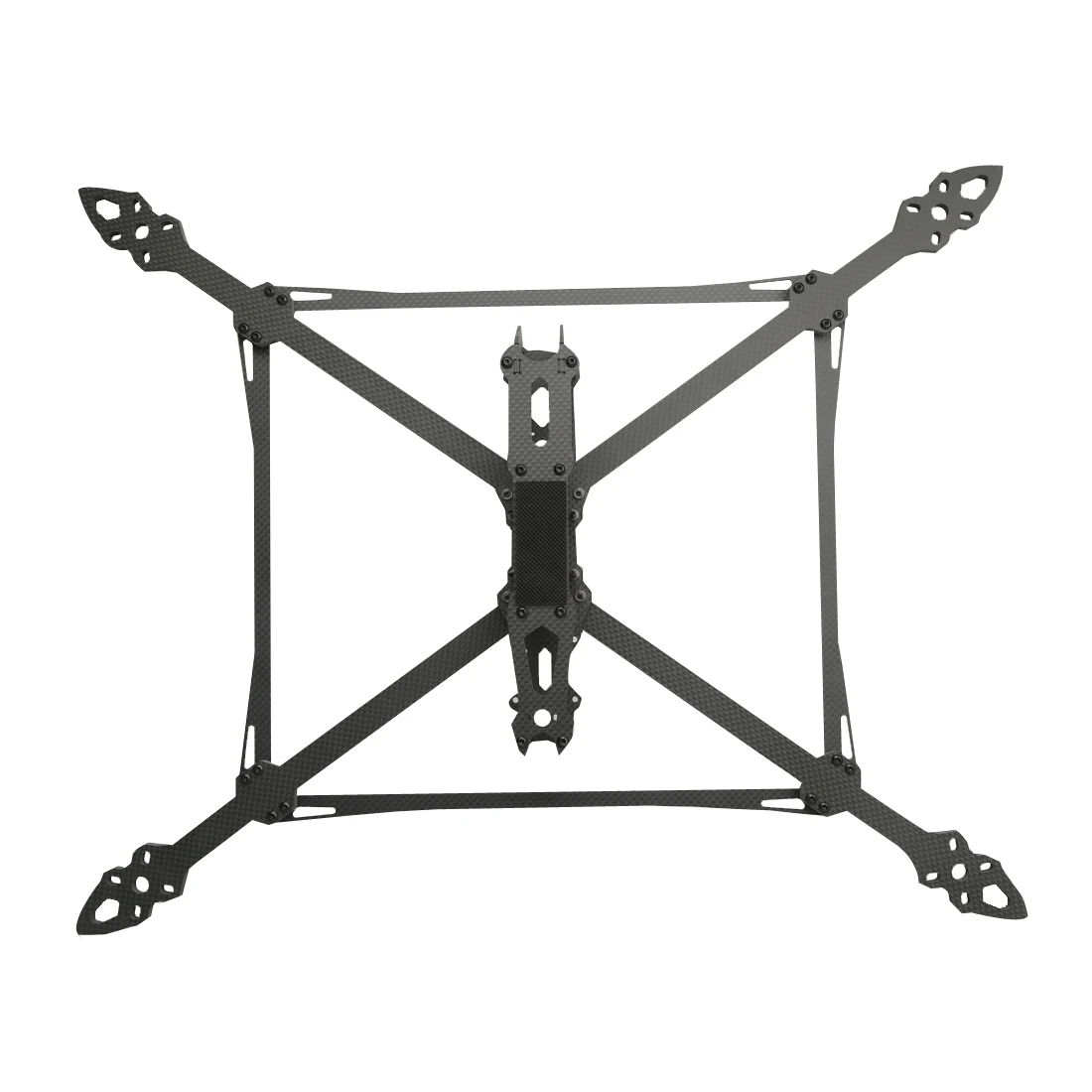

MARK4 13-V2 Frame

Rack type: positive H type

Wheelbase:539mm

Propeller: 10 inches

Size:469*406*35mm

Weight:370G (product weight)

Weight: 380G (packaging +product weight)

Bottom plate thickness:3mm

Thickness of middle plate: 3mm

Roof thickness:2mm

Arm thickness:8mm

Camera installation spacing:19mm

Figure transmission installation hole spacing: Compatible with 30.5MM/20MM

Flight control installation hole spacing: Compatible with 30.5MM/20MM

Recommended Configuration

Surface texture: twill matte

Motor installation hole spacing:25MM-30MM

Recommended configuration: (not included)

Motor: 4215/4218/4312/5215

Electric tuning: 80A-100A 6S-8S

Propeller: 13 inches,

Camera: 19 * 19mm

Flight control: F4/F7/F405/F722VTX: 5.8 G/1.2 G/4.9G-1.2 W-5W

Battery: 6s-8s-12000MAH-22000MAH

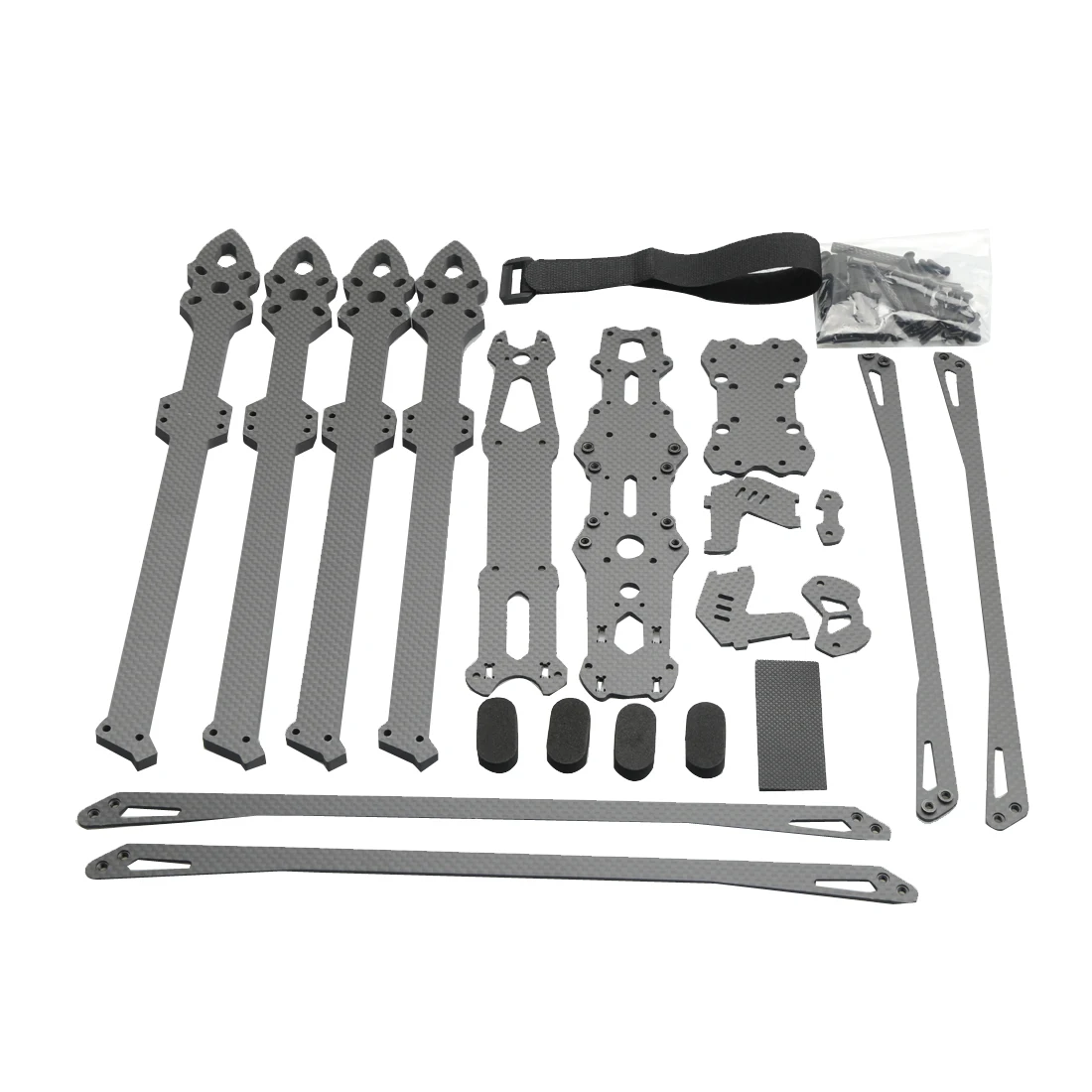

Package included:

1*Mark4 V2 13 Inch FPV Drone Frame 539mm Carbon Fiber
