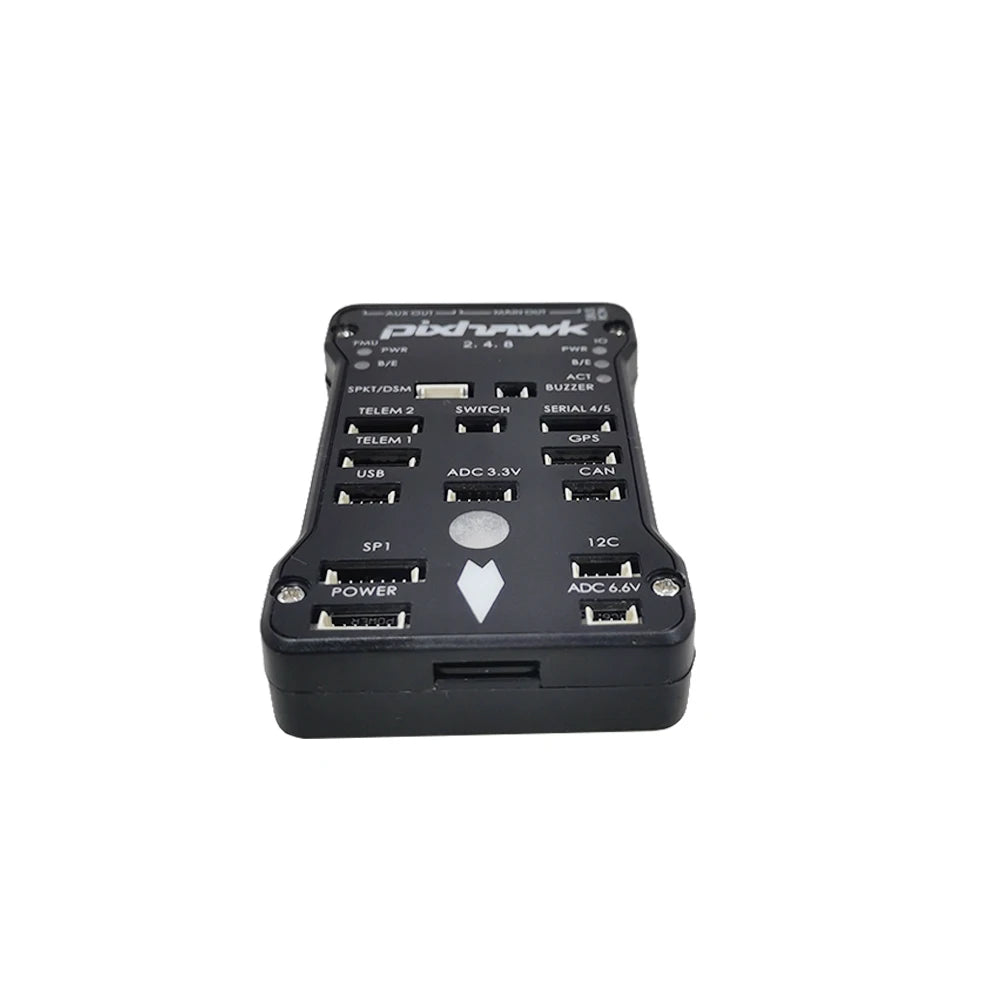

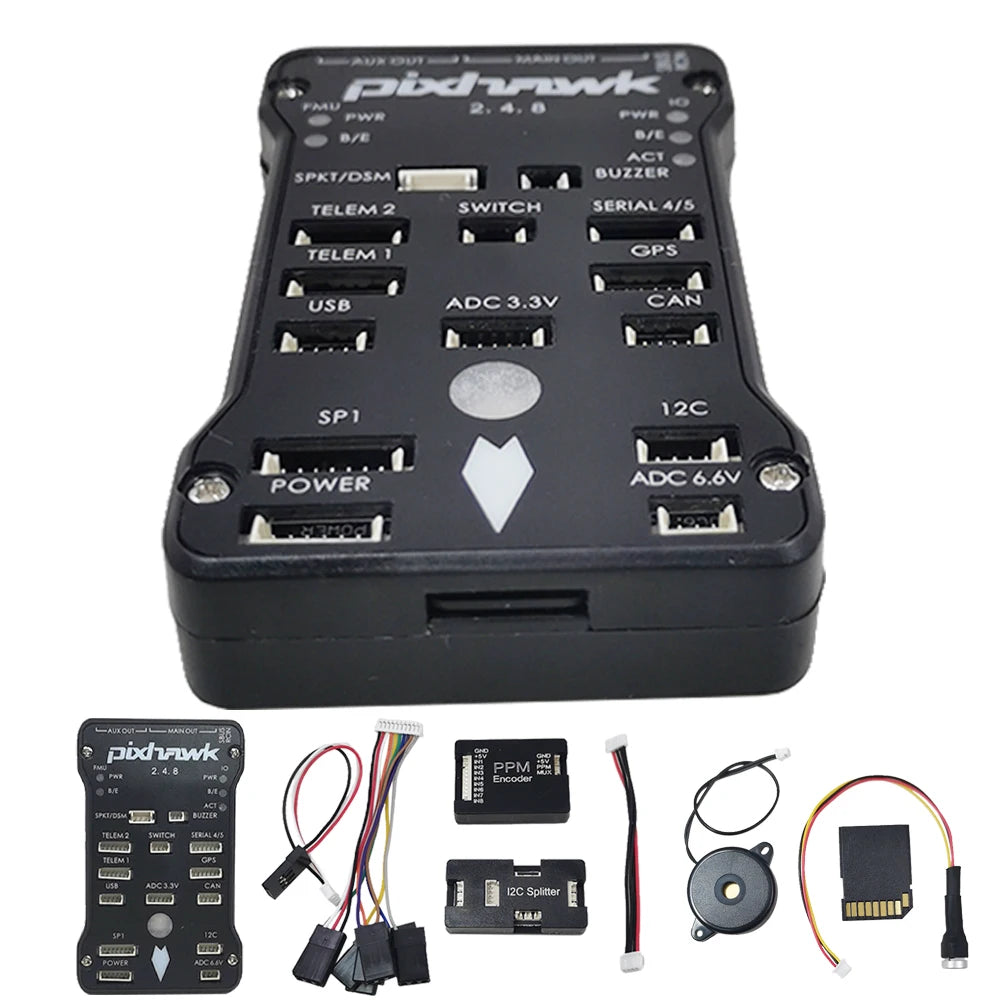

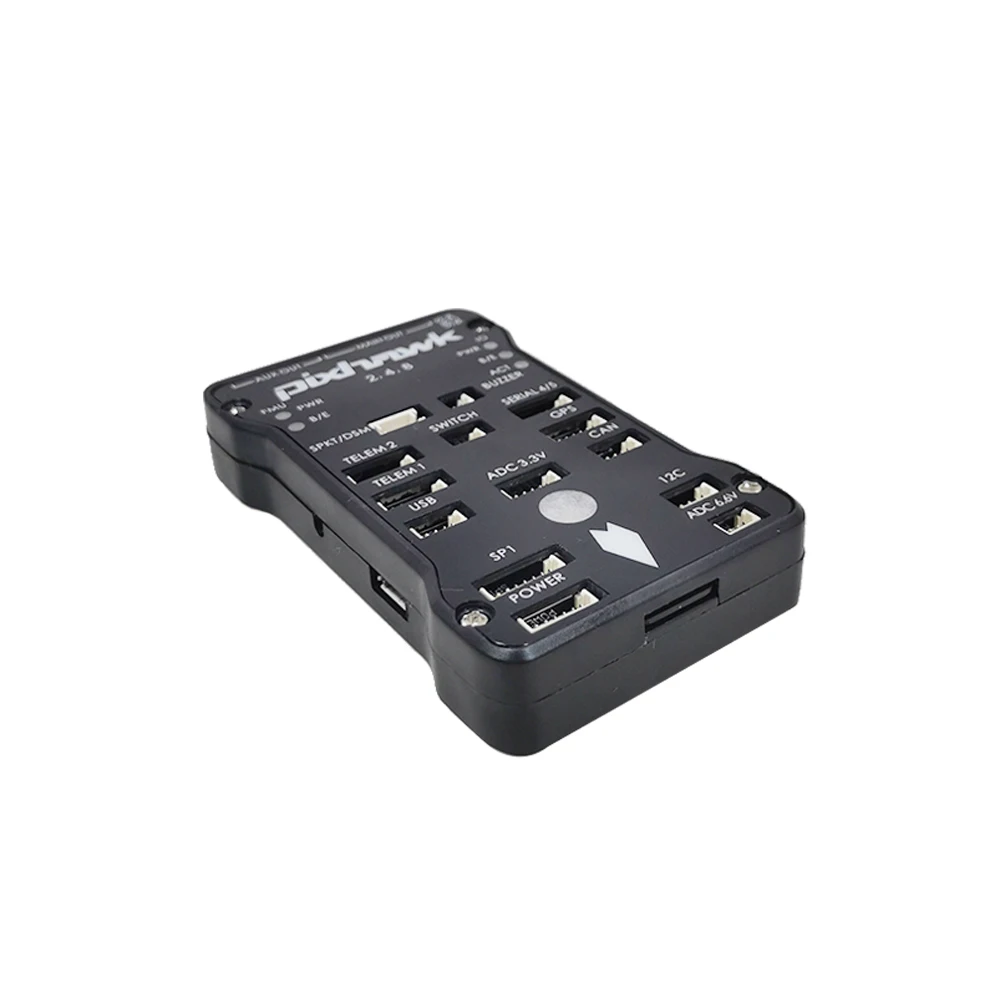

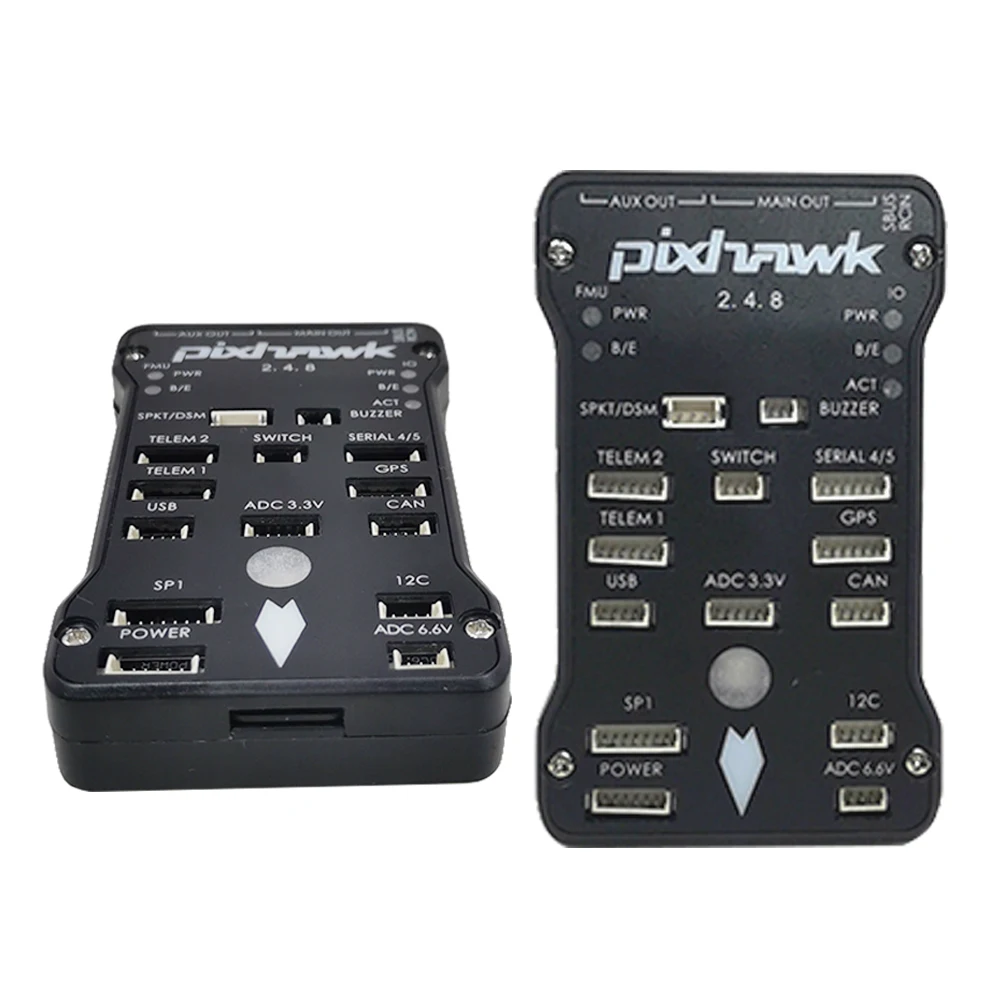

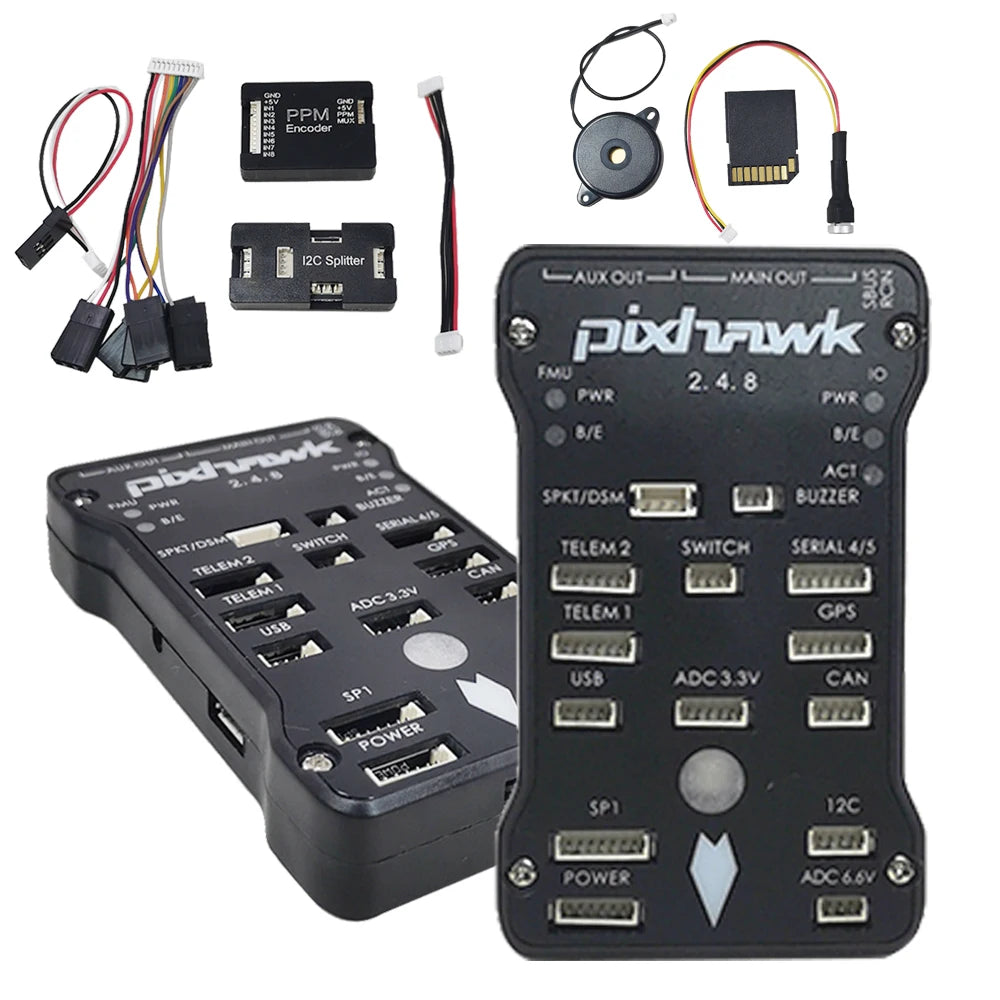

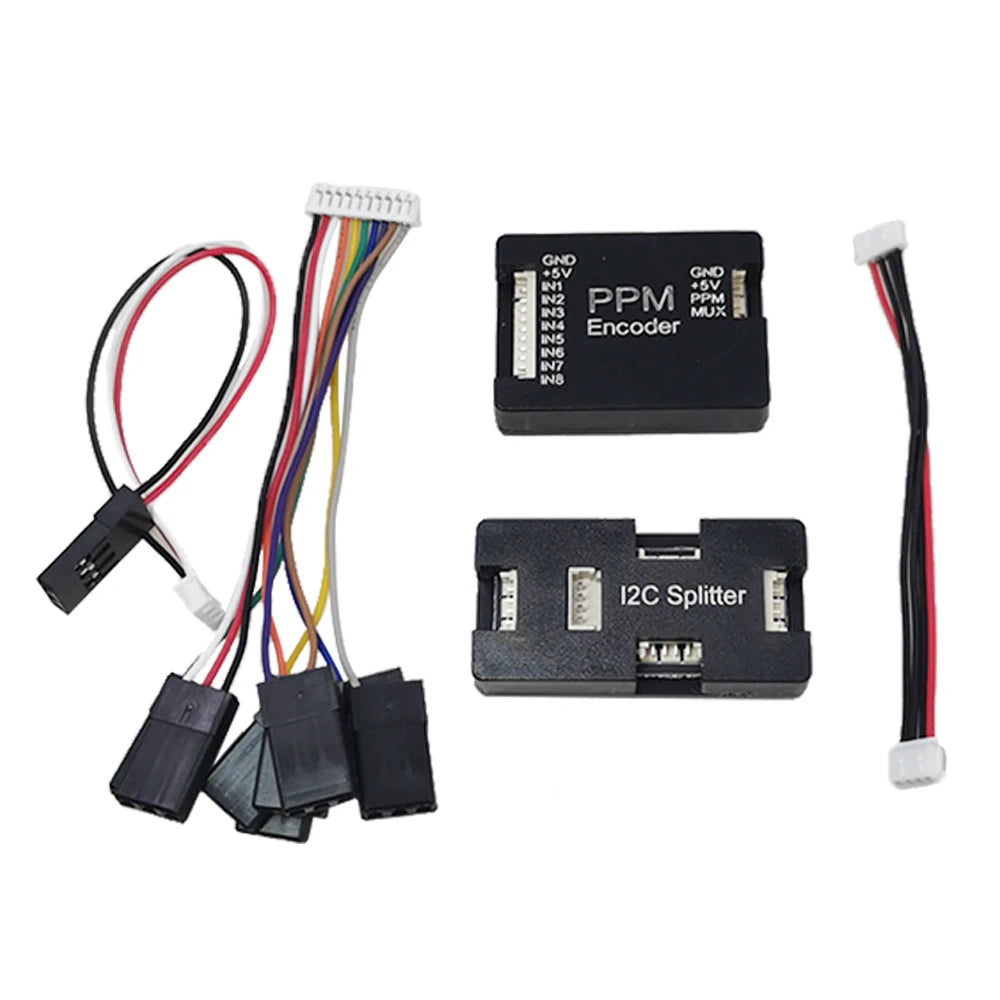

Pixhawk PX4 PIX 2.4.8 32 Bit Flight Control FC 8G SD PPM I2C Splitter For RC FPV Plane Drone Quadcopter

- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;

- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;

- Provide redundant power input and fault transfer function;

- 14* PWM/ actuator output;

- Bus interface (UART, I2C, SPI, CAN);

- Provide automatic and manual mode;

- Color LED lamp;

- Multi tone buzzer interface;

- Micro SD to record flight data;

Specification:

The board integrates with PX4FMU+PX4IO

Pixhawk is with new 32 bit chip and sensor technology

Processor:

32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit

Main frequency: 256K, 168MHZ RAM

32 bit STM32F103 backup co processor

Sensor:

L3GD20 3 axis digital 16 bit gyroscope

LSM303D 3 axis 14 bit accelerometer /magnetometer

MPU6000 6 axis accelerometer / magnetometer

MS5611 high precision barometer

Interface:

2*CAN

Spektrum DSM/DSM2/DSM-X satellite receiver compatible input

Futaba SBUS compatible input and output

PPM signal input

RSSI (PWM or voltage) input

I2C

SPI

3.3 and 6.6VADC input

External USB MICRO interface

Color:Black

Size: 50x81x16mm/2.0x3.2x0.6 in

Package size: 110x145x18mm/4.3x5.7x0.7 in

Weight: 48g

Package weight: 52g

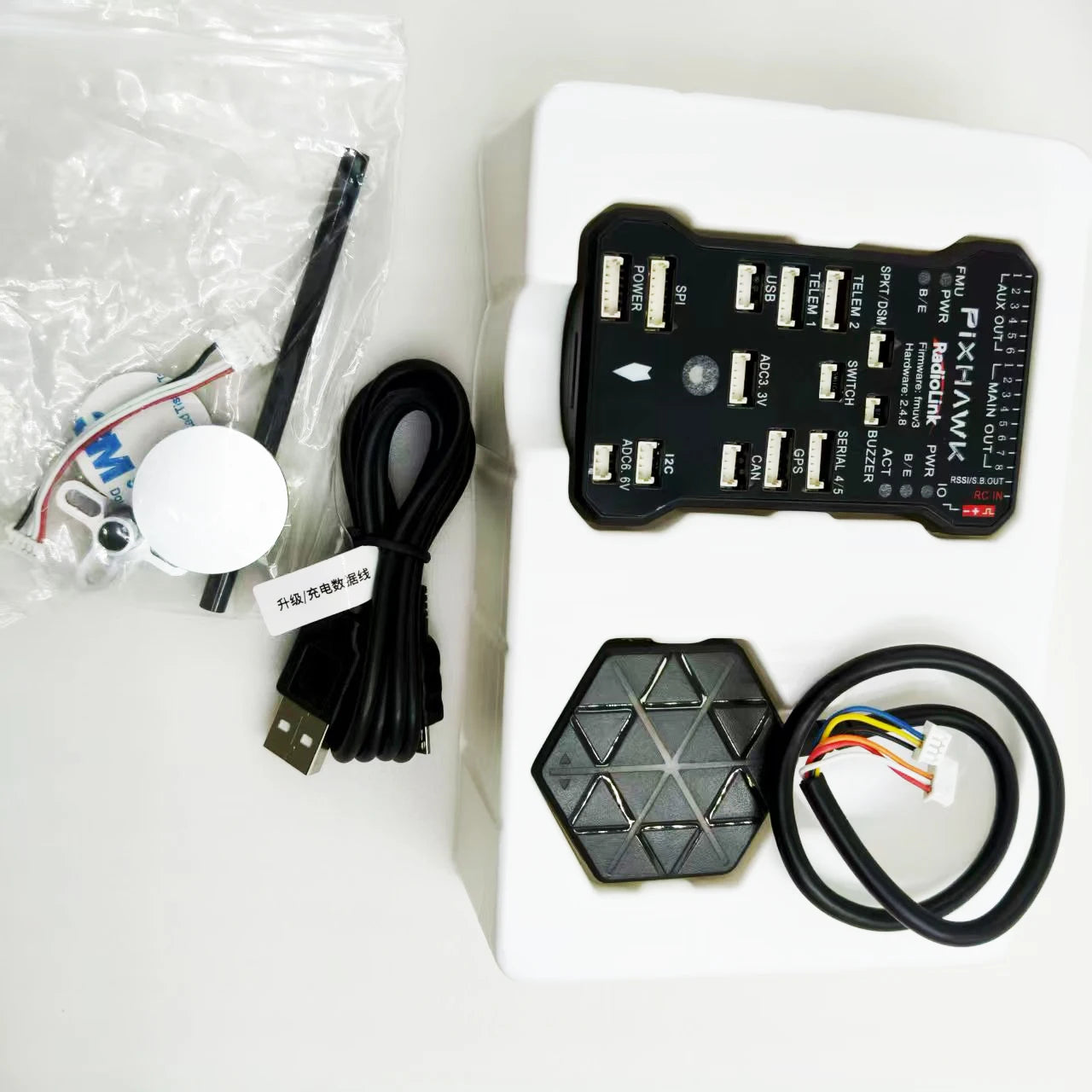

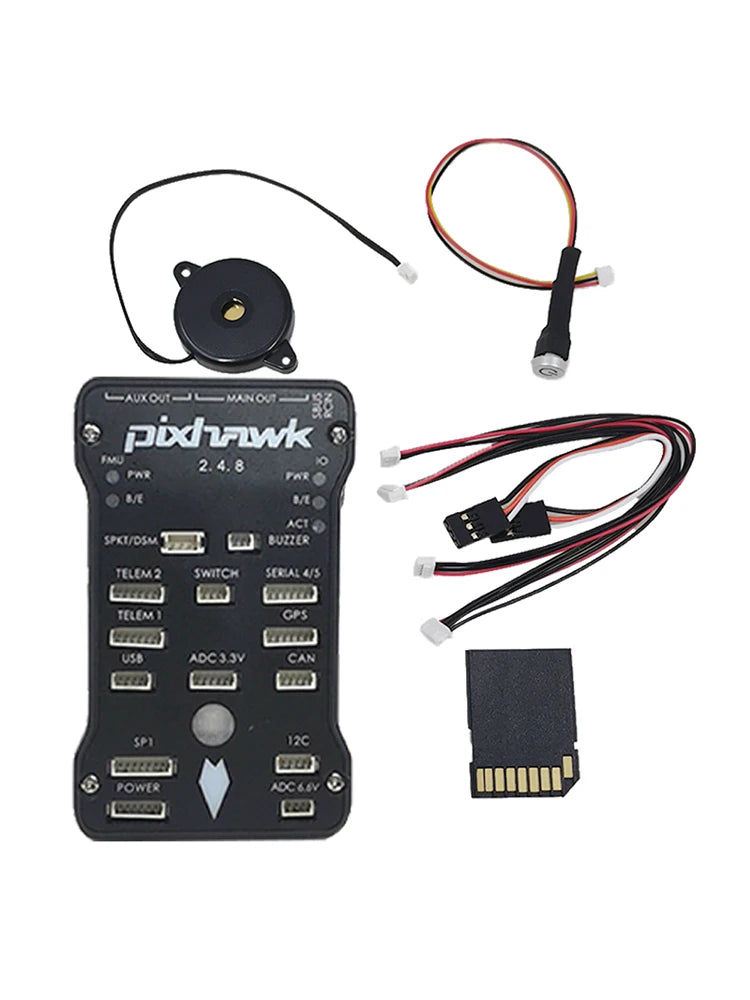

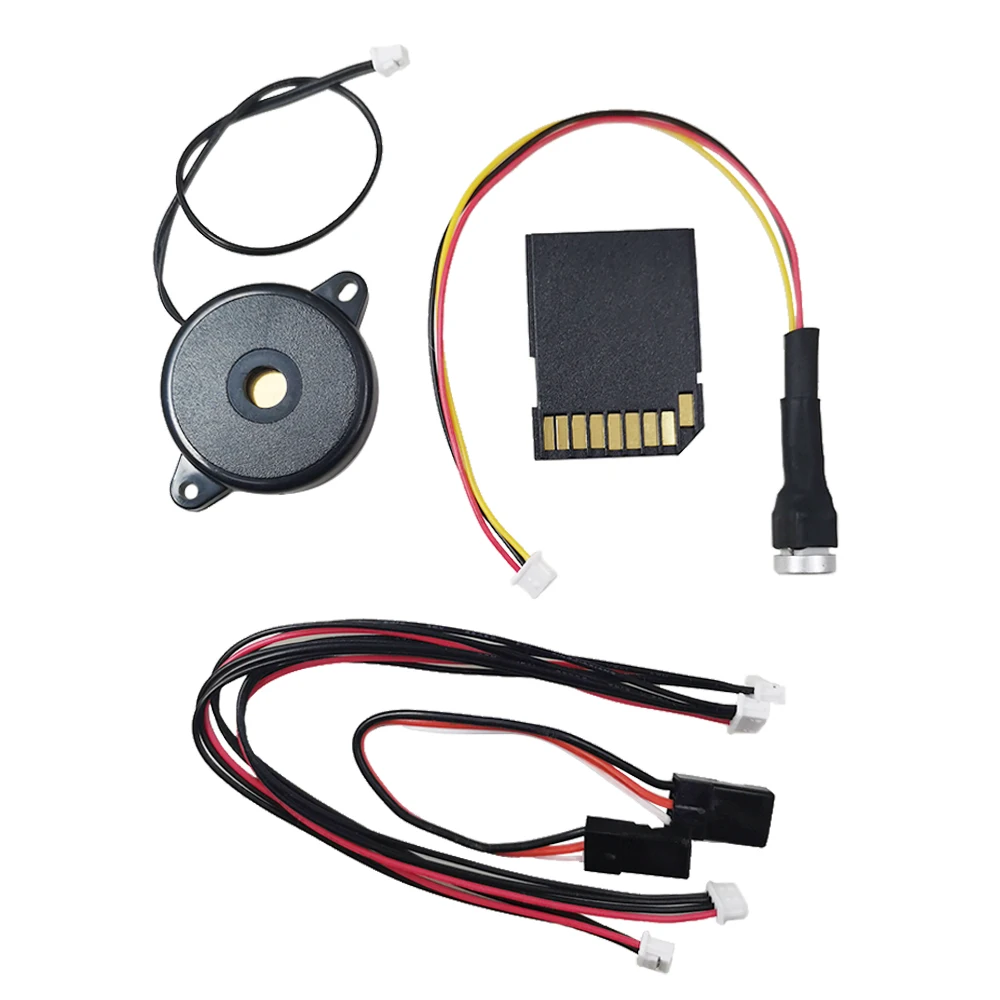

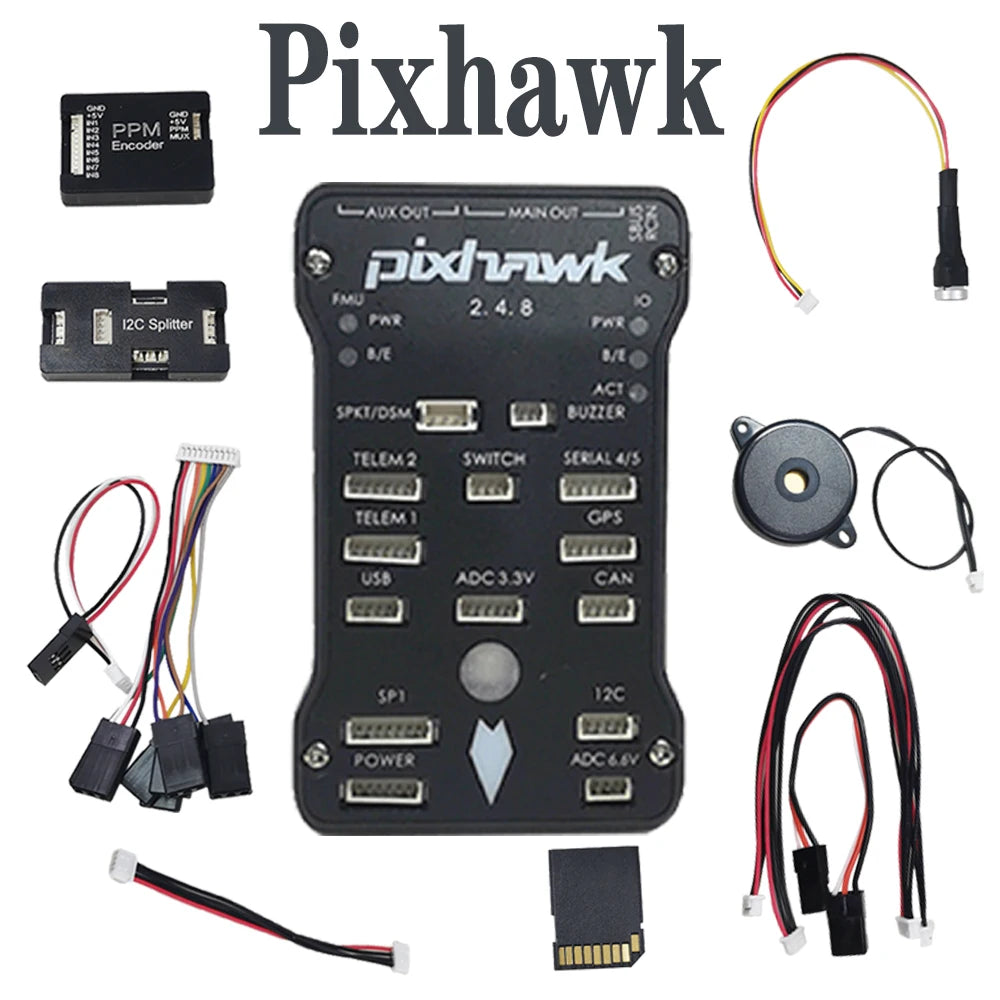

Package included:

1 x 2.4.8 Pixhawk main control

1 x Safety switch

1 x Flight control shell

1 x Buzzer

1 x 6pin to 6pin line

1 x 4Pin to 4Pin line

1 x 3pin DuPont line
