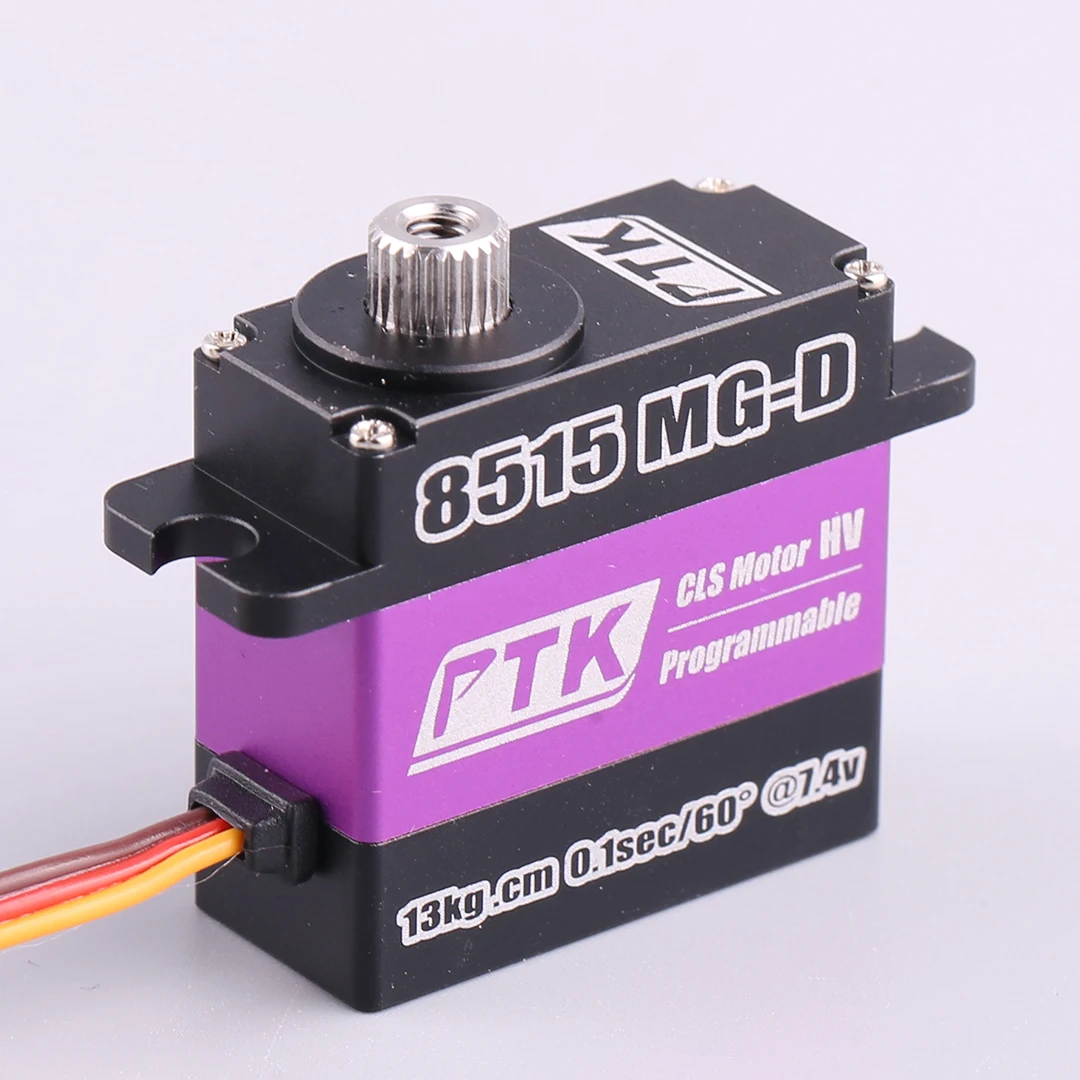

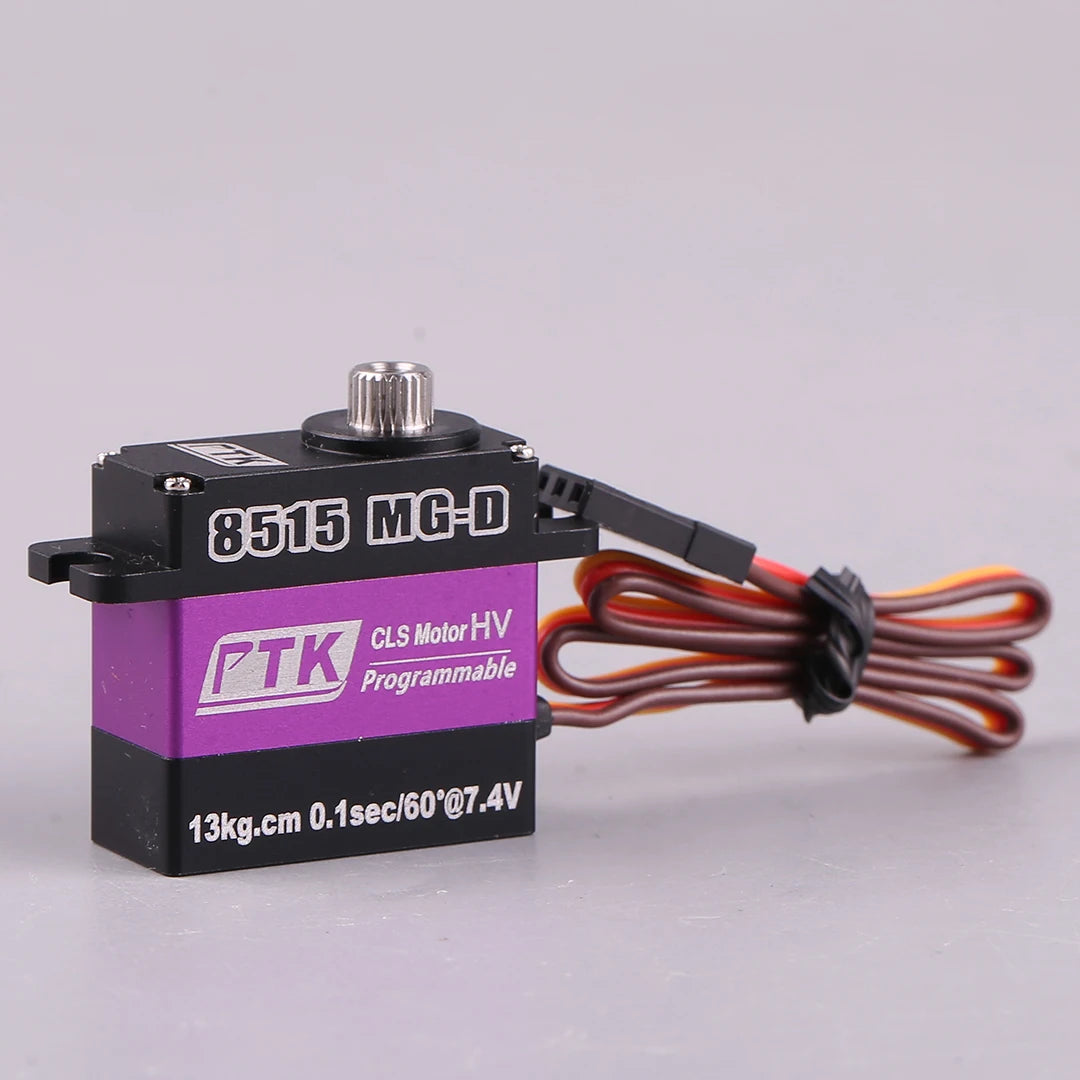

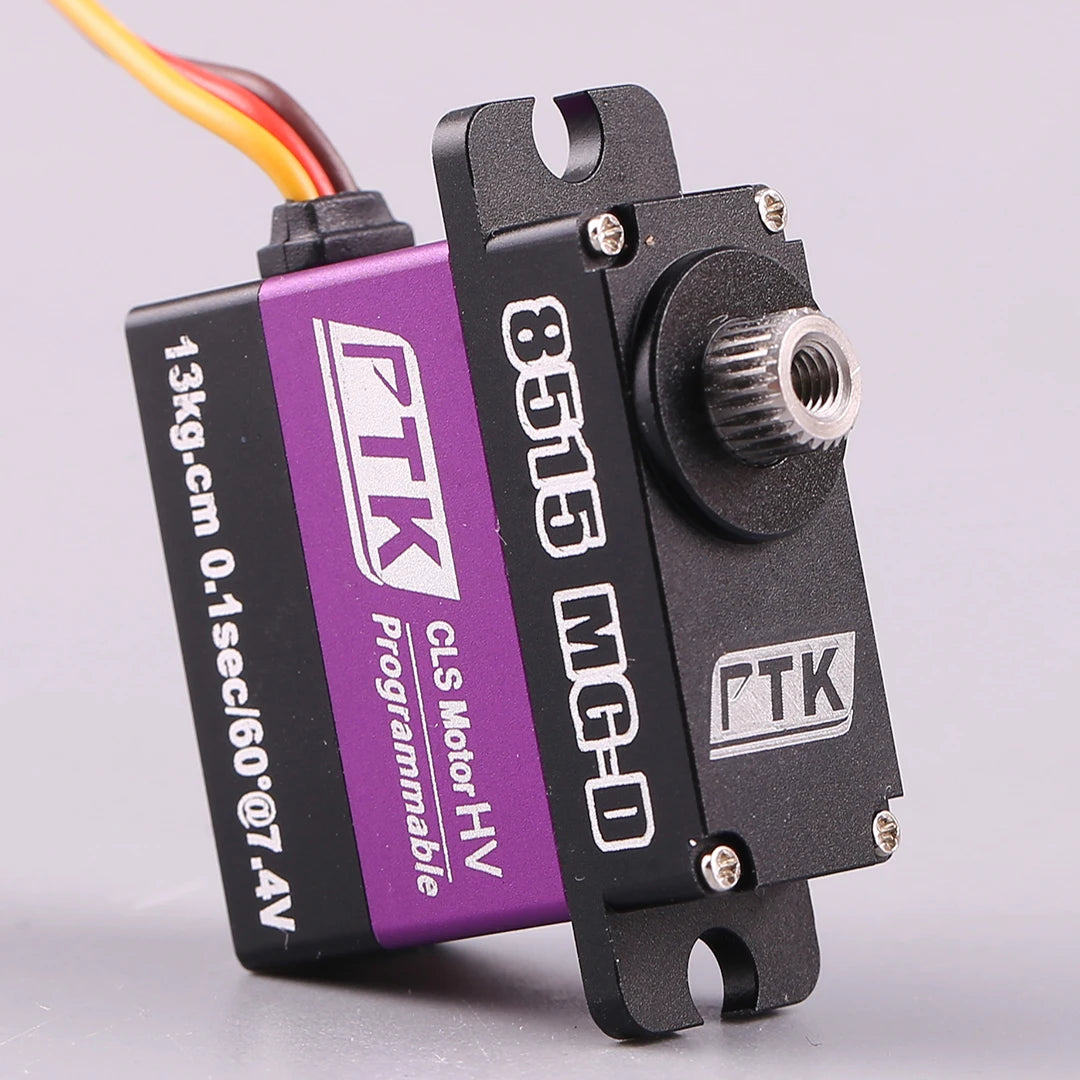

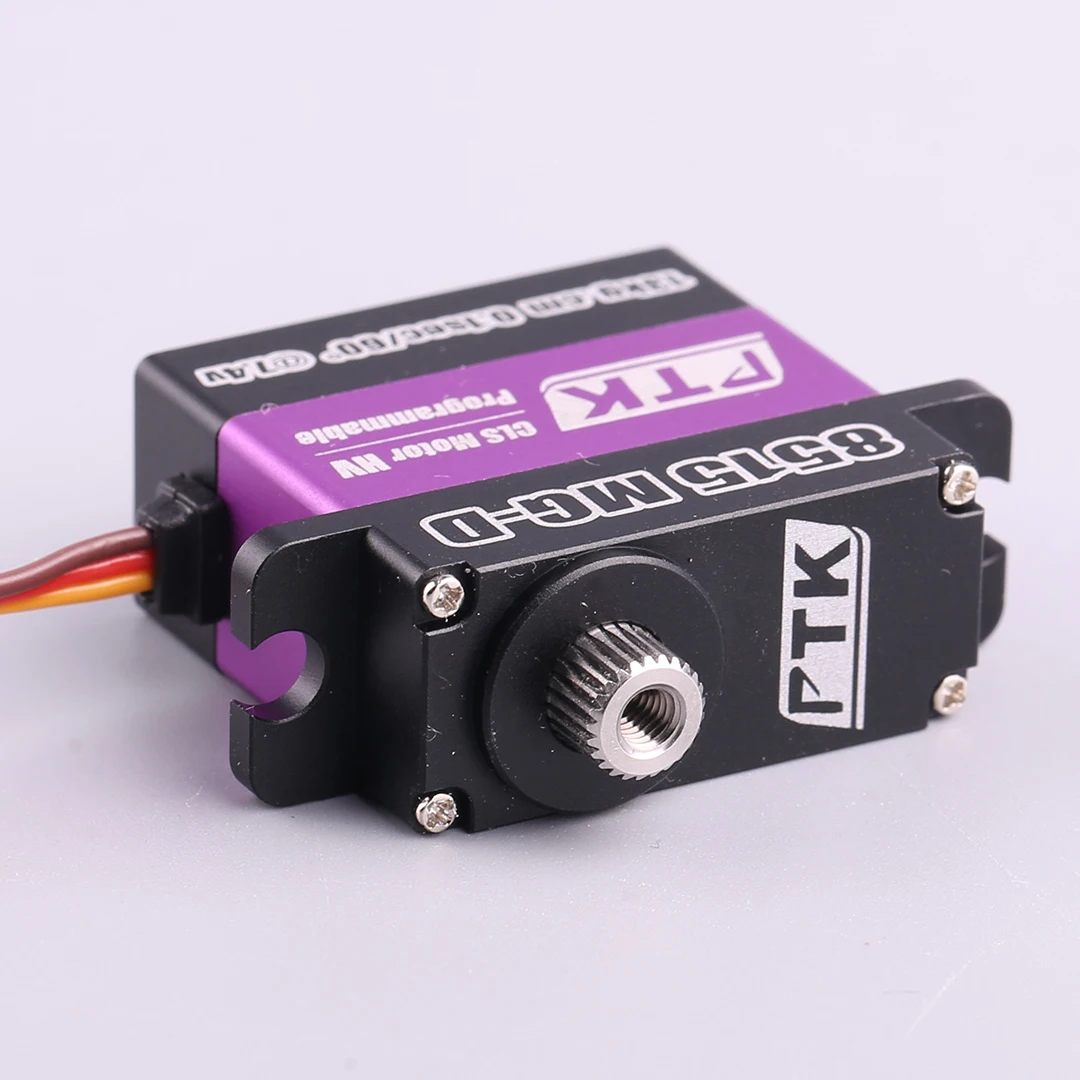

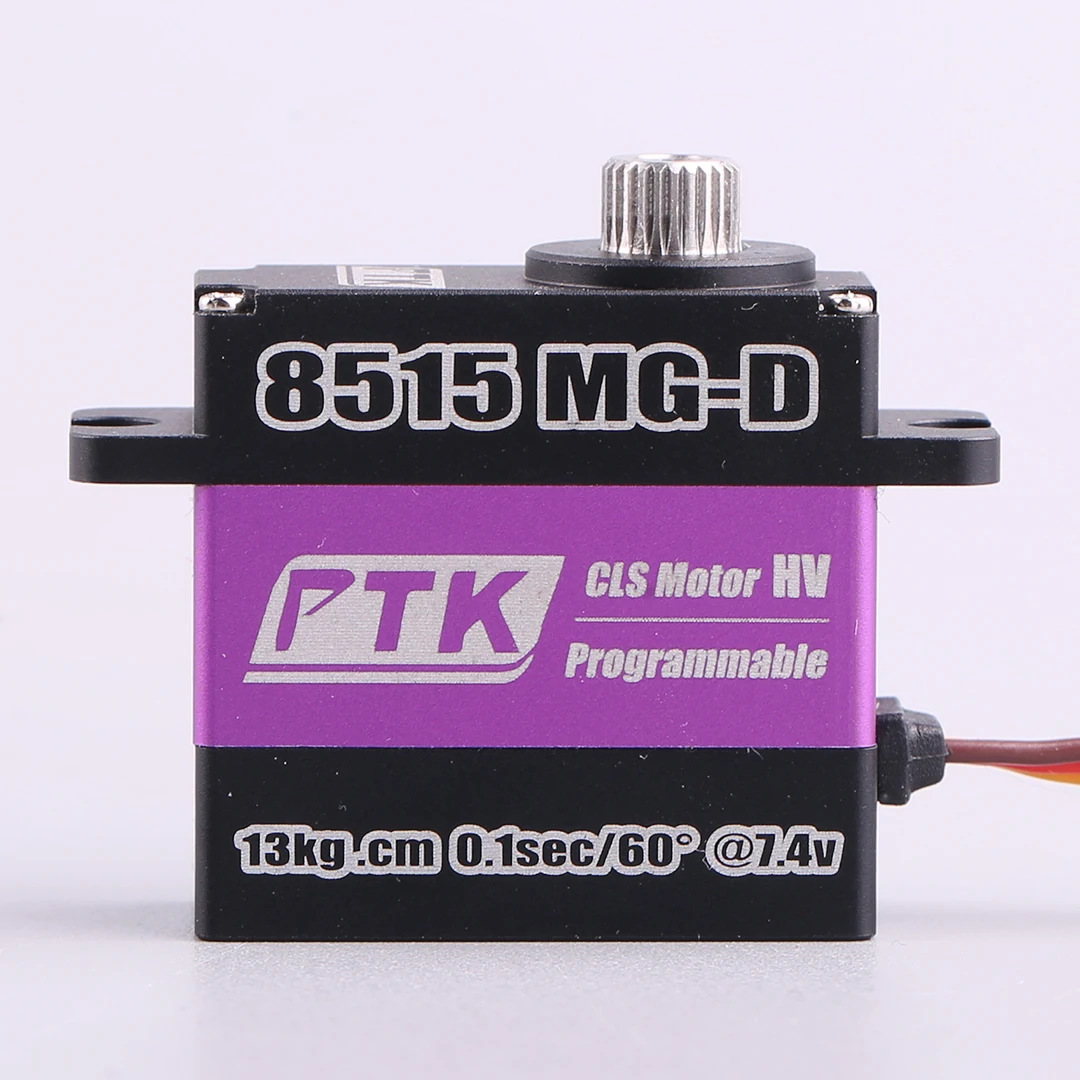

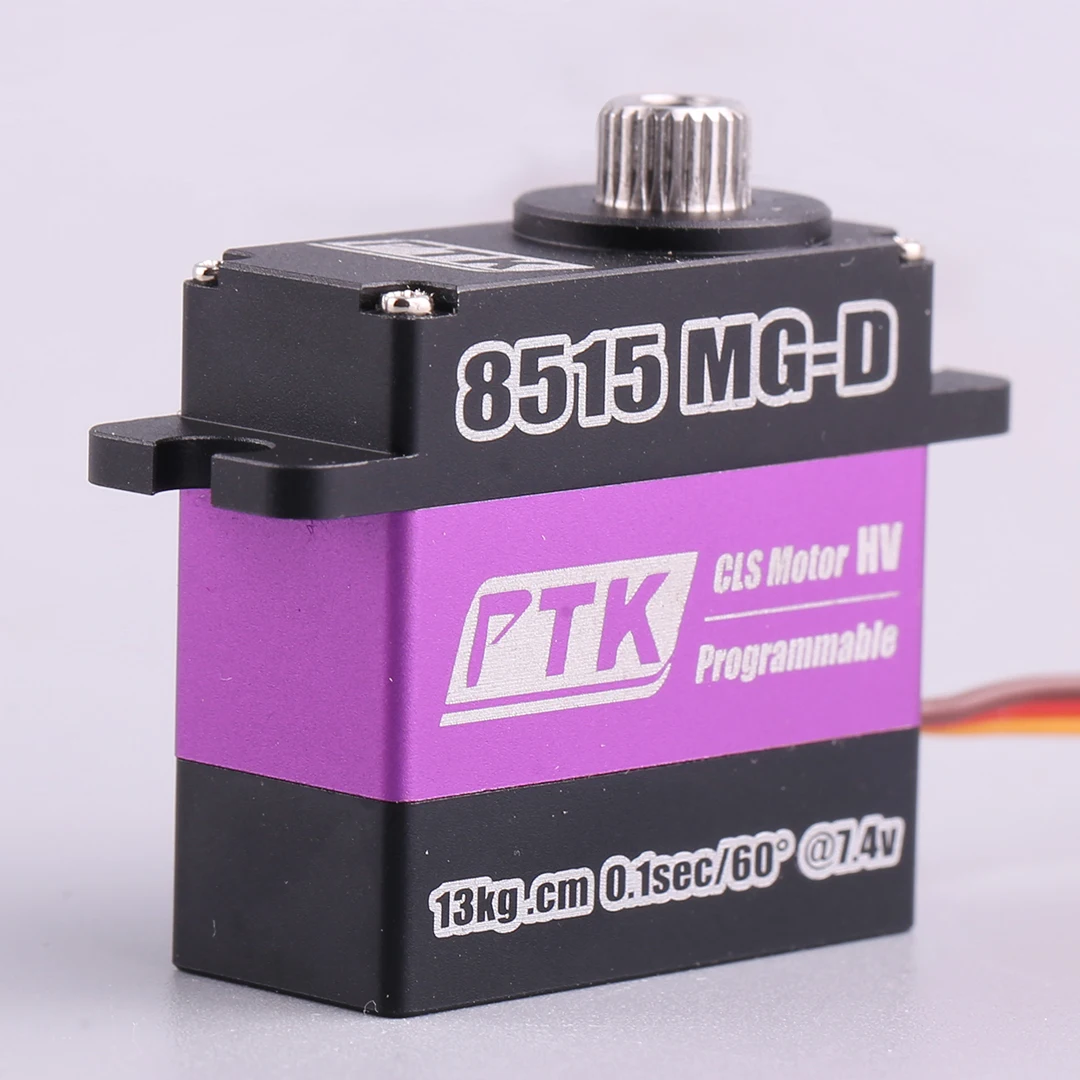

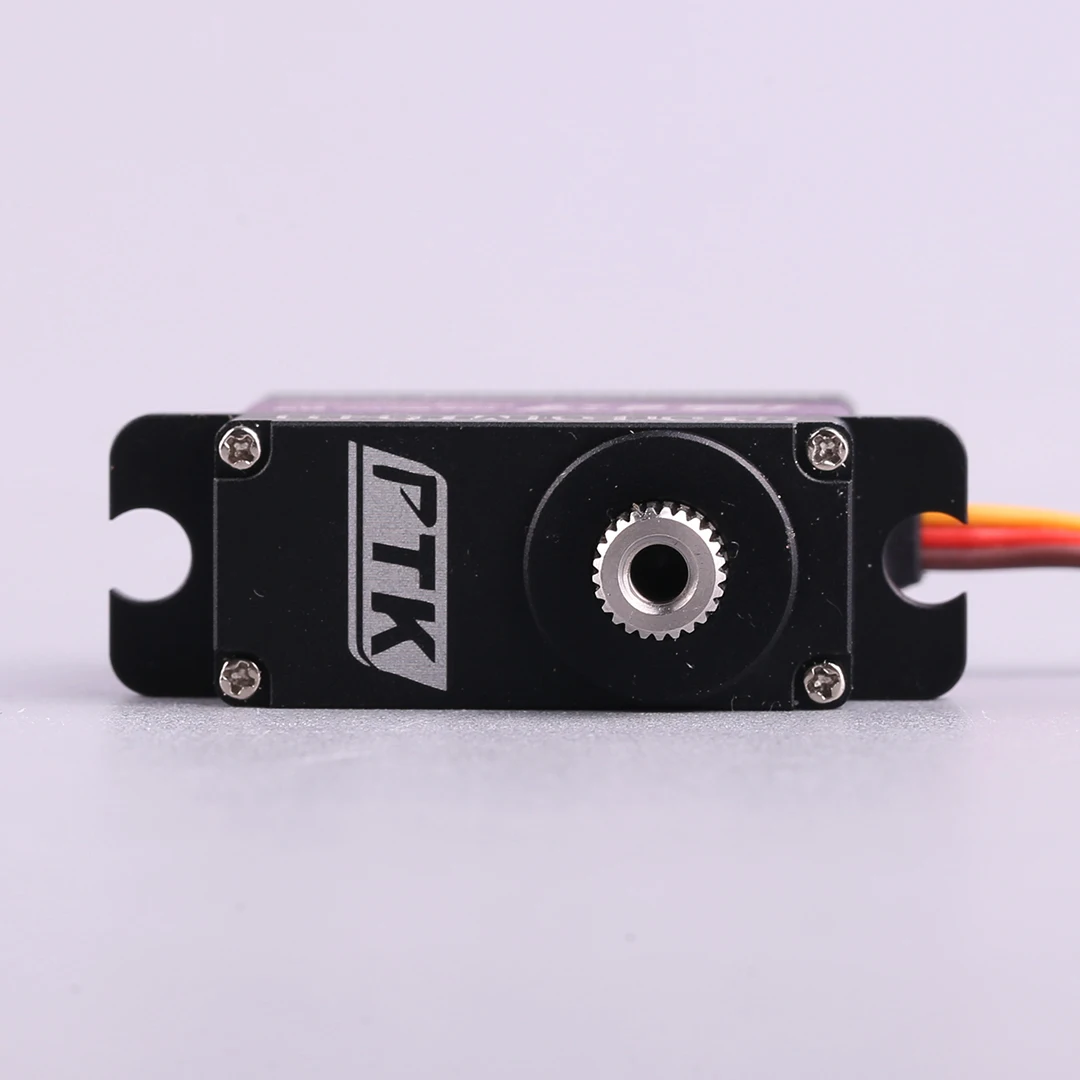

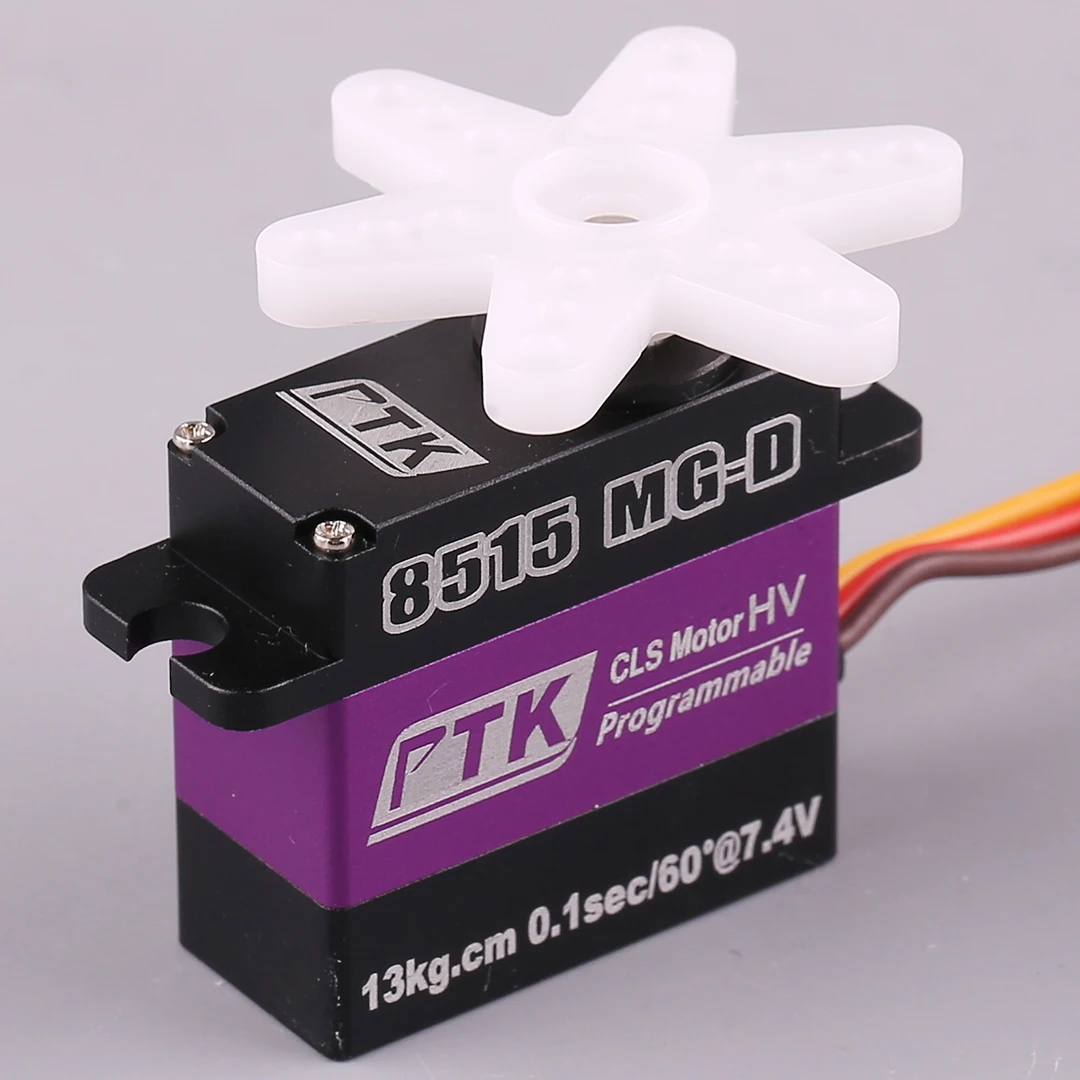

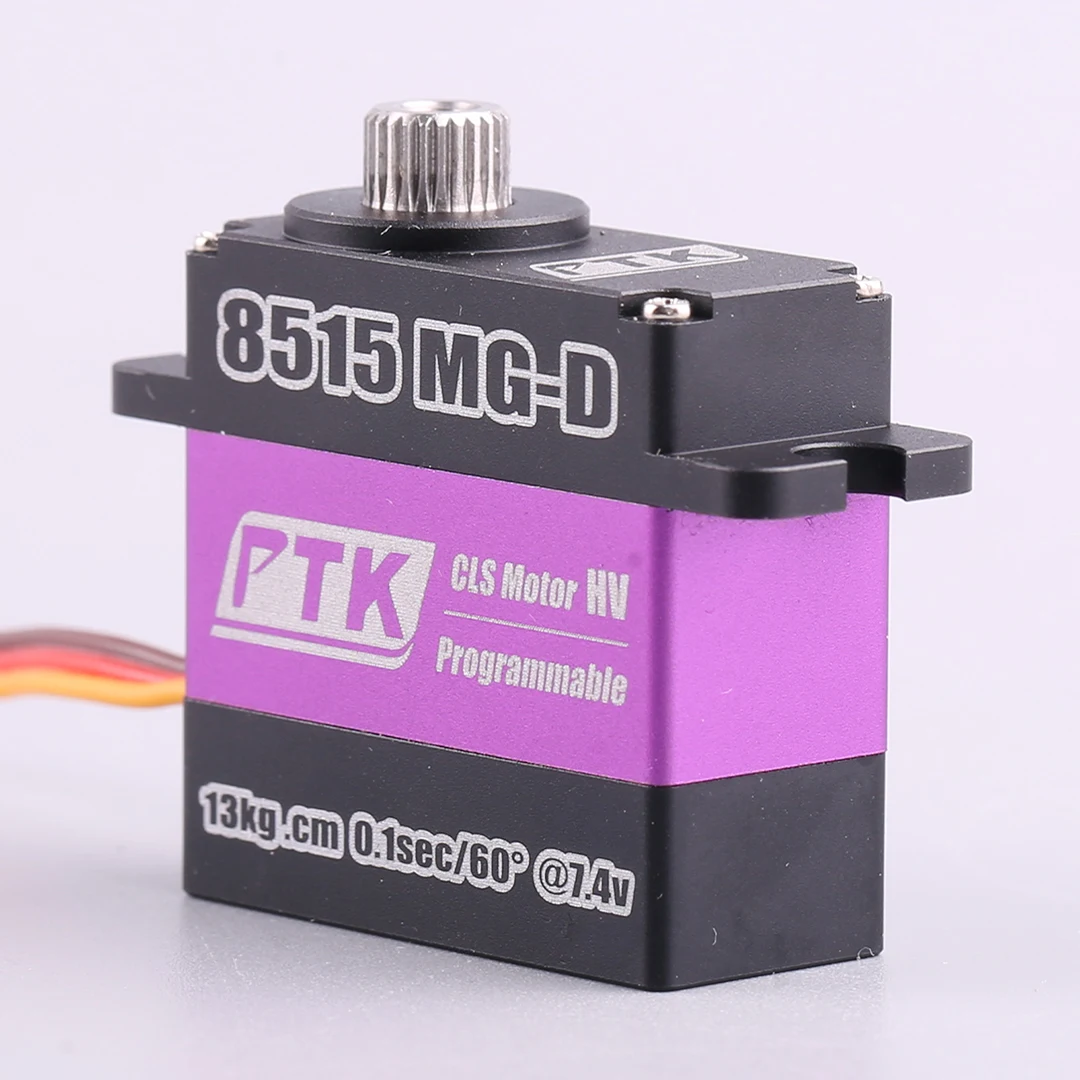

PTK 8515 MG-D Micro Servo 17g Digital HV Servo All Metal RC Model Aircraft Fixed Wing Helicopter Drone Servo

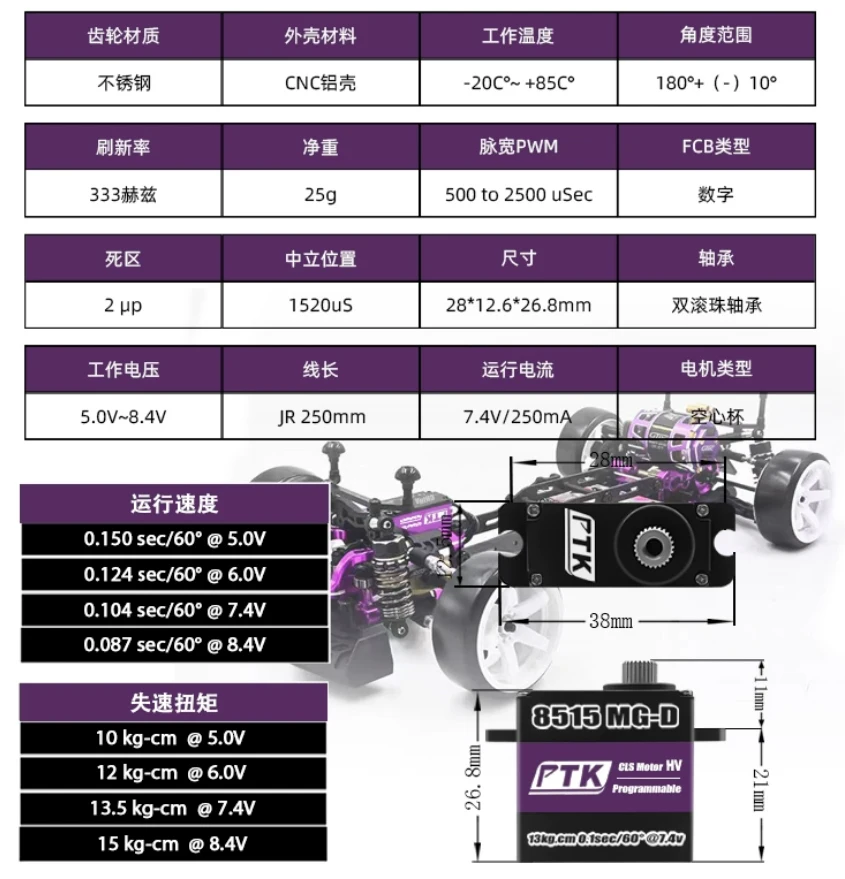

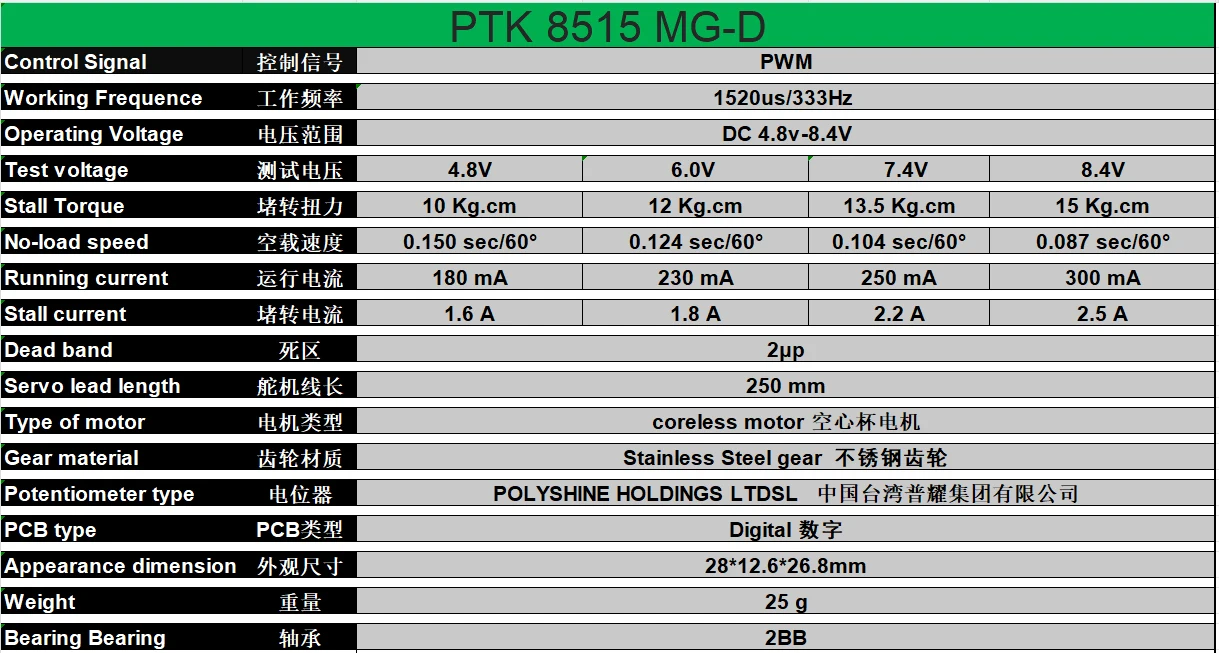

specifications

Motor : CORELESS

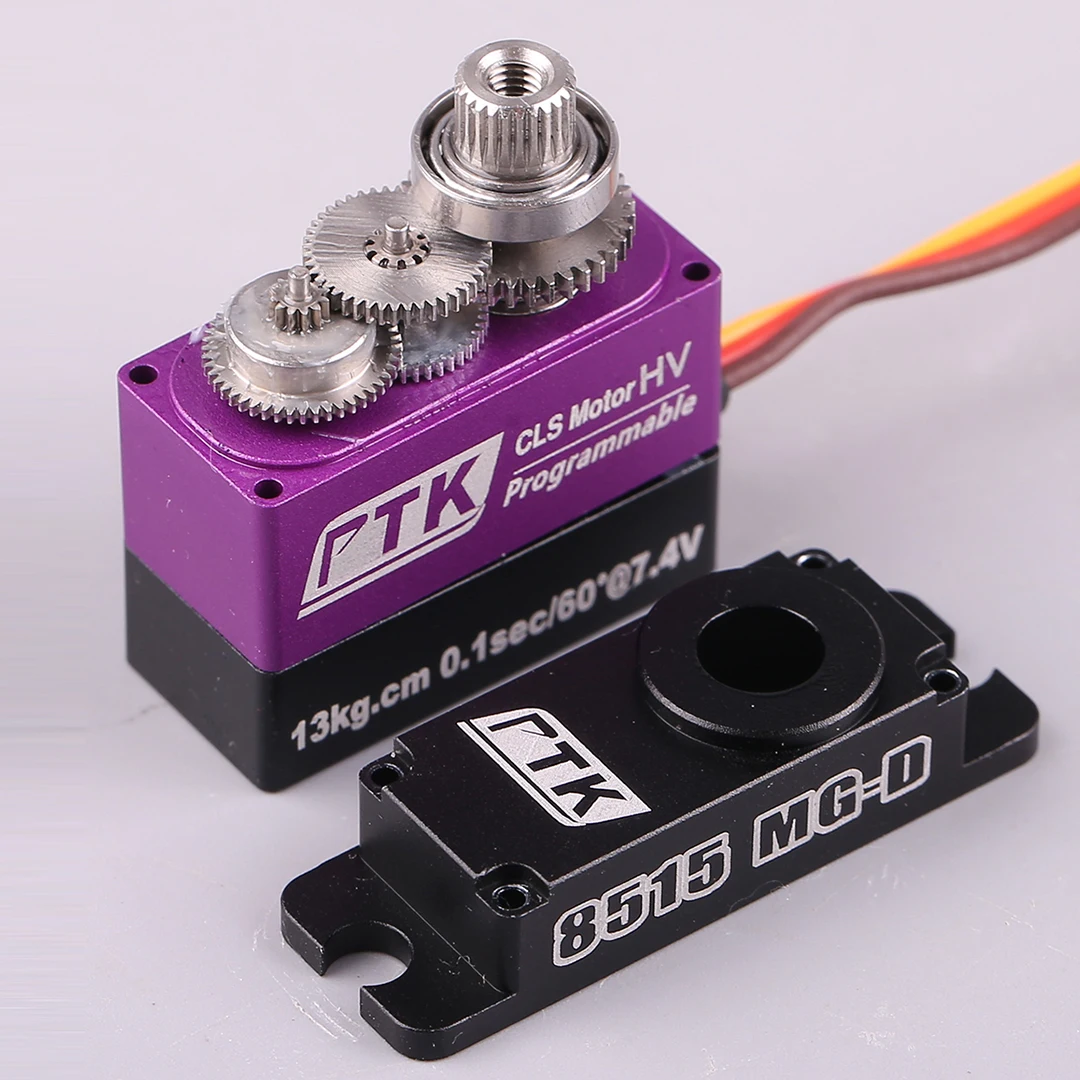

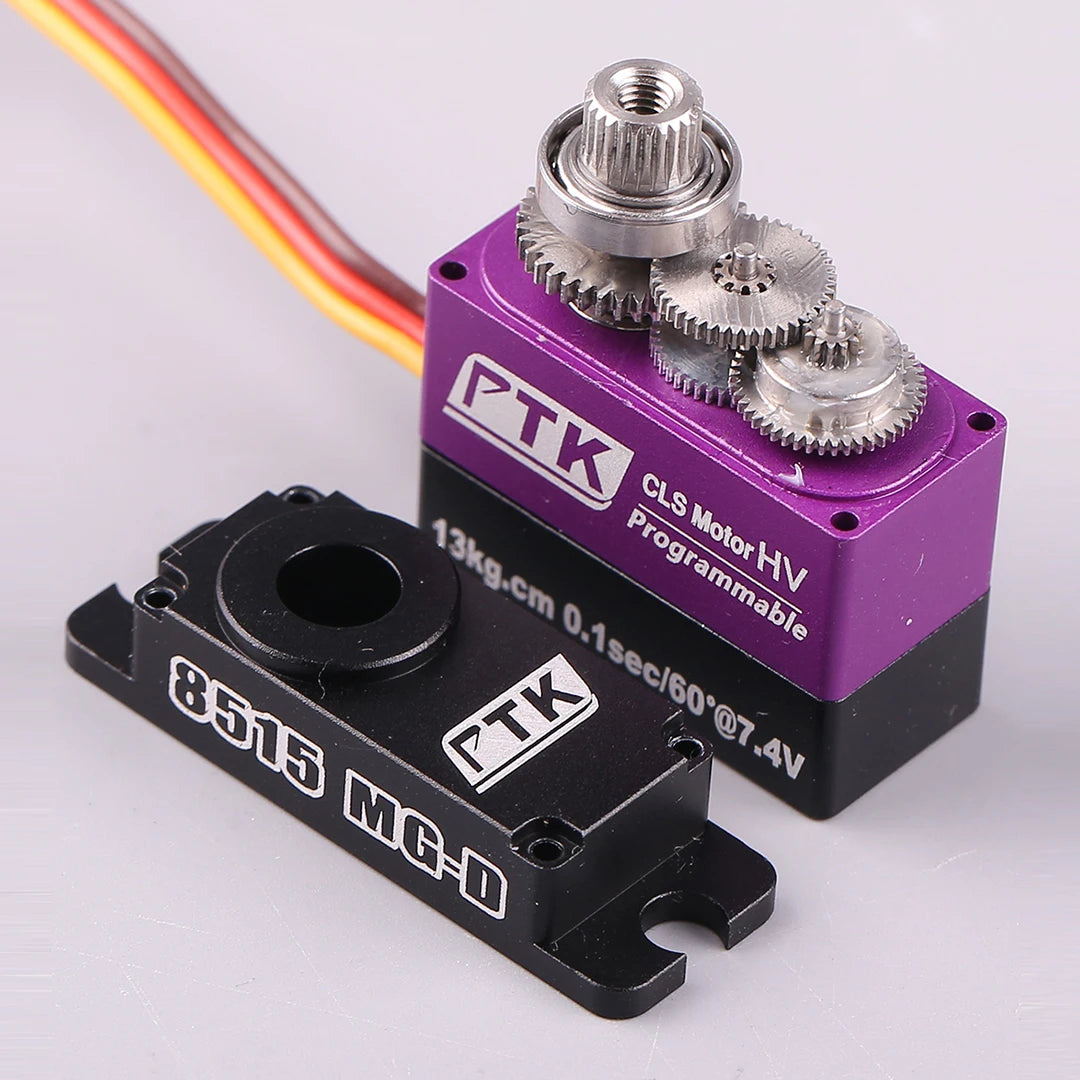

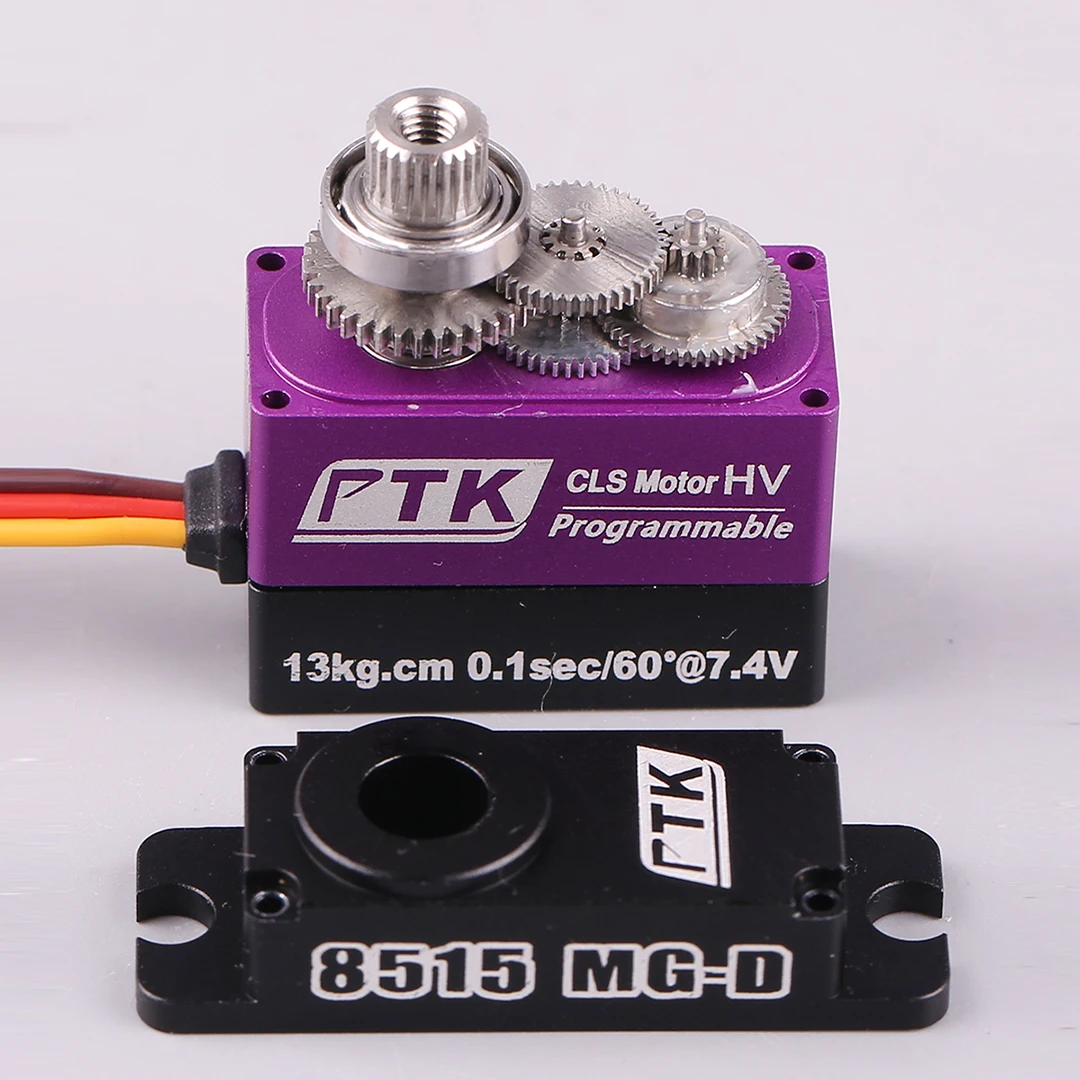

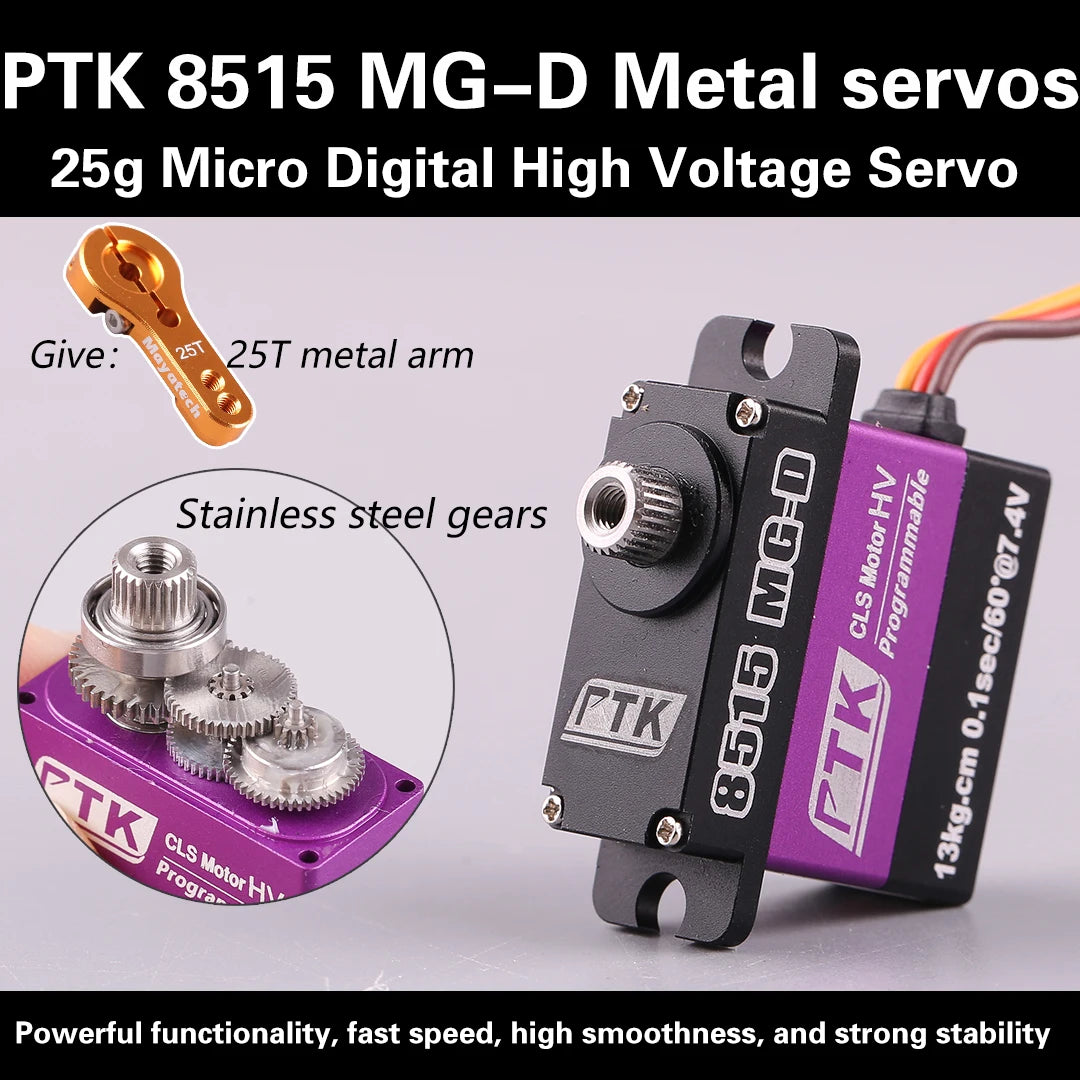

Gears : Stainless Steel Gear

Gears Play : very low

Ball Bearing : 2

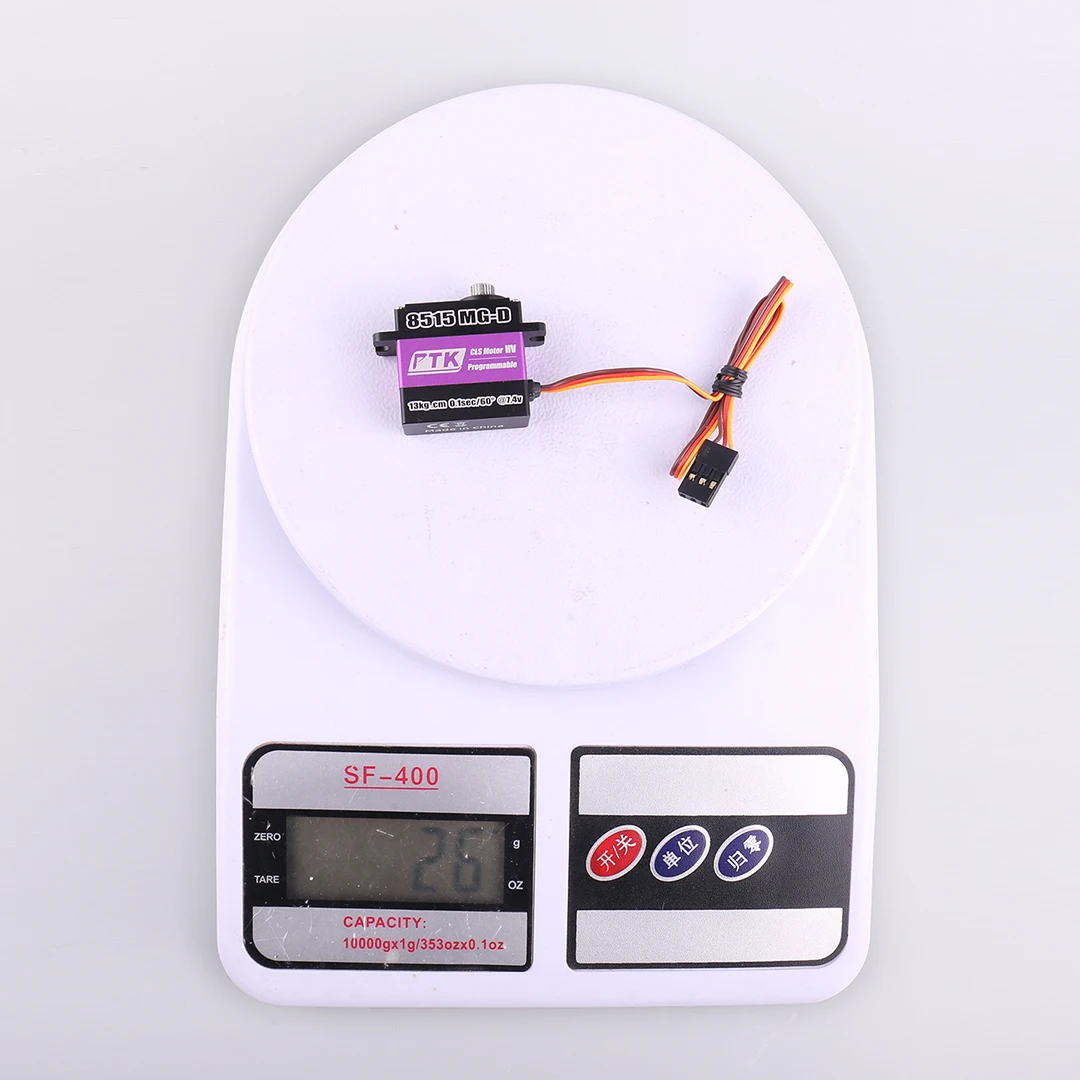

Weight : 25 g

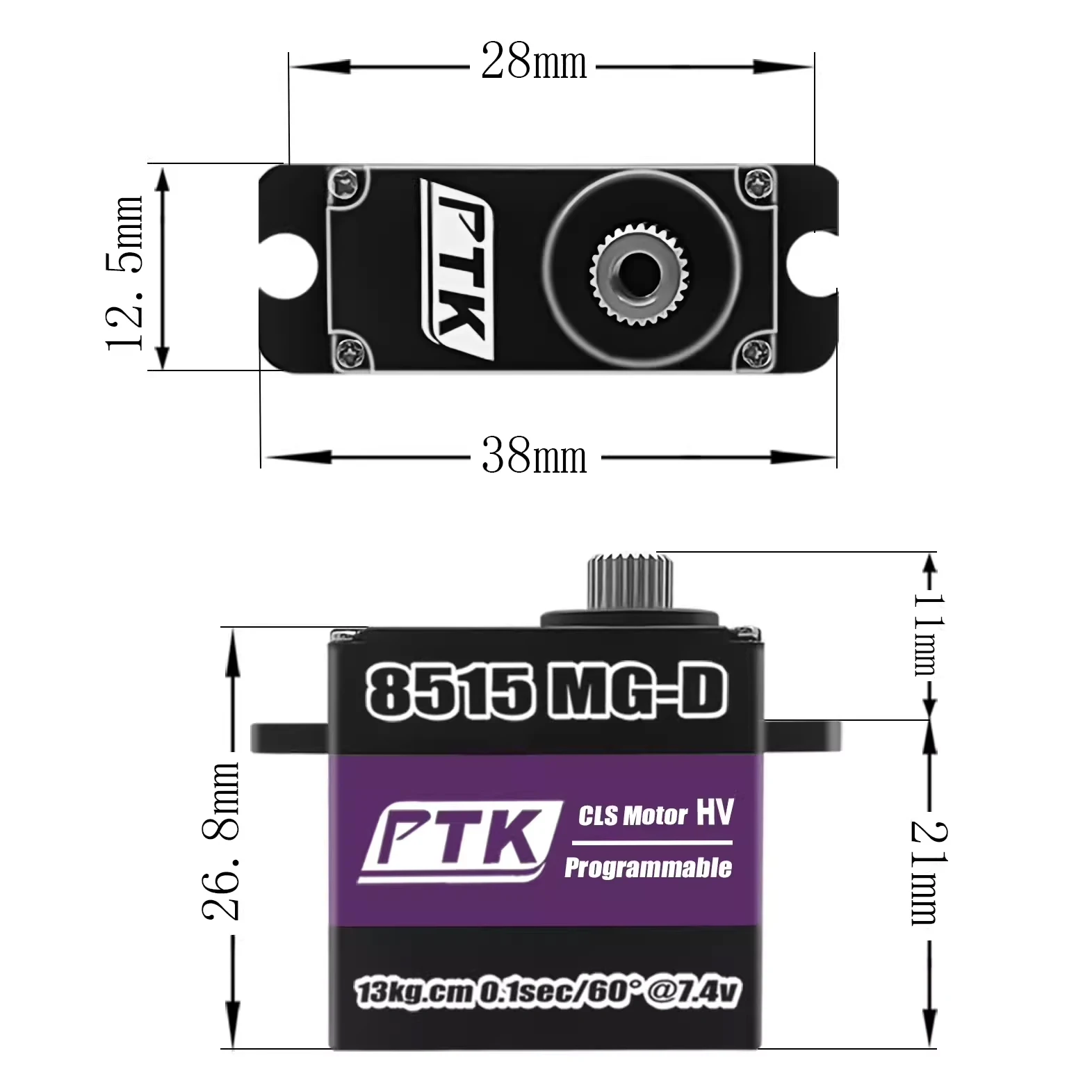

Dimensions : 28 x 12.6 x 23mm

Speed/Torque@ 5.0V : 10kg/cm - 0,150s/60°

Speed/Torque@7.4V :13.5kg/cm - 0,104s/60°

Speed/Torque@ 8.4V : 15kg/cm - 0,087s/60°

Input Voltage : 5.0V - 8.4V

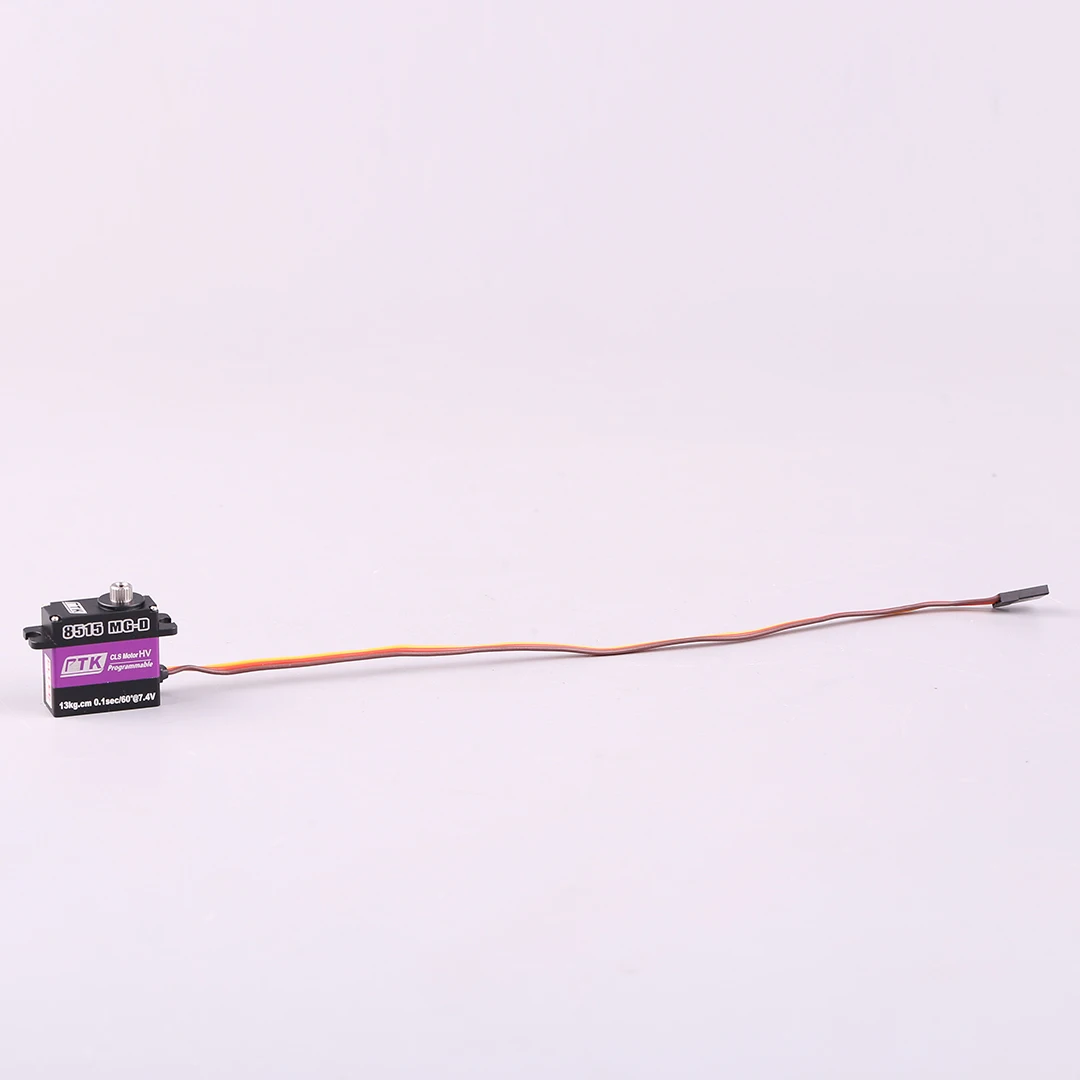

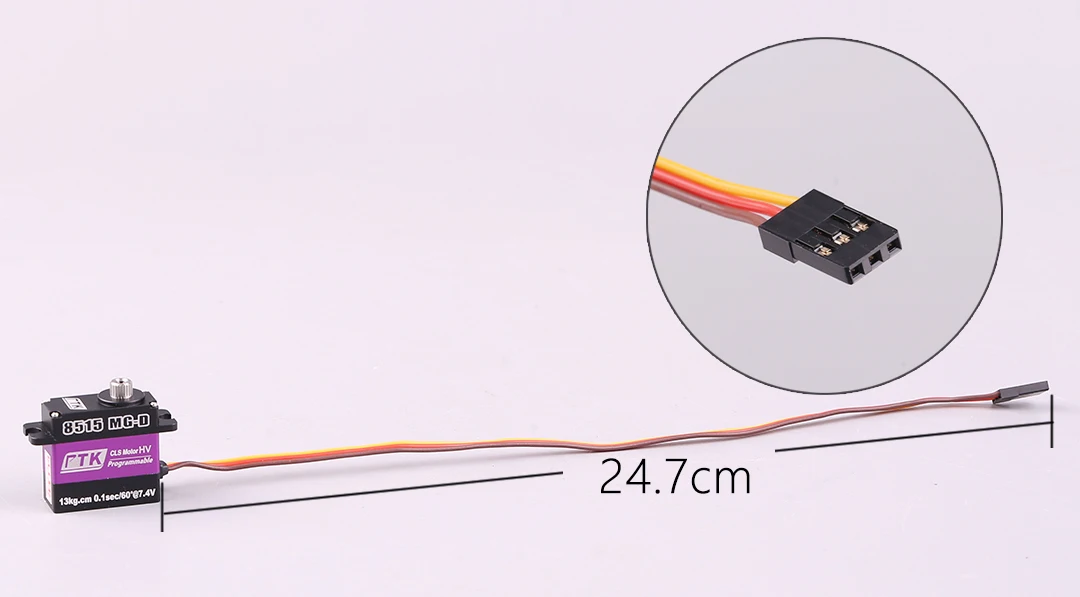

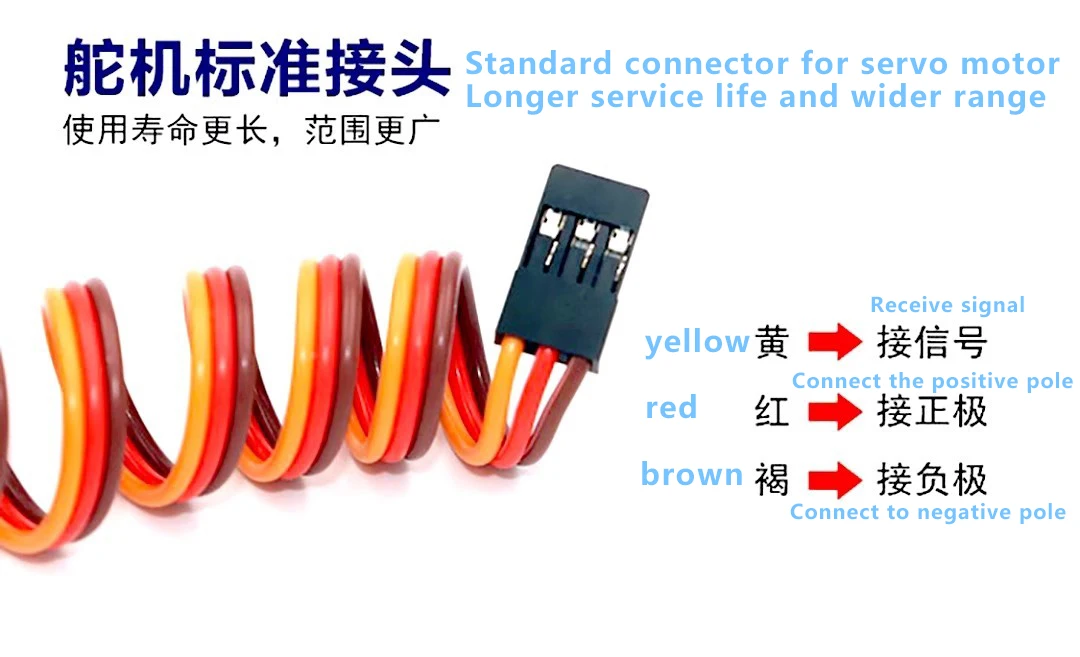

Harness length : 250mm JR

Dead band : 2μs

Electric precision : 1.2μs

Hollow cup motors mainly include

• 1. Energy saving characteristics: The energy conversion efficiency is very high, and its maximum efficiency is generally above 70%. Some products can reach over 90% (iron core motors are generally above 70%).

• 2. Control characteristics: fast starting and braking, extremely fast response, mechanical time constant less than 28 milliseconds, and some products can reach up to 10 milliseconds (iron core motors are generally above 100 milliseconds); It is convenient to adjust the speed sensitively during high-speed operation within the recommended operating area.

• 3. Dragging characteristics: The running stability is very reliable, and the speed fluctuation is very small. As a micro motor, its speed fluctuation can be easily controlled within 2%. In addition, the energy density of the hollow cup motor has significantly increased, and compared with iron core motors of the same power, its weight and volume have been reduced by 1/3 to 1/2

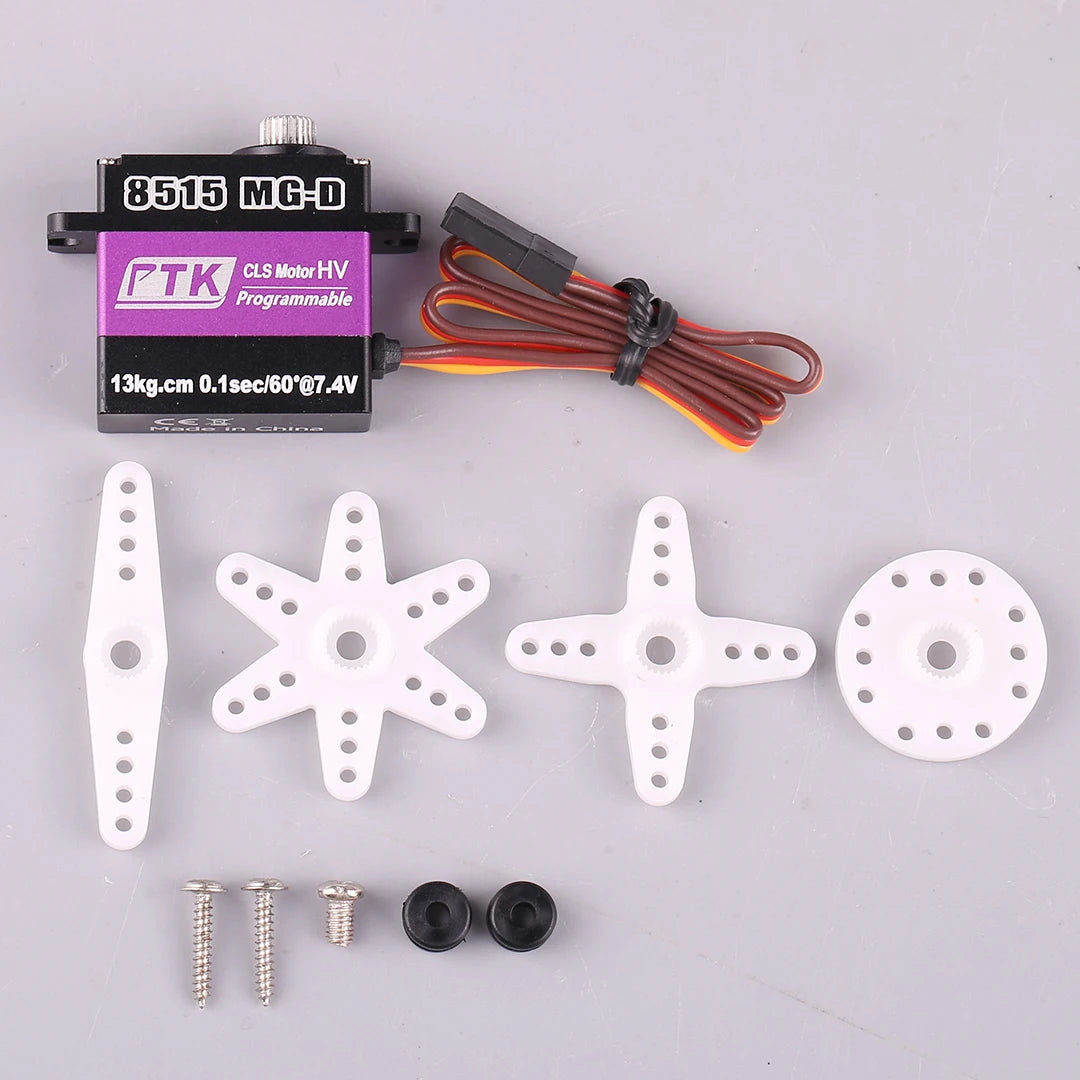

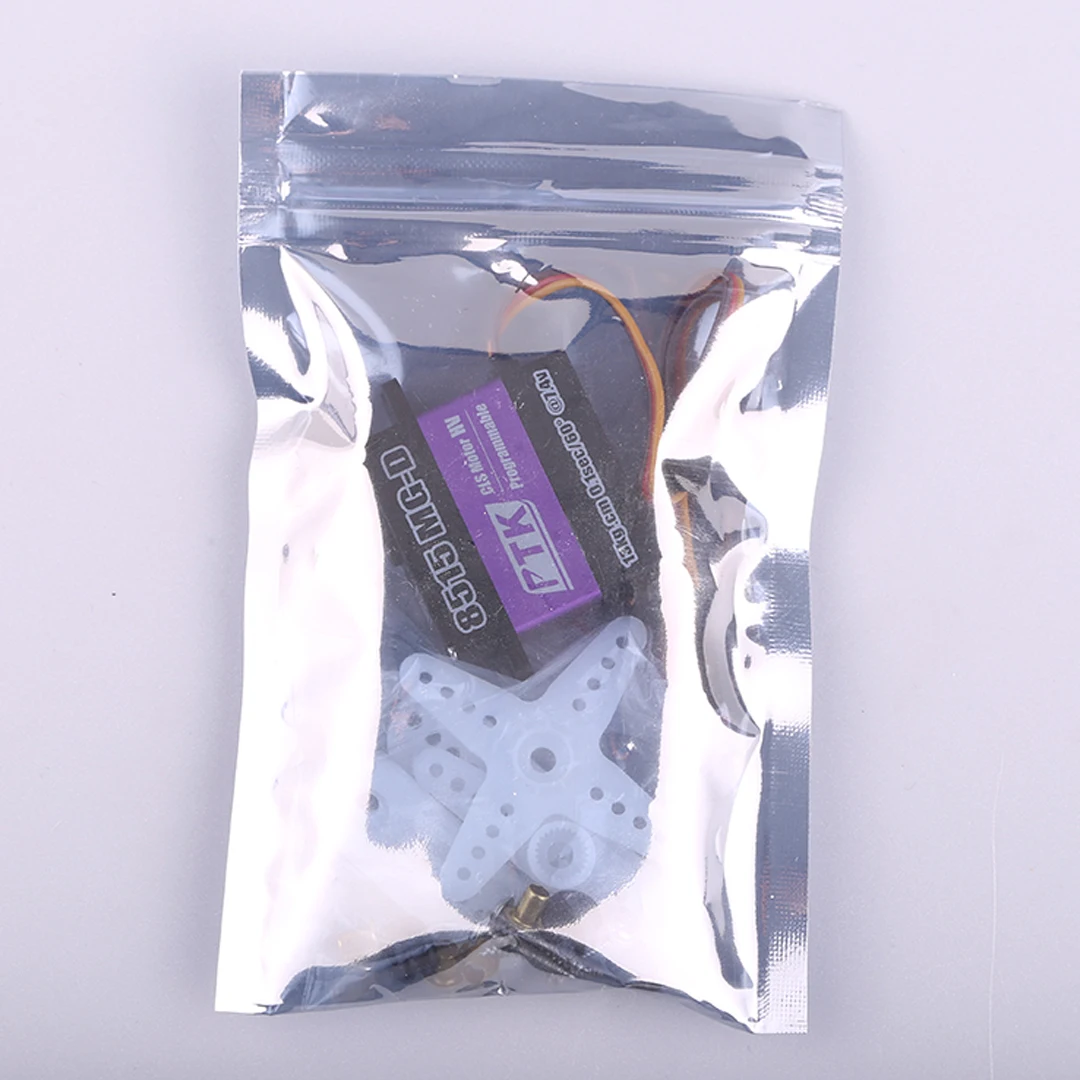

Packing list

PTK 8515 MG-D servo * 1

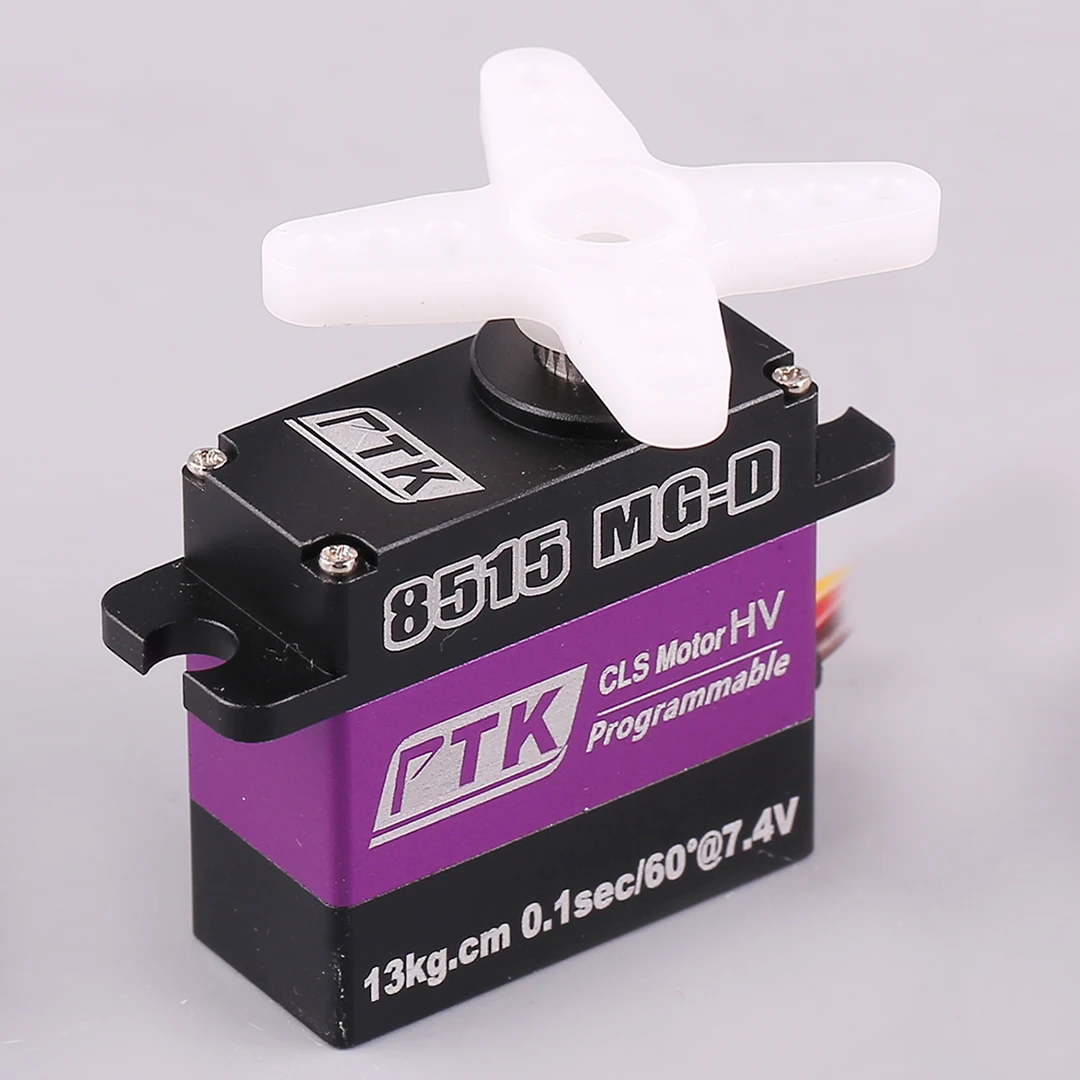

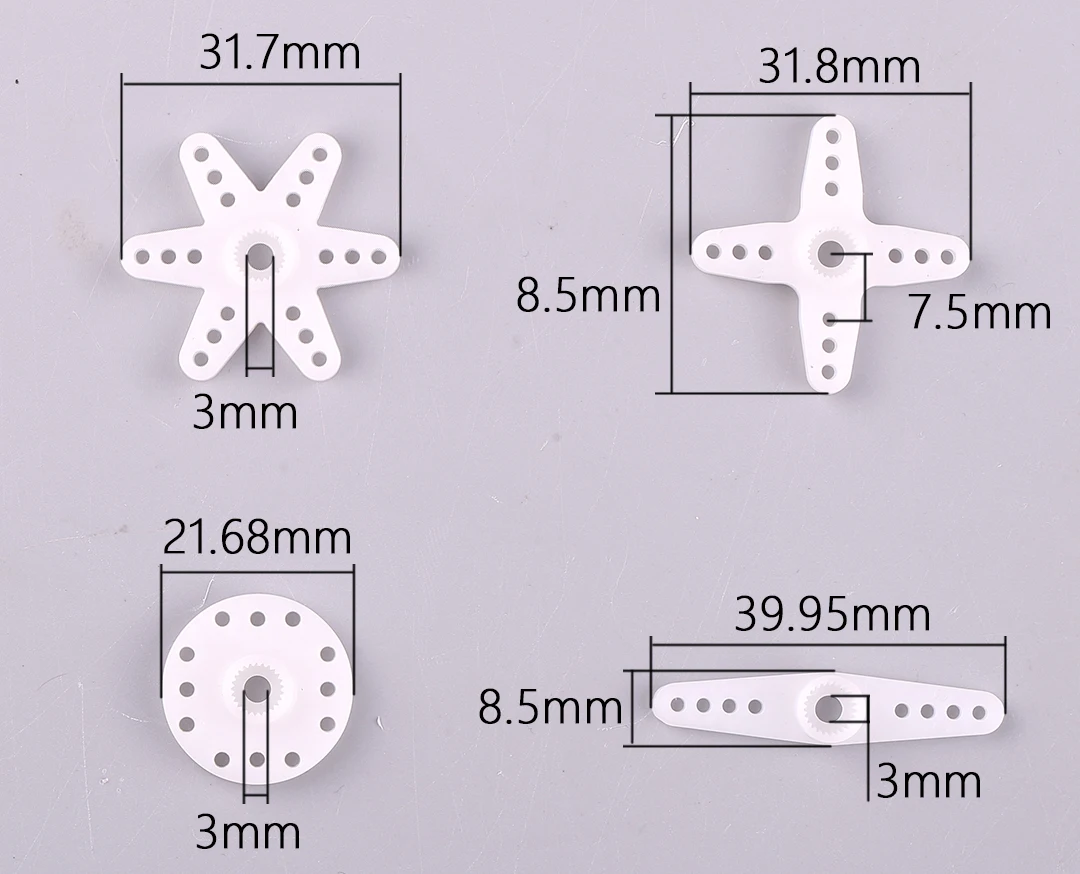

Cross rudder arm * 1

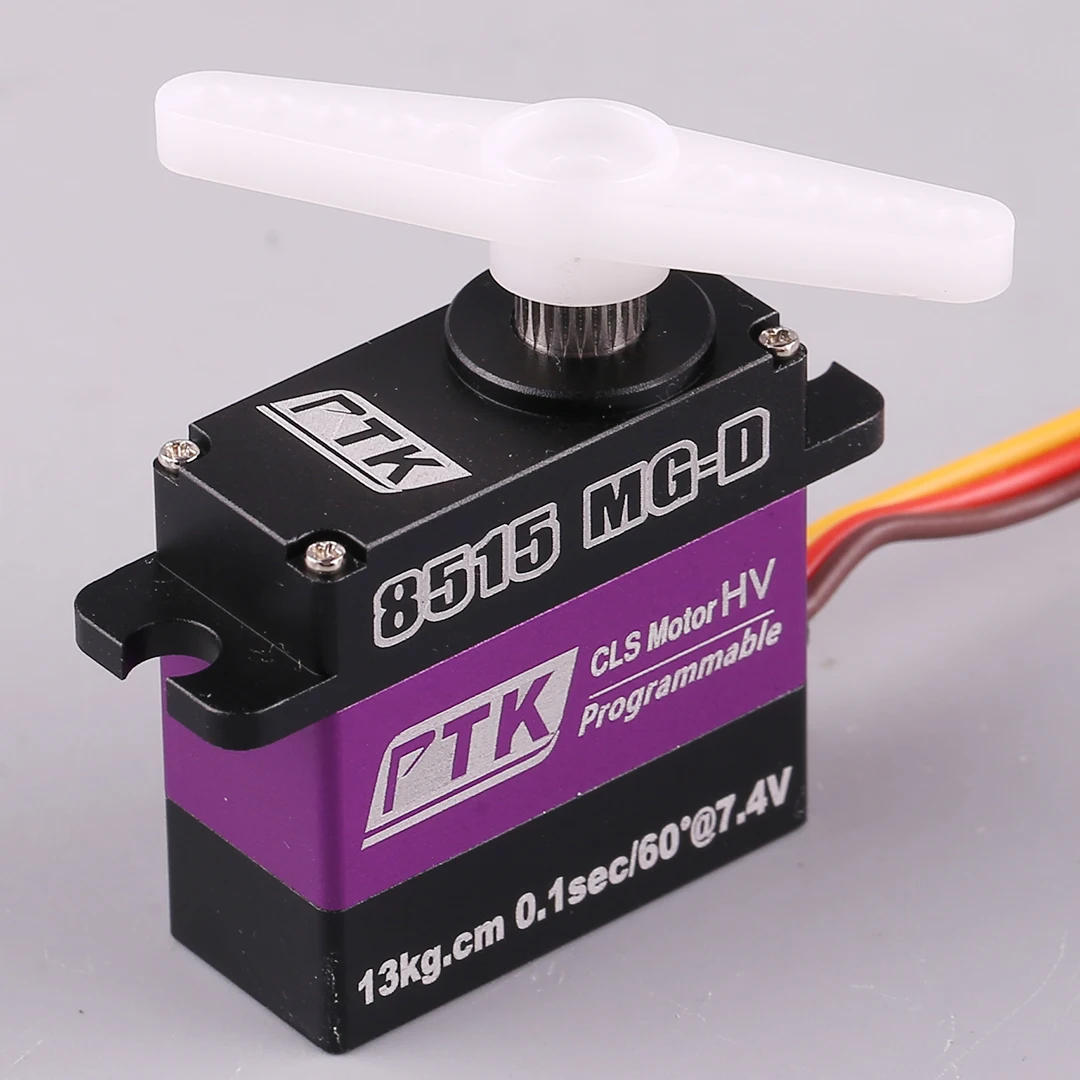

Straight rudder arm * 1

Large straight rudder arm * 1

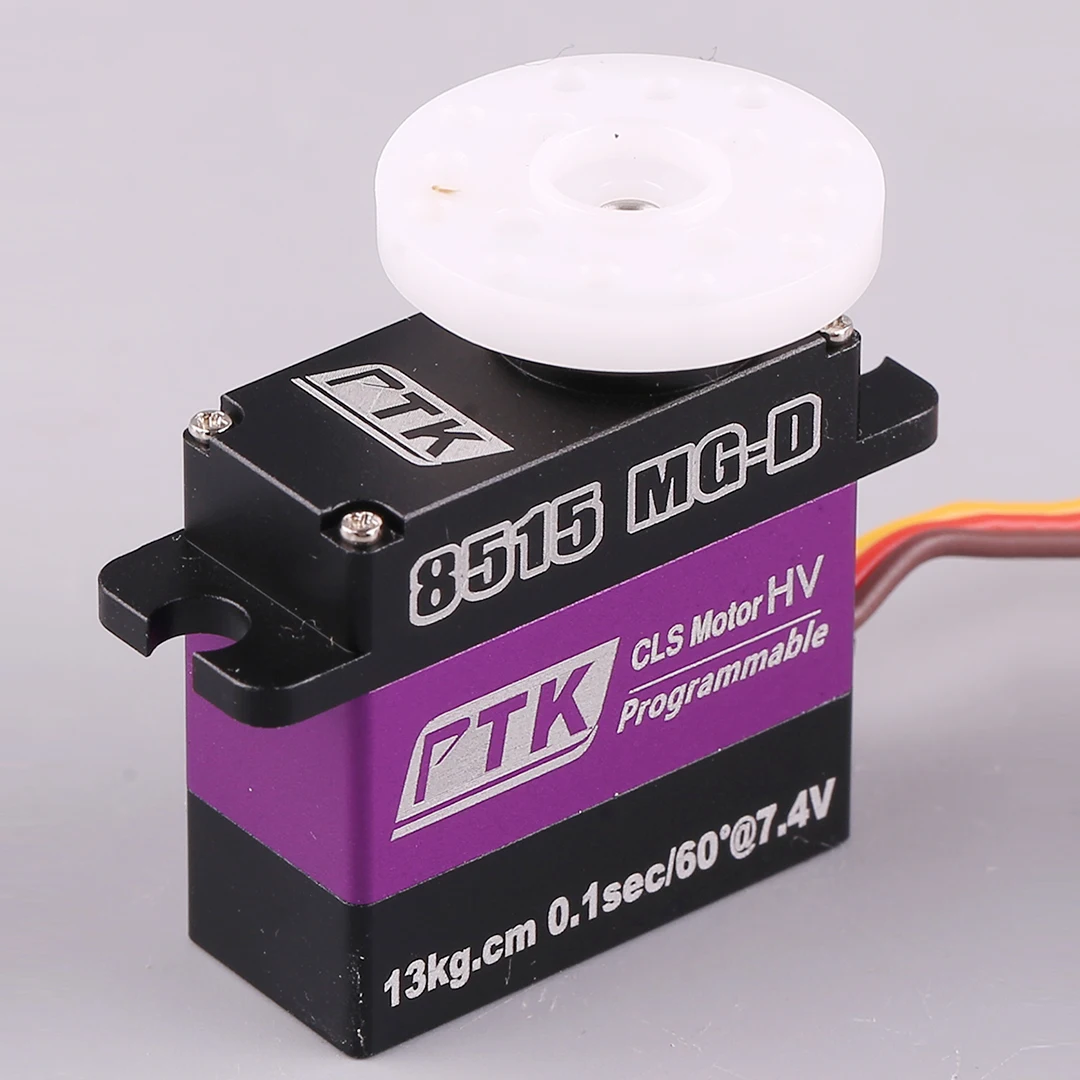

Half angle rudder arm * 1

Nylon washer * 2

Copper sleeve * 4

Install screws * 4

Rudder arm fixing screw * 1

17g size, 25g servo, stainless steel toothed CNC shell glider,

Suitability fixed wing, car model, robot, drone, etc
