RXCRC VTX Transmitter Camera 600TVL

Specifications

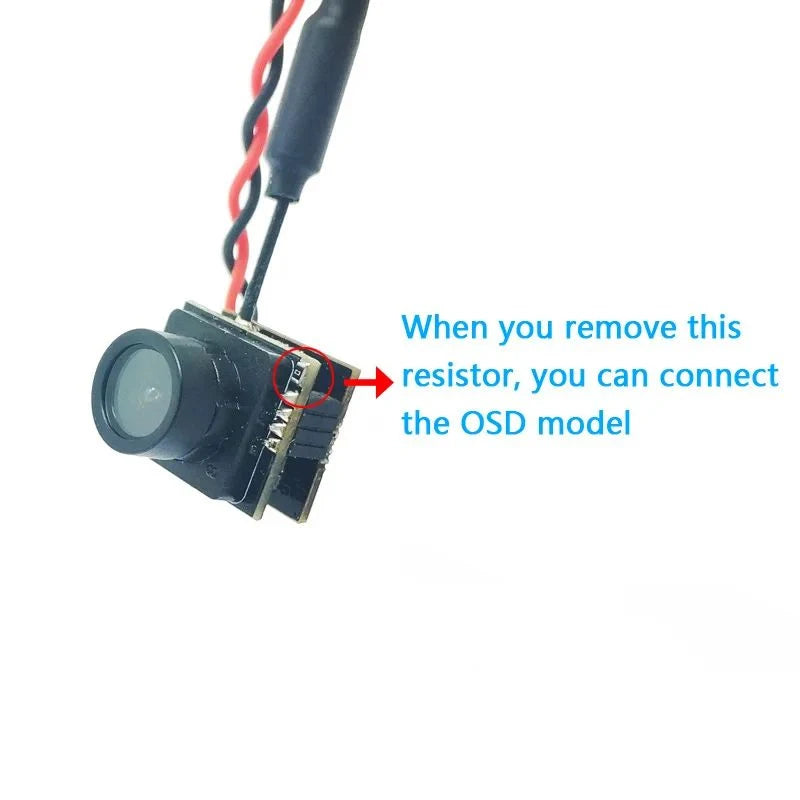

Model:701U AIO FPV VTX Camera

nFrequency: 5.8G 48CH

nTransmitting Power：25mW

nDC5V（2.5V-5.5V）

nCurrent(5v)：220mA（25mW）

nCamera Resolution: 600TVL

nVideo system:PAL

nField of view: 120 degree
viewing angle

nSuper mini size and light
weight

nSupport image flip function

n2 LED lights, 1 button

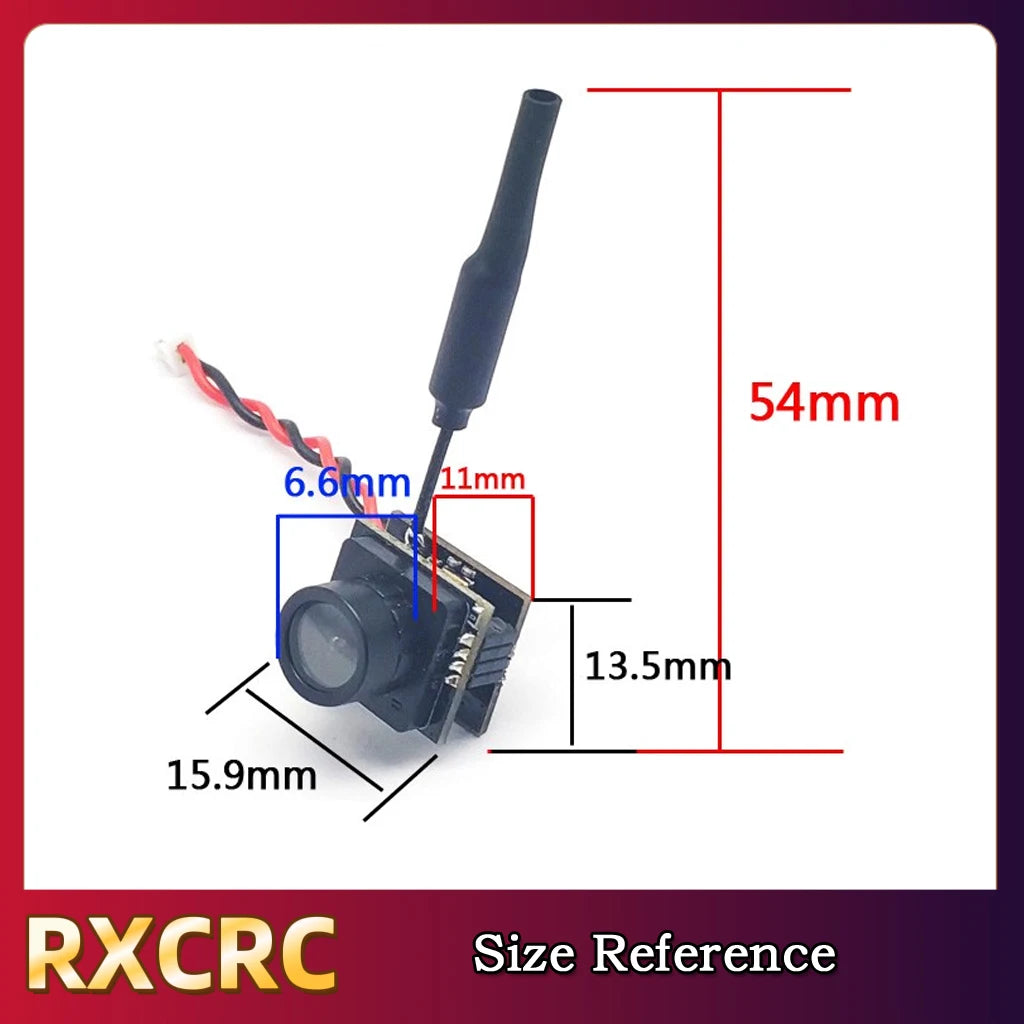

nStandard size: 13.5*15.9*17.2mm

nWeight:3.6g

Package Included:
1 X701UAIO FPV Camera

User Guide

1.LED
indication

nThe red LED indicates the state of working
mode or the item when setting the VTX(flashing 1 time means selecting the
channels, flashing 2 times means selecting the bands, flashing 3 times means
selecting the image flip).

nThe blue LED indicates the value of item
when setting the VTX( e.g. when selecting the channels, 3 times of flashing
means channel 3. When selectingbands, 3
times of flashing means band C.As for the item of the image flip, 2 times of flashing
means the vertical picture reversal. )

2.Working
mode indication

nAfter powering
up, the red & blue LEDs will signal the following three items of VTX in
turn: channel, bandl, image
flip. (the flashing times of the red
and blue LEDs indicate the item and the value respectively). After that, the
LEDs indicate the working modes.

nNormal: The red
& blue LED are on.

3.Setting

nPress and hold the button until the red LED flash 1
time which means the item of
channel selecting, then press the button can select the channels（blue LED flashing times corresponds to the channel 1-8）.

nPress and hold the button again，the red LED will
flash 2 times which means the
item of band selecting, then press the button can select the band（blue LED flashing times corresponds to the band A-F）.

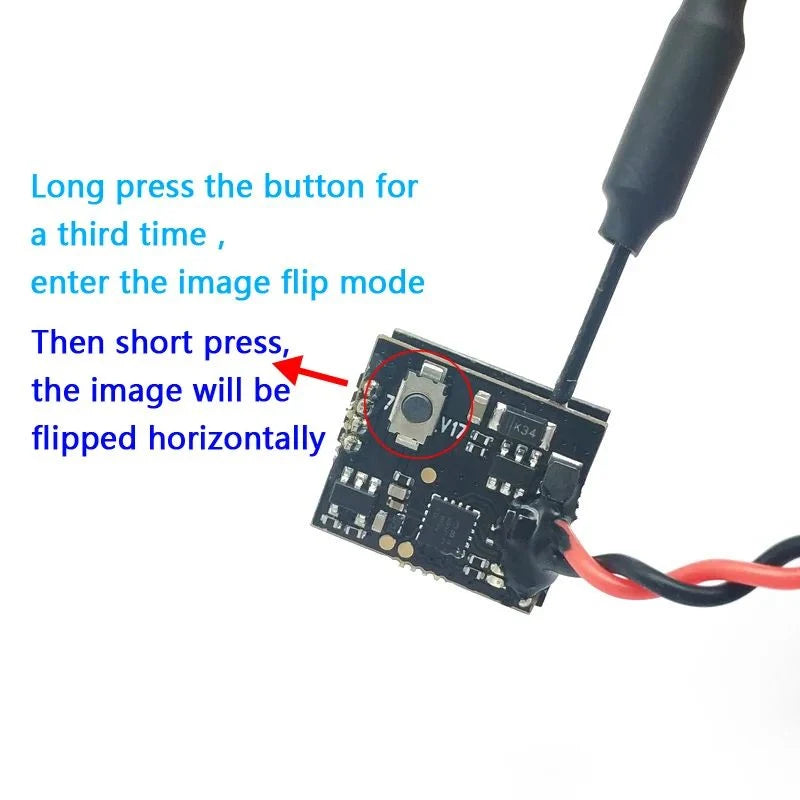

nPress and hold the button again，the red LED will
flash 3 times which means the
item of image flip selecting, then press the button can select the vertical
picture reversal .

nFinally,
press and hold the button, save and exit the setting of VTX(This step is
essential for setting).
