Product Description:

(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.

(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.

(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.

(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.

(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.

(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.

(7) Onboard RGB LED color light settings, multiple LED colors can be customized.

(8) BEC 4Asupports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A,BEC 10A supports adjustable outputs of 5V/10A, 6V/10A, 7.2V/10A, 8.2V/10A, and 12V/10A, which can directly supply power to external devices such as receivers and servos, making the application of ESC more extensive and flexible .

(9) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.

Parameters of Product

• ModelSQESC 28120

• ProcessorSTM32G071

• Input voltageDC 7V-35V2-8S Lipo

• Continuous current (good heat dissipation)120A

• Maximum current (good heat dissipation)150A

• Support firmwareBLHeli_32AM32ESCape32

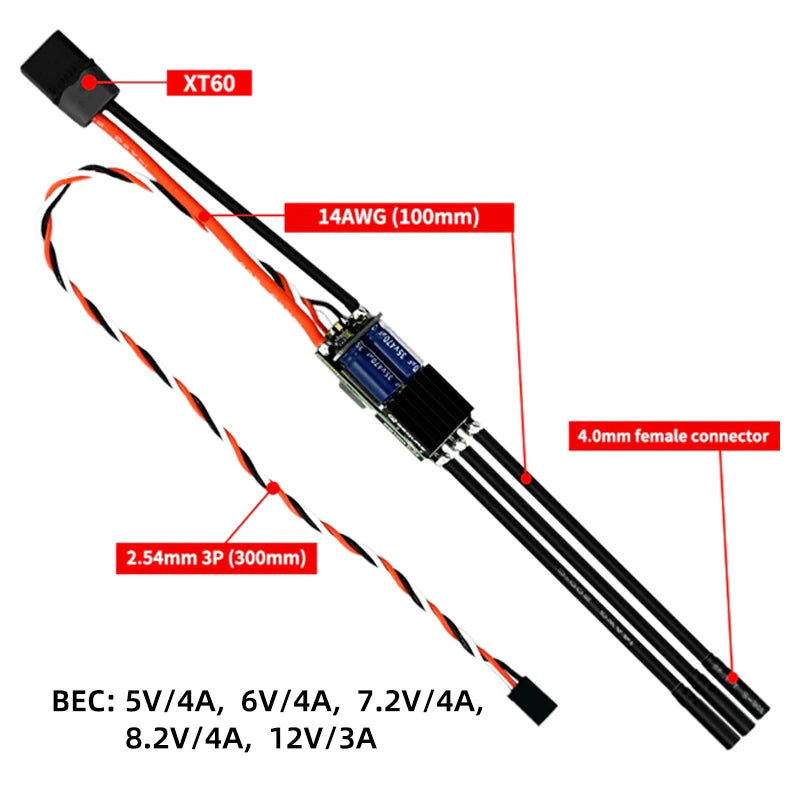

• BEC(if any)5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A adjustable

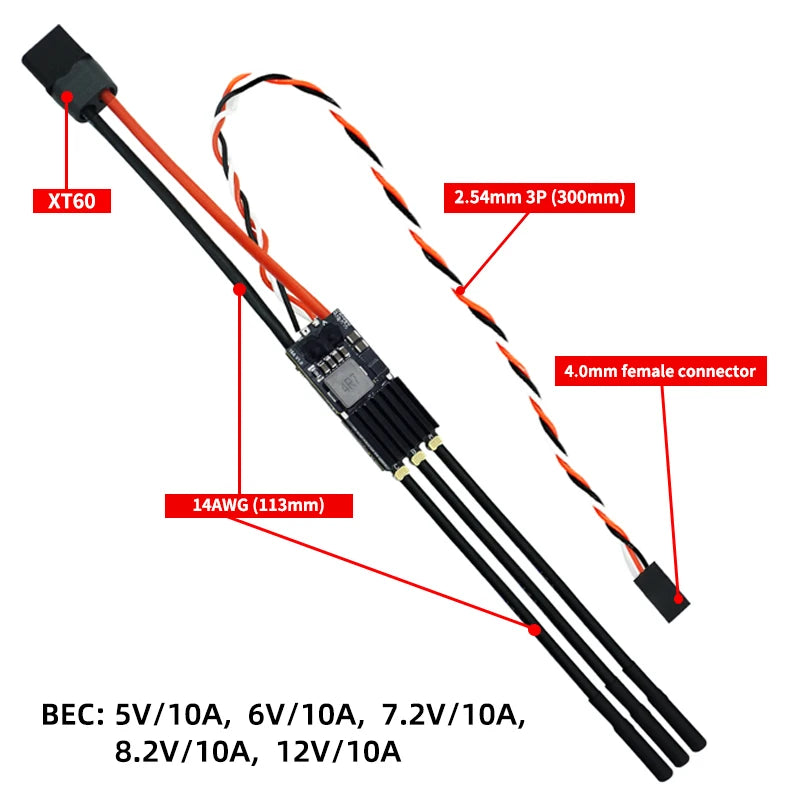

                                5V/10A6V/10A7.2V/10A8.2V/10A12V/10A adjustable

• Signal protocolDshot (All),PWM,Oneshot,Multishot,etc.

• Programming parameter adjustmentSupport

• Throttle calibrationSupport

• Timing angle settingSupport

• Current detectionSupport

• Telemetry signalSupport

• Motor steering settingsSupport

• RGB LED color lightsSupport

• Power cable(if any)14AWG

• Application scenariosSuitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, rock crawlers and Helicopter 500.
