YSUN-Defender-16 / Defender-20 F411 AIO 2-3S 20A Integrated Flight Control ESC STM32F411 MCU For FPV Drone

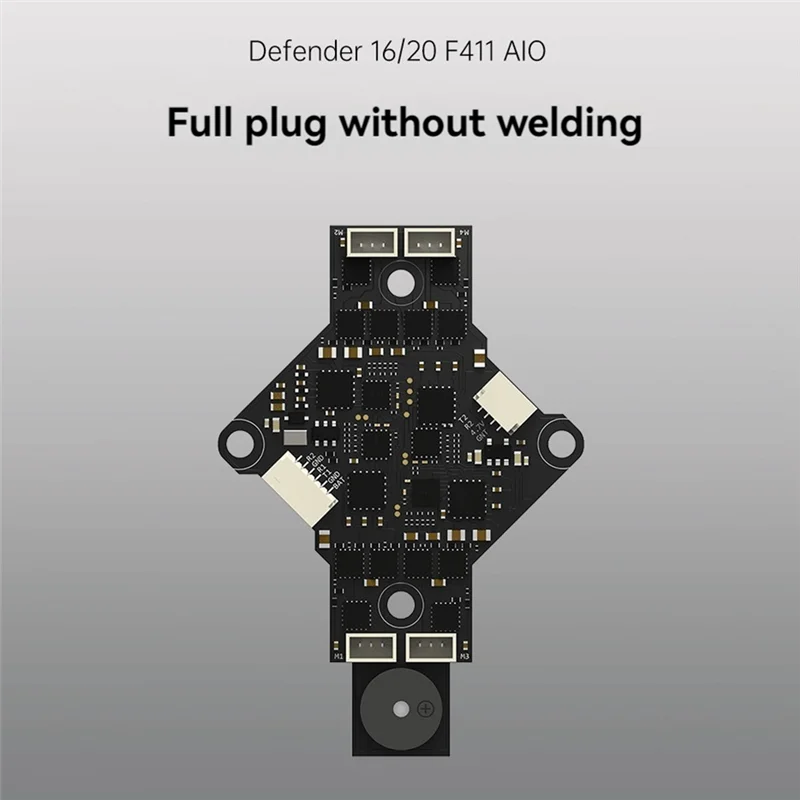

Full interface design does not require welding. Except for the power cord and BATLED line pad, all other devices are connected using interfaces
Supports image transmission switch function. The image transmission can be turned off by the switch during parameter adjustment to avoid automatic shutdown protection due to high temperature of the image transmission

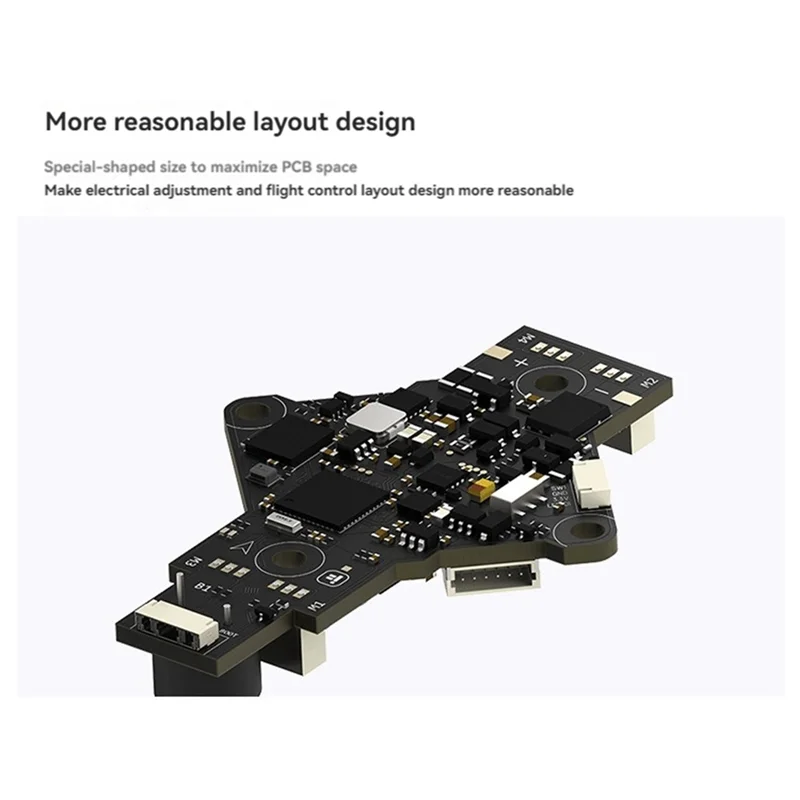

More reasonable electrical layout design. Special-shaped size, maximize the use of PCB space, make the layout design of the ESC and flight control more reasonable
Onboard buzzer. No external buzzer is required. Installation is more convenient
Built-in power on/off circuit. Cooperate with the power button board to control the power on/off function.

Flight control parameters
Master control STM32F411
Gyroscope ICM-42688
Barometer None
OSD: Only supports OSD transmitted by HD image transmission UART
Black box 16MB
Input voltage: 2-3S supports LIHV battery
LED light strip: Support
Flight control firmware IFLIGHT Defender_F411
ESC parameters
Master control: BB21
Driver: FD6288
Input voltage: 2-3S supports LIHV battery
Output current: 20A continuous
ESC firmware Q-H-50 - Bluejay, 0.16
Current sensor: Proportional 200 (1/10mV/A)
ESC BEC: None
Bidirectional DSHOT: Support
Drive signal support: DShot150/300/600, MultiShot, OneShot drive signal
Material: PCB
colour: black

Package Contents:
1 x F411 AIO
1 set x installation accessories

Only the above package content, other products are not included.
